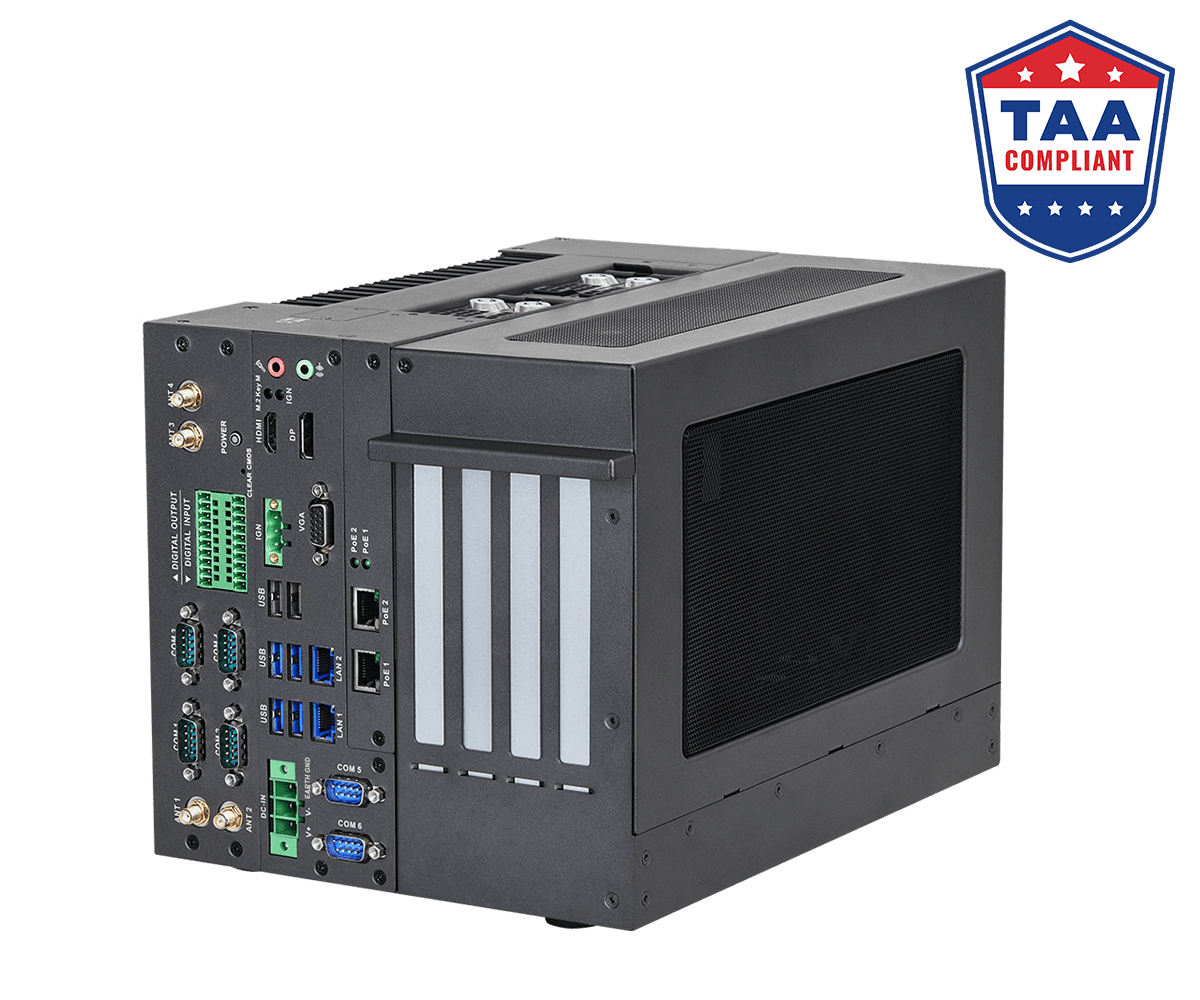

iEPF-9012S-EY4 Intelligent Edge Platform
- Intel® 12th Gen Core™ Processors with H610 Chipset
- 2 x 260-pin DDR4 SO-DIMM up to 64GB (32GB per DIMM)
- 1 x PCIe x16 (PCIe Gen4)
- 1 x M.2 Key B, 1 x M.2 Key E, 2 x Mini PCIe
- 2 x USB 3.2 Gen2x1, 2 x USB 3.2 Gen1x1, 2 x USB 2.0, 6 x COM, Up to 4 x SATA3 (Default 1 piece), 8 x DI, 8 x DO
- 4 x Intel 2.5G LAN (2 support PoE)
- 1 x Displayport, 1 x HDMI 2.0b, 1 x VGA
- Support Wireless Time-Sensitive Networking (WTSN)
- Powerful Edge AI acceleration enabled by the most flexible mechanical, thermal, and power design, with support for 275mm x 138 mm x 60 mm (D x H x W) max. and up to 300W graphic card
- Supported NVIDIA GPU: RTX 4000 Ada, RTX 2000 Ada, RTX A2000, A2
- TAA Compliant
Overview
-9010/P1.jpg)
-9010/P2.jpg)
-9010/P3.jpg)
-9010/Edge%20AIoT%20Developer%20Kit%20KV%20960x960.jpg)
-9010/case%20study.jpg)
-9010/Insight.tech%20Article.jpg)
-9010/Insight.tech%20Podcast.jpg)
Specification
Processor System
| CPU | Intel® 12th Gen Core™, Pentium or Celeron Processors |
|---|---|
| Chipset | Intel® H610 |
| Socket | LGA 1700 |
Memory
| Technology | Dual Channel DDR4 2933MHz |
|---|---|
| Capacity | 64 GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| DisplayPort | DisplayPort 1.4a , DP++ Max resolution up to 4096x2160@60Hz |
| VGA | Max resolution up to 1920x1200@60Hz |
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
Expansion Slot
| PCIe | 1 x PCIe Gen4 x16 , with default power cable can support up to 180W graphic card (275 mm x 113 mm x 60 mm (D x H x W),if remove the card holder, it can be limited on 275 mm x 138 mm x 60 mm) Graphic card can be up to 300W with optional VGA module |
|---|---|
| mini-PCIe | 1 x Full/Half size with PCIe Gen3 x1 and USB 2.0 1 x Full/Half size with PCIe Gen3 x1 |
| RF& Antenna | 8 x SMA connector hole reserved |
| M.2 | 1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1 and USB2.0 for Wi-Fi/BT module 1 x M.2 (Key B, 2280/3042/3052) with PCIe Gen3 x1 /USB2.0 for 4G / 5G |
| SIM Socket | 2 x Nano SIM Card slot (1 connected to Mini PCIe, 1 connected to M.2 Key B) |
Audio
| Interface | Realtek ALC897, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | 4 x Intel 2.5G LAN(2 support PoE, PoE output max.15.4W/port, each port supports IEEE 802.3AF PoE) |
|---|---|
| Connector | 4 x RJ45 |
Front I/O
| DisplayPort | 1 |
|---|---|
| HDMI | 1 |
| VGA | 1 |
| USB | 2 x USB 3.2 Gen2x1, 2 x USB 3.2 Gen1x1, 2 x USB 2.0, 1 x USB2.0 internal connector w/ lock function |
| Audio | 1 x Mic-in, 1 x Line-out |
| COM | 4 x RS232/422/485 (COM1, COM2- optional Card w/ Isolation Protection, COM5- Isolation Protection, COM6) 2 x RS232 (COM3, COM4) |
| DIO | 8DIs/8DOs |
| Ethernet | 4 x 2.5G LAN |
Storage
| SATA | 4 x SATA3 (6Gb/s) Accommodate up to 4 x 2.5" HDD/SSD Tray (Default 1 piece, additional HDD trays are available as optional parts for order) |
|---|---|
| CFast | 1 x Type II socket (Shared with SATA3) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 9V~36V VDC with Ignition control and remote power on/off switch. 80V Surge Protection, OVP, UVP, OCP and reverse protection Ignition Power Input w/ 13-mode condition |
|---|
Environment
| Operating Temp | 35W CPU: -40°C~75°C ( -40°F~167°F) 46W~65W CPU: -40°C~55°C ( -40°F~131°F) (with FAN inside, without Add-on Card) (w/ air flow 0.5~0.8 m/s) |
|---|---|
| Storage Temp | -40°C~85°C ( -40°F~185°F) |
| Humidity | ~95% @ 40°C (non-condensing) |
| Shock | Operating: 50 G, half sine 11ms duration with SSD (More stringent than MIL-STD-810H) |
| Vibration | Operating: 5 Grms, 5-500 Hz, 3 axes with SSD (More stringent than MIL-STD-810H) |
| ESD | Contact +/-4kV, Air +/-8kV |
| EMC | EN61000-6-4/-2, CE & FCC Class A |
| Safety | LVD |
Mechanical
| Construction | Aluminum heatsink + Metal chassis |
|---|---|
| Mounting | Desk Mount |
| Dimensions | 209.8mm (W) x 290.8mm (D) x 201.7mm (H) (8.26" x 11.45" x 7.94") |
| Weight | 10kg |
Others
| OS Support | Windows 10 & Linux |
|---|---|
| TPM | TPM 2.0 |
| Optional Items | If the system installs the 300W VGA-PWR Board, the VGA Power Output: VGA Loading <200W (with DC-IN +12V~+36V); VGA TDP<200W VGA Loading <350W (Peak) (with DC-IN +24V~+36V); VGA TDP<285W |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | Information | OS | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Description | Product End-of-Life (EOL) | Information | This product is End-of-Life (EOL). If you require the driver for this product, please click the Global or China link under "Download" to fill out a Technical Support request. Our technical support team will assist you shortly. |
OS | Date | 2026-08-06 | Download |
| Version | Update BIOS Under / How to Update | Description | Information | Date | Download |
|---|
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | Quick Installation Guide | Language | English | Date | 2022-09-29 | Download | |
| Description | User Manual | Language | English | Date | 2024-02-05 | Download |
| Description | Date | Download | |||
|---|---|---|---|---|---|
| Download | CPU Support List | Date | 2023-04-28 | Download |
Ordering Information
Ordering Information
| Model Name | Part Number | Description | |||
|---|---|---|---|---|---|
| Model Name | 90PPG280-10000000 | Part Number | iEPF-9012S-EY4 | Description | W/O CPU, RAM, SSD, ADAPTER |
