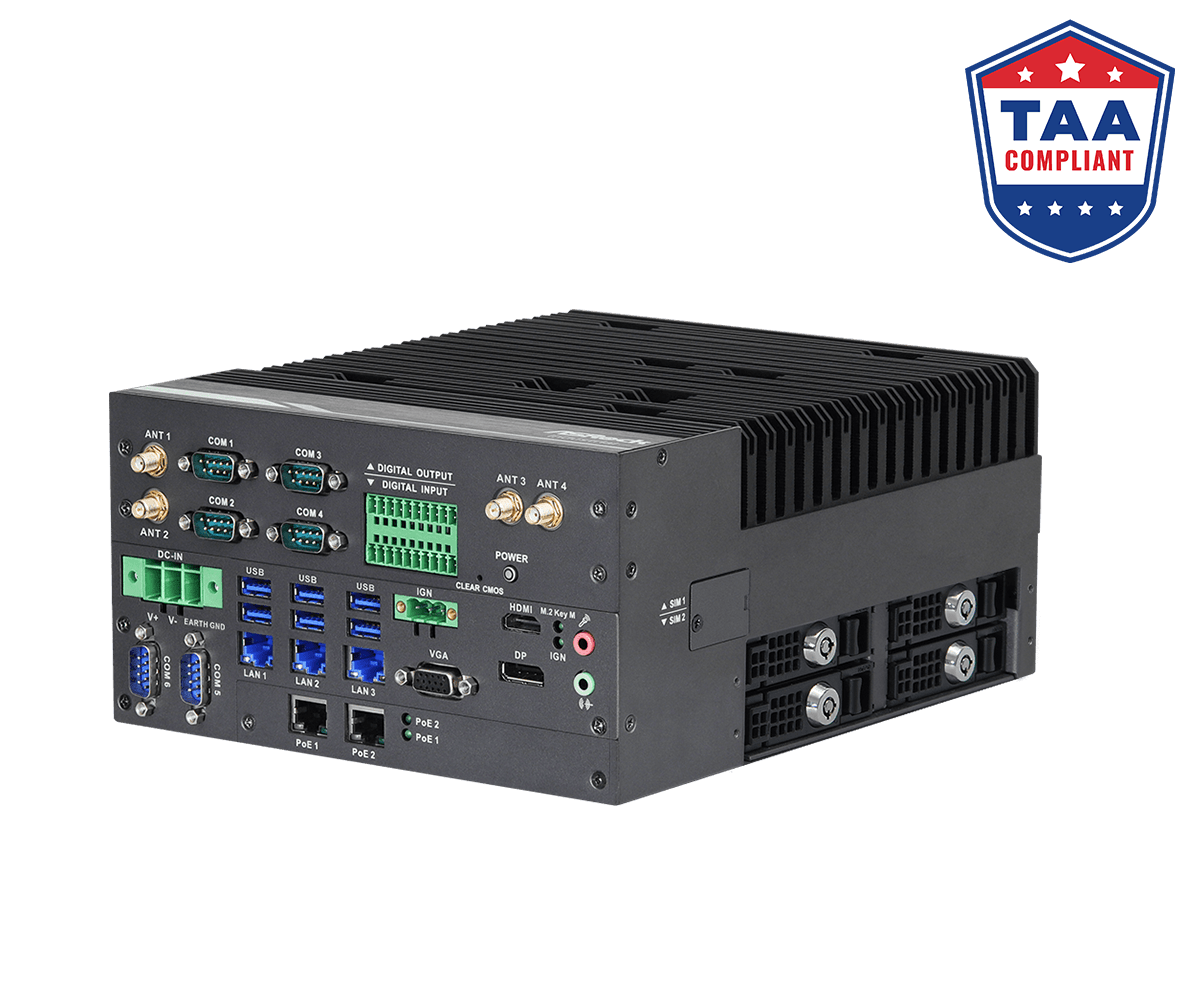

iEP-9020E Compact Edge AIoT Platform
- Intel® 13th Gen Core™ Processors with R680E Chipset
- 4 x 260-pin DDR4 SO-DIMM up to 128GB (32GB per DIMM)
- 1 x M.2 Key M, 1 x M.2 Key B, 1 x M.2 Key E, 2 x Mini PCIe
- 6 x USB 3.2 Gen2x1, 6 x C OM, Up to 4 x SATA3 (Default 1 piece), 8 x DI, 8 x DO
- 5 x Intel 2.5G LAN (2 support PoE, LAN 1 supports vPro)
- 1 x Displayport, 1 x HDMI 2.0b, 1 x VGA
- Support Wireless Time-Sensitive Networking (WTSN)
- TAA Compliant
Overview
-9020/iEP(F)-9020%20KV%201920x1080%20.jpg)
Specification
Processor System
| CPU | Intel® 13th Gen Core™ Processors |
|---|---|
| Chipset | Intel® R680E |
| Socket | LGA 1700 |
Memory
| Technology | Dual Channel DDR4 2933MHz (ECC memory supported by R680E + Selected CPU) |
|---|---|
| Capacity | 128 GB (32 GB per DIMM) |
| Socket | 4 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| DisplayPort | DisplayPort 1.4a , DP++ Max resolution up to 4096x2160@60Hz |
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| VGA | Max resolution up to 1920x1200@60Hz |
Expansion Slot
| mini-PCIe | 2 x Full/Half size with PCIe Gen3 x1 and USB 2.0 |
|---|---|
| RF& Antenna | 8 x SMA connector hole reserved |
| M.2 | 1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1 and USB2.0 for Wi-Fi/BT module 1 x M.2 (Key B, 2280/3042/3052) with PCIe Gen3 x1 / USB3.2 Gen1x1 ofr 4G / 5G |
| SIM Socket | 2 x Nano SIM Card slot (1 connected to Mini PCIe, 1 connected to M.2 Key B) |
Audio
| Interface | Realtek ALC897, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | 5 x Intel 2.5G LAN(2 support PoE, each port supports IEEE 802.3AF PoE, PoE output max.15.4W/port), (LAN 1 supports vPro) |
|---|---|
| Connector | 5 x RJ45 |
Front I/O
| DisplayPort | 1 |
|---|---|
| HDMI | 1 |
| VGA | 1 |
| Ethernet | 5 x 2.5G LAN |
| USB | 6 x USB 3.2 Gen2x1, 1 x USB2.0 internal connector w/ lock function |
| Audio | 1 x Mic-in, 1 x Line-out |
| COM | 4 x RS232/422/485 (COM1, COM2- optional Card w/ Isolation Protection, COM5- Isolation Protection, COM6) 2 x RS232 (COM3, COM4) |
| DIO | 8DIs/8DOs |
Storage
| M.2 | 1 x M.2 (Key M, 2280) with Gen4/Gen3 x4 for NVMe SSD |
|---|---|
| SATA | 4 x SATA3 (6Gb/s), support RAID 0/1/5/10 Accommodate up to 4 x 2.5" HDD/SSD Tray (Default 1 piece, additional HDD trays are available as optional parts for order) |
| CFast | 1 x Type II socket (Shared with SATA3) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 9V~36V VDC with Ignition control and remote power on/off switch. 80V Surge Protection, OVP, UVP, OCP and reverse protection Ignition Power Input w/ 13-mode condition |
|---|
Environment
| Operating Temp | 35W CPU: -40°C~70°C (-40°F~158°F) 46W~65W CPU: -40°C~50°C (-40°F~122°F) (w/ air flow 0.5~0.8 m/s) |
|---|---|
| Storage Temp | -40°C~85°C (-40°F~185°F) |
| Humidity | ~95% @ 40°C (non-condensing) |
| Shock | Operating: 50G, half sine 11ms duration with SSD (More stringent than MIL-STD-810H) |
| Vibration | Operating: 5 Grms, 5-500 Hz, 3 axes with SSD (More stringent than MIL-STD-810H) |
| ESD | Contact +/-4kV, Air +/-8kV |
| EMC | EN61000-6-4/-2, CE & FCC Class A |
| Safety | LVD |
Mechanical
| Construction | Aluminum heatsink + Metal chassis |
|---|---|
| Mounting | Desk Mount |
| Dimensions | 201.7mm (W) x 244.8mm (D) x 109.5mm (H) (7.94" x 9.64" x 4.31") |
| Weight | 6.5kg |
Others
| OS Support | Windows 10 & Linux |
|---|---|
| TPM | TPM 2.0 |
| Real-Time Enablement | TSN, TCC support under YOCTO |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | Information | OS | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Description | Product End-of-Life (EOL) | Information | This product is End-of-Life (EOL). If you require the driver for this product, please click the Global or China link under "Download" to fill out a Technical Support request. Our technical support team will assist you shortly. |
OS | Date | 2026-08-06 | Download |
| Version | Update BIOS Under / How to Update | Description | Information | Date | Download |
|---|
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | User Manual | Language | English | Date | 2024-02-05 | Download | |
| Description | Quick Installation Guide | Language | English | Date | 2023-04-11 | Download |
| Description | Date | Download | |||
|---|---|---|---|---|---|
| Download | CPU Support List | Date | 2023-08-17 | Download |
Ordering Information
Ordering Information
| Model Name | Part Number | Description | |||
|---|---|---|---|---|---|
| Model Name | 90PPG220-29000000 | Part Number | iEP-9020E | Description | W/O CPU,RAM,SSD,ADAPTER |
| Model Name | 90PPG220-22110000 | Part Number | iEP-9020E-HOTSKU | Description | Intel i7-13700E CPU, Wide Temperature DDR4 3200MHz SODIMM 16GB 260P running on 2933MHz x2, Wide Temperature M.2 2280 PCIE Gen3x4 SSD 256GB x1, W/O Adapter |
