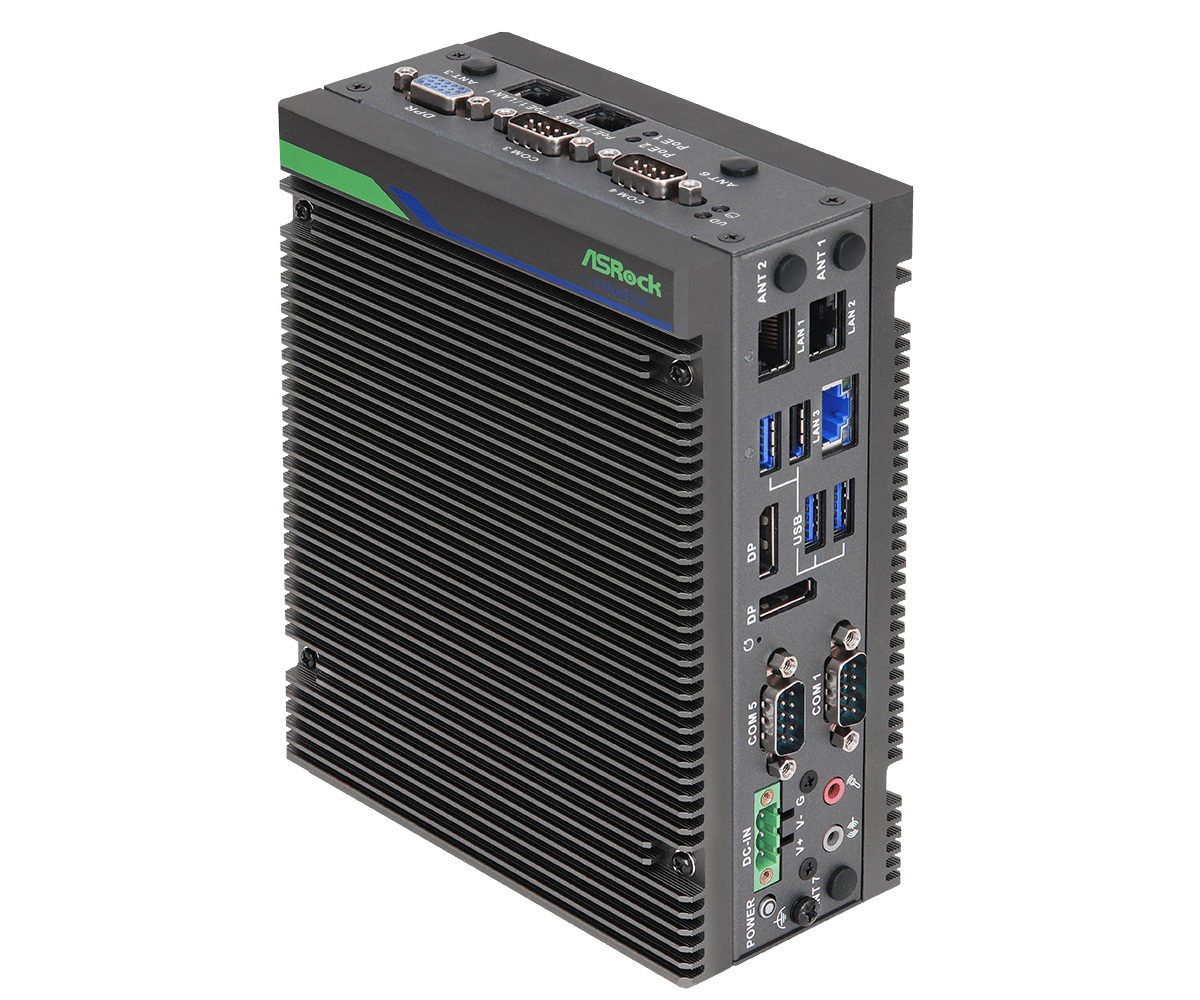

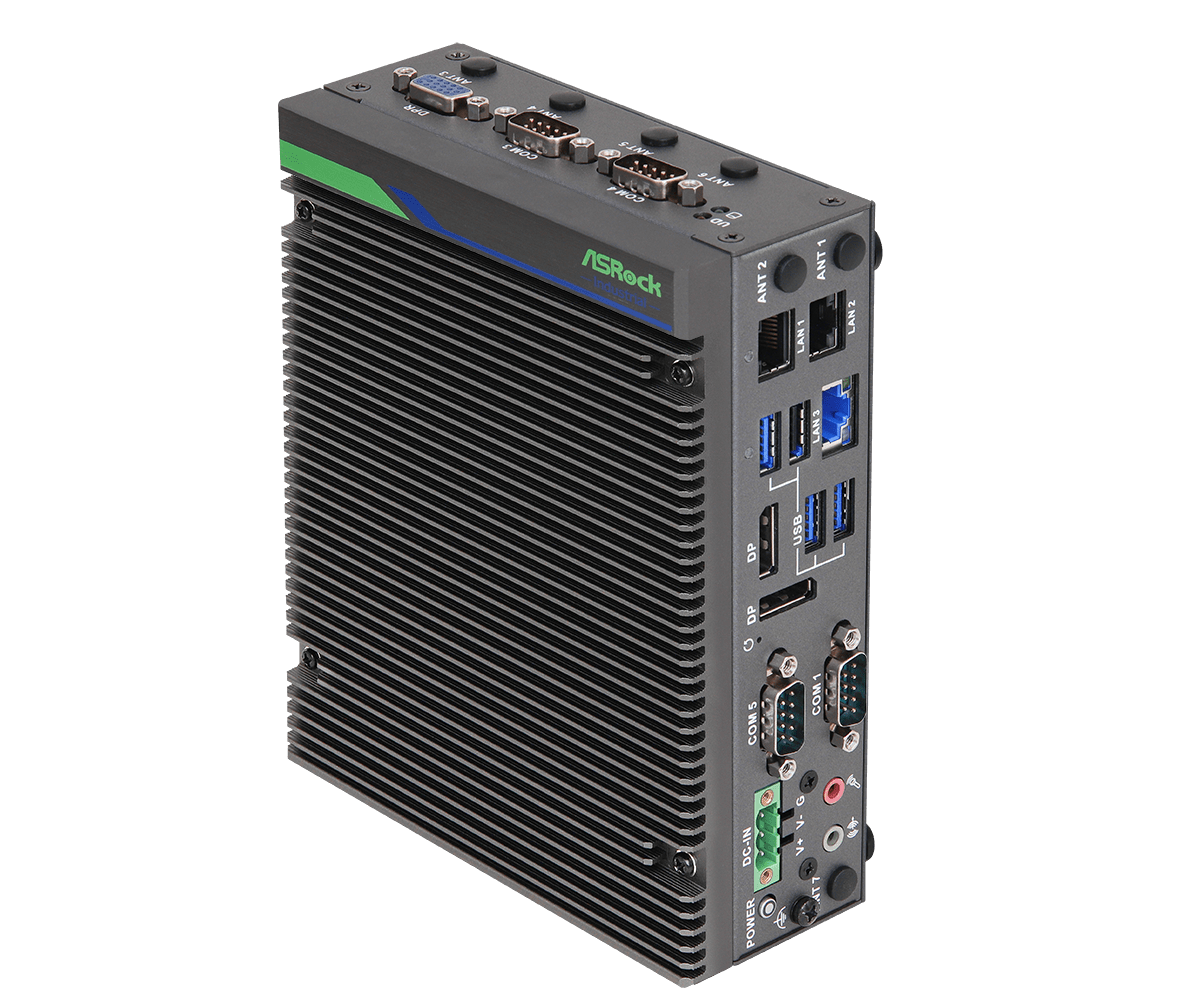

iEP-7020E Series Industrial IoT Controller

Processor System

CPU	iEP-7020E Series : Intel® Core™ i7-1365URE, 10C, 1.70GHz, 15W iEP-7021E Series : Intel® Core™ i5-1345URE, 10C, 1.40GHJz, 15W iEP-7022E Series :Intel® Core™ i7-1370PRE, 14C, 1.90GHz, 28W iEP-7023E Series : Intel® Core™ i5-1350PRE, 12C, 1.80GHz, 28W
BIOS	AMI SPI 256 Mbit
Chipset	MCP

Memory

Technology	Dual Channel DDR4 3200 MHz
Capacity	Up to 64GB
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® Iris® Xe Graphics
DisplayPort	2 x DisplayPort 1.4a, DP++ (Max resolution up to 4096x2160@60Hz)

Expansion Slot

M.2	1 x M.2 2280/3042/3052 Key B (PCIe Gen3x1/USB3.2 mode) - Support 4G LTE/5G module - Support SATA3 SSD storage for Basic SKU 1 x M.2 2230/2260 Key E (CNVi/PCIe Gen3x1/USB2.0 mode) - Support Wifi/BT module
RF& Antenna (Option)	7 x SMA connector hole reserved, support for Basic/5G SKU 5 x SMA connector hole reserved, support for PoE/5LAN SKU

Audio

Interface	Realtek ALC897, High Definition Audio

Ethernet

Controller/ Speed	LAN1: Intel® I226IT with 10/100/1000/2500 Mbps, supports TSN/TCC, Intel vPro® Enterprise LAN2/LAN3: Intel® I226IT with 10/100/1000/2500 Mbps LAN4/LAN5: Intel® I210AT with 10/100/1000 Mbps (For 5LAN SKU) PoE1/PoE2: Intel® I210AT. PoE output max.15.4W/port, each port supports IEEE 802.3AF PoE. (For PoE SKU)
Connector	RJ45

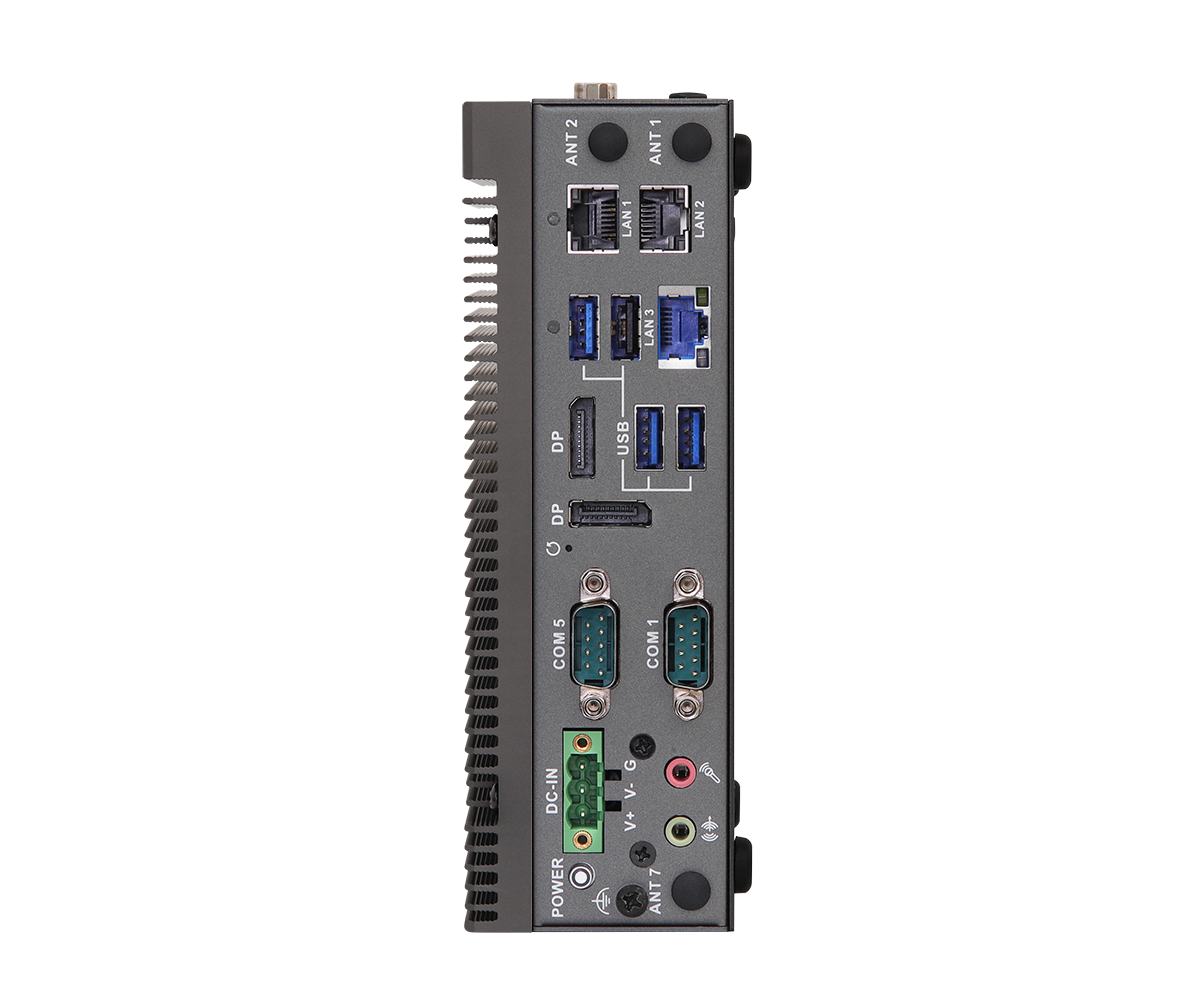

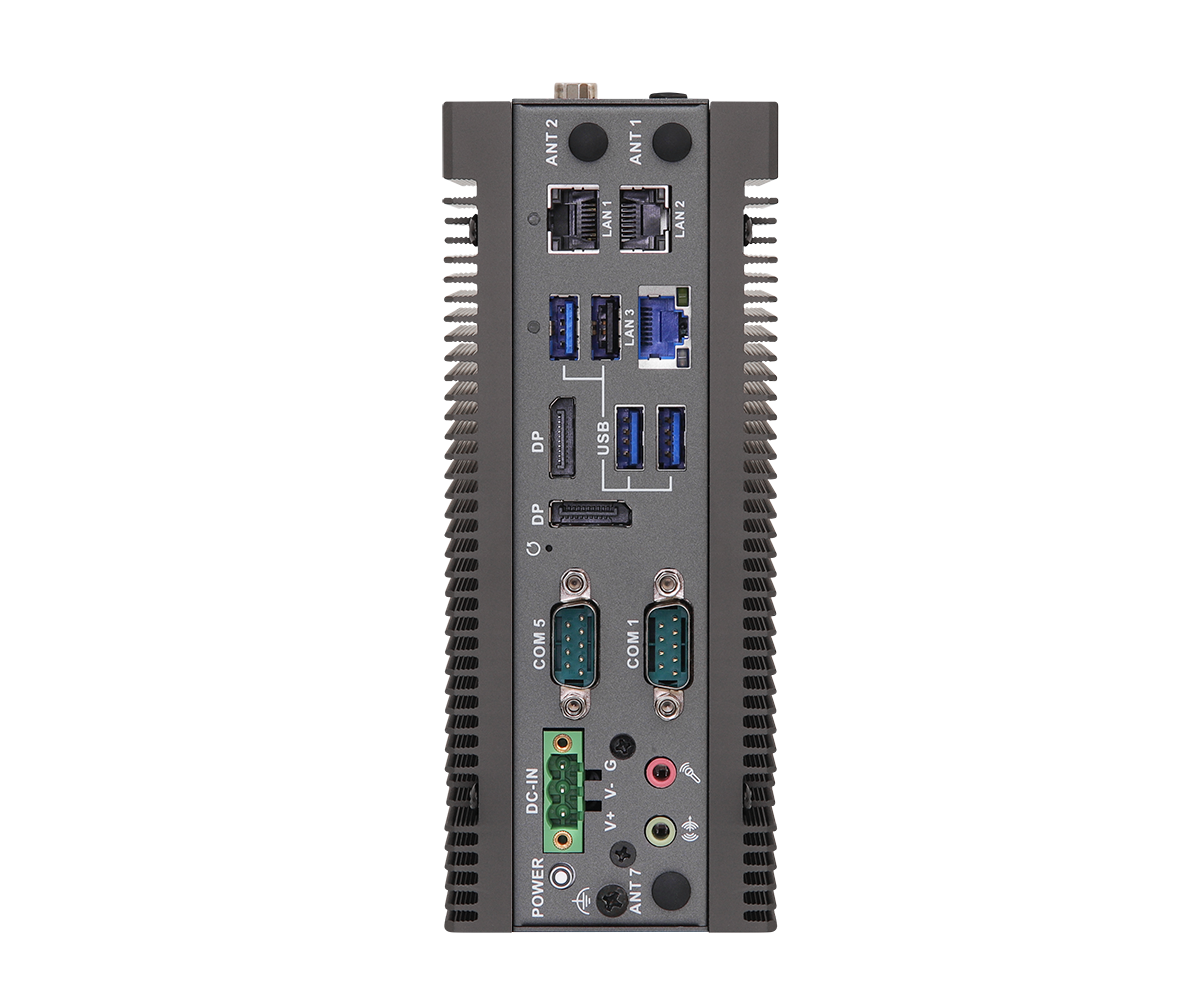

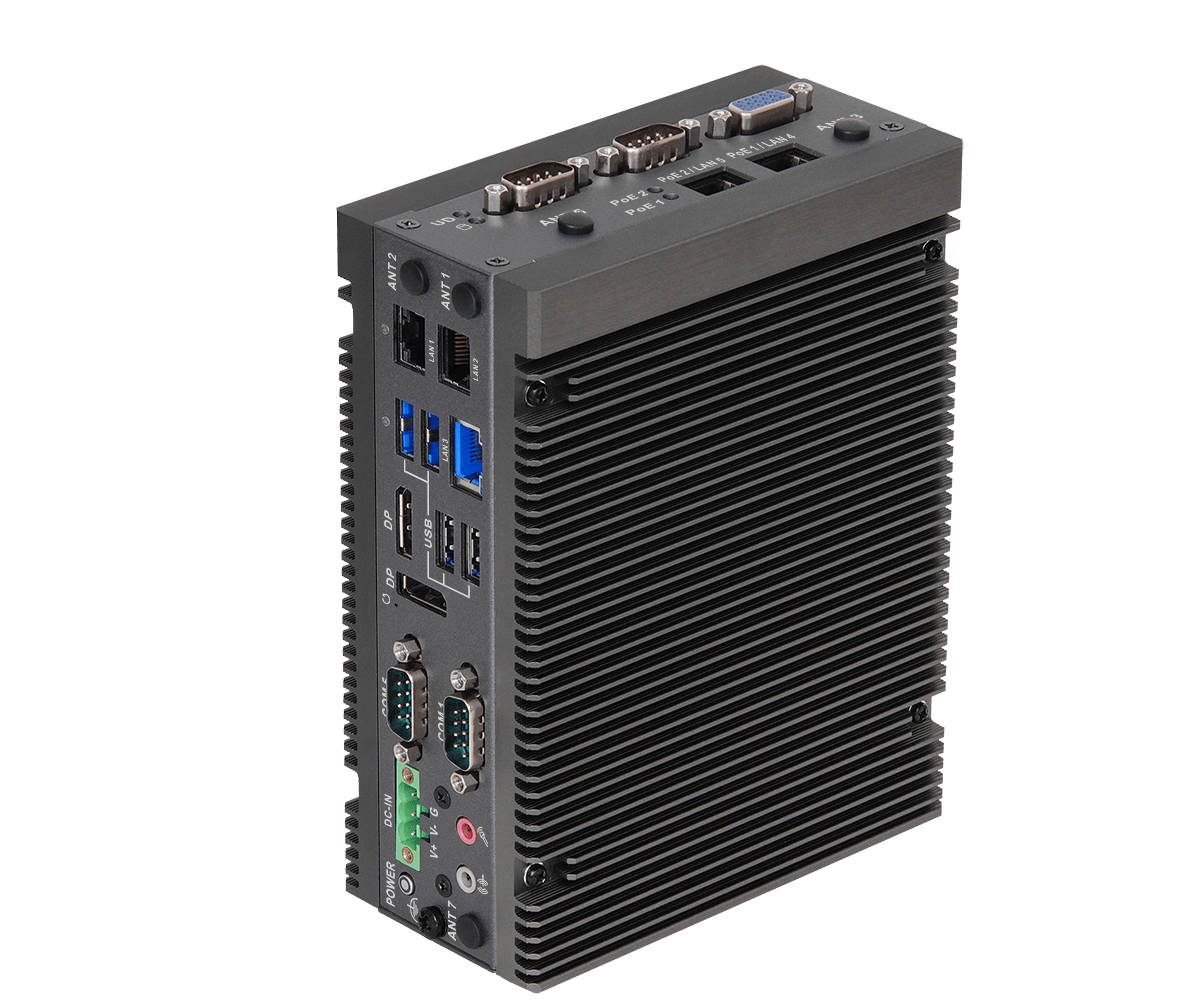

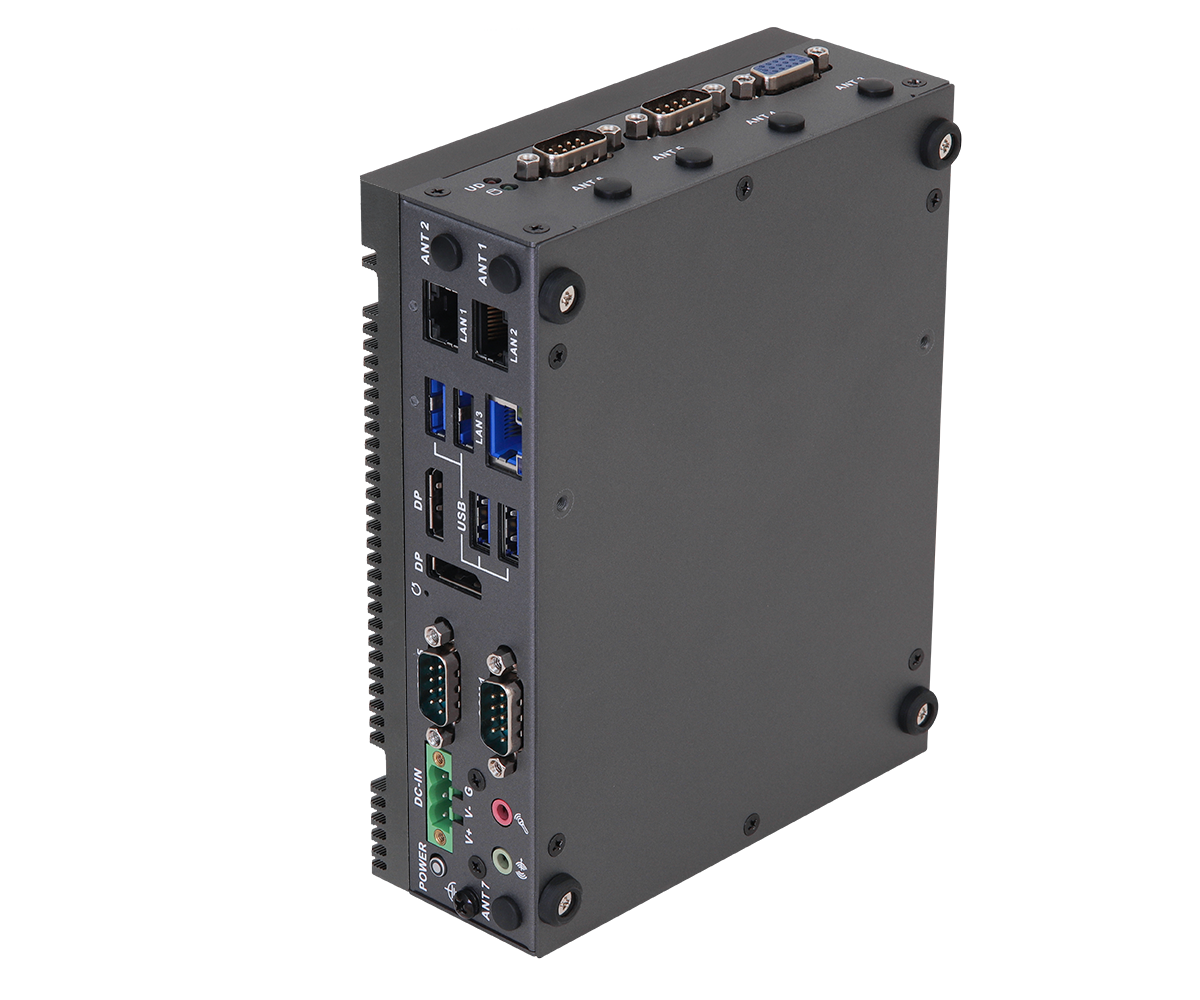

Front I/O

Audio	1 x Mic-in 1 x Line-out
COM	2 x RS-232/422/485
Ethernet	3 x 2.5G LAN
DisplayPort	2 x DP++ 1.4a
USB	3 x USB 3.2 Gen2x1 1 x USB 2.0
LED	2 x Diagnostic LED
DC-IN	1 x 3-pin Phoenix type
Reset Button	1
Power Button	1 (with LED)

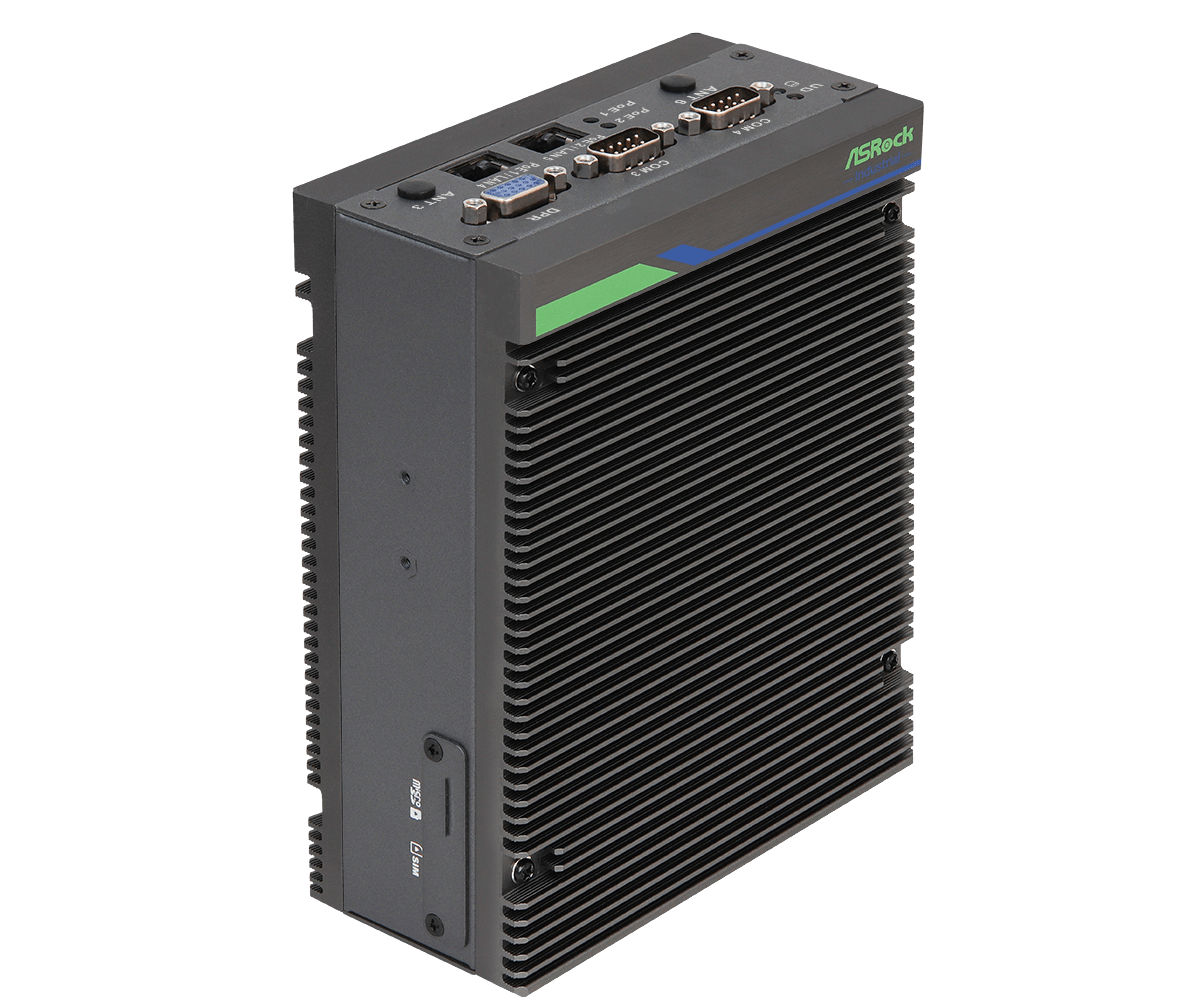

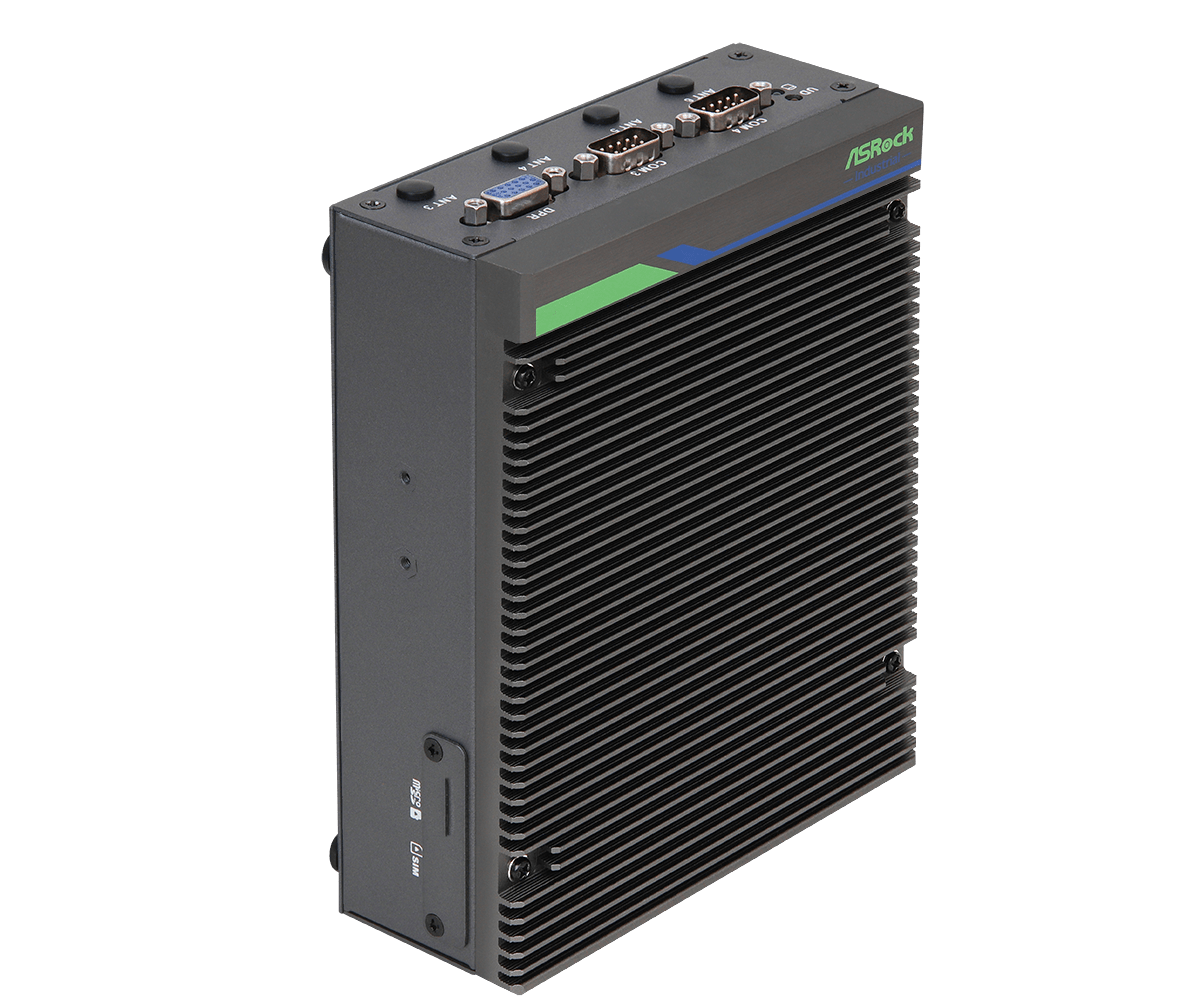

Rear I/O

SIM Card	1 x Nano SIM Card slot
Micro SD Card	1 x Micro SD card slot (Support SD specification v3.0 UHS-I: SDR25/SDR50)

Manageability / Security

Manageability	Intel® In-Band Manageability
Security	TPM2.0

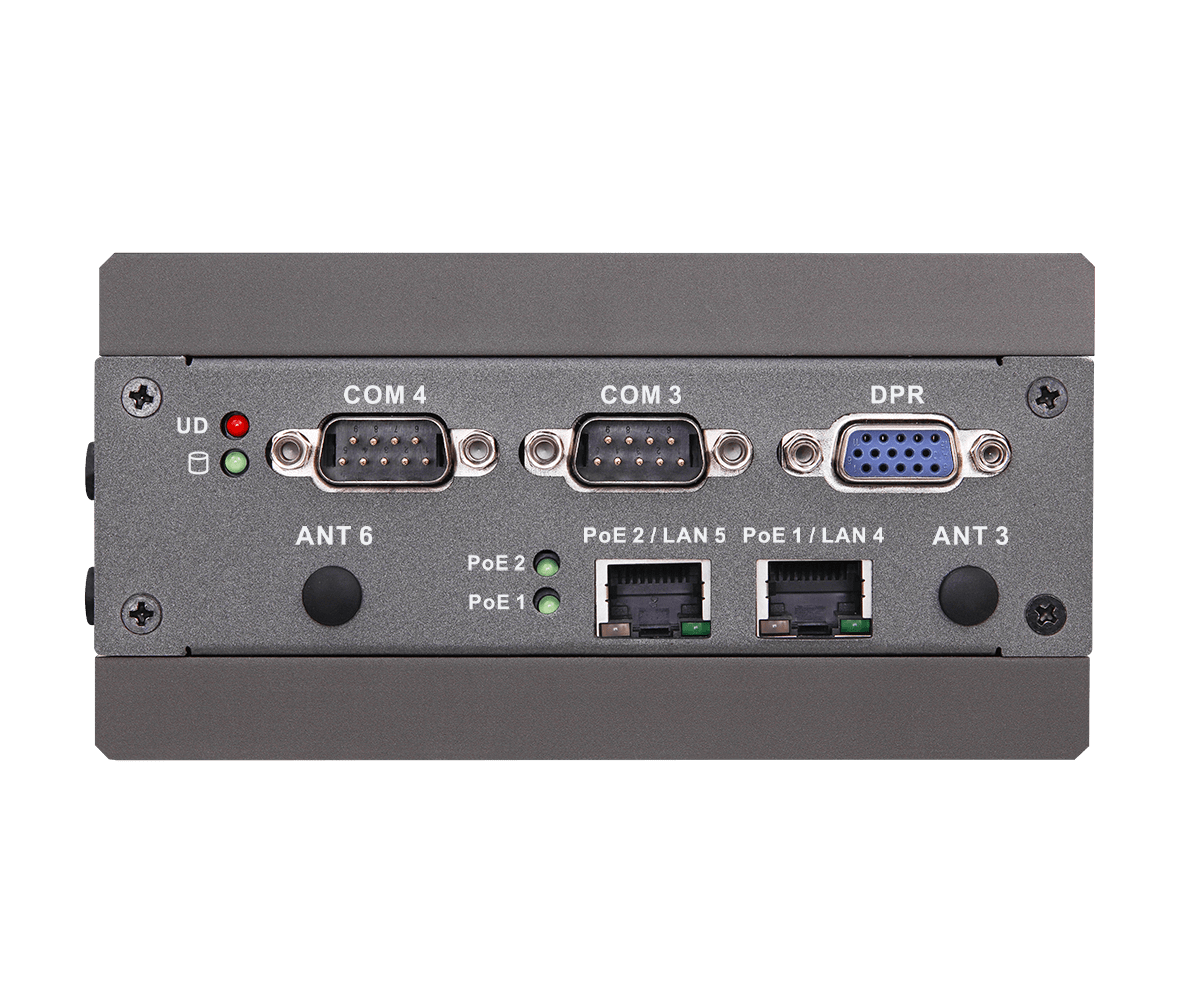

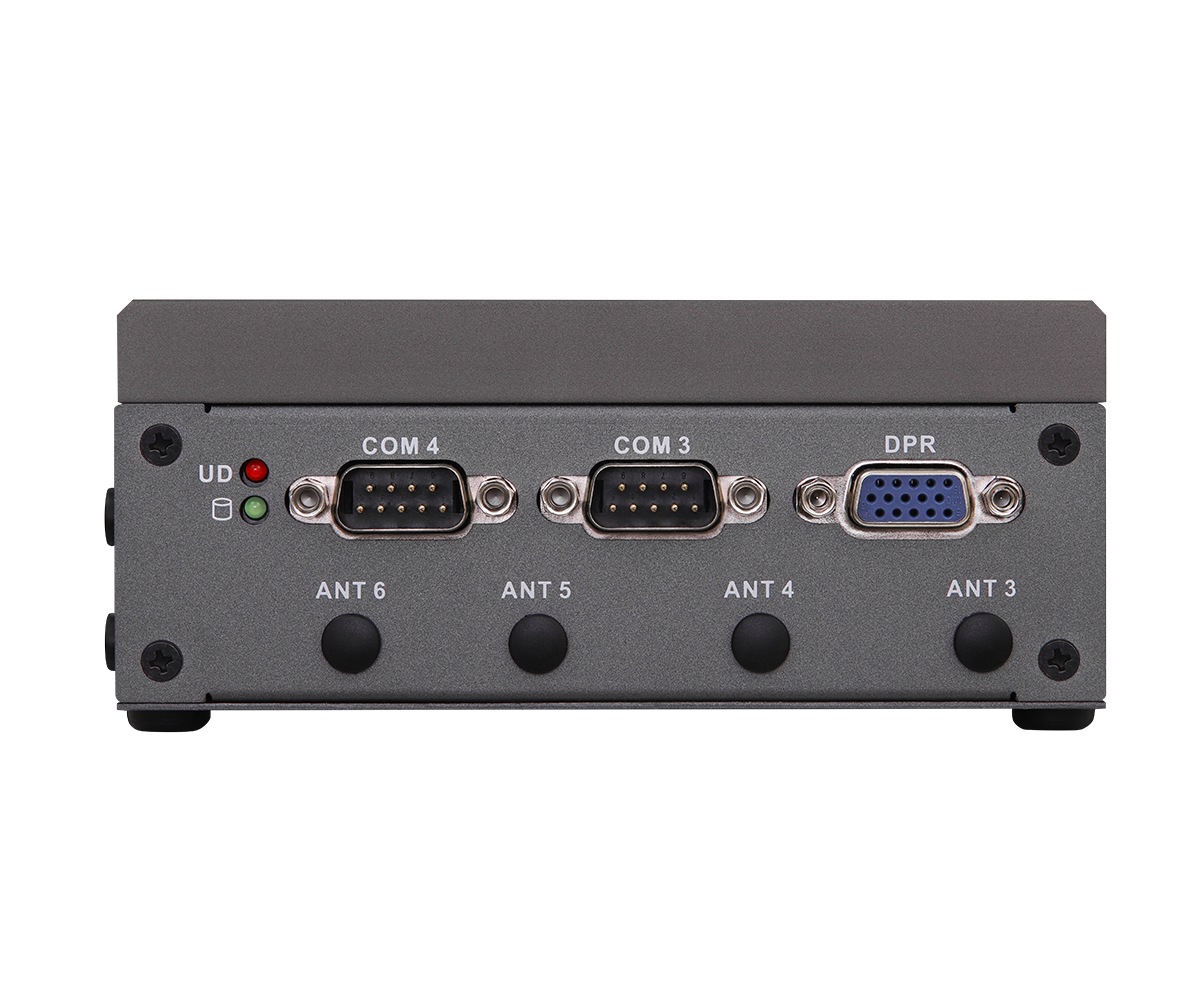

Top I/O

COM	2 x RS-232/422/485
Digital I/O	1 x 4DIs/4DOs, Power on and Reset (15-pin D-sub connector)
Ethernet	2 x 1G LAN for 5LAN SKU only
PoE	2 x 1G LAN, support IEEE 802.3AF for POE SKU only
LED	2 x PoE LED for POE SKU only

Storage

M.2	1 x M.2 2280 Key M (PCIe Gen4 x4)
SATA	1 x 2.5" SATA3 SSD (6Gb/s) for Basic SKU (By request)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

DC Input	For Basic/5LAN/5G SKU : 1 x 3-pin phoenix type for 9 to 36V DC input For PoE SKU : 1 x 3-pin phoenix type for 19 to 36V DC input OVP, UVP, OCP, plus 80V surge protection
AC to DC Adaptor (Option)	Adapter 120W for Basic/5LAN/5G SKU - AC input 100-240Vac, 1.8A 50-60Hz, DC output 19V, 6.32A, Adapter 330W for PoE SKU only - AC input 100-240Vac, 4.2A 50-60Hz, DC output 24V, 13.75A

Environment

Operating Temp	15W CPU: - For Basic/5LAN-WIFI SKU : -40°C~70°C (-40°F~158°F) - For 5G/5LAN-5G SKU with 4G LTE module : -40°C~60°C (-40°F~140°F) - For 5G/5LAN-5G SKU with 5G module : -40°C~55°C (-40°F~131°F) - For PoE SKU : -40°C~50°C (-40°F~122°F) 28W CPU: - For all SKU : -40°C~50°C (-40°F~122°F) (with airflow 0.5~0.8m/s)
Storage Temp	-40°C ~ 85°C (-40°F~185°F)
Humidity	~95% @ 40°C (non-condensing)

Mechanical

Construction	Aluminum
Dimensions (L x W x H)	For Basic SKU : 55 x 170 x 134 mm For PoE/5LAN/5G SKU : 68 x 170 x 134 mm
Mounting (Option)	For Basic SKU : DIN-Rail, Wall Mount, VESA Mount For PoE/5LAN/5G SKU: Wall mount, Din Rail
Net Weight	Basic SKU : 1.57 kg PoE SKU : 2.37kg 5LAN SKU : 2.27g

Standards and Certifications

Safety	EN 62368-1 (LVD)
EMC	EN 61000-6-2/-6-4 (CE) FCC Part 15B Class A
EMS	IEC 61000-4-2, ESD protection Level 4 : Contact +/-8 KV, Air +/-15
Shock	IEC 60068-2-27, Operating 100 G, half sine 11 ms duration with SSD
Vibration	IEC 60068-2-64, Operating: 5 Grms, 5-500 Hz, 3 axes with SSD
OS	Red Hat Enterprise Linux 9.2 - 9.x

Others

OS Support	Windows 10, Liunux
Real-Time Enablement	TSN, TCC support under Linux
Packing List	3 x M2*2 Screw Package 4 x Sink for Memory 1 x Sink for M.2 2280 support 1 x 3-pin phoenix connector 1 x System QIG

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

• Drivers
• BIOS
• Manual

Ordering Information

Model Name	Part Number	Description
Model Name	90PXG9E0-00000000	Part Number	iEP-7020E-010	Description	Basic SKU CPU : Intel Core i7-1365URE Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
Model Name	90PXG9E0-10000000	Part Number	iEP-7020E-011	Description	PoE SKU CPU : Intel Core i7-1365URE Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -40~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
Model Name	90PXGBX0-01000000	Part Number	iEP-7021E-010	Description	Basic SKU CPU : Intel Core i5-1345URE Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
Model Name	90PXGBX0-11000000	Part Number	iEP-7021E-011	Description	PoE SKU CPU : Intel Core i5-1345URE Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -40~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
Model Name	90PXGBV0-02000000	Part Number	iEP-7022E-010	Description	Basic SKU CPU : Intel Core i7-1370PRE Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -40~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
Model Name	90PXGBV0-12000000	Part Number	iEP-7022E-011	Description	PoE SKU CPU : Intel Core i7-1370PRE Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -40~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
Model Name	90PXGBW0-03000000	Part Number	iEP-7023E-010	Description	Basic SKU CPU : Intel Core i5-1350PRE Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -40~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
Model Name	90PXGBW0-13000000	Part Number	iEP-7023E-011	Description	PoE SKU CPU : Intel Core i5-1350PRE Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -40~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
