iBOX-J6412 Fanless Embedded BOX PC
- Intel® ElkHart Lake SoC Processors J6412
- 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB (16GB per DIMM)
- 4 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x SATA3
- 2 x Realtek 1 Gigabit LAN
- Supports Dual display, 1 x HDMI 2.0b, 1 x DP 1.2
- TPM 2.0 onboard IC
- 19V/65W Power Adapter
- 135 x 110 x 44.5mm (5.31" x 4.33" x 1.75"), Fanless Embedded BOX PC
Overview
Specification
Processor System
| CPU | Intel® ElkHart Lake SoC Processors iBOX-J6412 (J6412, QC, Max Speed up to 2.6GHz, 10W) |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
Memory
| Technology | Dual Channel DDR4 3200 MHz |
|---|---|
| Capacity | 32GB (16 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® Gen 11 Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.2, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Dual-Display |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 |
|---|
Audio
| Interface | Realtek ALC233, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | Realtek RTL8111G-CG/RTL8111H-CG with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

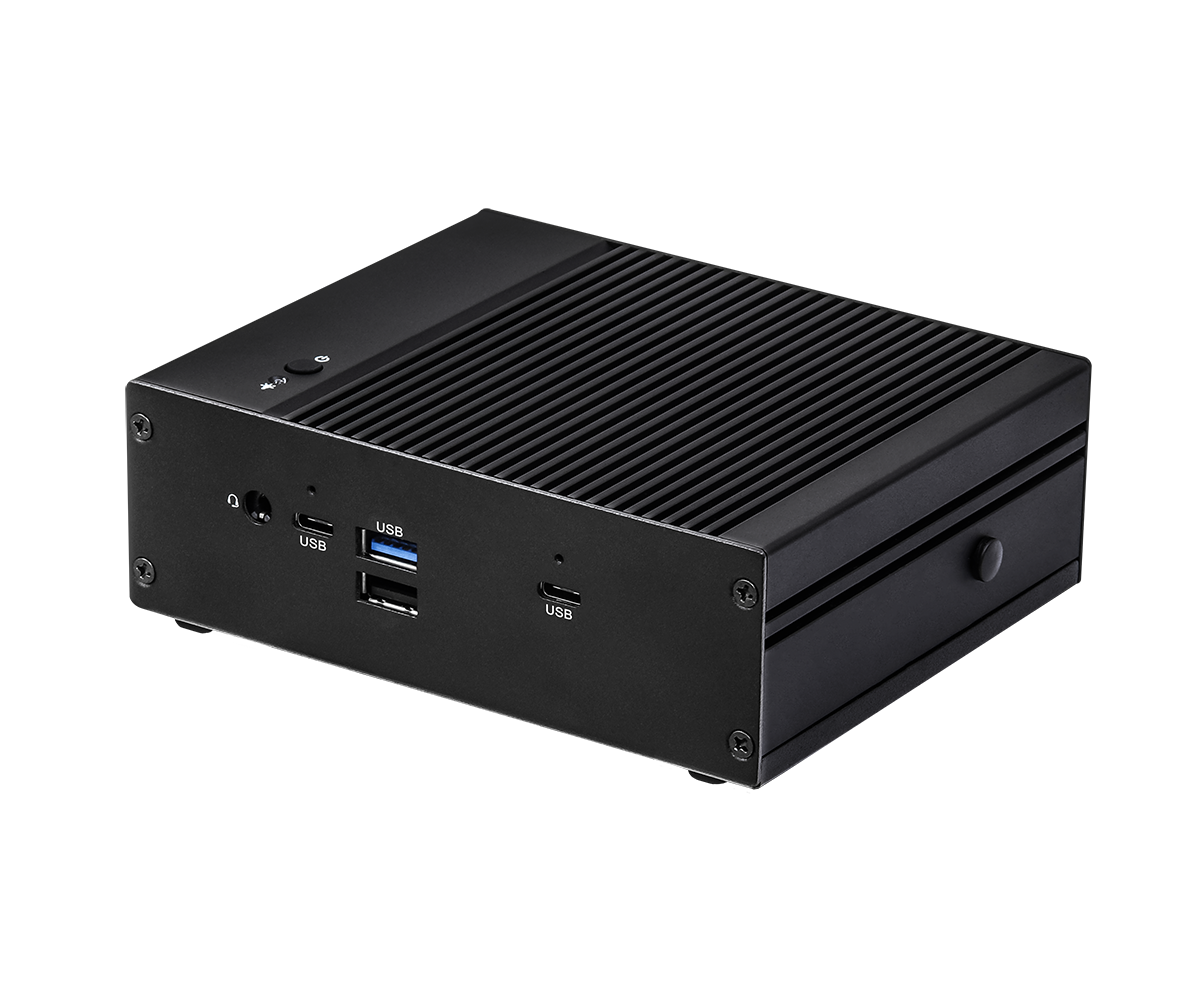

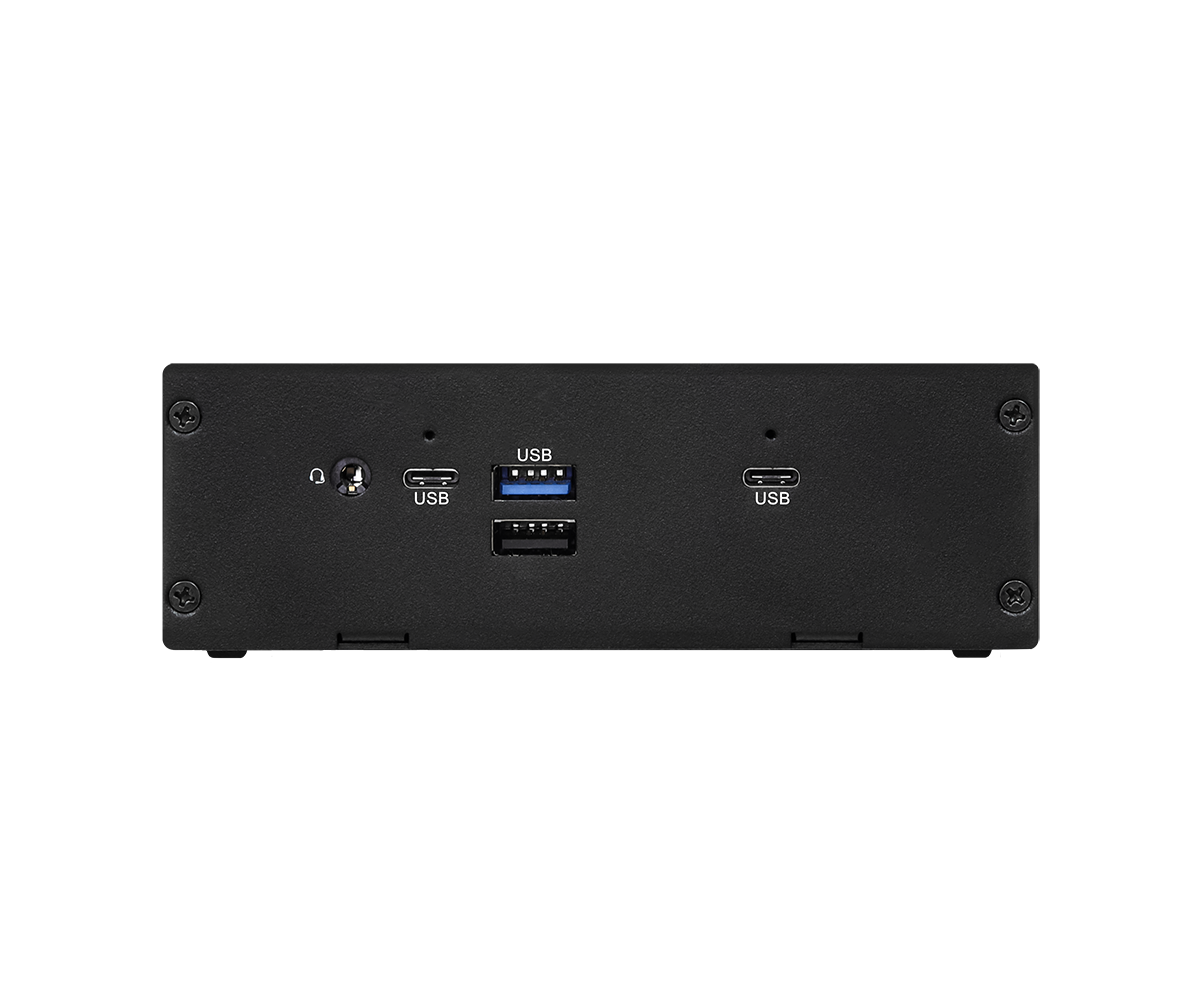

Front I/O
| USB | 1 x USB 3.2 Gen2 (Type-A) 2 x USB 3.2 Gen2 (Type-C) 1 x USB 2.0 |
|---|---|
| Audio | 1 (headphone & microphone jack) |

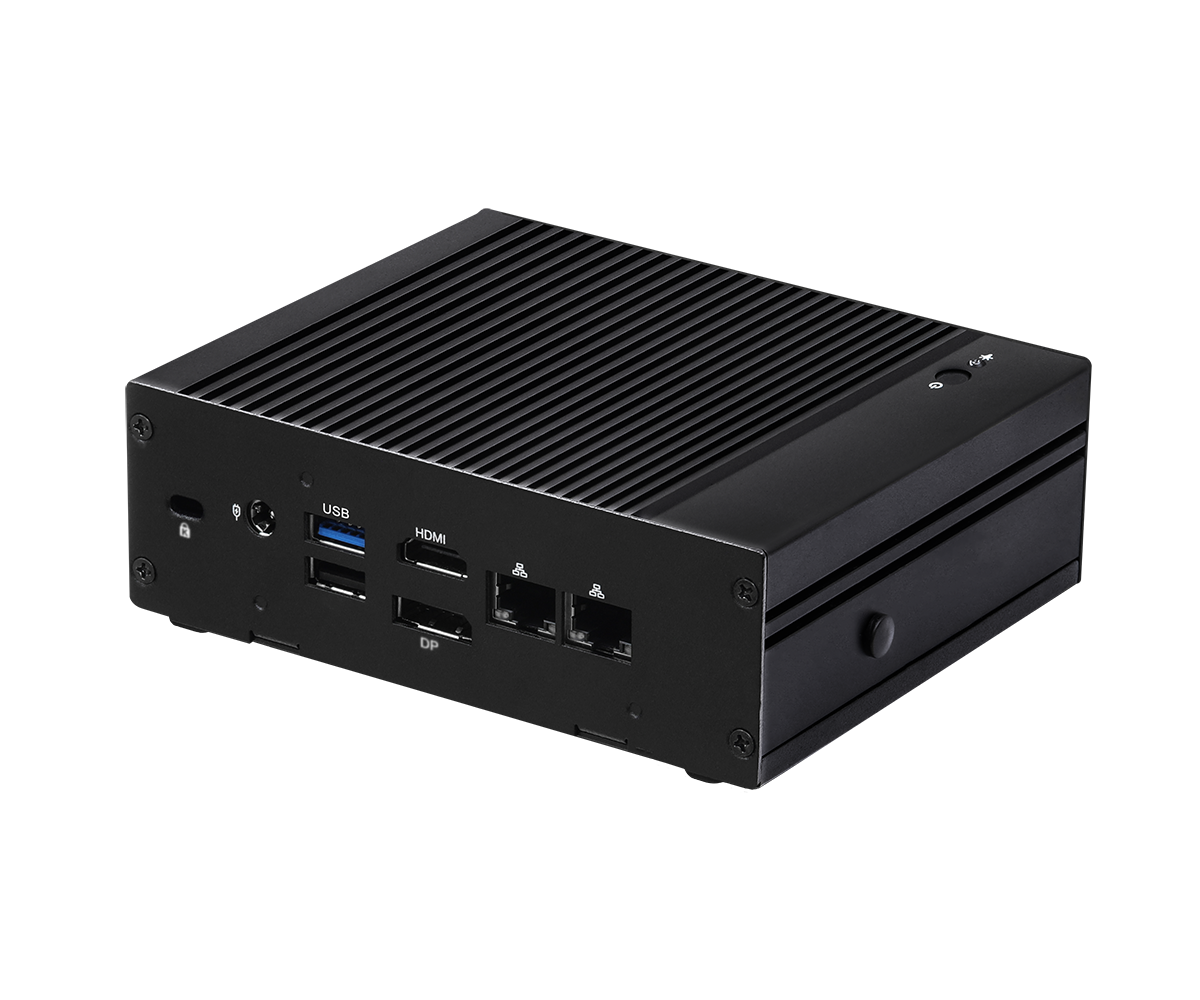

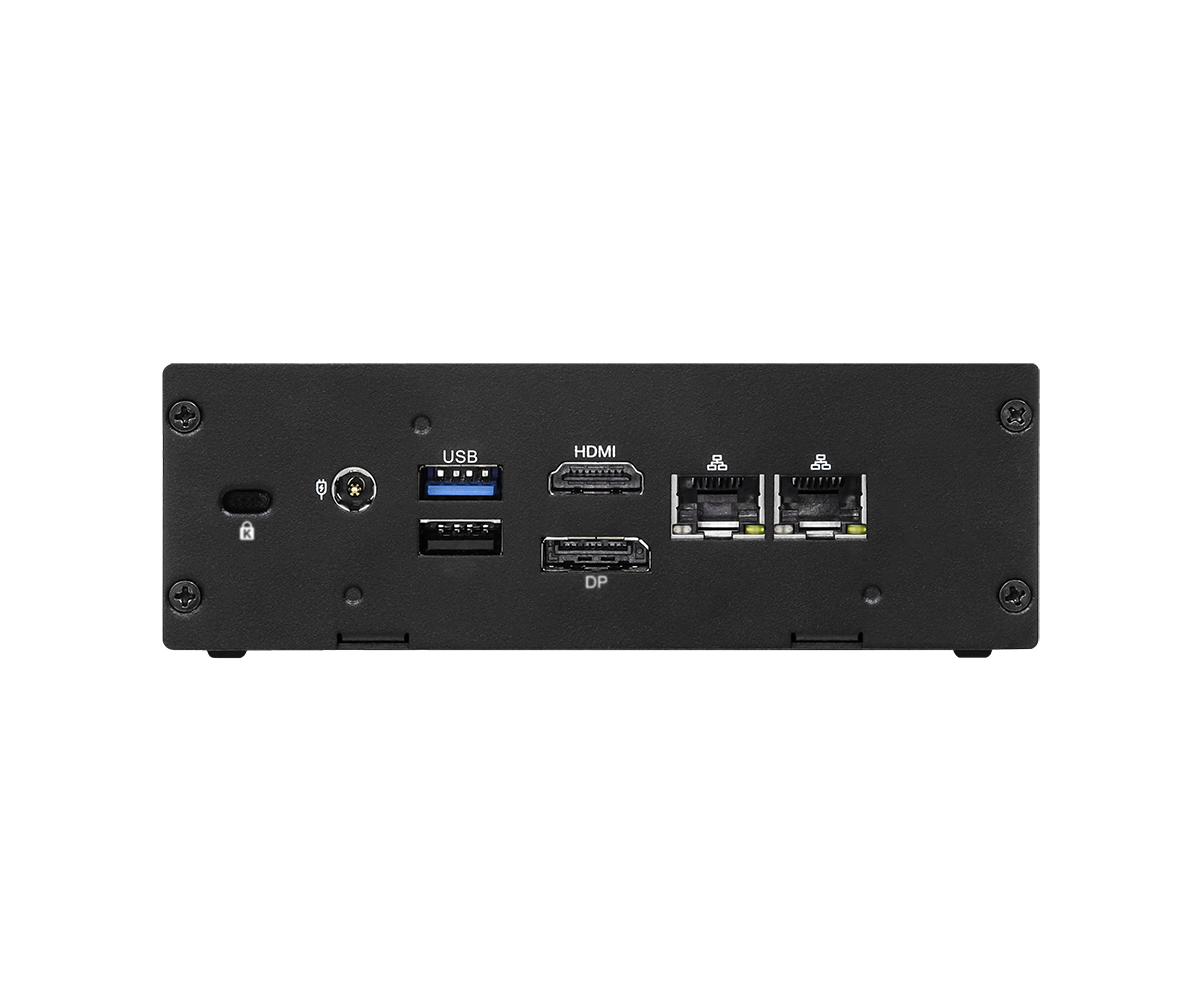

Rear I/O
| HDMI | 1 x HDMI 2.0b |
|---|---|
| DisplayPort | 1 x DP 1.2 |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 1 x USB 2.0 1 x USB 3.2 Gen2 (Type-A) |
| DC Jack | 1 |
Storage
| M.2 | 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD *M.2 Key M 2280(Supported by bracket) |
|---|---|
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 1 x 19V/65W Power Adapter |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 50ºC (With extended temp. peripherals) |
|---|---|
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Mechanical
| Construction | Aluminum housing |
|---|---|
| Mounting | VESA mount/Wall mount/Din-rail |
| Dimensions (L x W x H) | 135 x 110 x 44.5mm (5.31" x 4.33" x 1.75") |
| Weight | Net Weight: 0.7kg |
Others
| OS Support | Windows 10/11 |
|---|---|
| Certifications | CE, FCC |
| Packing List | 1 x 19V/65W Power Adapter 1 x Wall mounting kit |
| TPM | TPM 2.0 onboard IC |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | Information | OS | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Description | Realtek high definition ALC 233 / 256 audio driver ver:9471.1 | Information | Size: 39Mib |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2024-03-20 | Download | |
| Description | Realtek Teaming driver ver:2.0.4.0 | Information | OS | Win 11 x 64 | Date | 2022-12-08 | Download | ||
| Description | Realtek Lan driver ver:10047_02232021 | Information | OS | Win 11 x 64 | Date | 2022-12-08 | Download | ||
| Description | INF driver ver:10.1.18634.8254_Public | Information | OS | Win 11 x 64 | Date | 2022-12-08 | Download | ||
| Description | Intel Management Engine driver ver:15.40.10.2252_PV_SW_DCH | Information | OS | Win 11 x 64 | Date | 2022-12-08 | Download | ||
| Description | VGA Driver ver:27.20.100.9079.2 | Information | OS | Win 11 x 64 | Date | 2022-12-08 | Download | ||
| Description | Intel Serial IO driver ver:5.123.1.1023 | Information | OS | Win 11 x 64 | Date | 2022-12-08 | Download | ||
| Description | Intel Serial IO driver ver:5.123.1.1023 | Information | OS | Win 10 x 64 | Date | 2022-06-06 | Download | ||
| Description | VGA Driver ver:27.20.100.9079.2 | Information | OS | Win 10 x 64 | Date | 2021-08-23 | Download | ||
| Description | Intel Management Engine driver ver:15.40.10.2252_PV_SW_DCH | Information | OS | Win 10 x 64 | Date | 2021-08-23 | Download | ||
| Description | INF driver ver:10.1.18634.8254_Public | Information | OS | Win 10 x 64 | Date | 2021-08-23 | Download | ||
| Description | Realtek Lan driver ver:10047_02232021 | Information | OS | Win 10 x 64 | Date | 2021-08-23 | Download | ||
| Description | Realtek Teaming driver ver:2.0.4.0 | Information | OS | Win 10 x 64 | Date | 2021-08-23 | Download |
| Version | Update BIOS Under / How to Update | Description | Information | Date | Download | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Version | 2.00 | Update BIOS Under / How to Update | BIOS | Description | Update Intel ME version | Information | Size: 5664 KiB SHA1: CECAB82C4978E53669C6E898B2B201123C7AC4C5 |
Date | 2024-05-24 | Download | |
| Version | 2.00 | Update BIOS Under / How to Update | Windows | Description | Update Intel ME version | Information | Size: 6450 KiB SHA1: BD32A81D81FCC2B5B81074BBB5448ECB0A28903C |
Date | 2024-05-24 | Download | |
| Version | 1.90 | Update BIOS Under / How to Update | BIOS | Description | Update audio verb table | Information | Date | 2023-02-16 | Download | ||
| Version | 1.90 | Update BIOS Under / How to Update | Windows | Description | Update audio verb table | Information | Date | 2023-02-16 | Download | ||
| Version | 1.70 | Update BIOS Under / How to Update | BIOS | Description | 1. Update Intel microcode 2. Update Intel ME version 3. Enhance system compatibility |
Information | Date | 2022-08-04 | Download | ||
| Version | 1.70 | Update BIOS Under / How to Update | Windows | Description | 1. Update Intel microcode 2. Update Intel ME version 3. Enhance system compatibility |
Information | Date | 2022-08-04 | Download | ||
| Version | 1.50 | Update BIOS Under / How to Update | BIOS | Description | 1. Enhance system compatibility 2. Optimize system fan control |
Information | Date | 2021-10-08 | Download | ||
| Version | 1.50 | Update BIOS Under / How to Update | Windows | Description | 1. Enhance system compatibility 2. Optimize system fan control |
Information | Date | 2021-10-08 | Download | ||
| Version | 1.10 | Update BIOS Under / How to Update | BIOS | Description | First release | Information | Date | 2021-07-30 | Download | ||
| Version | 1.10 | Update BIOS Under / How to Update | Windows | Description | First release | Information | Date | 2021-07-30 | Download |
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | User Manual | Language | English | Date | 2023-05-24 | Download | |
| Description | Quick Installation Guide | Language | English | Date | 2022-09-27 | Download |
