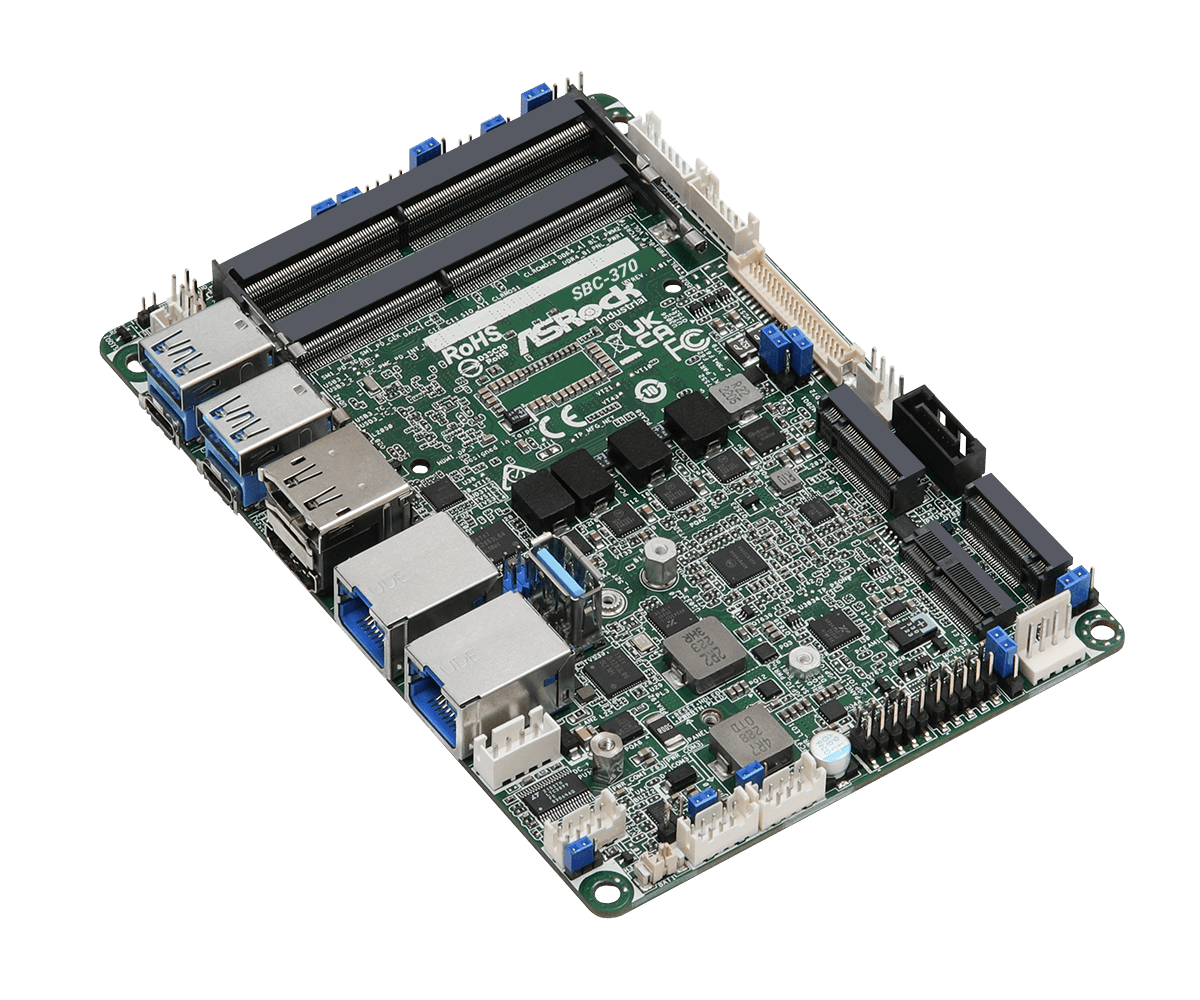

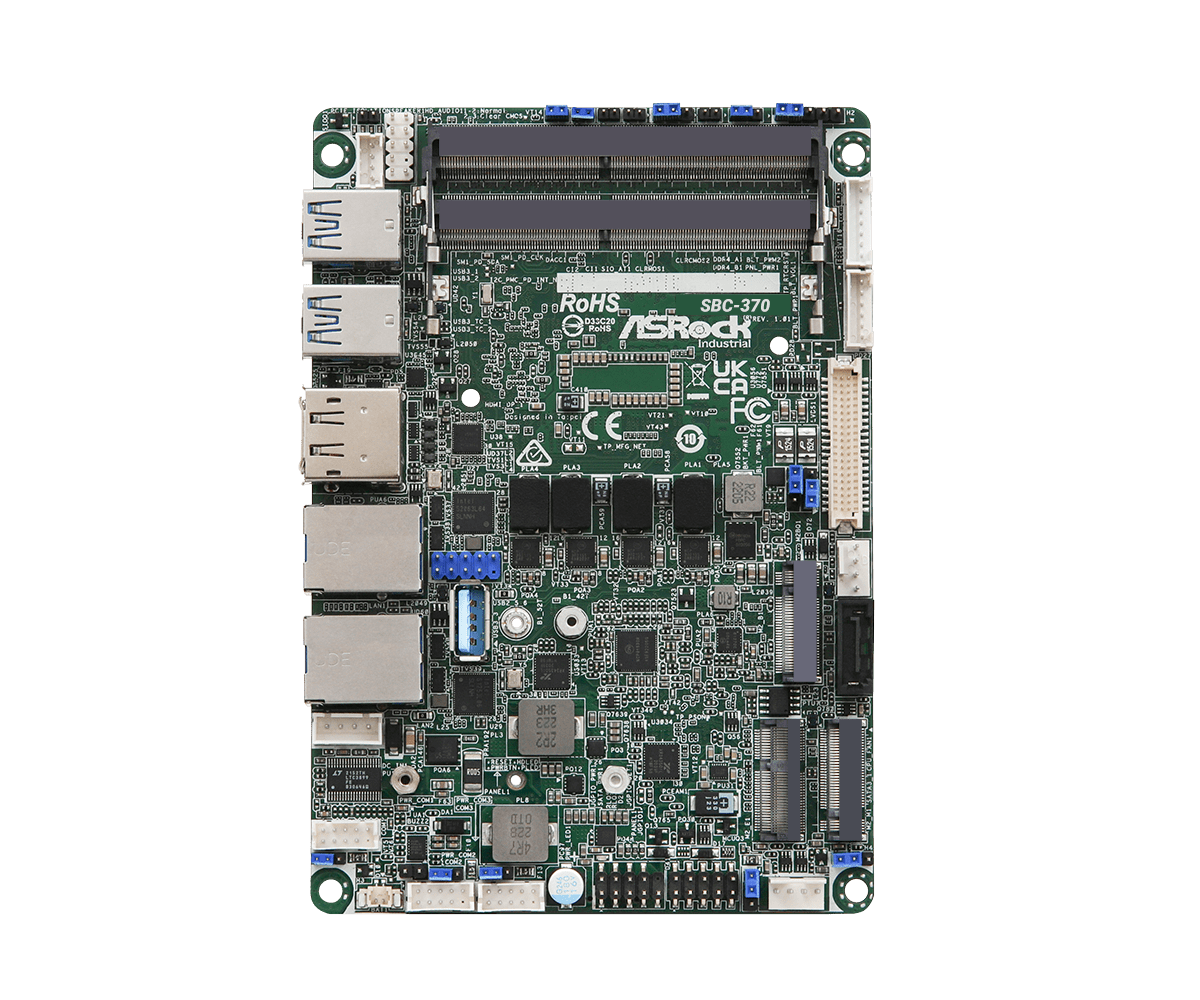

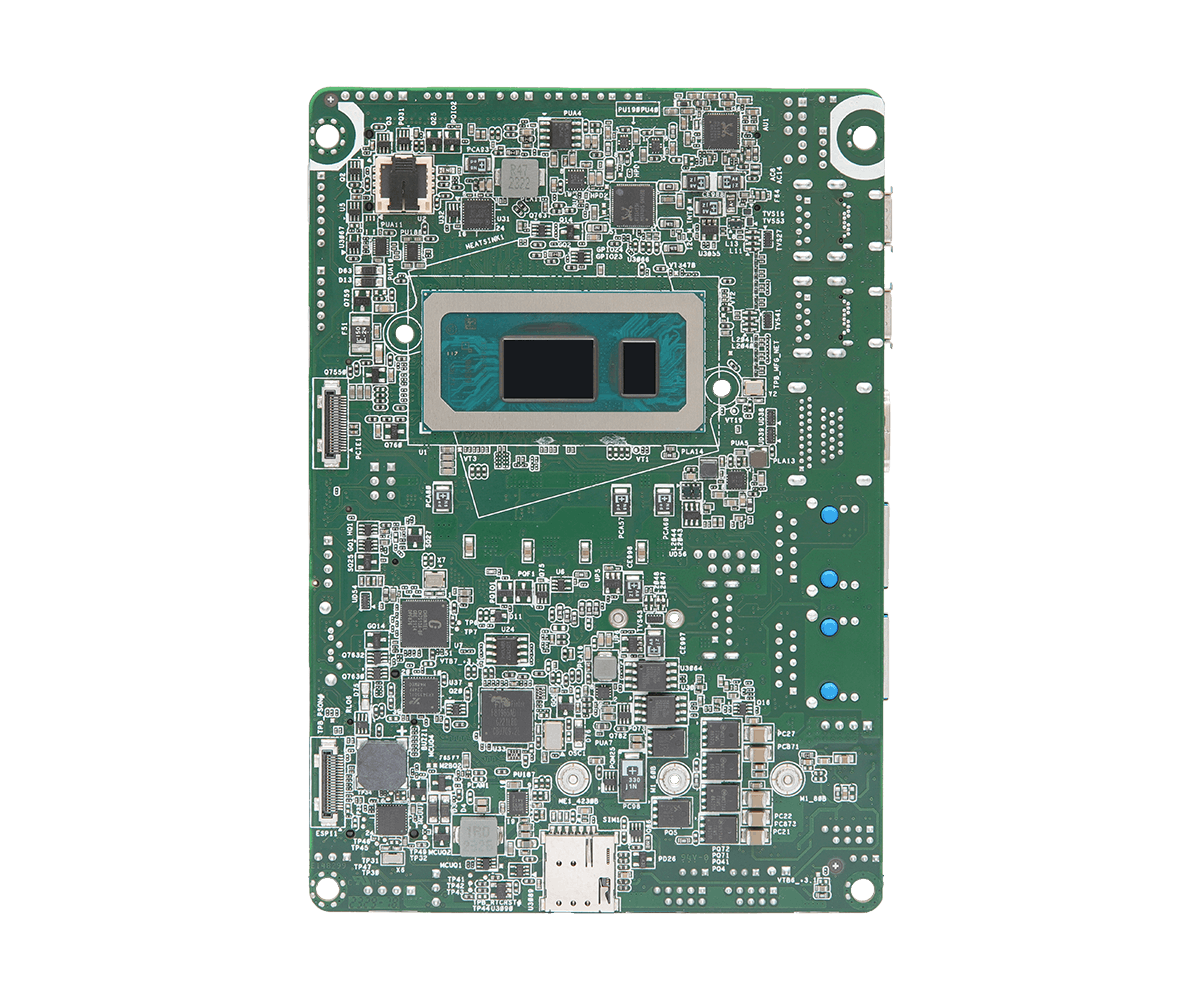

SBC-370 SBC 3.5

Intel® 12th Gen Alder Lake-P MCP Processors
2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 64 GB (32GB per DIMM)
1 x PCIe x1, 2 x USB 3.2 Gen2x2, 3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x M.2 Key B, 3 x COM, 1 x SATA3
2 x Intel 2.5 Gigabit LAN
Supports Quad display, 1 x HDMI 2.0b, 3 x DP 1.4a (2 from Type-C), 1 x LVDS or eDP
TPM 2.0 onboard IC
Supports Intel® vPro (SBC-370P/SBC-370M), VMD RAID 0/1
12~36V DC-In PWR/ 12V DC-In only (BOM option)

Datasheet

Specification

Processor System

CPU	Intel® 12th Gen Alder Lake-P MCP Processors SBC-370P (i7-1265UE, 2P+8E) SBC-370M (i5-1245UE, 2P+8E) SBC-370V (i3-1215UE, 2P+4E)
Chipset	MCP
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	3.5"SBC (5.8-in x 4-in x 0.94-in, 14.7 cm x 10.2 cm x 2.40 cm)

Memory

Technology	Dual Channel DDR4 3200 MHz
Capacity	64GB (32GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® Iris® Xe Graphics
HDMI	HDMI 2.0b Max resolution up to 4096 x 2160@60Hz
DisplayPort	DP 1.4a Max resolution up to 4096 x 2160@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP)
eDP	Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS)
MultiDisplay	Quad display (Included 2 output from Type-C)

Expansion Slot

PCIe	1 x PCIe x1 Gen3 (supports up to 10W)
M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe x1 or SATA3 and USB 3.2 and USB 2.0 and SIM for 4G/5G
SIM Socket	1 x SIM socket connected to M.2 key B

Audio

Interface	Realtek ALC233 HD, High Definition Audio. Line-out, Mic-in

Ethernet

Controller/ Speed	SBC-370P/SBC-370M LAN1: Intel® I225LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I225LM/I225V with 10/100/1000/2500 Mbps SBC-370V LAN1: Intel® I225LM with 10/100/1000/2500 Mbps LAN2: Intel® I225LM/I225V with 10/100/1000/2500 Mbps
Connector	2 x RJ-45

Rear I/O

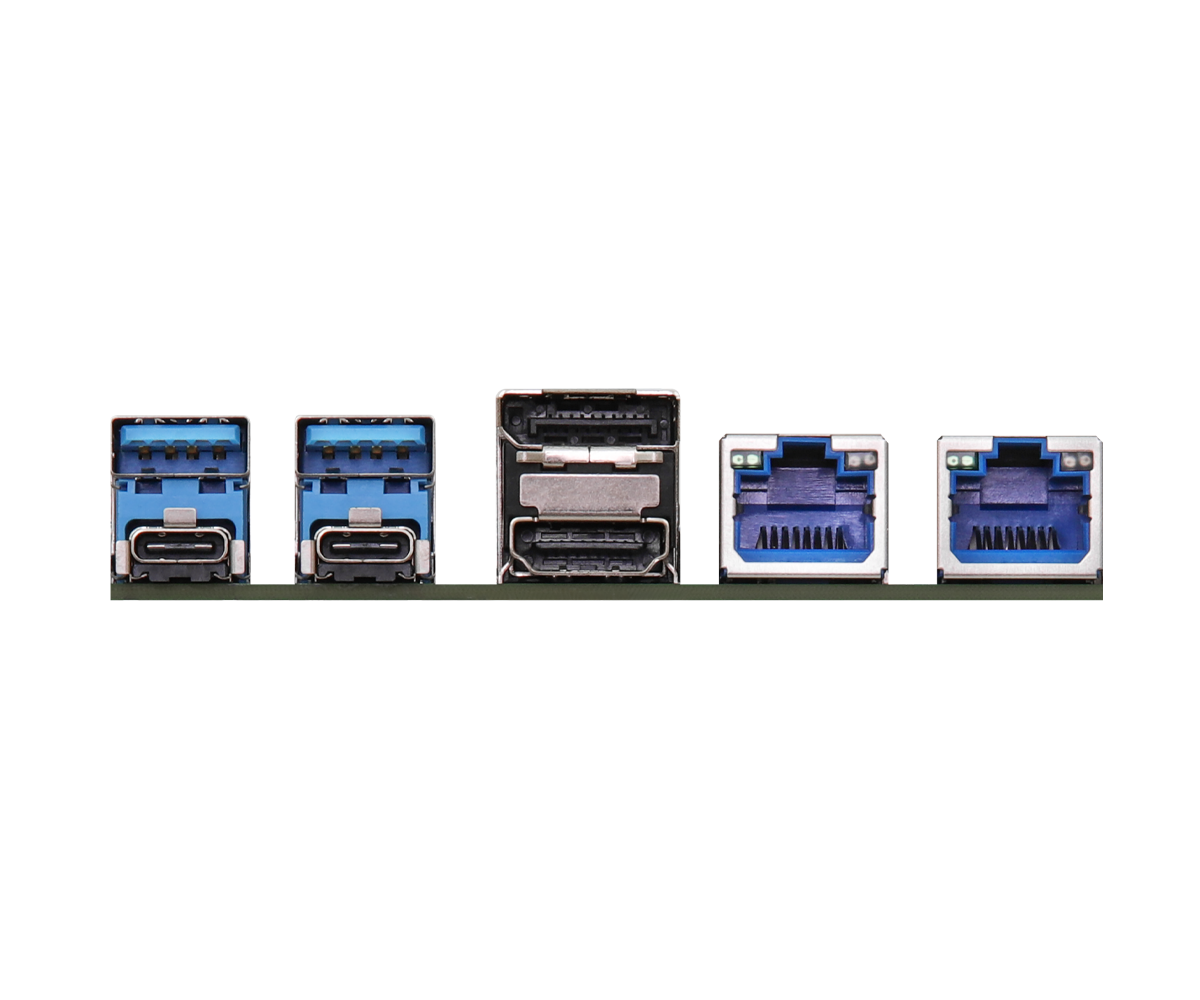

HDMI	1 x HDMI 2.0b
DisplayPort	1 x DP 1.4a
USB	2 x USB 3.2 Gen2 2 x USB 3.2 Gen2x2 (Type-C, 5V/3A, support DP 1.4a display output)
Ethernet	2 x 2.5 Gigabit LAN

Internal Connector

USB	1 x USB 3.2 Gen2 2 x USB 2.0 (1x2.54 pitch header)
COM	COM1, COM3, COM4 (RS-232/422/485)
GPIO	4 x GPI, 4 x GPO
LVDS	1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output	1
Speaker Header	1

Security

TPM	TPM 2.0 onboard IC

Storage

M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 for SSD
SATA	1 x SATA3 (6Gb/s)
RAID	Intel® VMD RAID 0/1 **supported by PCIE interface PCIE interface: M.2 Key B + M.2 Key M

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12~36V DC-In with 4-pin wafer PWR cable or DC Jack 12V DC-In only (BOM option)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x Heat Spreader 102.22147.01mm (13G070252031AK) 3 x SCREW M22,D=5 (13G020302031AK) 2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) 1 x DC-in Cable (14G000600900AK)
Bulk Package	3 x SCREW M2*2,D=5 (13G020302031AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description	Information	OS	Date	Download
Description	Intel Lan driver ver:1.1.3.34	Information		OS	Win 10 x 64	Date	2022-12-16	Download	Global China
Description	Intel Lan driver ver:1.1.3.34	Information		OS	Win 11 x 64	Date	2023-08-02	Download	Global China
Description	Realtek high definition audio driver ver:9450_UAD	Information	Size: 38Mib Version: 9450_UAD SHA1: ADCBA4C8279721F9437526D735FD489B8F408070 Filename: Realtek_Audio(v9450_UAD).zip	OS	Win 11 x 64	Date	2023-08-02	Download	Global China
Description	INF driver ver:10.1.18950.8298	Information	Size: 4138Kib Version:10.1.18950.8298 SHA1: 5F618A99124F4EFB109A86AD536D120FCD7A72DD Filename:INF(v10.1.18950.8298).zip Release Note	OS	Win 11 x 64	Date	2023-08-02	Download	Global China
Description	Intel Wireless LAN driver ver: 22.110.0.2_G	Information	Size: 38Mib Version:22.110.0.2_G SHA1: 1161BEEAA3F19591E9500F3AEBD052445CDAD335 Filename:Intel_WLAN(v22.110.0.2_G) Release Note	OS	Win 11 x 64	Date	2023-08-02	Download	Global China
Description	Intel HID Event Filter ver:2.2.2.1_v3	Information	Size: 1448Kib Version:2.2.2.1_v3 SHA1: 14732F609B6E2E1733B2E67CB8E5D6B7541CCB6C Filename:Intel HID Event Filter(v2.2.2.1_v3).zip Release Note	OS	Win 11 x 64	Date	2023-09-13	Download	Global China
Description	Intel Serial IO driver ver:30.100.2148.1	Information	Size: 2687Kib Version:30.100.2148.1 SHA1: EC28632612A9C77A13B7F54031DBFB22724C778C Filename:SerialIO(v30.100.2148.1).zip Release Note	OS	Win 11 x 64	Date	2023-08-02	Download	Global China
Description	VGA driver ver:30.0.101.3729	Information		OS	Win 11 x 64	Date	2023-08-02	Download	Global China
Description	Intel Management Engine driver ver:16.0.15.1723_CORP_SW_DCH	Information	Size: 344Kib Version:16.0.15.1723_CORP_SW_DCH SHA1: D0E098D23AAB0CB2F82D71DBD2D22C6A263DF9D6 Filename:ME(v16.0.15.1723_CORP_SW_DCH).zip Release Note	OS	Win 11 x 64	Date	2023-08-02	Download	Global China
Description	Bluetooth driver ver:22.110.0.2G	Information	Size: 14Mib Version:22.110.0.2G SHA1: 077604DDB9ACEC27E2495A51857F17889C85F547 Filename:Intel_Bluetooth(v22.110.0.2G).zip Release Note	OS	Win 11 x 64	Date	2023-08-02	Download	Global China
Description	Bluetooth driver ver:22.110.0.2G	Information	Size: 14Mib Version:22.110.0.2G SHA1: 077604DDB9ACEC27E2495A51857F17889C85F547 Filename:Intel_Bluetooth(v22.110.0.2G).zip Release Note	OS	Win 10 x 64	Date	2022-09-05	Download	Global China
Description	Intel Management Engine driver ver:16.0.15.1723_CORP_SW_DCH	Information	Size: 344Kib Version:16.0.15.1723_CORP_SW_DCH SHA1: D0E098D23AAB0CB2F82D71DBD2D22C6A263DF9D6 Filename:ME(v16.0.15.1723_CORP_SW_DCH).zip Release Note	OS	Win 10 x 64	Date	2022-09-05	Download	Global China
Description	VGA driver ver:30.0.101.3729	Information		OS	Win 10 x 64	Date	2022-09-05	Download	Global China
Description	Intel Serial IO driver ver:30.100.2148.1	Information	Size: 2687Kib Version:30.100.2148.1 SHA1: EC28632612A9C77A13B7F54031DBFB22724C778C Filename:SerialIO(v30.100.2148.1).zip Release Note	OS	Win 10 x 64	Date	2022-09-05	Download	Global China
Description	Intel HID Event Filter ver:2.2.2.1_v3	Information	Size: 1448Kib Version:2.2.2.1_v3 SHA1: 14732F609B6E2E1733B2E67CB8E5D6B7541CCB6C Filename:Intel HID Event Filter(v2.2.2.1_v3).zip Release Note	OS	Win 10 x 64	Date	2023-09-13	Download	Global China
Description	Intel Wireless LAN driver ver: 22.110.0.2_G	Information	Size: 38Mib Version:22.110.0.2_G SHA1: 1161BEEAA3F19591E9500F3AEBD052445CDAD335 Filename:Intel_WLAN(v22.110.0.2_G) Release Note	OS	Win 10 x 64	Date	2022-09-05	Download	Global China
Description	INF driver ver:10.1.18950.8298	Information	Size: 4138Kib Version:10.1.18950.8298 SHA1: 5F618A99124F4EFB109A86AD536D120FCD7A72DD Filename:INF(v10.1.18950.8298).zip Release Note	OS	Win 10 x 64	Date	2022-09-05	Download	Global China
Description	Realtek high definition audio driver ver:9450_UAD	Information	Size: 38Mib Version: 9450_UAD SHA1: ADCBA4C8279721F9437526D735FD489B8F408070 Filename: Realtek_Audio(v9450_UAD).zip	OS	Win 10 x 64	Date	2023-08-02	Download	Global China

Version	Update BIOS Under / How to Update	Description	Information	Date	Download
Version	1.50	Update BIOS Under / How to Update	BIOS	Description	1. Update audio codec for ALC233/ALC 256 2. Adjust PL1 for better system performance	Information	Size: 9651 KiB SHA1: 711B6780F285276EDAEF7A95DF56AD50337F4328	Date	2023-08-11	Download	Global China
Version	1.50	Update BIOS Under / How to Update	Windows	Description	1. Update audio codec for ALC233/ALC 256 2. Adjust PL1 for better system performance	Information	Size: 10 MiB SHA1: 8A95DF2CDA5E483FA4B55BB315EBCCC397A01A30	Date	2023-08-11	Download	Global China
Version	1.30	Update BIOS Under / How to Update	BIOS	Description	Enhance system compatibility	Information		Date	2023-02-23	Download	Global China
Version	1.30	Update BIOS Under / How to Update	Windows	Description	Enhance system compatibility	Information		Date	2023-02-23	Download	Global China
Version	1.10	Update BIOS Under / How to Update	BIOS	Description	Enhance system compatibility	Information		Date	2022-12-09	Download	Global China
Version	1.10	Update BIOS Under / How to Update	Windows	Description	Enhance system compatibility	Information		Date	2022-12-09	Download	Global China
Version	1.00	Update BIOS Under / How to Update	BIOS	Description	First release	Information		Date	2022-11-24	Download	Global China
Version	1.00	Update BIOS Under / How to Update	Windows	Description	First release	Information		Date	2022-11-24	Download	Global China

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description	Language	Date	Download
Description	RAID Installation Guide	Language	English	Date	2023-01-31	Download	Global China
Description	User Manual	Language	English	Date	2022-12-26	Download	Global China
Description	Jumpers and Headers Setting Guide	Language	English	Date	2022-09-05	Download	Global China
