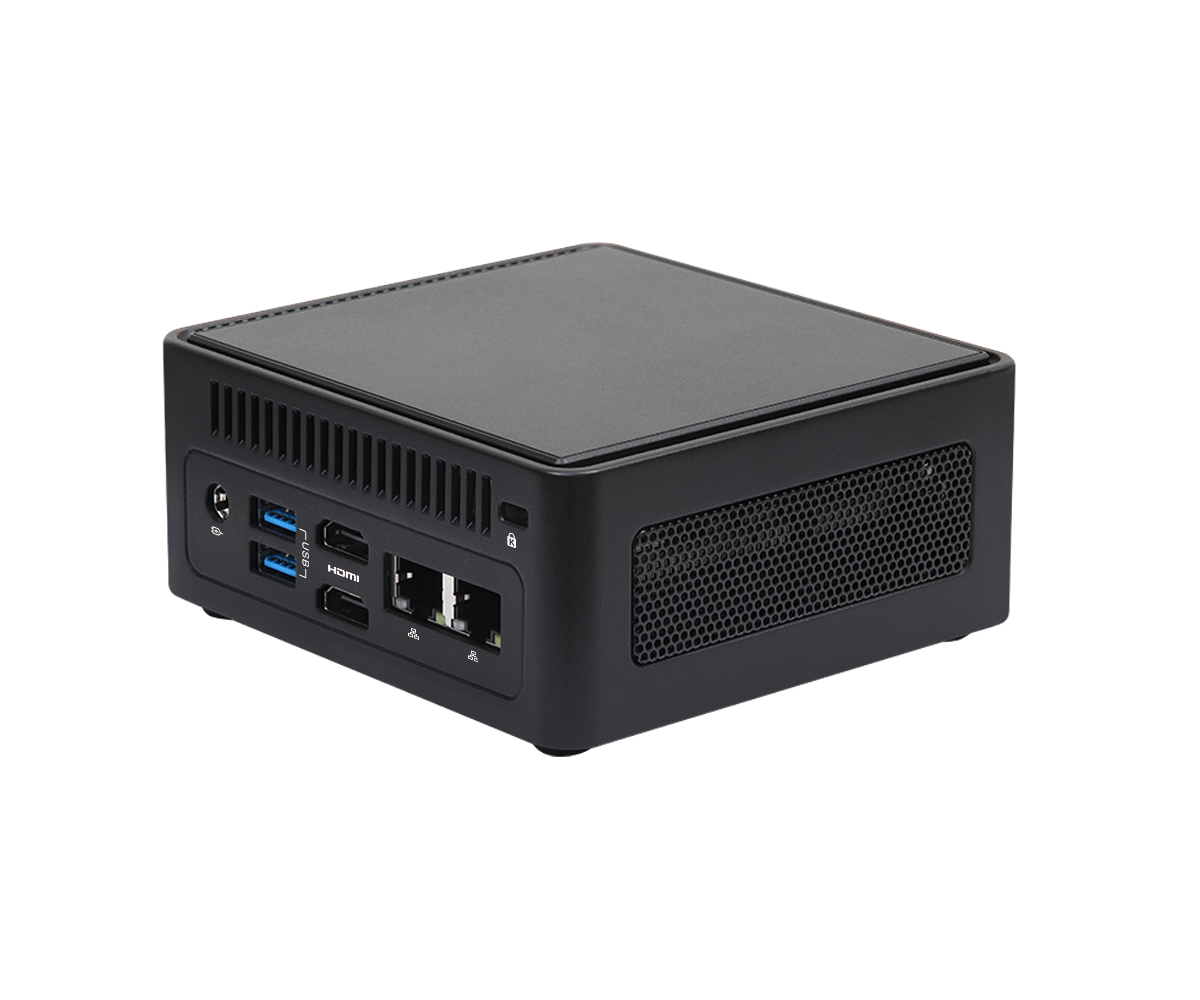

NUC BOX-304 Fanned BOX
- Intel® Core Processors Series 3 (Wildcat Lake -U)
- 1 x 262-pin SO-DIMM DDR5 6400MHz up to 64GB, supports In-Band ECC
- 2 x USB3.2 Gen2x2, 3 x USB3.2 Gen1, 2 x M.2 Key M, 1 x M.2 Key E
- 1 x Intel 2.5 Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN
- Supports Triple display, 2 x HDMI 2.1, 2 x DP 1.4a (from Type-C)
- Intel® PTT
- 19V/90W Power Adapter
- 117.5 x 110.0 x 49mm (4.63" x 4.33" x 1.93"), Fanned Barebone
Overview
Specification
Processor System
| CPU | Intel® Core Processors Series 3 (Wildcat Lake -U) NUC BOX-320 (Core™ 5 320, 2P+4LPE) NUC BOX-304 (Core™ 3 304, 1P+4LPE) *All CPU sku can support In-Band ECC |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
Memory
| Technology | Single Channel DDR5 6400 MHz |
|---|---|
| Capacity | 64GB |
| Socket | 1 x 262-pin SO-DIMM |
Graphics
| Controller | Intel® Graphics |
|---|---|
| HDMI | HDMI 2.1 Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 2.1/ 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Max 3 display (Included 2 outputs from Type-C) |
Expansion Slot
| M.2/WLAN | 1 x Wi-Fi 6E 802.11ax + BT 5.3 (M.2 Key E, 2230 PCIe x1, USB 2.0 for Wireless) |
|---|
Audio
| Interface | Realtek ALC256, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I226V with 10/100/1000/2500 Mbps LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps |
|---|---|
| Connector | 2 x RJ-45 |
Front I/O
| USB | 1 x USB 3.2 Gen1 (Type-A) 2 x USB3.2 Gen2x2 (Type-C, 5V/3A, Supports DP1.4a display output) |
|---|---|
| Audio | 1 (headphone & microphone jack) |
Rear I/O
| HDMI | 2 x HDMI 2.1 |
|---|---|
| Ethernet | 2 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 (Type-A) |
| DC Jack | 1 |
Storage
| M.2 | 1 x M.2 (KEY M, 2242) with PCIe Gen4 x1 for SSD 1 x M.2 (KEY M, 2242/2280) with PCIe Gen4 x2 for SSD |
|---|---|
| RAID | **supported by identical interface (PCIe) PCIe interface: 2*M.2 Key M |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12V~24V DC-In Jack |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 40ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% (non-condensing) |
| Storage Humidity | 5% ~ 90% (non-condensing) |
Mechanical
| Mounting | VESA mount |
|---|---|
| Dimensions (L x W x H) | 117.5 x 110.0 x 49mm (4.63" x 4.33" x 1.93") |
| Weight | Net Weight:1.0Kg |
Others
| OS Support | Windows 10/11 |
|---|---|
| TPM | Intel® PTT |
| Certifications | CE, FCC |
| Packing List | 1 x 19V/90W Power Adapter 1 x VESA mount bracket |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | Information | OS | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Description | Intel_ISSE(2602.9.3.0) | Information | Size: 762 Kib |
OS | Win 11 x 64 | Date | 2026-09-02 | Download | |
| Description | COM Port driver ver: 2.8.3.1 | Information | Size: 851 Kib |
OS | Win 11 x 64 | Date | 2026-09-02 | Download | |
| Description | Intel PPM (v1.0.00000.233) | Information | Size: 1912 Kib |
OS | Win 11 x 64 | Date | 2026-09-02 | Download | |
| Description | IPF(v2.3.20303.5058) | Information | Size: 6619 Kib |
OS | Win 11 x 64 | Date | 2026-09-02 | Download | |
| Description | DTT(9.1.10006.1353) | Information | ***Please install IPF before DTT Size: 146 Mib |
OS | Win 11 x 64 | Date | 2026-09-02 | Download | |
| Description | Intel HID Event Filter ver:2.2.2.18 | Information | Size: 801 Kib |
OS | Win 11 x 64 | Date | 2026-09-02 | Download | |
| Description | NPU driver ver: 32.0.100.4561_2 | Information | Size: 32 Mib |
OS | Win 11 x 64 | Date | 2026-09-02 | Download | |
| Description | PMT ver: 11.3.10.2 | Information | Size: 736 Kib |
OS | Win 11 x 64 | Date | 2026-09-02 | Download | |
| Description | Intel Serial IO driver ver:30.100.2534.35 | Information | Size: 1500 Kib |
OS | Win 11 x 64 | Date | 2026-09-02 | Download | |
| Description | Intel_CSME_Cor(2616.9.29.0) | Information | Size: 1118 Mib |
OS | Win 11 x 64 | Date | 2026-09-02 | Download | |
| Description | VGA driver ver:101.8572 | Information | Size: 983 Mib |
OS | Win 11 x 64 | Date | 2026-09-02 | Download | |
| Description | Chipset Driver ver:10.1.20460.8811 | Information | Size: 90 Mib |
OS | Win 11 x 64 | Date | 2026-09-02 | Download | |
| Description | Intel Lan driver ver:2.1.5.7 | Information | Size: 2230 Kib |
OS | Win 11 x 64 | Date | 2026-09-02 | Download | |
| Description | Realtek Lan driver ver: 10079_03042026 | Information | Size: 4840 Kib |
OS | Win 11 x 64 | Date | 2026-09-02 | Download | |
| Description | SST driver ver:20.43.12573.6 | Information | ***Please install the Intel SST driver first before installing other drivers Size: 56 Mib |
OS | Win 11 x 64 | Date | 2026-09-01 | Download |
| Version | Update BIOS Under / How to Update | Description | Information | Date | Download | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Version | 1.20 | Update BIOS Under / How to Update | BIOS | Description | First release | Information | Size: 11 MiB SHA256: 84608b0c8eb3bf718d5ab4d43b375aa28992e311346827d22d067223af61080c |
Date | 2026-08-28 | Download | |
| Version | 1.20 | Update BIOS Under / How to Update | Windows | Description | First release | Information | Size: 12 MiB SHA256: d4aceb7e2ace4416e494384b853ca9778936fb0d6e6464e59c06b717c6c683c5 |
Date | 2026-08-28 | Download |
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | User Manual | Language | English | Date | 2026-08-19 | Download | |
| Description | Jumpers and headers setting guide | Language | English | Date | 2026-07-23 | Download | |
| Description | Quick Installation Guide | Language | English | Date | 2026-07-23 | Download |
