IMB-X1902
Preliminary

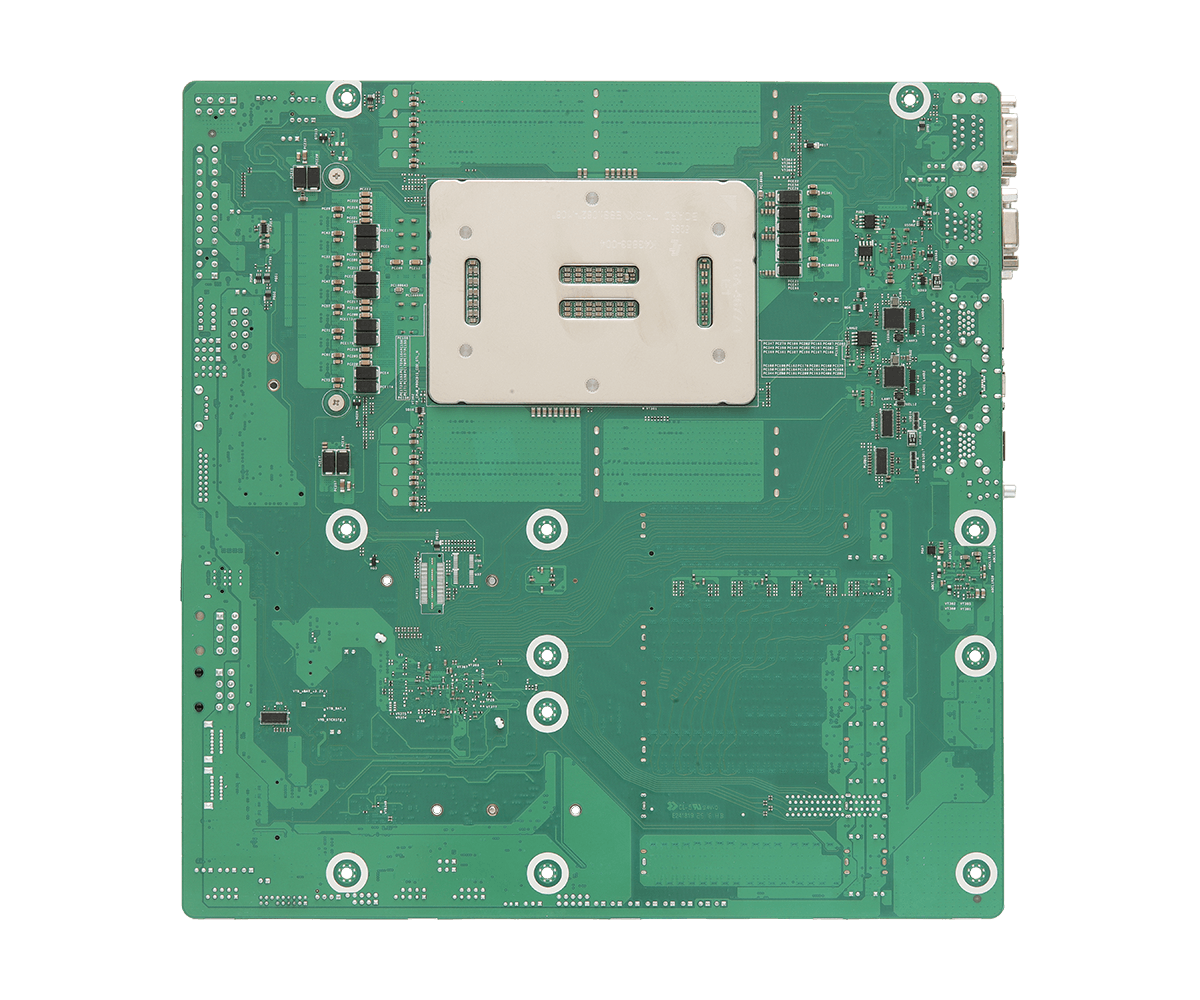

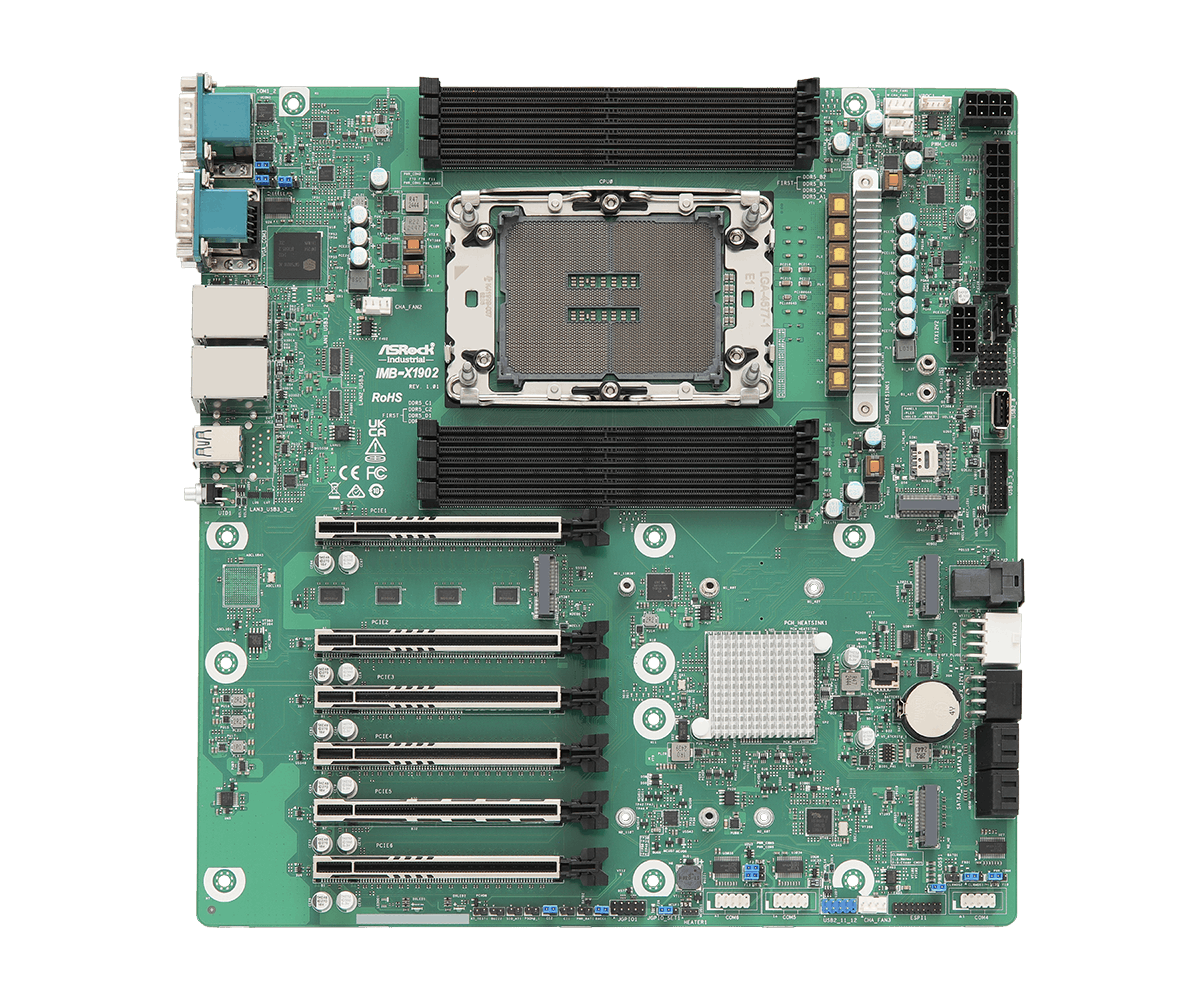

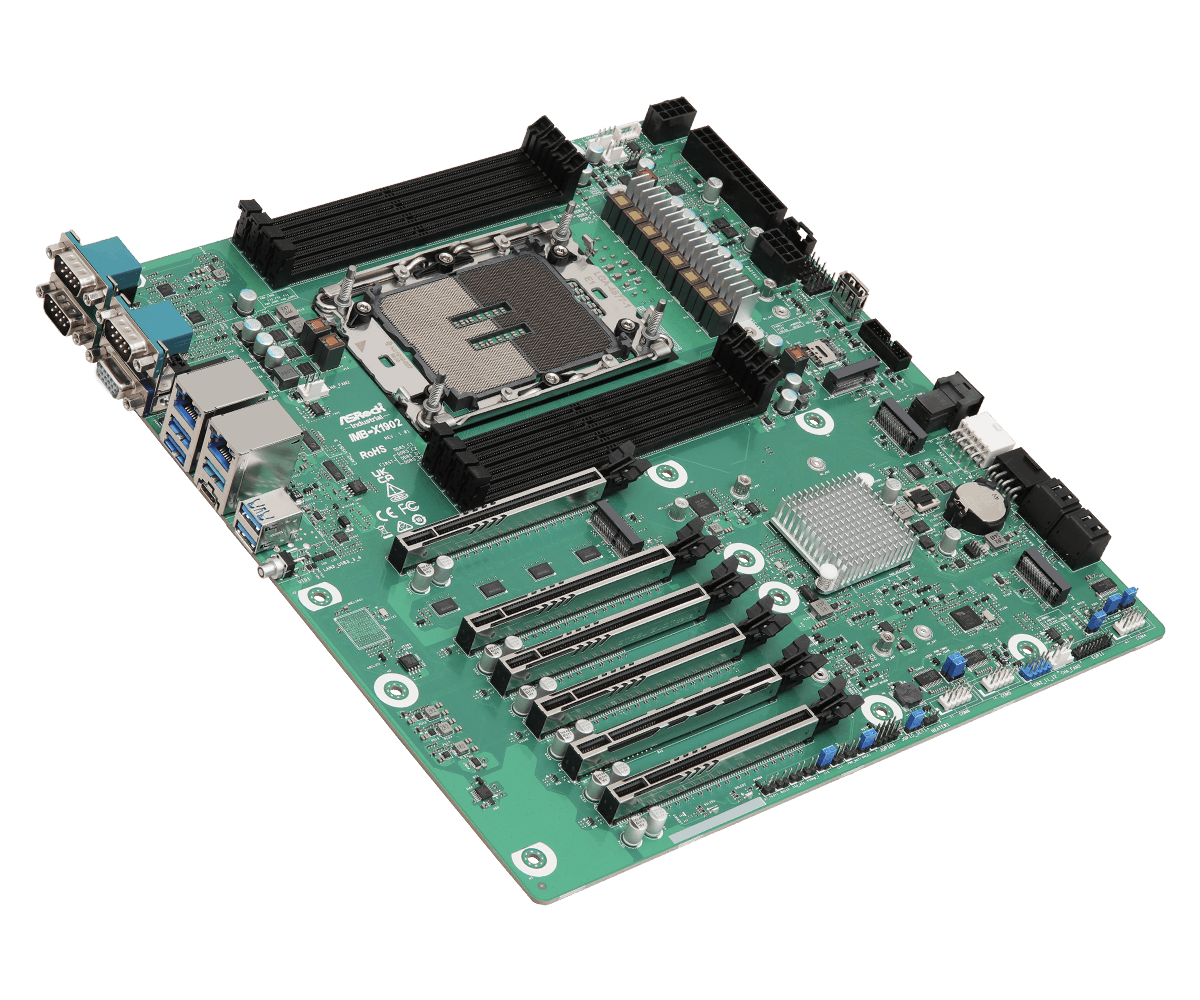

IMB-X1902 EATX Motherboard

  • Intel® Xeon® W-3500/3400 and W-2500/2400 Series Processors with W790 chipset
  • 8 x 288-pin ECC RDIMM/RDIMM-3DS DDR5 4400/4800 MHz, up to 2TB
  • 4 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), 1 x PCIe x4 (Gen4), 1 x USB 3.2 Gen2x2, 5 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 3 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M,
  • 1 x M.2 Key B, 6 x COM, 1 x Mini-SAS, 4 x SATA3
  • 2 x Intel 2.5 Gigabit LAN
  • Supports 1 x VGA
  • TPM 2.0 onboard IC
  • Support Intel® vPro, VMD RAID 0/1/5/10
  • ATX PWR (8+8+24 Pin)
Datasheet
Specification

Processor System

CPU Intel® Xeon® W-3500/3400 and W-2500/2400 Series Processors
Chipset Intel® W790
Socket LGA4677
BIOS AMI SPI 256 Mbit

Form Factor

Dimensions EATX (12-in x 11.7-in x 1.6-in, 30.5 cm x 29.7 cm x 4.0 cm)

Memory

Technology Quad Channel ECC DDR5 4400/4800 MHz*
*1DPC 4800 MHz Natively for Xeon® W9, Xeon® W7 and Xeon® W5
2DPC 4400 MHz Natively for Xeon® W9, Xeon® W7 and Xeon® W5
Supports 4400 MHz Natively for Xeon® W3, W5-3423 and W5-3433
Capacity 2TB
Socket 8 x 288-pin RDIMM/RDIMM-3DS

Graphics

VGA Max resolution up to 1920 x 1200@60Hz

Expansion Slot

PCIe PCIE1: PCIe Gen5 x16
PCIE2: PCIe Gen5 x16
PCIE3/PCIE4: single at Gen5 x16 (PCIE4); dual at Gen5 x8 (PCIE3) / x8 (PCIE4)
PCIE5: PCIe Gen4 x4
PCIE6: PCIe Gen5 x16
M.2 1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket 1 x SIM socket connected to M.2 key B

Audio

Interface Realtek ALC897, High Definition Audio. Line-in, Line-out, Mic-in

Ethernet

Controller/ Speed LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro
LAN2: Intel® I226V with 10/100/1000/2500 Mbps
Connector 2 x RJ-45

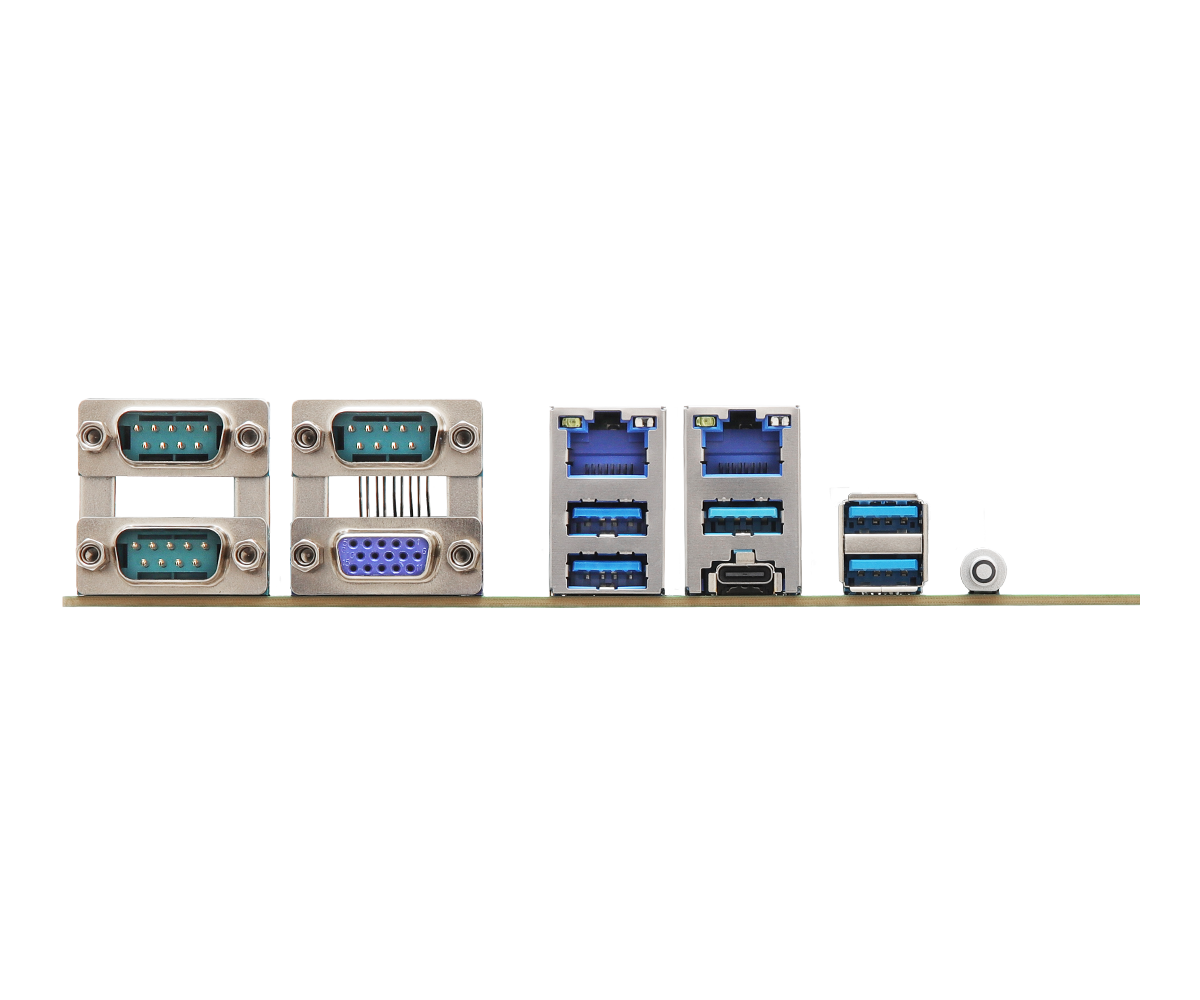

Rear I/O

VGA 1
Ethernet 2 x 2.5 Gigabit LAN
USB 5 x USB 3.2 Gen2
1 x USB 3.2 Gen2x2 (Type-C, 5V/3A)
Serial Port COM3 (RS-232)
COM1, COM2 (RS-232/422/485)

Internal Connector

USB 2 x USB 3.2 Gen1 (1 x USB 3.2 header)
2 x USB 2.0 (1 x 2.54 pitch header)
1 x USB 2.0 (vertical con)
COM COM4, COM5, COM6 (RS-232)
GPIO 4 x GPI, 4 x GPO

Security

TPM TPM 2.0 onboard IC

Storage

M.2 1 x M.2 (Key M, 2242/2280/25110) with PCIe Gen4 x4 and SATA3 for SSD
1 x M.2 (Key M, 2260/2280/25110) with PCIe Gen4 x4 for SSD
Mini-SAS 1 x Mini-SAS with PCIe Gen4 x4
SATA 4 x SATA3, SATA3_4 shared with M.2 Key M1
RAID Intel® VMD RAID 0/1/5/10
**supported by identical interface (PCIE or SATA)
PCIE interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M
SATA interface: SATA port

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 segments, 0,1,2…255sec

Power Requirements

Input PWR 1 x 24-pin ATX PWR connector
2 x 8-pin 12V PWR connector
1 x 8-pin and 1 x (6+2)-pin 12V PWR connector for PCIe
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp -20ºC ~ 70ºC
Storage Temp -40°C ~ 85°C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
