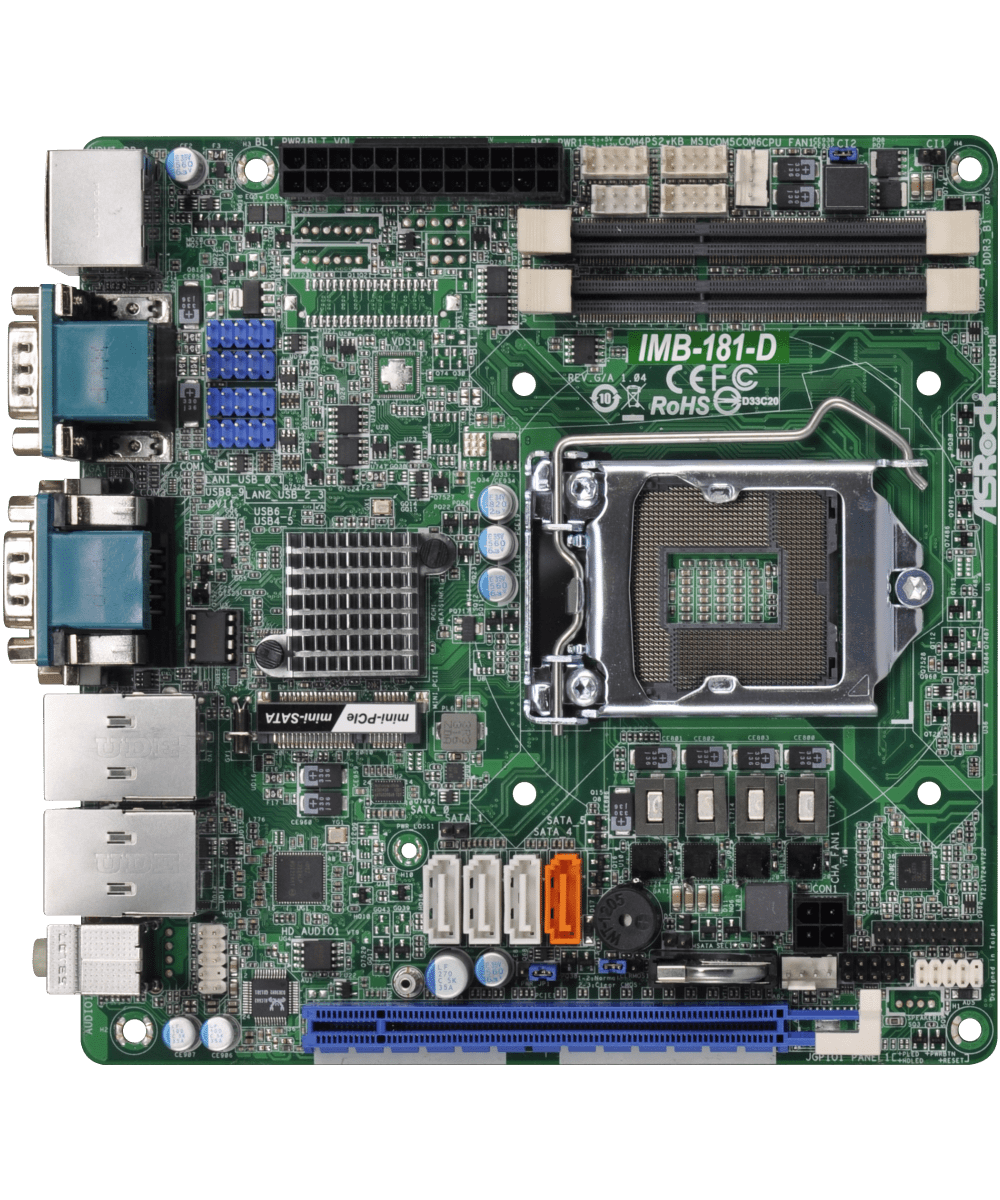

IMB-181-D Mini-ITX Motherboard

Processor System

CPU	Supports Intel® 4th Gen (Haswell-S) Core™ Processors
Chipset	Intel® Q87

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in)

Memory

Technology	Dual Channel DDR3 1333 / 1600MHz
Capacity	16GB
Socket	2 x SO-DIMM

Graphics

Controller	Intel HD Graphics (By CPU)
HDMI	Supports HDMI 1.4a, max resolution 1920 x 1200
VGA	Supports max resolution 2048 x 1536
MultiDisplay	Triple Display
DisplayPort	Supports HDMI 1.4a, max resolution 2560 x 1600

Expansion Slot

PCIe	1 x PCIe x16
mini-PCIe/mSATA	1 x Full size with PCIe x1, SATA3 and USB 2.0

Audio

Interface	Realtek ALC888S, High Definition Audio. Mic-in / Line-out

Ethernet

Controller/ Speed	LAN1: Intel® I217LM with 10/100/1000 Mbps LAN2: Intel® I210 with 10/100/1000Mbps
Connector	2 x RJ-45

Rear I/O

HDMI	1
Ethernet	2
USB	4 x USB 3.0
Audio	2 (Mic-in, Line-out)
COM	3 x COM (RS-232/422/485)
DisplayPort	1
DVI	1 (DVI-I)

Internal Connector

USB	8 x USB 2.0
COM	3 x COM (RS-232)
GPIO	4 x GPI, 4 x GPO
Speaker Header	1
TPM	1 x Header
VGA	1

Storage

SATA	2 x SATA3

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX PWR (4 + 24)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020182000AK) 2 x SATA Data Cable (14G00010107DAK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020182000AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
