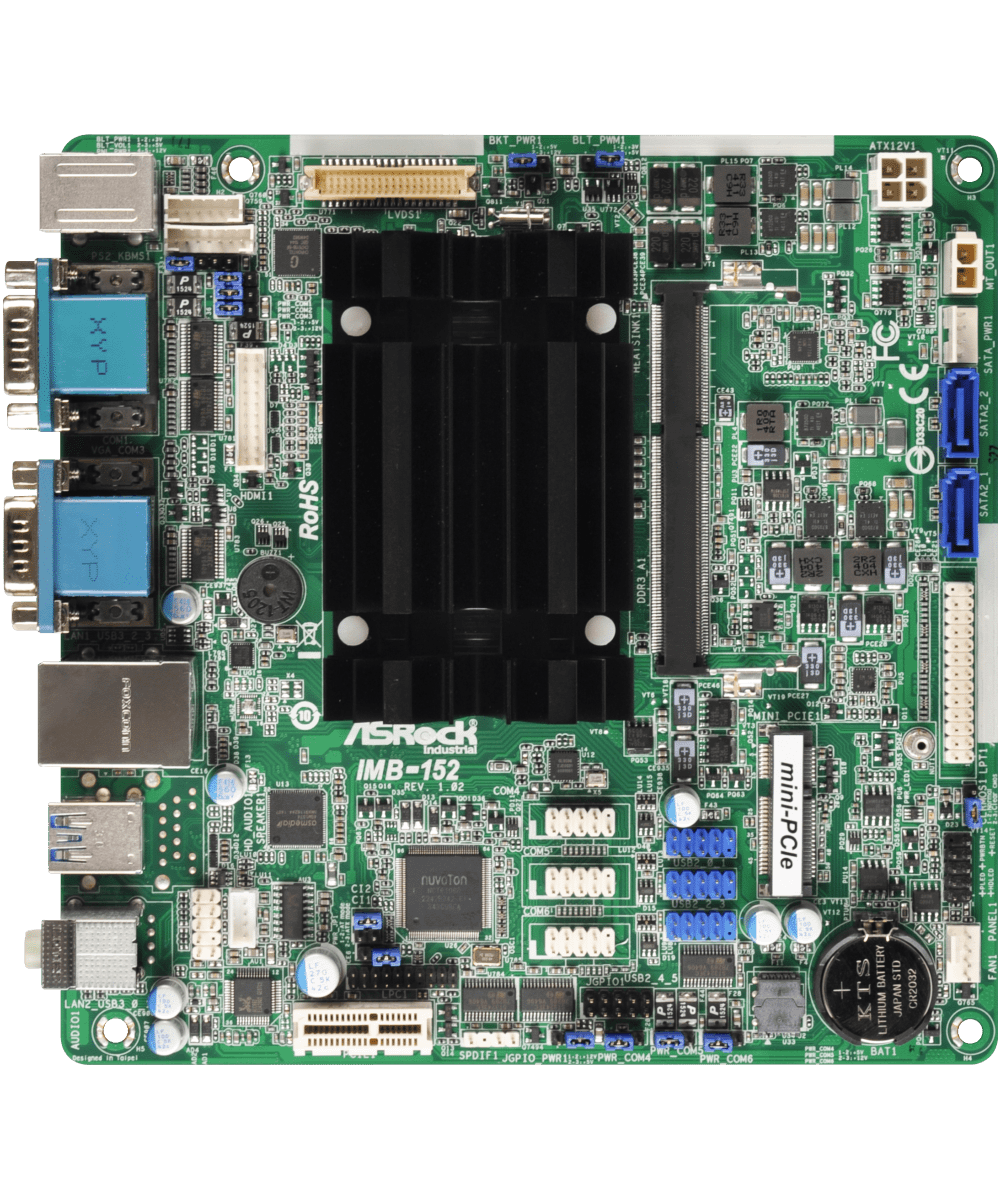

IMB-152D Mini-ITX Motherboard

Processor System

CPU	Intel® Baytrail SoC Processor J1900, QC, 2.00 GHz, 10 W
Chipset	SoC
BIOS	UEFI

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

Technology	Dual Channel DDR3 1333 MHz
Capacity	8 GB
Socket	1 x SO-DIMM

Graphics

Controller	Intel® Gen7 Intel Graphics DX 11*, OGL3.2
HDMI	Supports HDMI 1.4a, max resolution 1920 x 1200
VGA	Max resolution up to 1920 x 1200@60Hz
LVDS	Supports max resolution up to 1920 x 1200@60Hz
MultiDisplay	Dual Display

Expansion Slot

PCIe	1 x PCIe x1
mini-PCIe	1 x Half size with PCIe x1

Audio

Interface	Realtek ALC662/897 HD, High Definition Audio. Mic-in / Line-out

Ethernet

Controller/ Speed	10/100/1000 Mbps
Connector	1 x Realtek RTL8111G/RTL8111H-CG

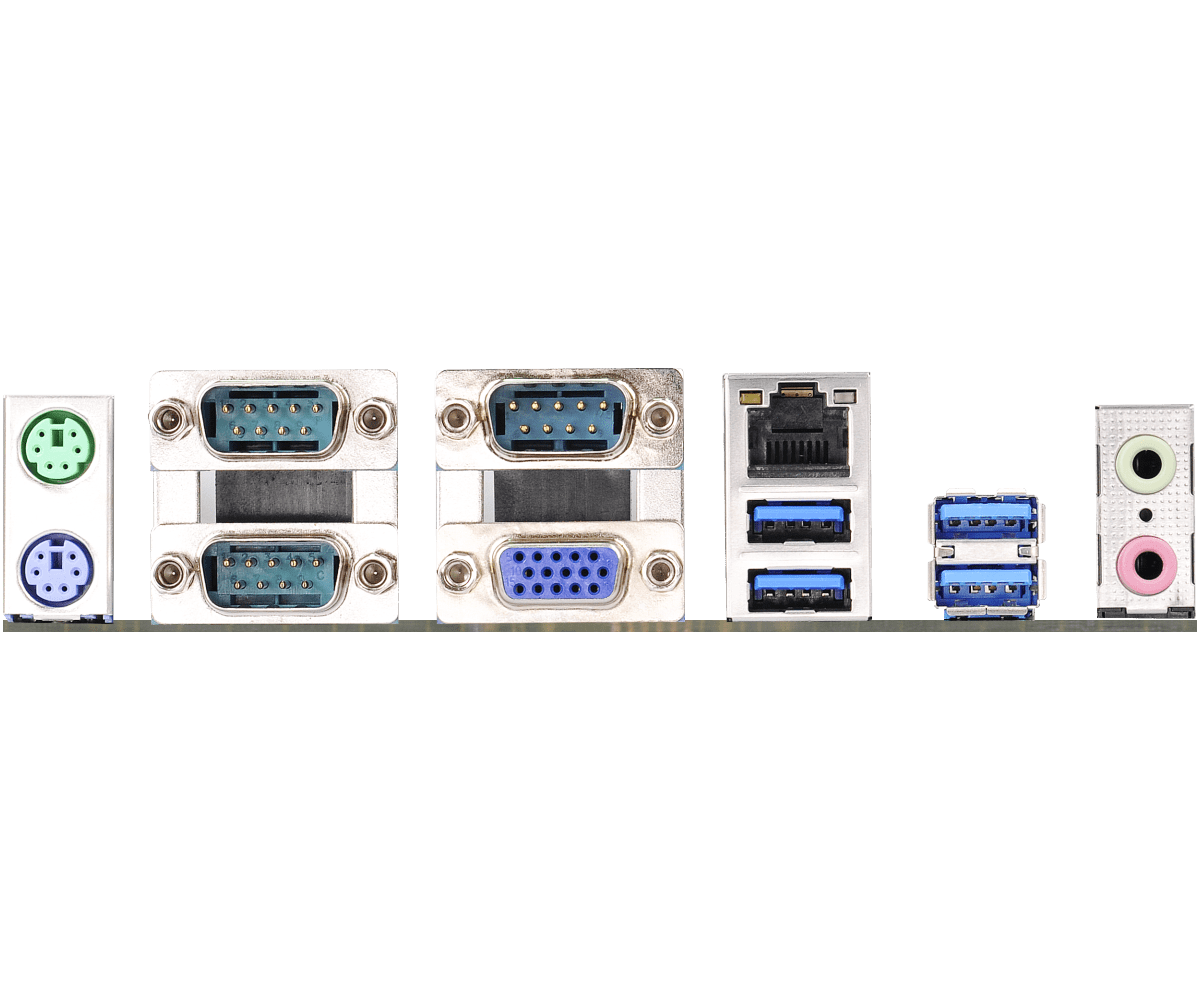

Rear I/O

VGA	1
Ethernet	1 Optional 2
USB	4 x USB 3.0
Audio	2 (Mic-in, Line-out)
PS2	2 (1 x keyboard and 1 x mouse)
COM	3 x RS-232

Internal Connector

USB	6 (3 x 2.54 pitch header USB 2.0 compliant)
Parallel	1
GPIO	4 x GPI + 4 x GPO Share with COM 5
TPM	1 x Header
LVDS	1
SATA PWR Output	1
Speaker Header	1

Storage

SATA	2 x SATA2 (3.0Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V DC-In (4-pin ATX PWR Con)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305010AK) 1 x I/O Shield (13G020244000AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305010AK) 1 x I/O Shield (13G020244000AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
