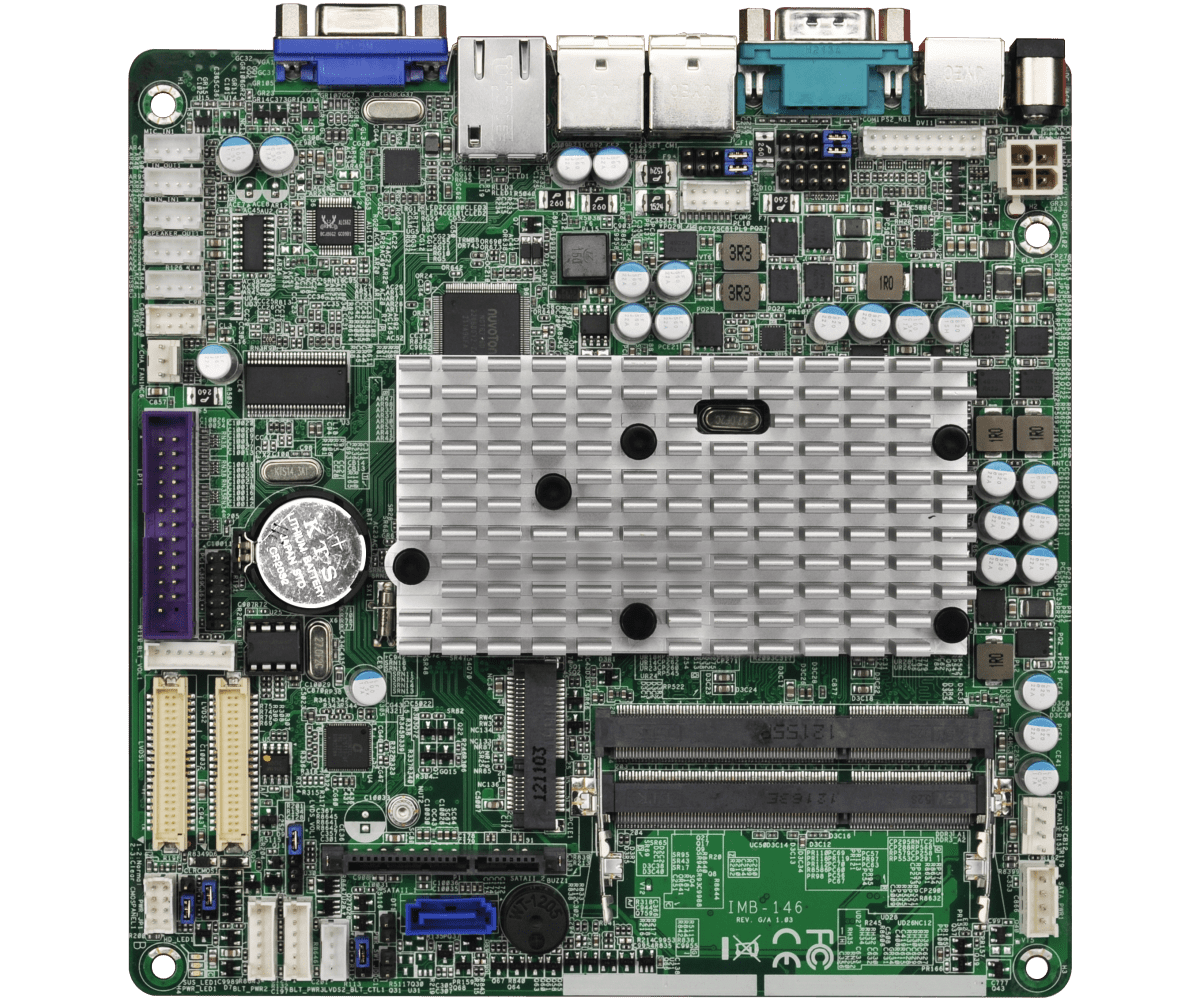

IMB-146 Series Mini-ITX Motherboard

Processor System

CPU	Intel® Dual-Core Atom™ CedarView Processor D2550 / N2600 / N2800 Supports Hyper-Threading Technology
Chipset	NM10
BIOS	UEFI

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in)

Memory

Technology	Single Channel DDR3 800 / 1066 MHz SDRAM
Socket	D2550 / N2800: 2 x SO-DIMM N2600: 1 x SO-DIMM
Capacity	D2550 / N2800: 4GB N2600: 2GB

Graphics

Controller	Intel® PowerVR SGX545, Support DirectX9 compliant Pixel Shader v3.0 and OGL 3.0
VGA	Supports max resolution up to 1920x1200
LVDS	Dual Channel 24-bit, max resolution up to 1920x1200
MultiDisplay	Yes
DVI	Supports max resolution up to 1920x1200 (option by cable)

Expansion Slot

mini-PCIe	1 (Half Size)

Ethernet

Controller/ Speed	1 x Realtek RTL8111E-VL with 10/100/1000 Mbps
Connector	1 x RJ - 45

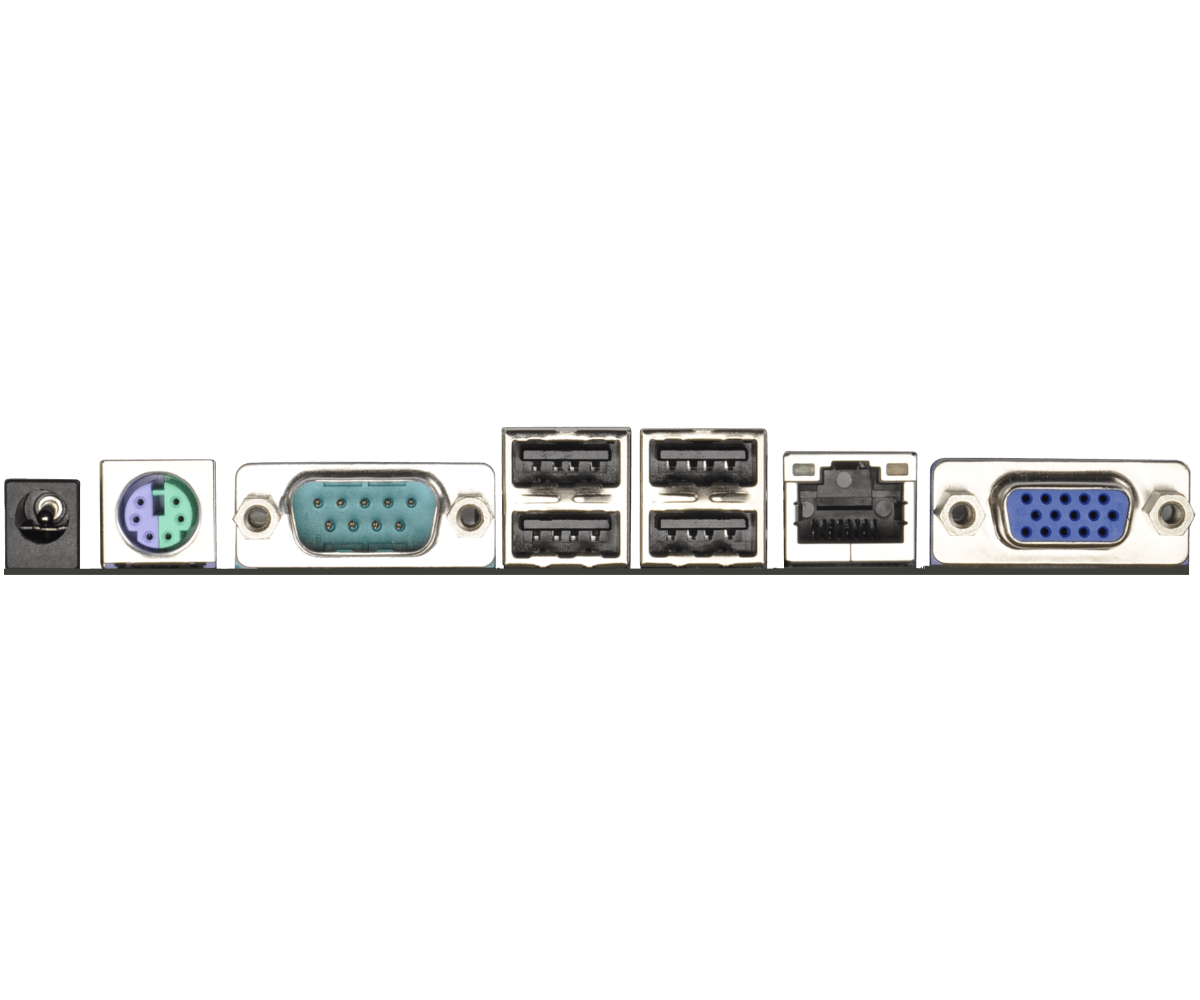

Rear I/O

Ethernet	1
USB	4 x USB 2.0
VGA	1
COM	1 x COM(RS-232)
PS2	1 (Combo)

Internal Connector

USB	3 x USB 2.0
LVDS	2
COM	1 x COM(RS-232)
GPIO	4 x GPI + 4 x GPO
Parallel	1
SATA PWR Output	1
Speaker Header

Storage

SATA	1 x SATA2 (3.0Gb/s) 7-pin + 1x SATA2 (3.0Gb/s) 22pin

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V DC-In (4-pin ATX PWR Con) & DC-IN Jack
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Others

Packing List	1 x Jumper setting guide 1 x Driver DVD 1 x IO shield 1 x SATA cable 1 x SATA power cable 2 x Screw for mini card

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
