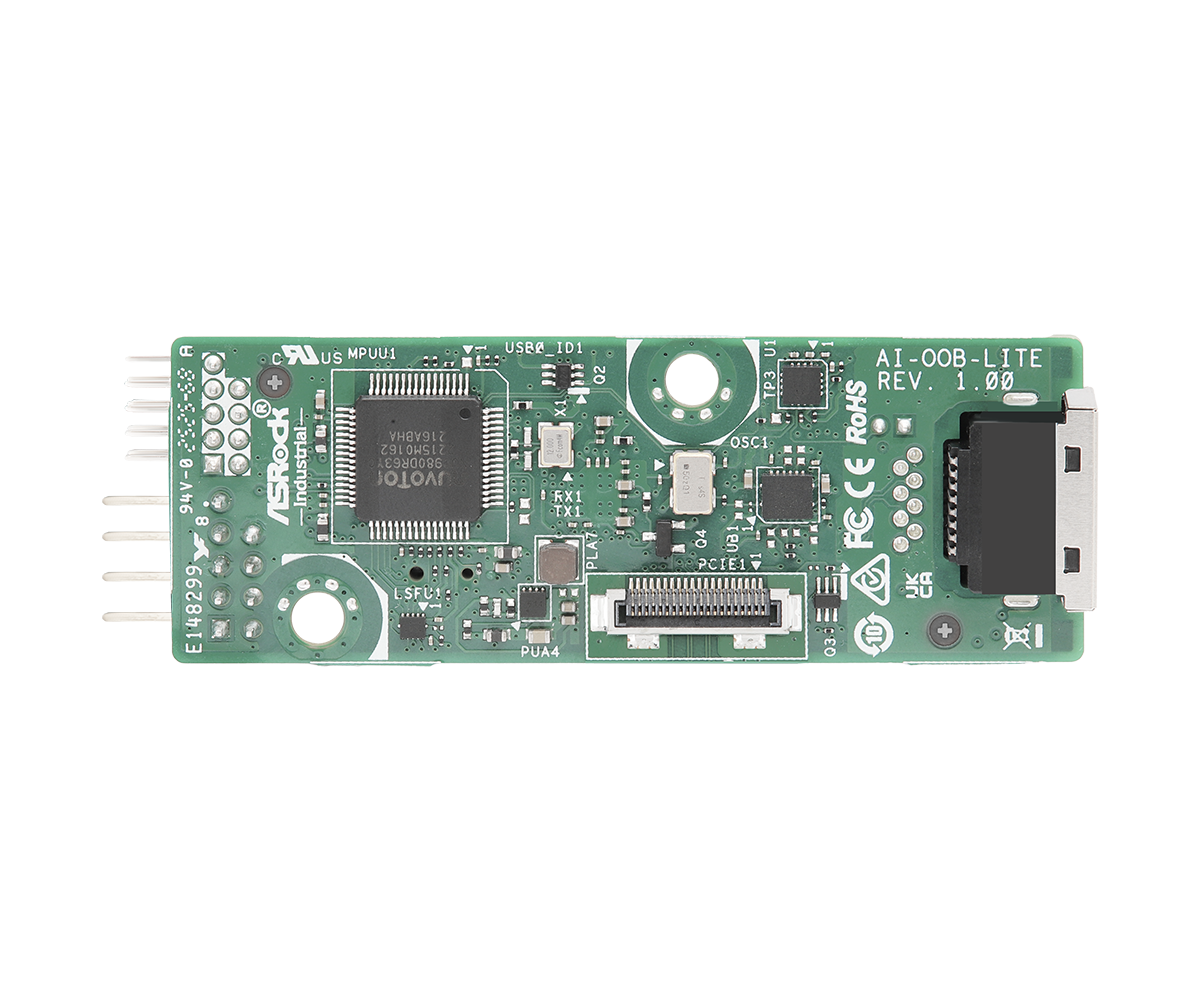

AI-OOB-LITE Kit
- [ASRock Industrial Exclusive]
- Only apply on ASRockind products
- Support Remote Power On/Off/Scheduling
- Host’s OS heartbeat to check device alive
- 1x RJ45 port supports Intel® I210 Ethernet Connection via NC-SI
- 1 x Gigabit LAN
Specification
Specifications
| Form Factor | AI-OOB-LITE: Customized M2E-OOB: M.2 Key E 2230 |
|---|---|
| Function | Out-of-Band Management |
| Dimensions (W x L x H/mm) | AI-OOB-LITE: 26 x 78 x 9.9 M2E-OOB: 22 x 30 x 2.2 |
| Controller / Major IC | Embedded Micro-controller |
| Input Interface/Power | AI-OOB-LITE: +5VSB RJ45(MDI) 20pin Header(PCIe x1, USB 2.0, GPIO x3) M2E-OOB: PCIe x1 USB 2.0 GPIO x3 |
| Output Interface/Power | Remote Power Control 1 x Gigabit LAN* *Note: Must be paired with ASRock Industrial's M2E-OOB expansion card to enable the functionality. |
| Output connector | AI-OOB-LITE: 1 x 2.00mm Panel Header 1 x 2.54mm Panel Header 1 x RJ45 M2E-OOB: 20 pin header x1 |
| Operating Temperature | -20ºC ~ 70ºC(I210-AT) -40ºC ~ 85ºC(I210-IT) |
| Storage Temperature | -40ºC ~ 85ºC |

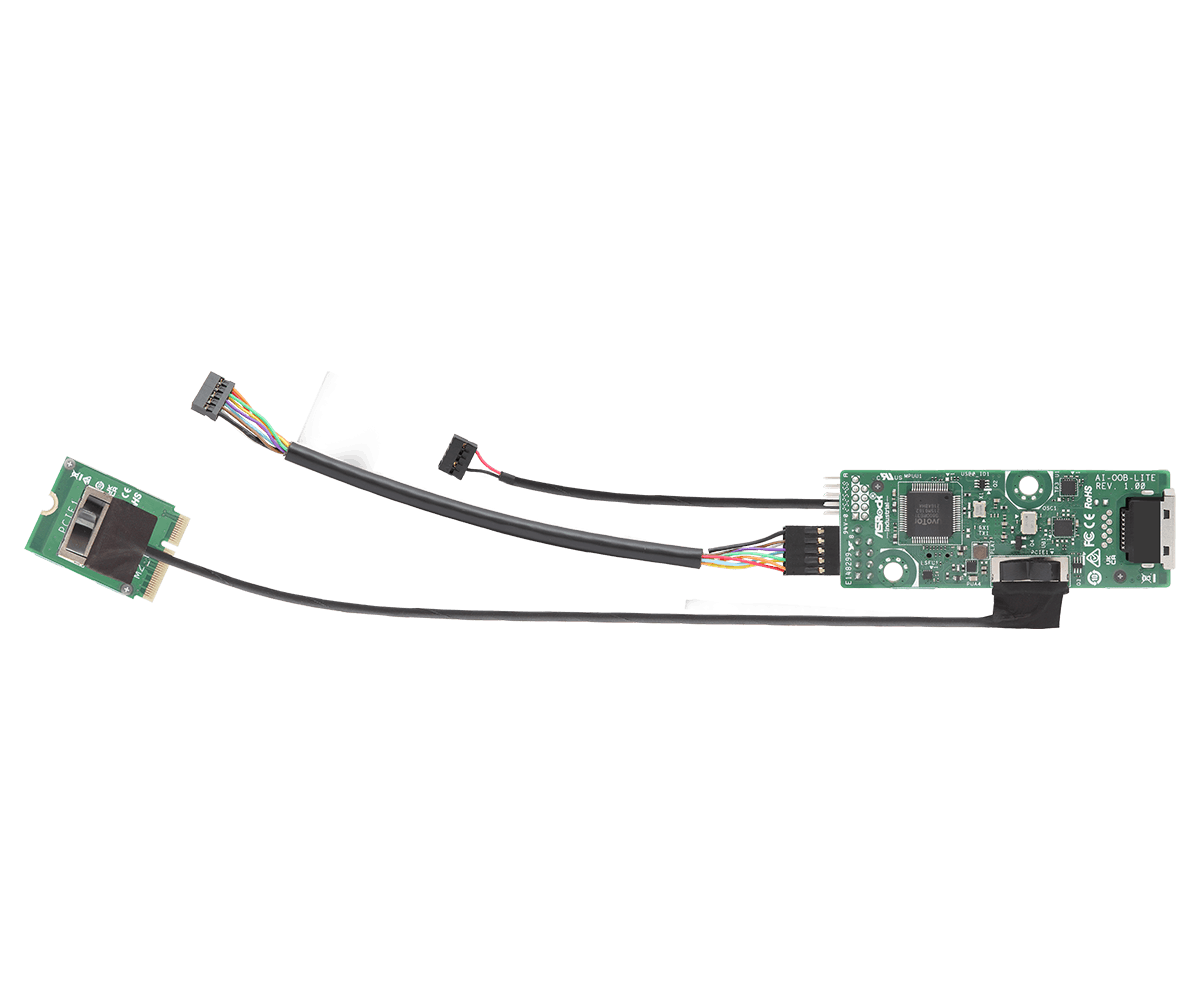

| Package | AI-OOB-LITE: 1 x Panel Cable (14G000018310AI) 1 x 2.0 PWR Cable(14G000506610AI) 1 x 2.54 PWR Cable(14G000506510AI) 1 x HTR Cable (14G000617300AI) 1 x IO bracket (PN TBD) M2E-OOB: 1 x M2EOOBcable(14G220032010AI) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
