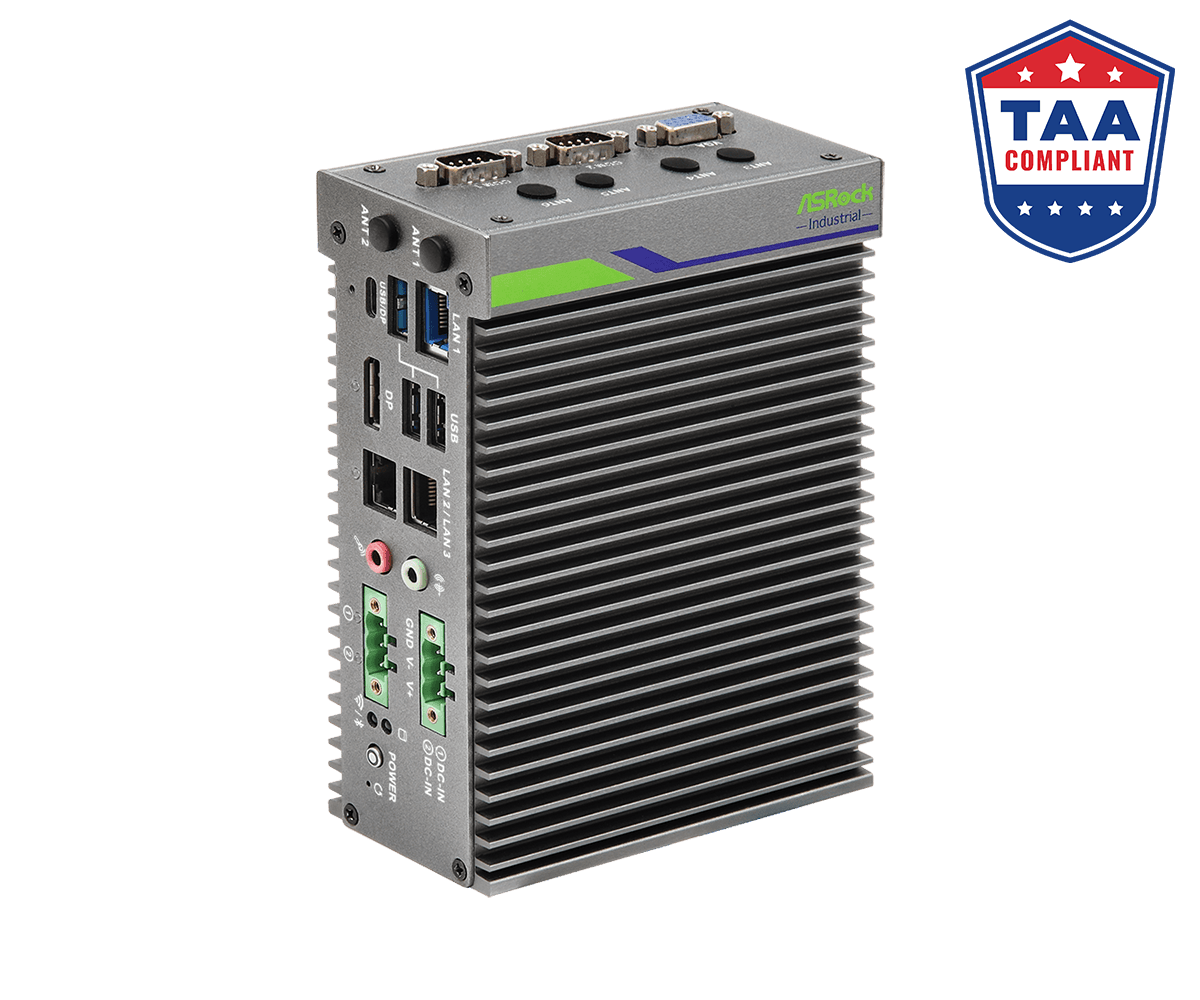

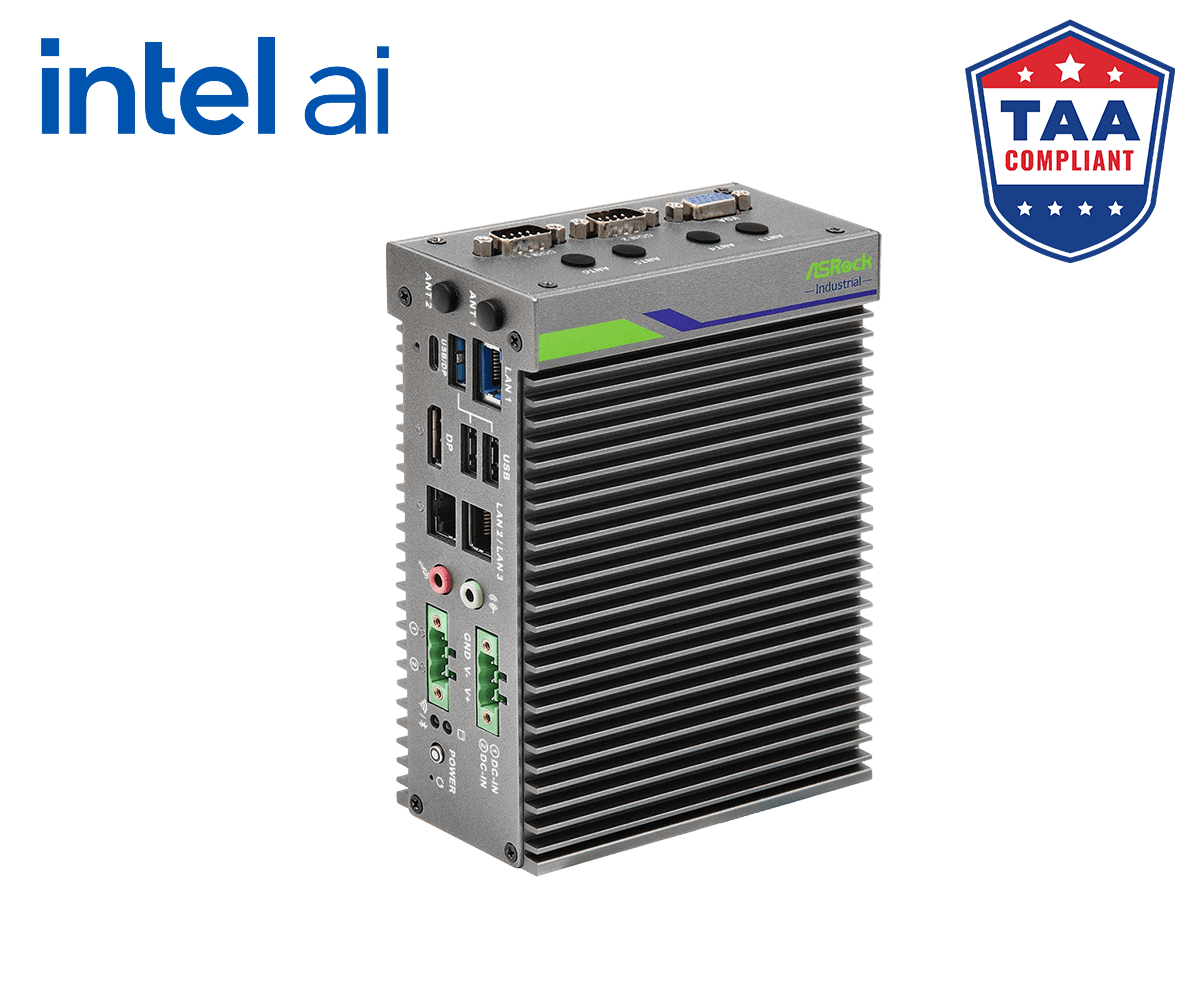

iEP-5020G Series Industrial IoT Controller

Processor System

CPU	Intel Atom® x7433RE, 4C, 1.5GHz, 9W
Chipset	MCP
BIOS	AMI SPI 256 Mbit

Memory

Technology	Single Channel DDR5 4800 MHz
Capacity	16GB
Socket	1 x 262-pin SO-DIMM

Graphics

Controller	Intel® UHD Graphicse
DisplayPort	DisplayPort 1.4a , DP++
VGA	Max resolution up to 1920x1200@60Hz

Expansion Slot

M.2	1 x M.2 (Key B, 3042/3052) with PCIe Gen3x1 and USB 3.2 Gen1x1 for 4G LTE/5G 1 x M.2 (Key E, 2230/2260) with PCIe Gen3x1 and USB 2.0 for Wireless/BT
RF& Antenna	6 x SMA connector hole reserved, support for Basic SKU 4 x SMA connector hole reserved, support for PoE/5LAN/8DIO SKU

Audio

Interface	Realtek ALC897, High Definiton Audio

Ethernet

Controller/ Speed	LAN1: Intel® I226IT with 10/100/1000/2500 Mbps, supports TSN/TCC LAN2/LAN3: Intel® I210IT with 10/100/1000 Mbps LAN4/LAN5: Intel® I210AT with 10/100/1000 Mbps (For 5LAN SKU) PoE1/PoE2: Intel® I210AT. PoE output max.15.4W/port, each port supports IEEE 802.3AF PoE. (For PoE SKU)
Connector	RJ-45

Front I/O

Audio	1 x Mic-in 1 x Line-out
Ethernet	1 x 2.5G LAN 2 x 1G LAN
DisplayPort	1 x DisplayPort 1.4a , DP++
USB	2 x USB 3.2 Gen2 1 x USB 2.0 1 x Type-C USB3.2 Gen2
LED	1 x SATA / NVMe Storage LED 1 x Wi-Fi / BT LED
DC-IN	2 x 3-pin Phoenix type
Reset Button	1
Power Button	1 (with LED)

Rear I/O

SIM Card	1 x Nano SIM Card slot
Micro SD Card	1 x Micro SD card slot (SD Card specification version 3.01)

Top I/O

COM	2 x RS-232/422/485
VGA	1
Ethernet	2 x 1G LAN for PoE/5LAN SKU
LED	2 x PoE LED
Digital I/O	8DIs/8DOs with sink/source isolation 36V for 8DIO SKU

Storage

M.2	1 x M.2 (Key M, 2280) with PCIe Gen3x2

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

DC Input	For Basic/5LAN/8DIO SKU: 6V~36V DC For PoE SKU: 19V~36V DC - OVP, UVP, OCP, plus 80V surge protection

Environment

Operating Temp	For Basic/5LAN/8DIO SKU : -40°C ~ 70°C (-40°F~158°F) For PoE SKU : -40°C ~ 50°C (-40°F~122°F) With airflow 0.5~0.8m/s
Storage Temp	-40°C ~ 85°C (-40°F~185°F)
Humidity	~95% @ 40°C (non-condensing)
Vibration	Operating: 5 Grms, 5-500 Hz, 3 axes with SSD
Shock	Operating 100 G, half sine 11 ms duration with SSD
ESD	Contact +/-8 KV, Air +/-15 KV
EMC	CE and FCC Class A (EN61000-6-4/-2)
Safety	LVD

Mechanical

Construction	Aluminum
Dimensions (L x W x H)	58 x 125 x 157 mm
Mounting	DIN-Rail , Wall Mount (By Request)
Weight	Basic SKU 1.25kg PoE SKU 1.39kg 5LAN-WIFI SKU 1.30kg 5LAN-5G SKU 1.30kg 8DIO SKU 1.35kg

Others

OS Support	Windows 11, Liunux
Real-Time Enablement	TSN, TCC support under Linux
TPM	TPM2.0
Packing List	3 x M2*2 Screw Package 1 x 3-pin phoenix connector 1 x System QIG
Optional Items	(1) 120W Power Adapter (2) Antenna/SMA Cable for support Wi-Fi module (3) Antenna/SMA Cable for support 4G LTE/5G module (4) DIN Rail Kit (5) Wall Mount Kit

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。

• Drivers
• BIOS
• Manual

訂購資訊

型號	料號	說明
型號	iEP-5020-020	料號	90PXGCC0-00000000	說明	Basic SKU CPU : Intel Atom x7433RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM & SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
型號	iEP-5020G-021	料號	90PXGCC0-10000000	說明	PoE SKU CPU : Intel Atom x7433RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~50°C. When equipped with commercial temperature DRAM & SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
型號	iEP-5020G-022	料號	90PXGCC0-20000000	說明	5LAN-WIFI SKU CPU : Intel Atom x7433RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM & SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
型號	iEP-5020G-023	料號	90PXGCC0-30000000	說明	5LAN-5G SKU CPU : Intel Atom x7433RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM & SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
型號	iEP-5020G-024	料號	90PXGCC0-40000000	說明	8DIO SKU CPU : Intel Atom x7433RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM & SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
