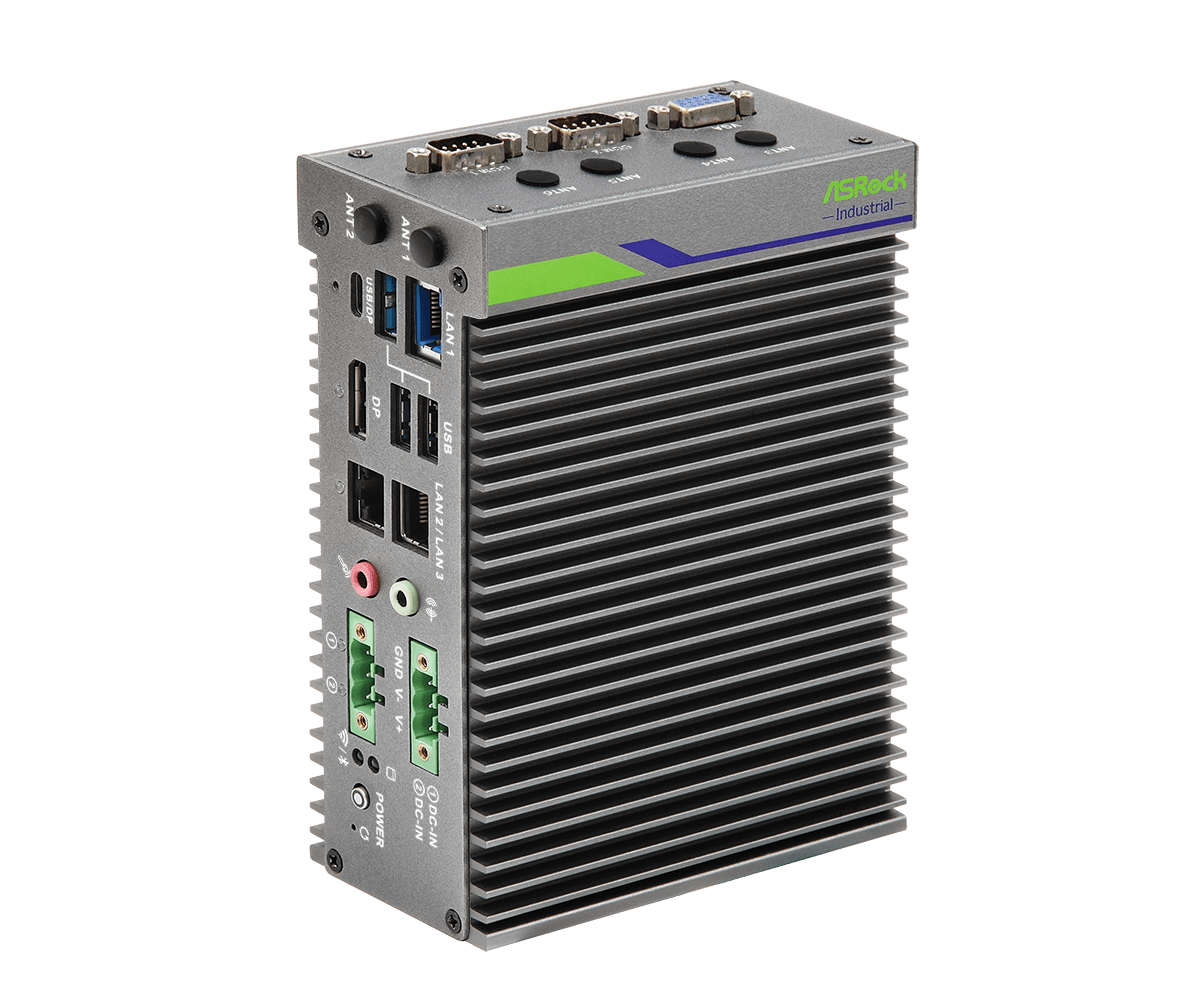

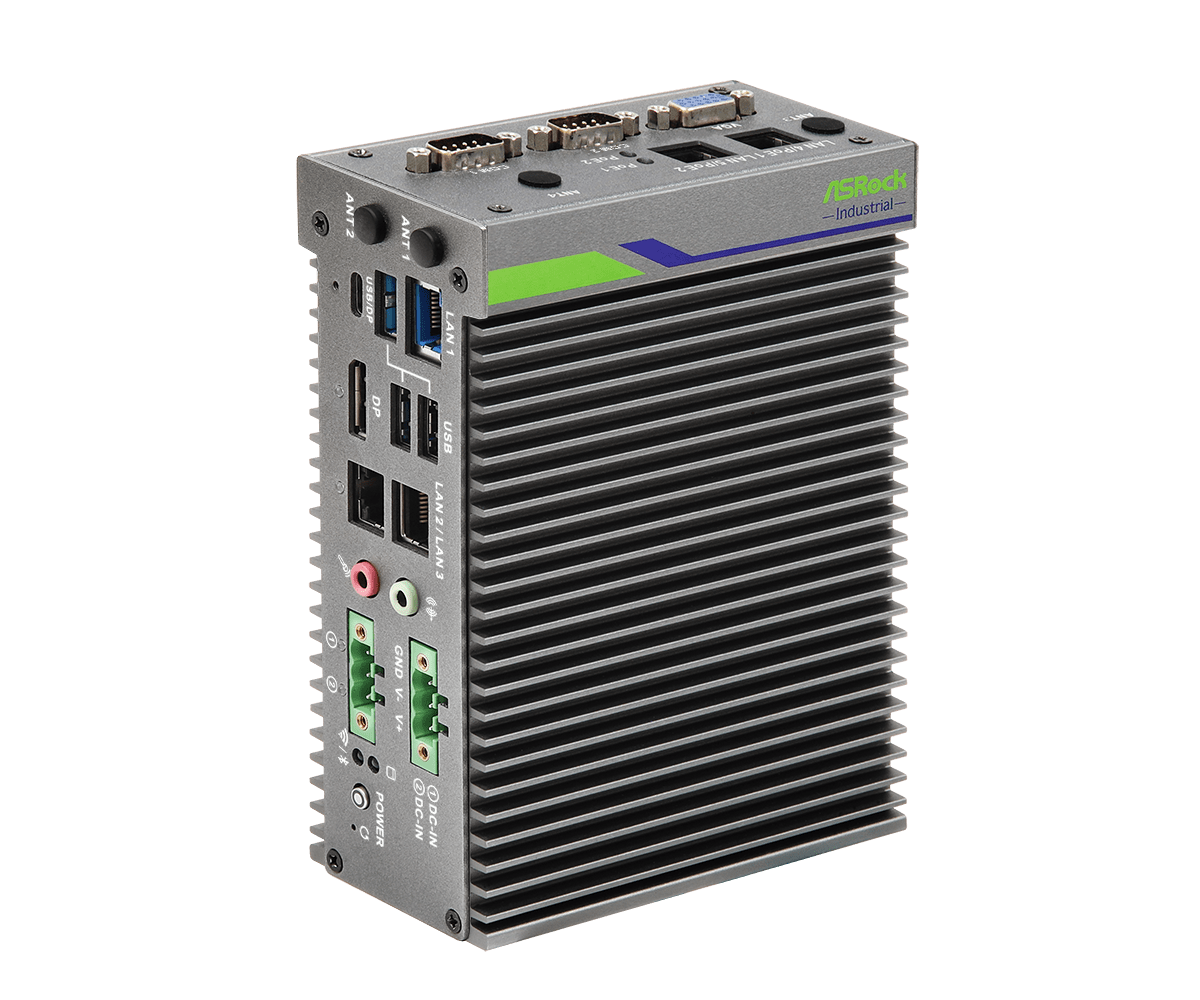

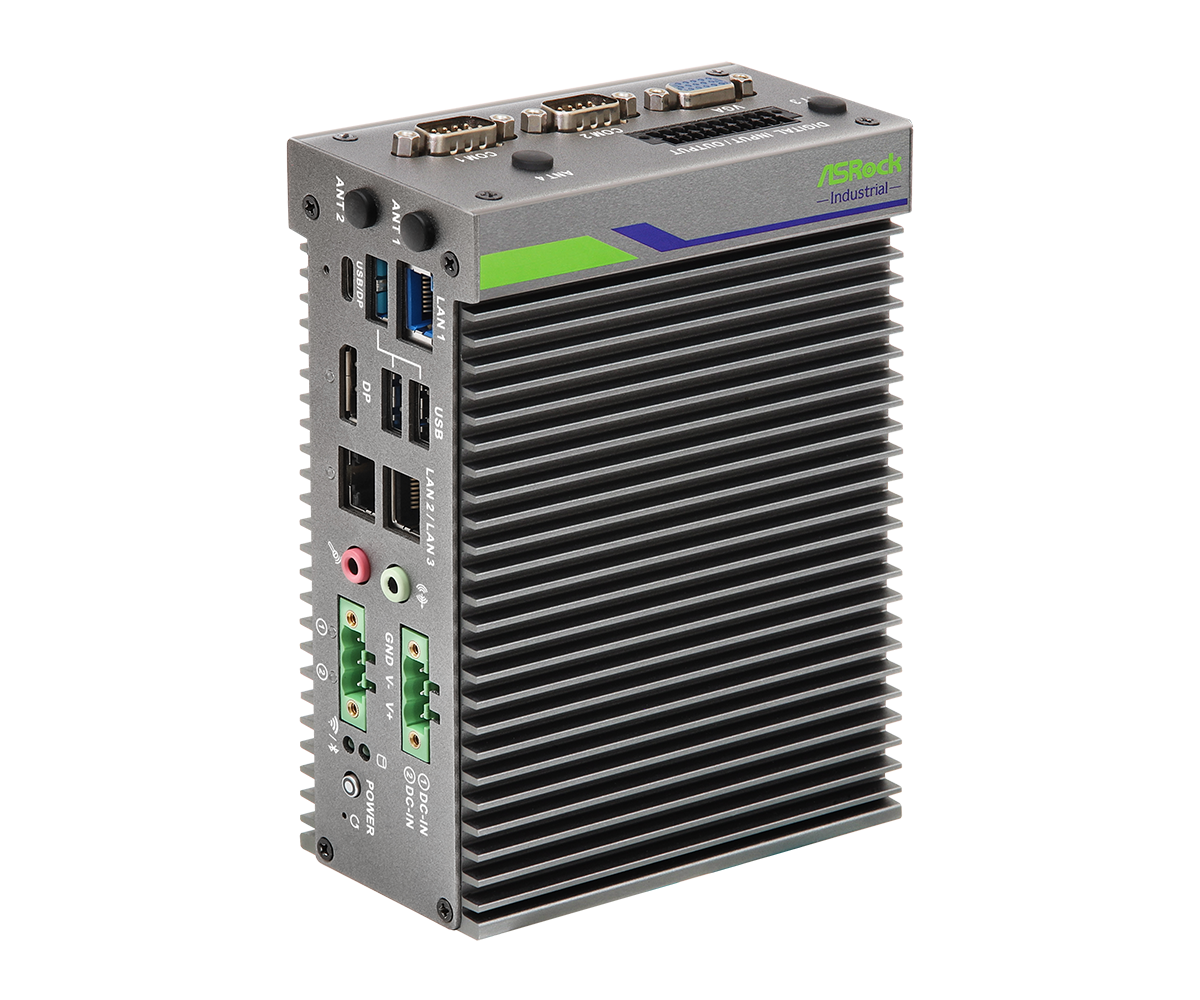

iEP-5020G Series Industrial IoT Controller

Processor System

CPU	Intel Atom® x7433RE, 4C, 1.5GHz, 9W
Chipset	MCP
BIOS	AMI SPI 256 Mbit

Memory

Technology	Single Channel DDR5 4800 MHz
Capacity	16GB
Socket	1 x 262-pin SO-DIMM

Graphics

Controller	Intel® UHD Graphicse
DisplayPort	DisplayPort 1.4a , DP++
VGA	Max resolution up to 1920x1200@60Hz

Expansion Slot

M.2	1 x M.2 (Key B, 3042/3052) with PCIe Gen3x1 and USB 3.2 Gen1x1 for 4G LTE/5G 1 x M.2 (Key E, 2230/2260) with PCIe Gen3x1 and USB 2.0 for Wireless/BT
RF& Antenna	6 x SMA connector hole reserved, support for Basic SKU 4 x SMA connector hole reserved, support for PoE/5LAN/8DIO SKU

Audio

Interface	Realtek ALC897, High Definiton Audio

Ethernet

Controller/ Speed	LAN1: Intel® I226IT with 10/100/1000/2500 Mbps, supports TSN/TCC LAN2/LAN3: Intel® I210IT with 10/100/1000 Mbps LAN4/LAN5: Intel® I210AT with 10/100/1000 Mbps (For 5LAN SKU) PoE1/PoE2: Intel® I210AT. PoE output max.15.4W/port, each port supports IEEE 802.3AF PoE. (For PoE SKU)
Connector	RJ-45

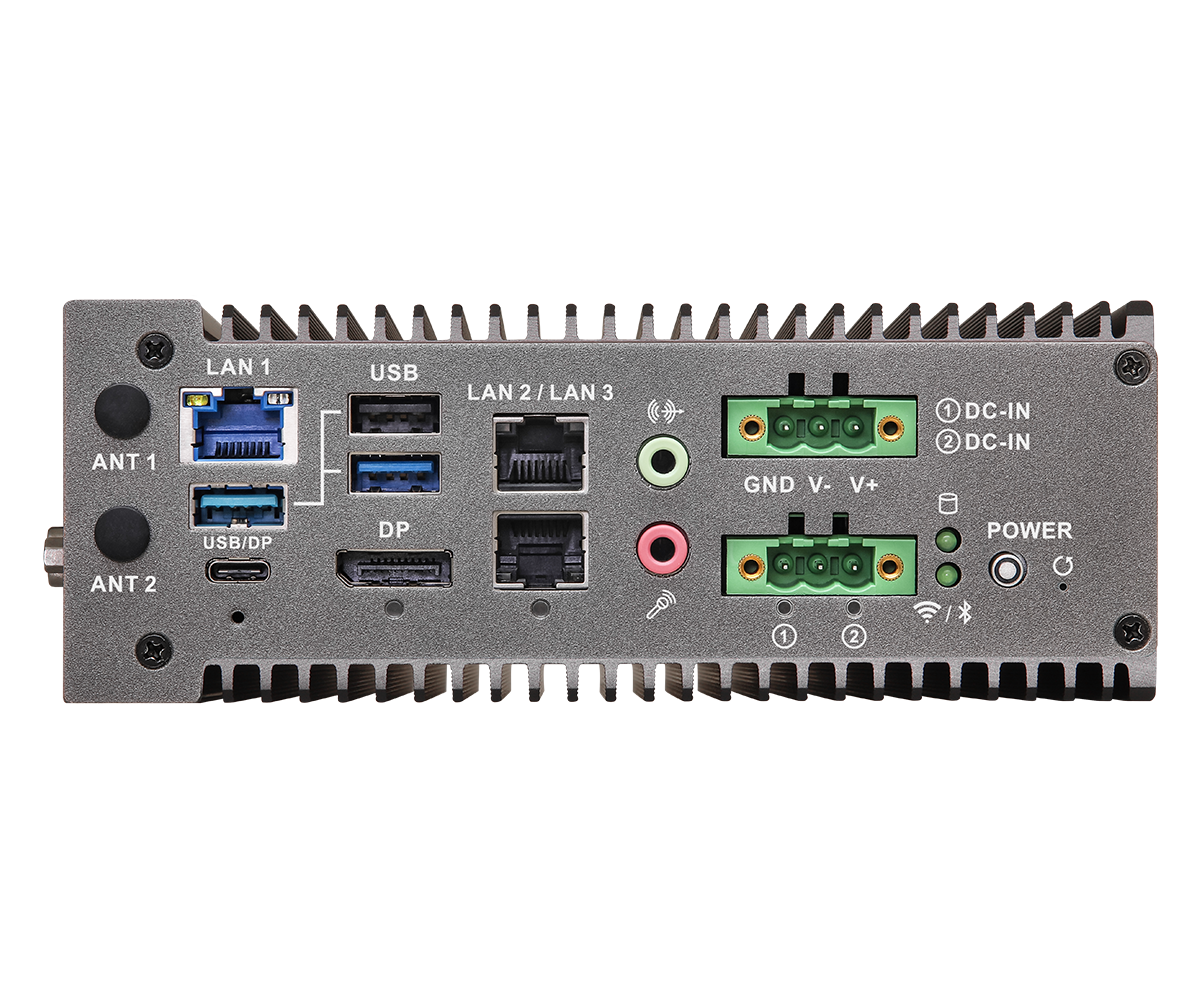

Front I/O

Audio	1 x Mic-in 1 x Line-out
Ethernet	1 x 2.5G LAN 2 x 1G LAN
DisplayPort	1 x DisplayPort 1.4a , DP++
USB	2 x USB 3.2 Gen2 1 x USB 2.0 1 x Type-C USB3.2 Gen2
LED	1 x SATA / NVMe Storage LED 1 x Wi-Fi / BT LED
DC-IN	2 x 3-pin Phoenix type
Reset Button	1
Power Button	1 (with LED)

Rear I/O

SIM Card	1 x Nano SIM Card slot
Micro SD Card	1 x Micro SD card slot (SD Card specification version 3.01)

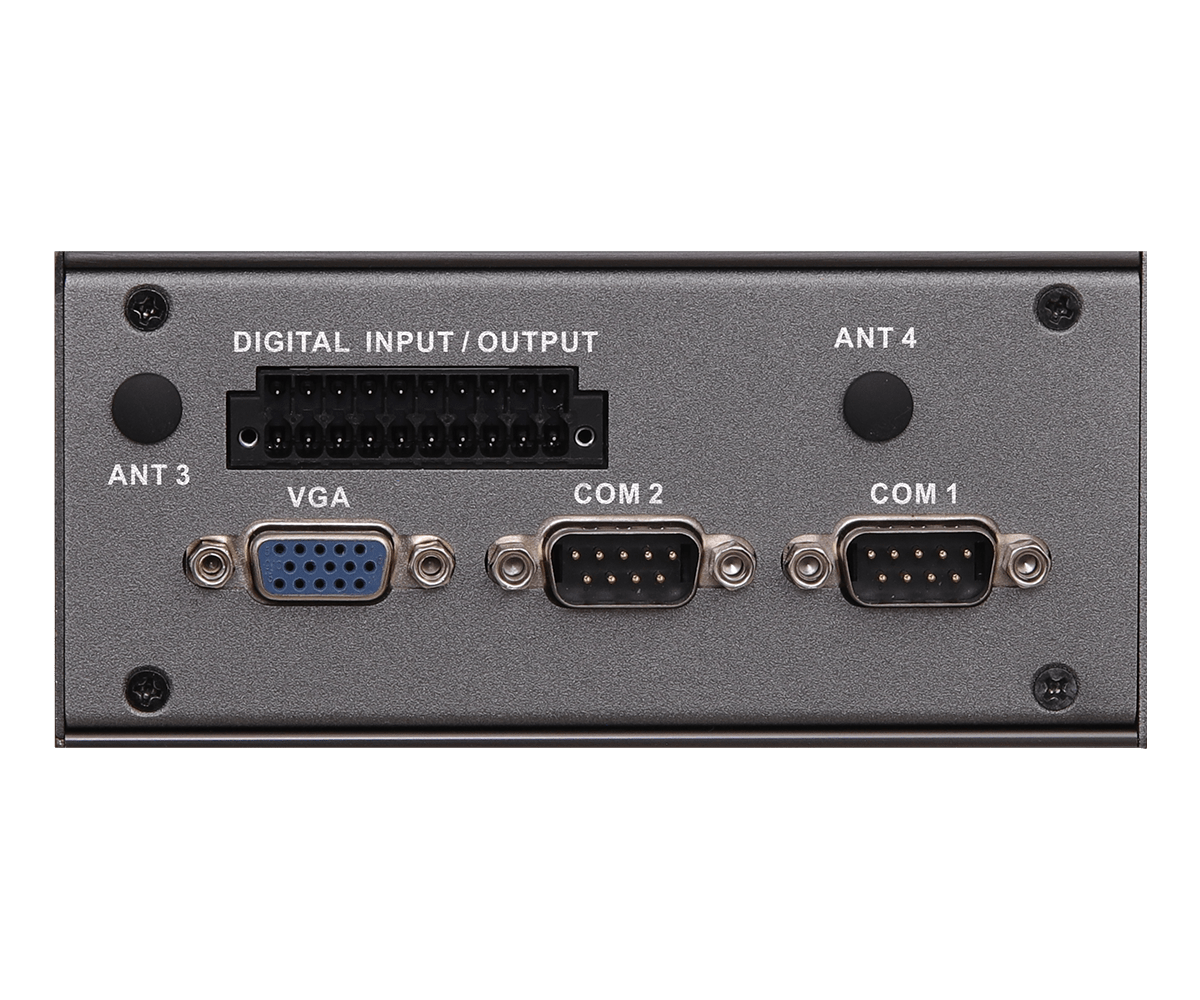

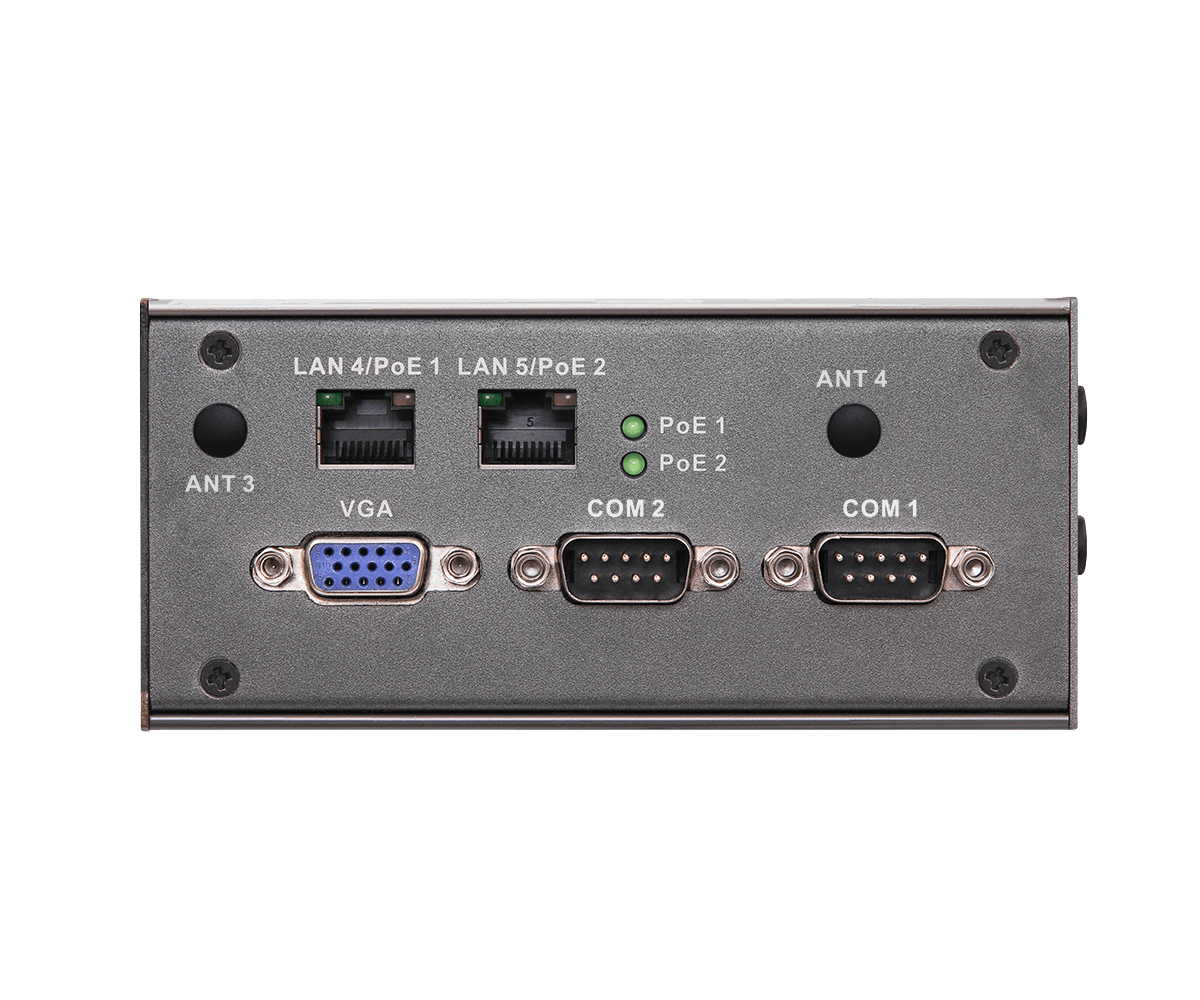

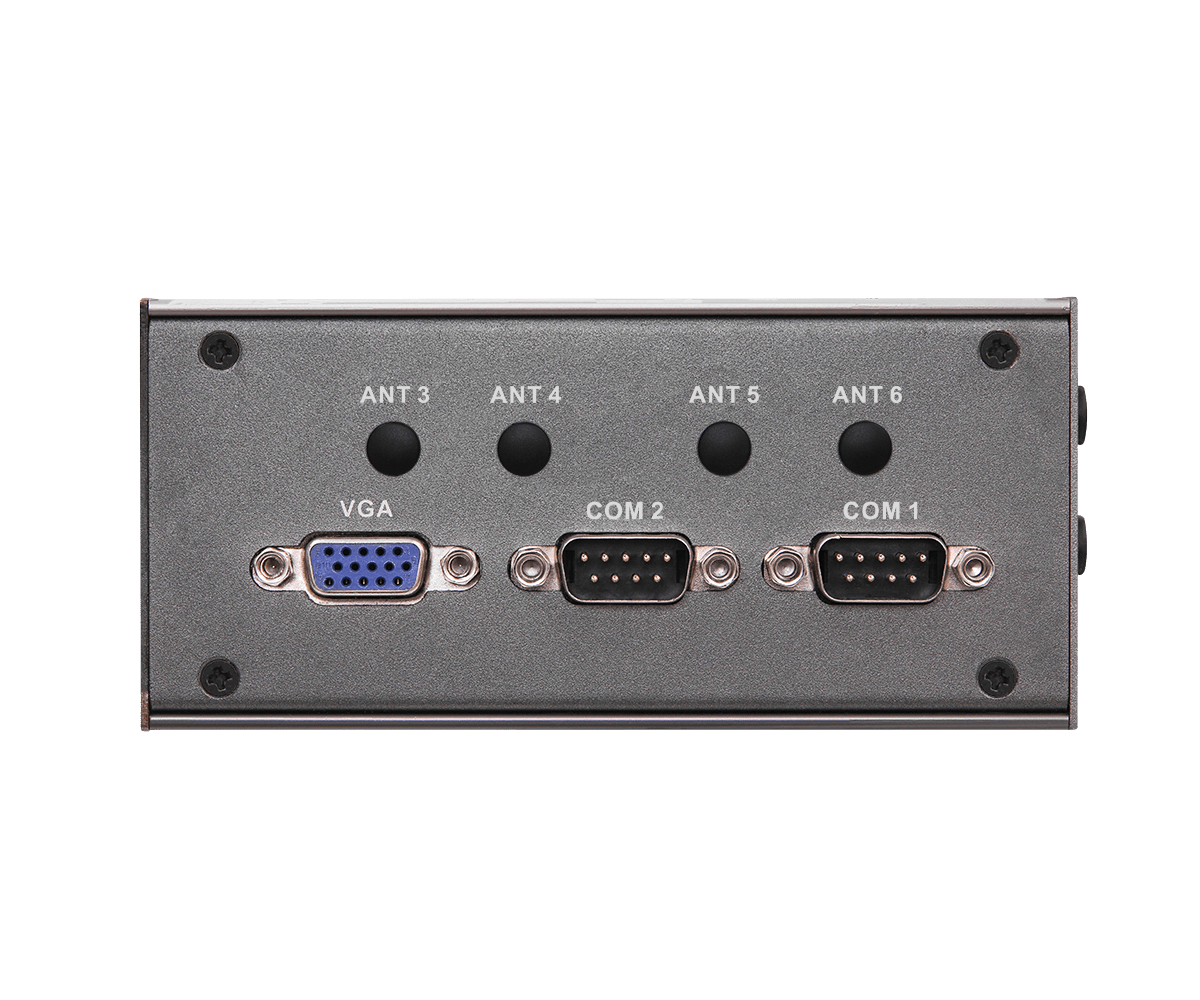

Top I/O

COM	2 x RS-232/422/485
VGA	1
Ethernet	2 x 1G LAN for PoE/5LAN SKU
LED	2 x PoE LED
Digital I/O	8DIs/8DOs with sink/source isolation 36V for 8DIO SKU

Storage

M.2	1 x M.2 (Key M, 2280) with PCIe Gen3x2

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

DC Input	For Basic/5LAN/8DIO SKU: 6V~36V DC For PoE SKU: 19V~36V DC - OVP, UVP, OCP, plus 80V surge protection

Environment

Operating Temp	For Basic/5LAN/8DIO SKU : -40°C ~ 70°C (-40°F~158°F) For PoE SKU : -40°C ~ 50°C (-40°F~122°F) With airflow 0.5~0.8m/s
Storage Temp	-40°C ~ 85°C (-40°F~185°F)
Humidity	~95% @ 40°C (non-condensing)
Vibration	Operating: 5 Grms, 5-500 Hz, 3 axes with SSD
Shock	Operating 100 G, half sine 11 ms duration with SSD
ESD	Contact +/-8 KV, Air +/-15 KV
EMC	CE and FCC Class A (EN61000-6-4/-2)
Safety	LVD

Mechanical

Construction	Aluminum
Dimensions (L x W x H)	58 x 125 x 157 mm
Mounting	DIN-Rail , Wall Mount (By Request)
Weight	Basic SKU 1.25kg PoE SKU 1.39kg 5LAN-WIFI SKU 1.30kg 5LAN-5G SKU 1.30kg 8DIO SKU 1.35kg

Others

OS Support	Windows 11, Liunux
Real-Time Enablement	TSN, TCC support under Linux
TPM	TPM2.0
Packing List	3 x M2*2 Screw Package 1 x 3-pin phoenix connector 1 x System QIG
Optional Items	(1) 120W Power Adapter (2) Power Cord (3) WIFI Kits (include WIFI Module, Antenna and SMA Cable) (4) 4G Kits (include 4G Module, Antenna and SMA Cable) (5) 5G Kits (include 5G Module, Antenna and SMA Cable) (6) DIN Rail Kit (7) Wall Mount Kit

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。

• Drivers
• BIOS
• Manual

订购信息

型号	料号	描述
型号	iEP-5020-020	料号	90PXGCC0-00000000	描述	Basic SKU CPU : Intel Atom x7433RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM & SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
型号	iEP-5020G-021	料号	90PXGCC0-10000000	描述	PoE SKU CPU : Intel Atom x7433RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~50°C. When equipped with commercial temperature DRAM & SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
型号	iEP-5020G-022	料号	90PXGCC0-20000000	描述	5LAN-WIFI SKU CPU : Intel Atom x7433RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM & SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
型号	iEP-5020G-023	料号	90PXGCC0-30000000	描述	5LAN-5G SKU CPU : Intel Atom x7433RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM & SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
型号	iEP-5020G-024	料号	90PXGCC0-40000000	描述	8DIO SKU CPU : Intel Atom x7433RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM & SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
