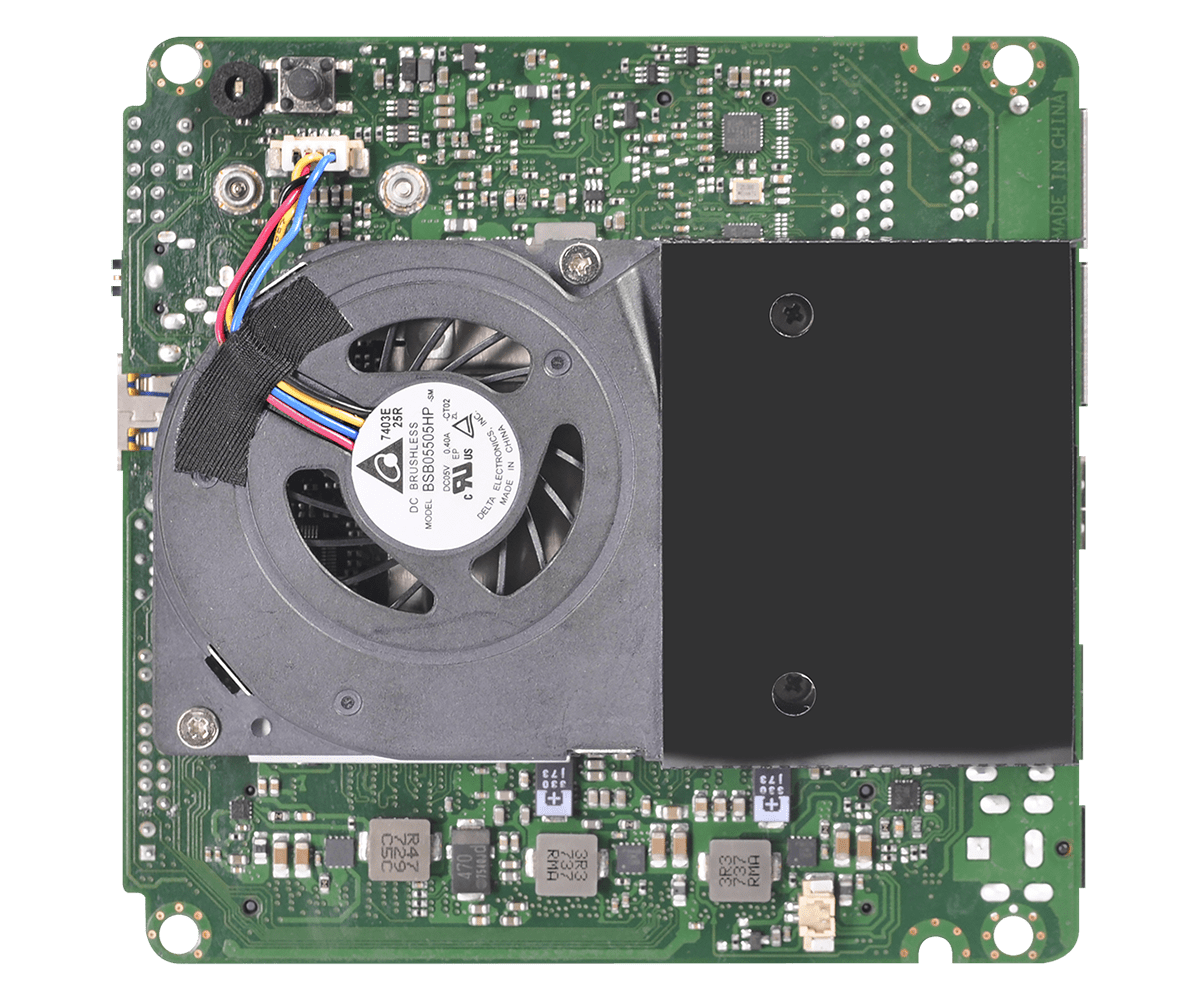

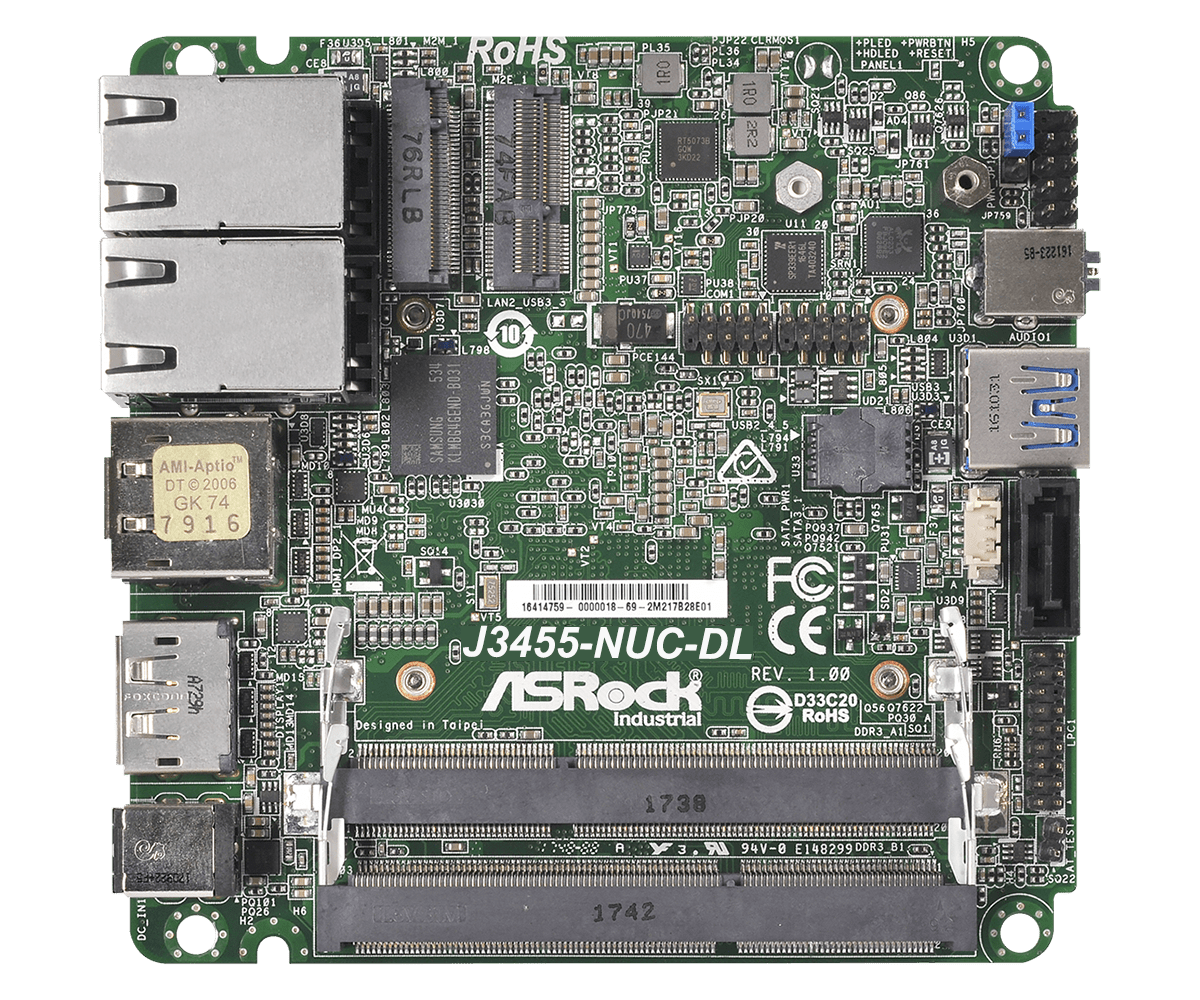

J3455-NUC-DL NUC Motherboard

Processor System

CPU	Intel® Apollo Lake J3455 SoC
Chipset	SoC

Form Factor

Dimensions	NUC (4.09-in x 4.02-in, 10.4 cm x 10.2 cm)

Memory

Technology	Dual Channel DDR3L 1867
Capacity	8 GB
Socket	2 x SO-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 11/12, OGL 4.3 / 4.4
HDMI	Supports HDMI 1.4b, Max. resolution 3840 x 2160@30Hz
DisplayPort	Supports DP 1.2, Max. resolution 4096 x 2160@60Hz
MultiDisplay	Triple Display

Expansion Slot

M.2	1 x M.2 2230, Key E (PCIe x1 +USB2.0), 1x M.2 2242/2260, Key M

Ethernet

Controller/ Speed	2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector	2 x RJ-45

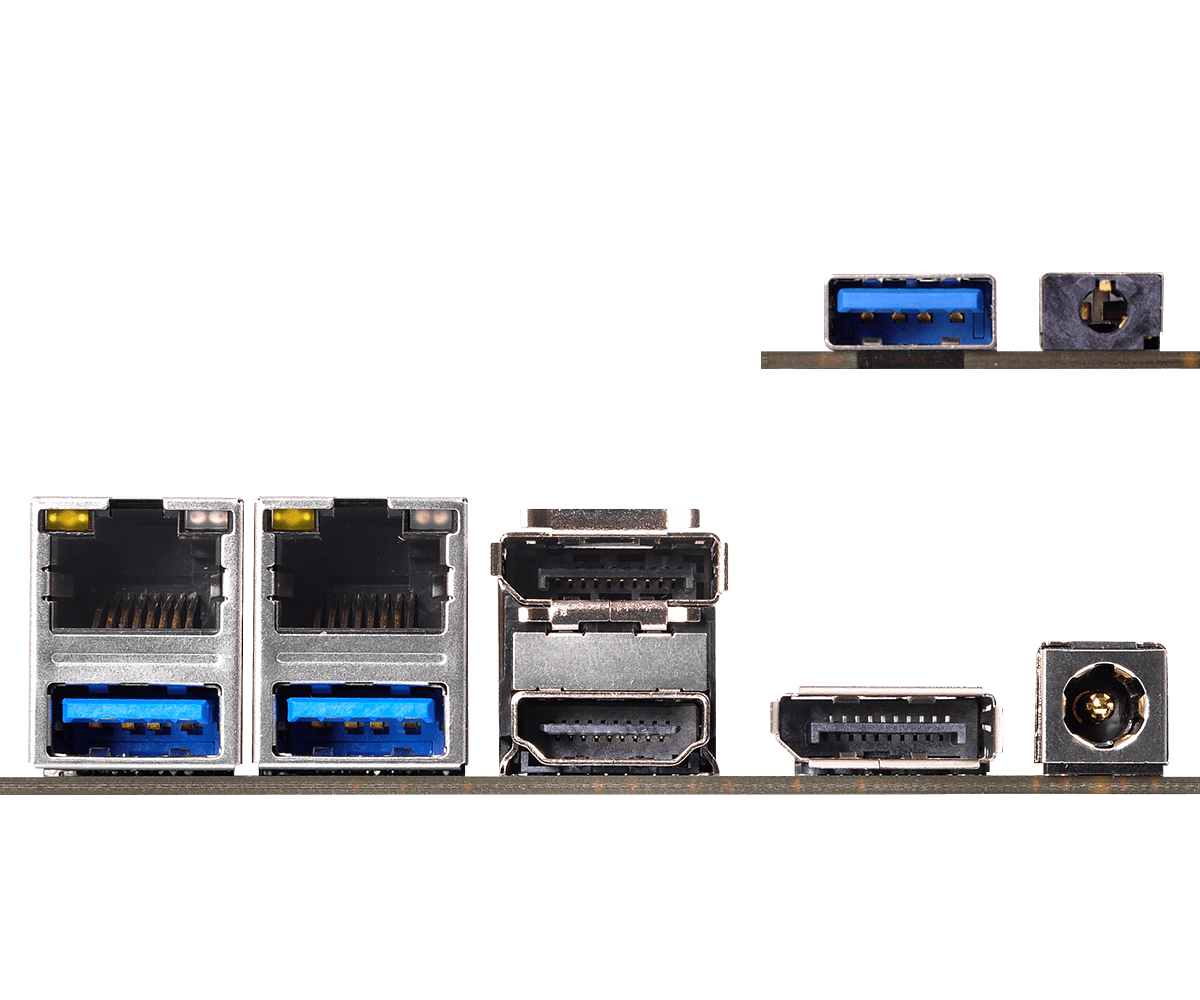

Rear I/O

HDMI	1
DisplayPort	2
Ethernet	2
USB	2 x USB 3.0
DC Jack	1

Internal Connector

USB	2 x USB2.0
COM	1
TPM	SPI TPM on-board design (optional)
SATA PWR Output	1

Storage

SATA	1 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V DC-in(DC Jack)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Bulk Package	2 x SCREW M2,D=5 (13G020302031AK) 1 x SATA Data/Power Cable (14G000103111AK)
