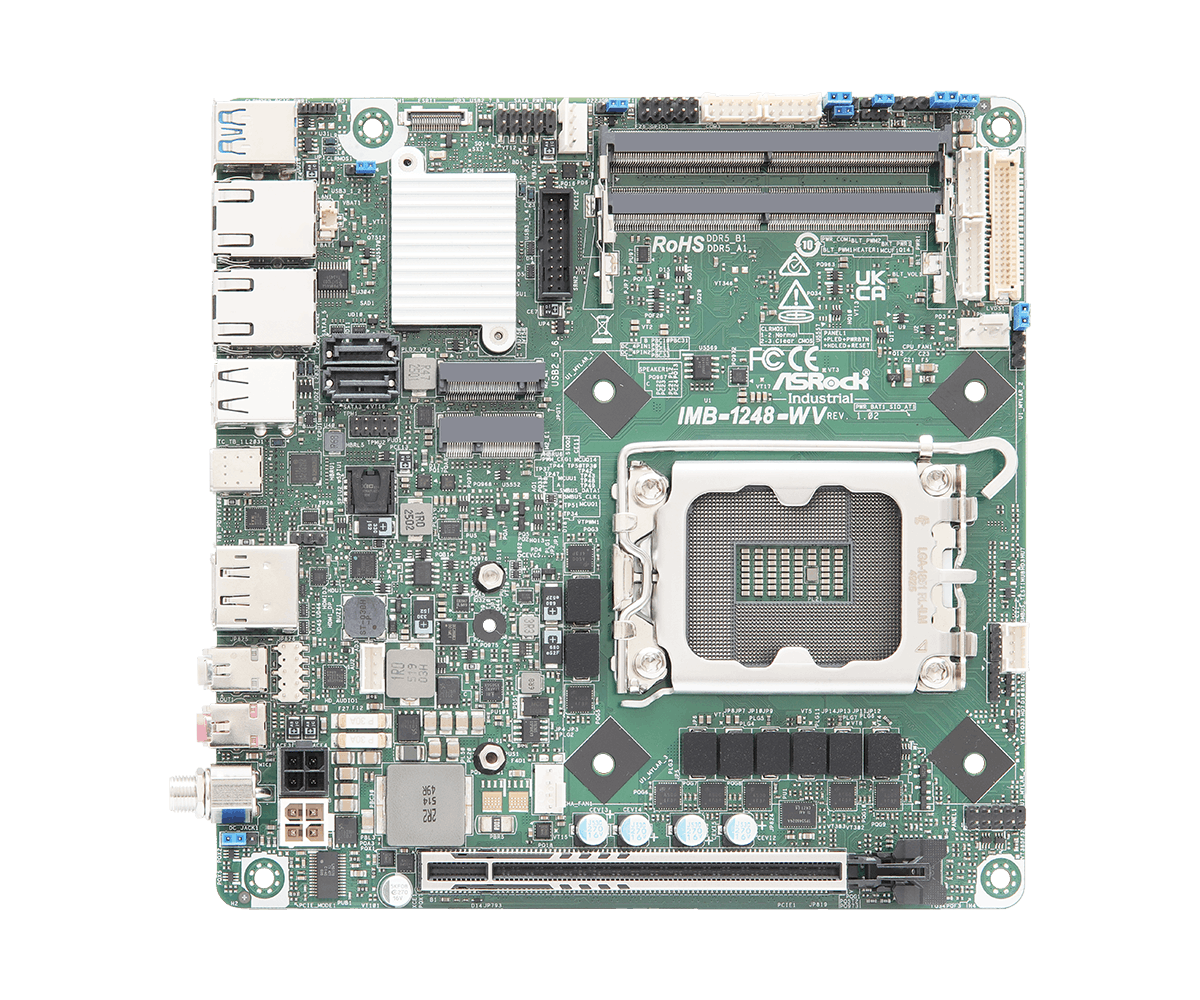

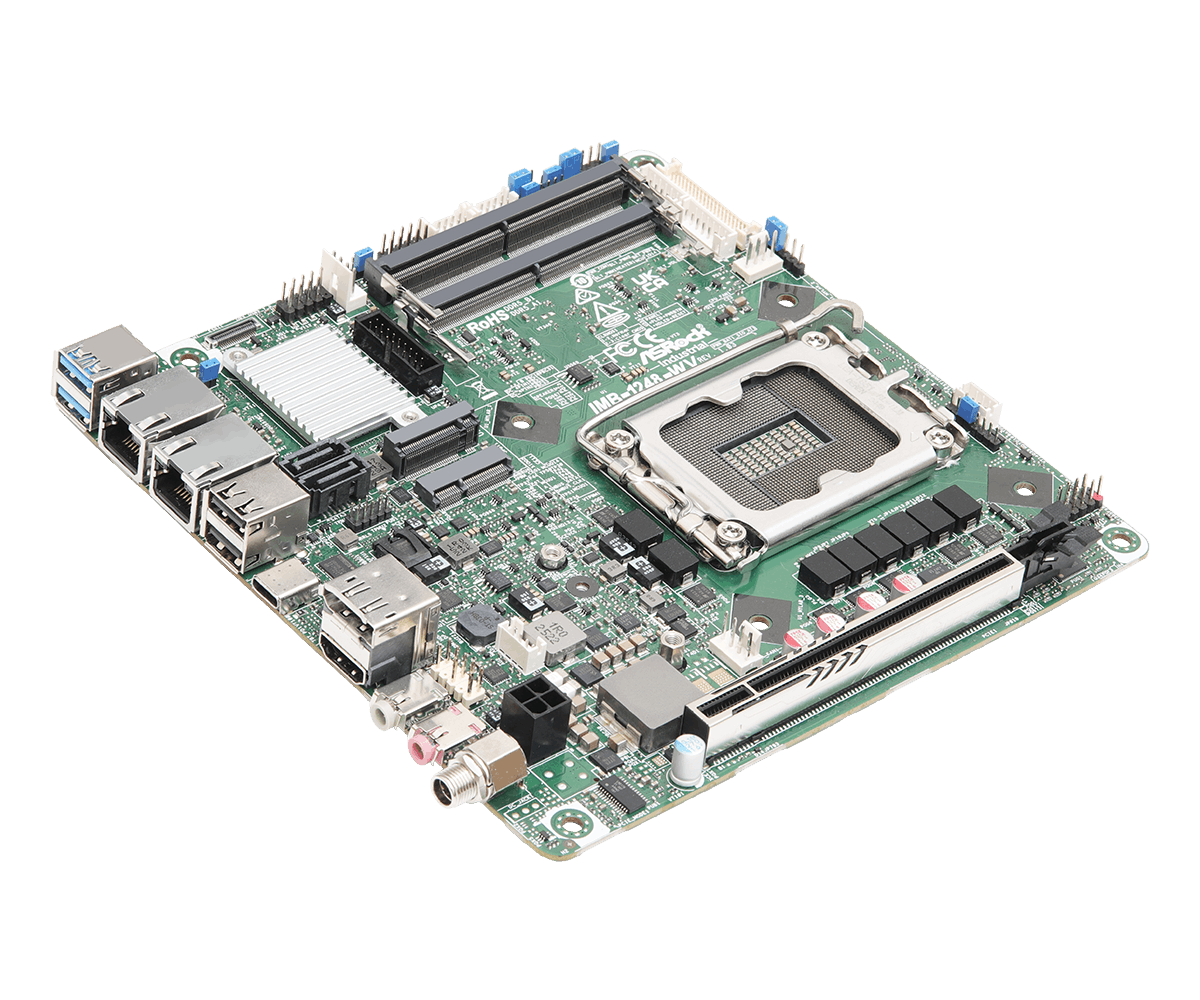

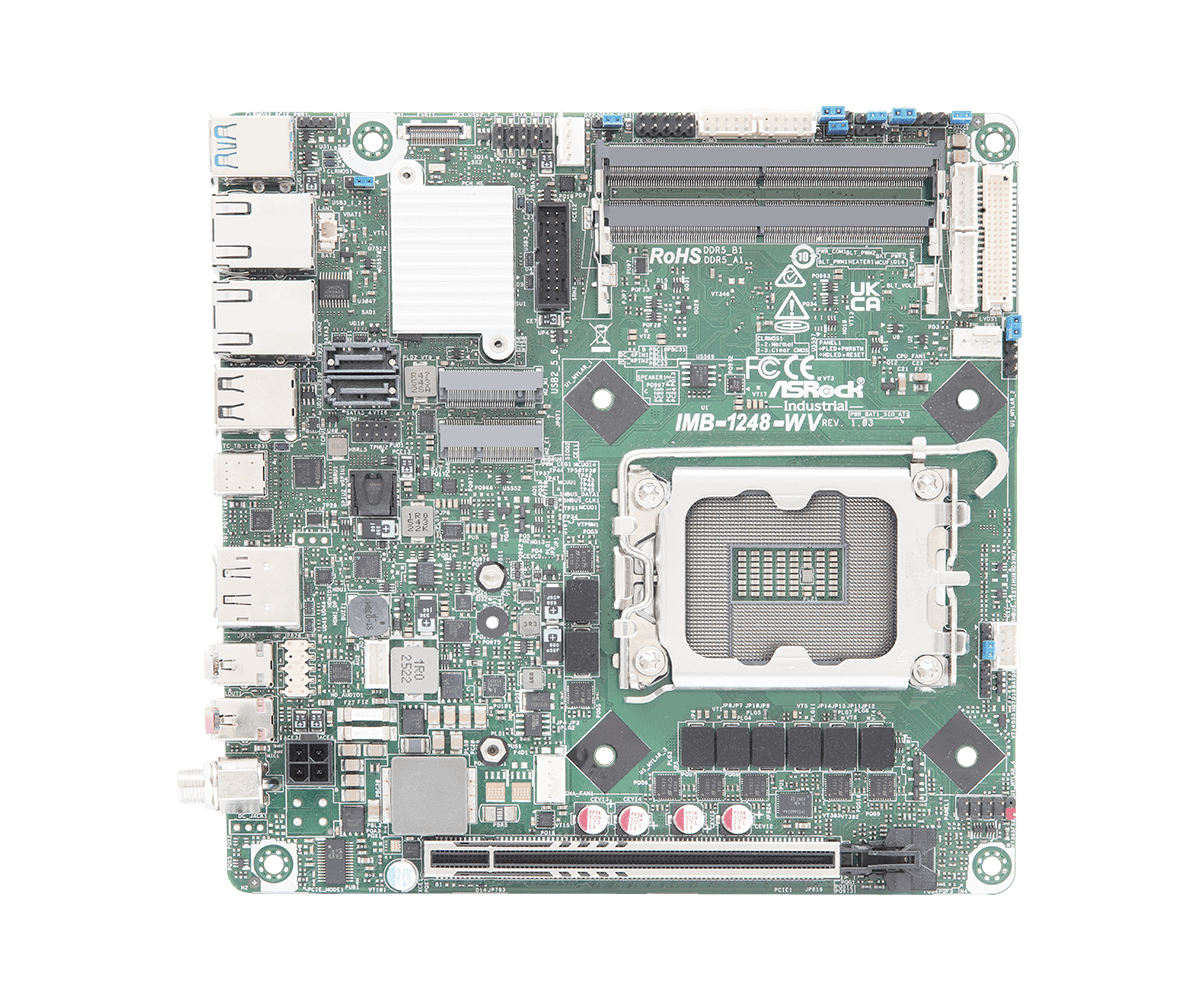

IMB-1248-WV Mini-ITX Motherboard

Intel® Core™ Ultra processors (Arrow Lake-S) with H810 chipset
2 x 262-pin CSO-DIMM DDR5 6400 MHz, SO-DIMM DDR5 5600 MHz, up to 96GB (48GB per DIMM)
1 x PCIe x16 (Gen5), 1 x USB4/Thunderbolt™4, 2 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 2 x COM, 2 x SATA3
2 x Realtek 1 Gigabit LAN
Supports Triple display, 1 x HDMI 2.1 TMDS, 1 x DP 2.1 (1 from Type C), 1 x DP 1.4a, 1 x LVDS or eDP
12~28V DC-In (Lockable DC Jack)/ 12V DC-In only (BOM option)

產品型錄

產品規格

Processor System

CPU	Intel® Core™ Ultra Processors (Arrow Lake-S), up to 65W *The Performance of CPUs over 65W will be limited due to power design
Chipset	Intel® H810
Socket	LGA1851
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in x 1.03-in, 17.0 cm x 17.0 cm x 2.6 cm)

Memory

Technology	Dual Channel DDR5 5600/6400 MHz
Capacity	96GB (48GB per DIMM)
Socket	2 x 262-pin SO-DIMM

Graphics

Controller	Intel® Xe LPG Graphics
HDMI	HDMI 2.1 TMDS Max resolution up to 7680x4320@60Hz
DisplayPort	DisplayPort 2.1/ 1.4a, DP++ Max resolution up to 4096x2160@60Hz
LVDS	Dual channel 24 bit up to 1920x1200@60Hz (Connector shared with eDP)
eDP	Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS)
MultiDisplay	Triple display (Included 1 output from Type-C)

Expansion Slot

PCIe	1 x PCIe x16 (Gen5)
M.2	1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless

Audio

Interface	Realtek ALC897, High Definition Audio. Line-out, Mic-in

Ethernet

Controller/ Speed	LAN1: Realtek RTL8111H with 10/100/1000 Mbps LAN2: Realtek RTL8111H with 10/100/1000 Mbps
Connector	2 x RJ-45

Rear I/O

HDMI	2 x HDMI 2.1 TMDS
DisplayPort	1 x DP 1.4a++
Ethernet	2 x 1 Gigabit LAN
USB	2 x USB 2.0 2 x USB 3.2 Gen2 1 x USB4/Thunderbolt™4 (5V/3A, supports DP 2.1 display output) * For Thunderbolt support, please refer to support list.
Audio	2 (Line-out, Mic-in or Line-in, Mic-in (BOM option))
DC Jack	1 DC-in

Internal Connector

USB	2 x USB 3.2 Gen1 (1 x USB 3.2 wafer) 2 x USB 2.0 (1 x 2.54 pitch header)
COM	COM1 (RS-232/422/485) COM3 (RS-232)
GPIO	4 x GPI, 4 x GPO
LVDS	1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output	1
Speaker Header	1

Security

TPM	TPM header

Storage

M.2	1 x M.2 (Key M, 2242/2280/3052) with PCIe Gen4 x4 for SSD
SATA	2 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12~28V DC-In with 4-pin wafer PWR cable or DC Jack (Screw type) 12V DC-In only (BOM option)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40°C ~ 85°C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x SATA Power Cable (14G000100410AK) 2 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G02P086000AK) 1 x I/O Shield THIN (13G02P086010AK) 2 x SCREW M3*2.5 (13G02P072010AK)
Bulk Package	1 x I/O Shield (13G02P086000AK) 1 x I/O Shield THIN (13G02P086010AK) 2 x SCREW M3*2.5 (13G02P072010AK)

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。

作業系統:

說明	資訊	作業系統	日期	下載
說明	[Beta] INF driver ver:10.1.19913.8607-Public-Client	資訊	Size: 7218 KiB Version:INF(v10.1.19913.8607-Public-Client) SHA1:BC21194471FA608F4951090DCFD1DADD6CE0926C Filename:INF(v10.1.19913.8607-Public-Client).zip Release Note	作業系統	Win 11 x 64 , Win 10 x 64	Date	2025-02-21	下載	全球中國
說明	[Beta] Bluetooth driver ver:23.70.0.2G	資訊	Size: 49 MiB Version: 23.70.0.2G SHA1: 977BF8B6C8810A7F7EF7D47854702D4B3CAEC33F Filename: Intel_Bluetooth(v23.70.0.2G).zip Release Note	作業系統	Win 11 x 64 , Win 10 x 64	Date	2025-02-21	下載	全球中國
說明	[Beta] Intel WLAN Driver ver:23.70.0.6G	資訊	Size: 79 MiB Version: 23.70.0.6G SHA1: D4E76B77DCA32D80CE1996E35F60F8830659D622 Filename: Intel_WLAN(v23.70.0.6G).zip Release Note	作業系統	Win 11 x 64 , Win 10 x 64	Date	2025-02-21	下載	全球中國
說明	[Beta] VGA driver ver: 32.0.101.5869	資訊	Size: 1053 MiB Version: 32.0.101.5869 SHA1: CA74B4C27BE58C0922EFF6C43323DC9F6AE9BD30 Filename: Intel_VGA(v32.0.101.5869).zip Release Note	作業系統	Win 11 x 64 , Win 10 x 64	Date	2025-02-21	下載	全球中國
說明	[Beta] Intel Thunderbolt driver ver:92	資訊	Size: 245 MiB Version:Rev92 SHA1: 077C92C0137AF470683EB99EC3513BC84D347A94 Filename:Thunderbolt(Rev92).zip Release Note	作業系統	Win 11 x 64 , Win 10 x 64	Date	2025-02-21	下載	全球中國
說明	[Beta] Intel Management Engine driver ver:2435.6.36.0_CONS	資訊	Size: 871 MiB Version: 2423.6.23.0_Corporate SHA1: 5C38422E6342D966CB42D51419CE877463146331 Filename: ME(v2435.6.36.0_CONS).zip Release Note	作業系統	Win 11 x 64 , Win 10 x 64	Date	2025-02-21	下載	全球中國
說明	[Beta] NPU driver ver: 32.0.100.2540	資訊	Size: 242Mib Version: 32.0.100.2540 SHA1: B361075DE79DE5D4869227B5D4DCE90EC348CEEB Filename: npudrive(v32.0.100.2540).zip Release Note	作業系統	Win 11 x 64 , Win 10 x 64	Date	2025-02-20	下載	全球中國
說明	[Beta] SST driver ver:20.40.11112.16	資訊	**Install after VGA driver Size: 236 Mib Version: 20.40.11112.16 SHA1: 0184A3F7744FFF14DF0170229AD9CE706C8A2A7A Filename: Intel_SST(v20.40.11112.16).zip Release Note	作業系統	Win 11 x 64 , Win 10 x 64	Date	2025-02-20	下載	全球中國
說明	[Beta] PMT ver: 3.1.2.6c	資訊	Size: 2394Kib Version: 3.1.2.6 SHA1: CB29A584170D1E8452D9E963A54D486BD1A49A27 Filename: PMT(v3.1.2.6).zip Release Note	作業系統	Win 11 x 64 , Win 10 x 64	Date	2025-02-20	下載	全球中國
說明	[Beta] COM Port driver ver:220211	資訊	Size: 3101Kib Version:v220211 SHA1: F1C906453C4F522D577757C87B0E0DDB5288DEA8 Filename:COM(v220211).zip	作業系統	Win 11 x 64 , Win 10 x 64	Date	2025-02-20	下載	全球中國
說明	[Beta] Intel Serial IO driver ver:30.100.2419.23	資訊	Size: 1877Kib Version: 30.100.2419.23 SHA1: 8B4028E04D3CA5E97C4AADAC213C1FB5216C1CDA Filename: SerialIO(v30.100.2419.23).zip Release Note	作業系統	Win 11 x 64 , Win 10 x 64	Date	2025-02-20	下載	全球中國
說明	[Beta] GNA ver: 03.05.00.1574	資訊	Size: 1235 KiB Version: 3.5.0.1578 SHA1: D1F1C2D63803811B4DA738ADB45F55410BA6A2B5 Filename: GNA(v3.5.0.1578).zip Release Note	作業系統	Win 11 x 64 , Win 10 x 64	Date	2025-02-20	下載	全球中國
說明	[Beta] Intel HID Event Filter ver: 2.2.2.6 PV	資訊	Size: 1172KiB Version: 2.2.2.6 PV SHA1: FEBD1B2BC042F43A5EA01905B5D004F575D77C08 Filename: Intel HID Event Filter ver(v2.2.2.6 PV).zip Release Note	作業系統	Win 11 x 64 , Win 10 x 64	Date	2025-02-20	下載	全球中國
說明	[Beta] Realtek Lan driver ver: 10.060.0615.2022	資訊	Size: 10Mib Version: 10.060.0615.2022 SHA1: 22FBF1F5494D18C2E4B467C867CF6CFCA347FF04 Filename:Realtek_LAN(v10.060.0615.2022).zip Release Notee	作業系統	Win 11 x 64 , Win 10 x 64	Date	2025-02-20	下載	全球中國
說明	[Beta] HD Audio Driver and Application ver:9757.1	資訊	**Install after SST driver Size: 49Mib Version: 9757.1 SHA1: 30FC5F5BCF2A4B410A318DABB19CB03ED1B1B337 Filename: Realtek_Audio(v9757.1).zip Release Note	作業系統	Win 11 x 64 , Win 10 x 64	Date	2025-02-20	下載	全球中國

檔案格式為 PDF，如果您沒有安裝 Adobe Acrobat Reader，請至 Adobe下載。

說明	語言	日期	下載
說明	Jumpers and headers setting guide	語言	English	日期	2025-02-12	下載	全球中國
