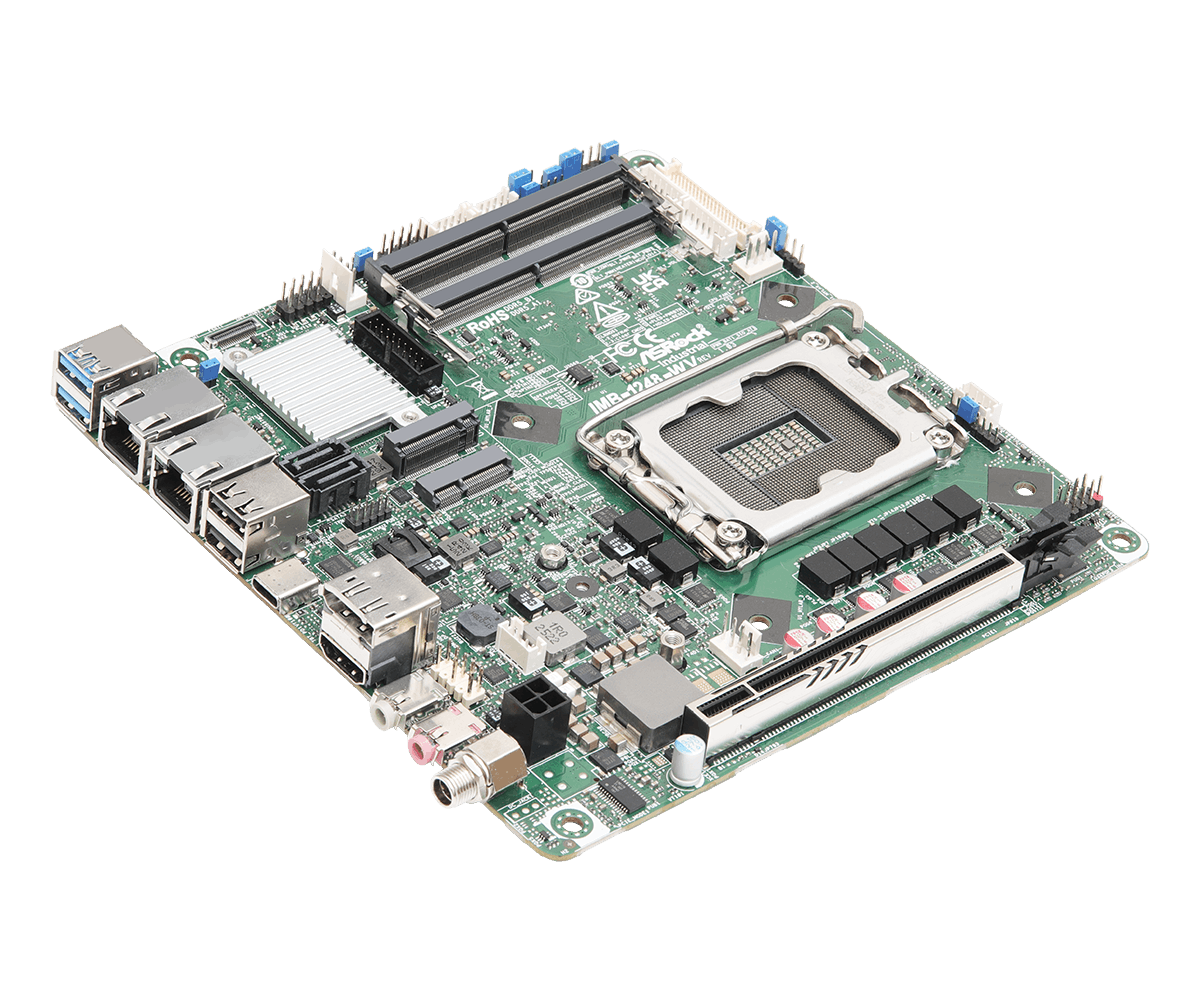

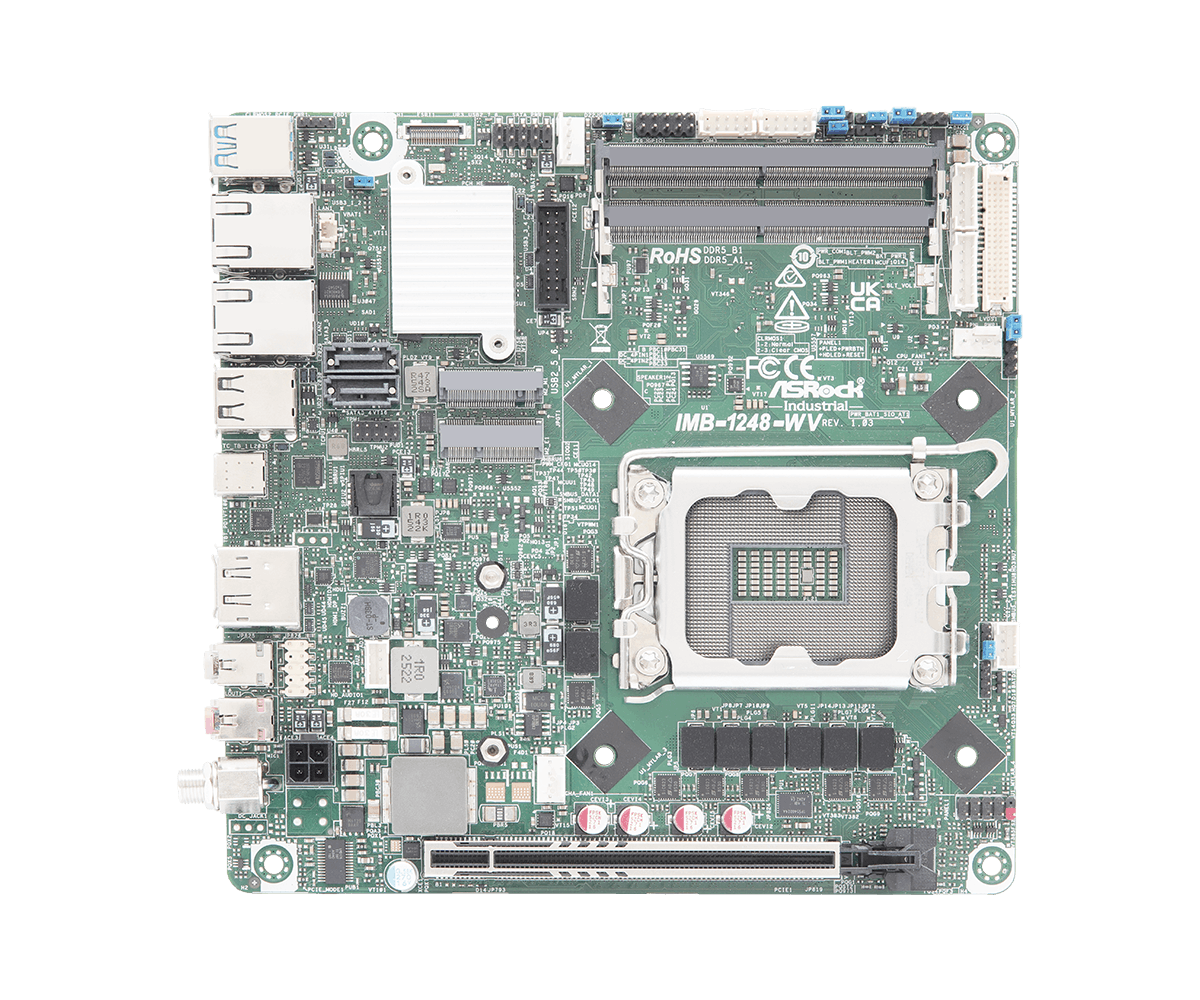

IMB-1248-WV Mini-ITX Motherboard

Intel® Core™ Ultra processors (Arrow Lake-S) with H810 chipset
2 x 262-pin CSO-DIMM DDR5 6400 MHz, SO-DIMM DDR5 5600 MHz, up to 96GB (48GB per DIMM)
1 x PCIe x16 (Gen5), 1 x USB4/Thunderbolt™4, 2 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 2 x COM, 2 x SATA3
2 x Realtek 1 Gigabit LAN
Supports Triple display, 1 x HDMI 2.1 TMDS, 1 x DP 2.1 (1 from Type C), 1 x DP 1.4a, 1 x LVDS or eDP
12~28V DC-In (Lockable DC Jack)/ 12V DC-In only (BOM option)

Datasheet

Specification

Processor System

CPU	Intel® Core™ Ultra Processors (Arrow Lake-S), up to 65W *The Performance of CPUs over 65W will be limited due to power design
Chipset	Intel® H810
Socket	LGA1851
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in x 1.03-in, 17.0 cm x 17.0 cm x 2.6 cm)

Memory

Technology	Dual Channel DDR5 5600/6400 MHz
Capacity	96GB (48GB per DIMM)
Socket	2 x 262-pin SO-DIMM

Graphics

Controller	Intel® Xe LPG Graphics
HDMI	HDMI 2.1 TMDS Max resolution up to 7680x4320@60Hz
DisplayPort	DisplayPort 2.1/ 1.4a, DP++ Max resolution up to 4096x2160@60Hz
LVDS	Dual channel 24 bit up to 1920x1200@60Hz (Connector shared with eDP)
eDP	Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS)
MultiDisplay	Triple display (Included 1 output from Type-C)

Expansion Slot

PCIe	1 x PCIe x16 (Gen5)
M.2	1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless

Audio

Interface	Realtek ALC897, High Definition Audio. Line-out, Mic-in

Ethernet

Controller/ Speed	LAN1: Realtek RTL8111H with 10/100/1000 Mbps LAN2: Realtek RTL8111H with 10/100/1000 Mbps
Connector	2 x RJ-45

Rear I/O

HDMI	2 x HDMI 2.1 TMDS
DisplayPort	1 x DP 1.4a++
Ethernet	2 x 1 Gigabit LAN
USB	2 x USB 2.0 2 x USB 3.2 Gen2 1 x USB4/Thunderbolt™4 (5V/3A, supports DP 2.1 display output) * For Thunderbolt support, please refer to support list.
Audio	2 (Line-out, Mic-in or Line-in, Mic-in (BOM option))
DC Jack	1 DC-in

Internal Connector

USB	2 x USB 3.2 Gen1 (1 x USB 3.2 wafer) 2 x USB 2.0 (1 x 2.54 pitch header)
COM	COM1 (RS-232/422/485) COM3 (RS-232)
GPIO	4 x GPI, 4 x GPO
LVDS	1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output	1
Speaker Header	1

Security

TPM	TPM header

Storage

M.2	1 x M.2 (Key M, 2242/2280/3052) with PCIe Gen4 x4 for SSD
SATA	2 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12~28V DC-In with 4-pin wafer PWR cable or DC Jack (Screw type) 12V DC-In only (BOM option)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40°C ~ 85°C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x SATA Power Cable (14G000100410AK) 2 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G02P086000AK) 1 x I/O Shield THIN (13G02P086010AK) 2 x SCREW M3*2.5 (13G02P072010AK)
Bulk Package	1 x I/O Shield (13G02P086000AK) 1 x I/O Shield THIN (13G02P086010AK) 2 x SCREW M3*2.5 (13G02P072010AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

OS:

Description	Information	OS	Date	Download
Description	[Beta] INF driver ver:10.1.19913.8607-Public-Client	Information	Size: 7218 KiB Version:INF(v10.1.19913.8607-Public-Client) SHA1:BC21194471FA608F4951090DCFD1DADD6CE0926C Filename:INF(v10.1.19913.8607-Public-Client).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-02-21	Download	Global China
Description	[Beta] Bluetooth driver ver:23.70.0.2G	Information	Size: 49 MiB Version: 23.70.0.2G SHA1: 977BF8B6C8810A7F7EF7D47854702D4B3CAEC33F Filename: Intel_Bluetooth(v23.70.0.2G).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-02-21	Download	Global China
Description	[Beta] Intel WLAN Driver ver:23.70.0.6G	Information	Size: 79 MiB Version: 23.70.0.6G SHA1: D4E76B77DCA32D80CE1996E35F60F8830659D622 Filename: Intel_WLAN(v23.70.0.6G).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-02-21	Download	Global China
Description	[Beta] VGA driver ver: 32.0.101.5869	Information	Size: 1053 MiB Version: 32.0.101.5869 SHA1: CA74B4C27BE58C0922EFF6C43323DC9F6AE9BD30 Filename: Intel_VGA(v32.0.101.5869).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-02-21	Download	Global China
Description	[Beta] Intel Thunderbolt driver ver:92	Information	Size: 245 MiB Version:Rev92 SHA1: 077C92C0137AF470683EB99EC3513BC84D347A94 Filename:Thunderbolt(Rev92).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-02-21	Download	Global China
Description	[Beta] Intel Management Engine driver ver:2435.6.36.0_CONS	Information	Size: 871 MiB Version: 2423.6.23.0_Corporate SHA1: 5C38422E6342D966CB42D51419CE877463146331 Filename: ME(v2435.6.36.0_CONS).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-02-21	Download	Global China
Description	[Beta] NPU driver ver: 32.0.100.2540	Information	Size: 242Mib Version: 32.0.100.2540 SHA1: B361075DE79DE5D4869227B5D4DCE90EC348CEEB Filename: npudrive(v32.0.100.2540).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-02-20	Download	Global China
Description	[Beta] SST driver ver:20.40.11112.16	Information	**Install after VGA driver Size: 236 Mib Version: 20.40.11112.16 SHA1: 0184A3F7744FFF14DF0170229AD9CE706C8A2A7A Filename: Intel_SST(v20.40.11112.16).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-02-20	Download	Global China
Description	[Beta] PMT ver: 3.1.2.6c	Information	Size: 2394Kib Version: 3.1.2.6 SHA1: CB29A584170D1E8452D9E963A54D486BD1A49A27 Filename: PMT(v3.1.2.6).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-02-20	Download	Global China
Description	[Beta] COM Port driver ver:220211	Information	Size: 3101Kib Version:v220211 SHA1: F1C906453C4F522D577757C87B0E0DDB5288DEA8 Filename:COM(v220211).zip	OS	Win 11 x 64 , Win 10 x 64	Date	2025-02-20	Download	Global China
Description	[Beta] Intel Serial IO driver ver:30.100.2419.23	Information	Size: 1877Kib Version: 30.100.2419.23 SHA1: 8B4028E04D3CA5E97C4AADAC213C1FB5216C1CDA Filename: SerialIO(v30.100.2419.23).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-02-20	Download	Global China
Description	[Beta] GNA ver: 03.05.00.1574	Information	Size: 1235 KiB Version: 3.5.0.1578 SHA1: D1F1C2D63803811B4DA738ADB45F55410BA6A2B5 Filename: GNA(v3.5.0.1578).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-02-20	Download	Global China
Description	[Beta] Intel HID Event Filter ver: 2.2.2.6 PV	Information	Size: 1172KiB Version: 2.2.2.6 PV SHA1: FEBD1B2BC042F43A5EA01905B5D004F575D77C08 Filename: Intel HID Event Filter ver(v2.2.2.6 PV).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-02-20	Download	Global China
Description	[Beta] Realtek Lan driver ver: 10.060.0615.2022	Information	Size: 10Mib Version: 10.060.0615.2022 SHA1: 22FBF1F5494D18C2E4B467C867CF6CFCA347FF04 Filename:Realtek_LAN(v10.060.0615.2022).zip Release Notee	OS	Win 11 x 64 , Win 10 x 64	Date	2025-02-20	Download	Global China
Description	[Beta] HD Audio Driver and Application ver:9757.1	Information	**Install after SST driver Size: 49Mib Version: 9757.1 SHA1: 30FC5F5BCF2A4B410A318DABB19CB03ED1B1B337 Filename: Realtek_Audio(v9757.1).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-02-20	Download	Global China

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description	Language	Date	Download
Description	Jumpers and headers setting guide	Language	English	Date	2025-02-12	Download	Global China
