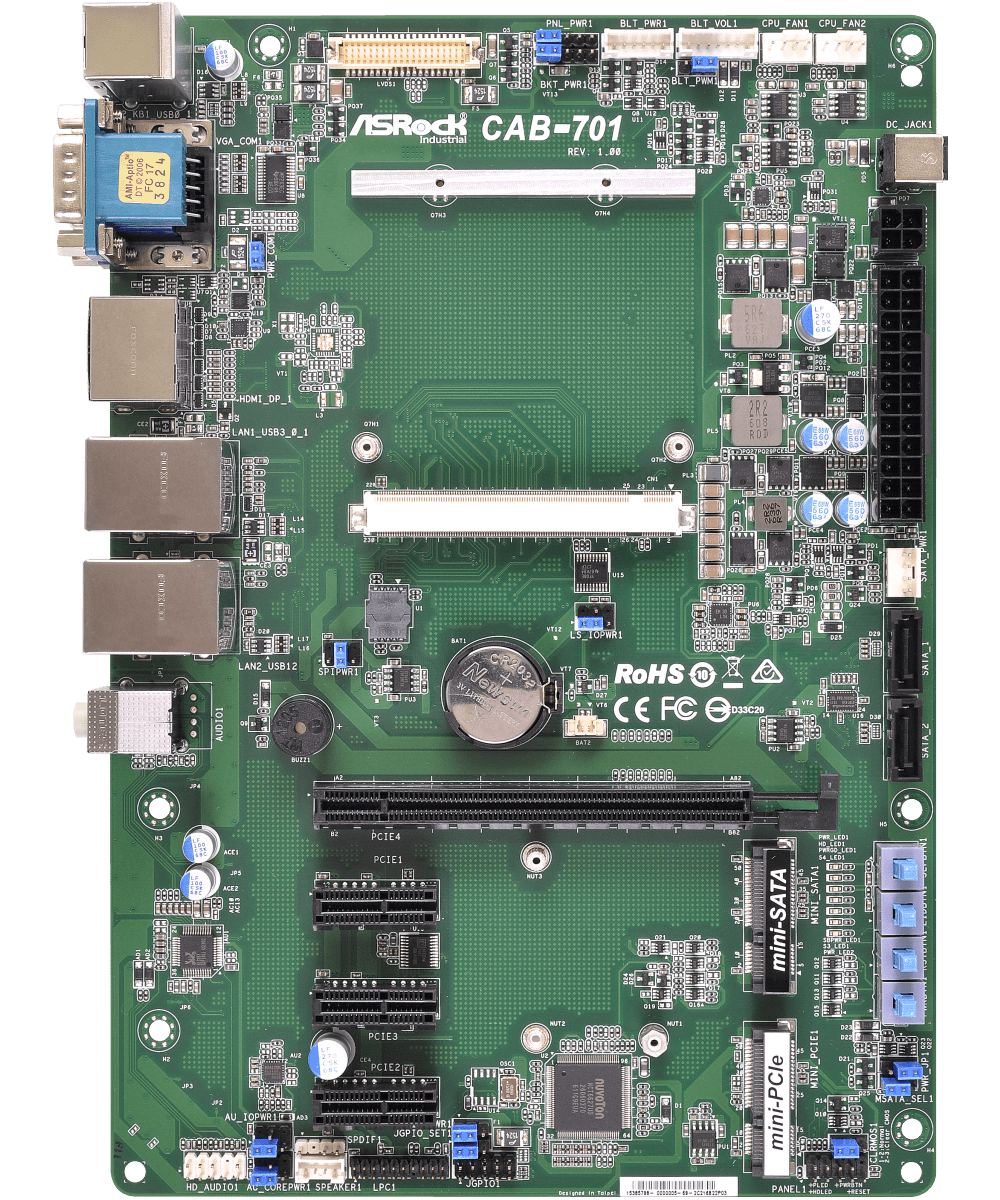

CAB-701 QSeven Motherboard

Form Factor

Dimensions	Micro ATX (9.6-in x 6.7-in, 24.4 cm x 17.0 cm)

Expansion Slot

PCIe	3 x PCIe x1
mini-PCIe	2 x Half/Full size

Ethernet

Controller/ Speed	2 x Intel® I211 with 10/100/1000 Mbps

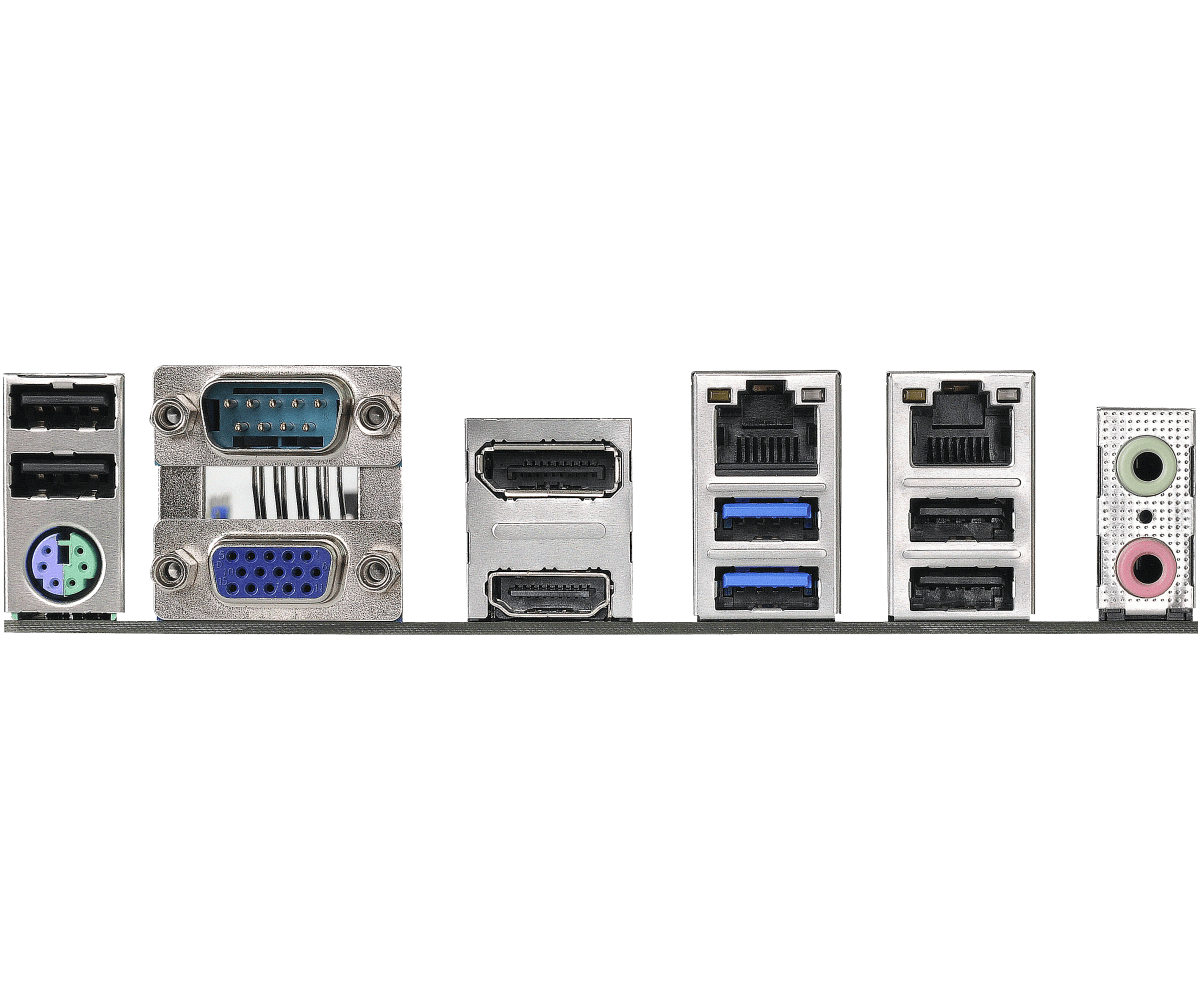

Rear I/O

HDMI	1
DisplayPort	2
Ethernet	1
USB	1 x USB 3.0 , 5 x USB 2.0
Audio	2
COM	2 x COM (RS-232)
PS2	1

Internal Connector

GPIO	4 x GPI , 4 x GPO
LVDS	1
SATA PWR Output	1

Storage

SATA	2 x SATA3
mSATA	1xfull , shared with SATA_2

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V~24V DC-In
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
