SBC-377 SBC 3.5
- Intel® Core™ Ultra Series 3 Processors (Panther Lake-H)
- 2 x 262-pin SO-DIMM DDR5 7200/6400 MHz, up to 128GB (64GB per DIMM)
- 1 x USB 3.2 Gen2x2, 2 x USB 3.2 Gen2, 6 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 3 x COM
- 2 x Intel 2.5 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.1, 1 x DP 1.4a (1 from Type-C), 1 x LVDS or eDP, 1 x eDP 1.4b
- Supports Intel® vPro Essentials, VMD RAID 0/1
- 12~36V DC-In PWR/ Supports Type-C PD 100W
产品规格
Processor System
| CPU | Intel® Core™ Ultra Series 3 Processors (Panther Lake-H) SBC-377P (Ultra X7 358H, 4P+8E+4LPE) SBC-377E (Ultra 5 325, 4P+4LPE) |
|---|---|
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | 3.5"SBC (5.8-in x 4-in x 0.94-in, 14.7 cm x 10.2 cm x 2.40 cm) |
|---|
Memory
| Technology | Dual Channel DDR5 7200 MHz (Ultra X7 358H) Dual Channel DDR5 6400 MHz (Ultra 5 325) |
|---|---|
| Capacity | 128GB (64GB per DIMM) |
| Socket | 2 x 262-pin SO-DIMM |
Graphics
| Controller | Intel® Graphics |
|---|---|
| HDMI | HDMI 2.1 Max resolution up to 4096 x 2160@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP) |
| eDP | eDP 1.4b Max resolution up to 4096 x 2160@60Hz Max resolution up to 1920 x 1080@60Hz (one eDP single connector shared with LVDS) |
| MultiDisplay | Quad display (Included 1 output from Type-C) |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless |
|---|
Audio
| Interface | Realtek ALC256 HD, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I226V with 10/100/1000/2500 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

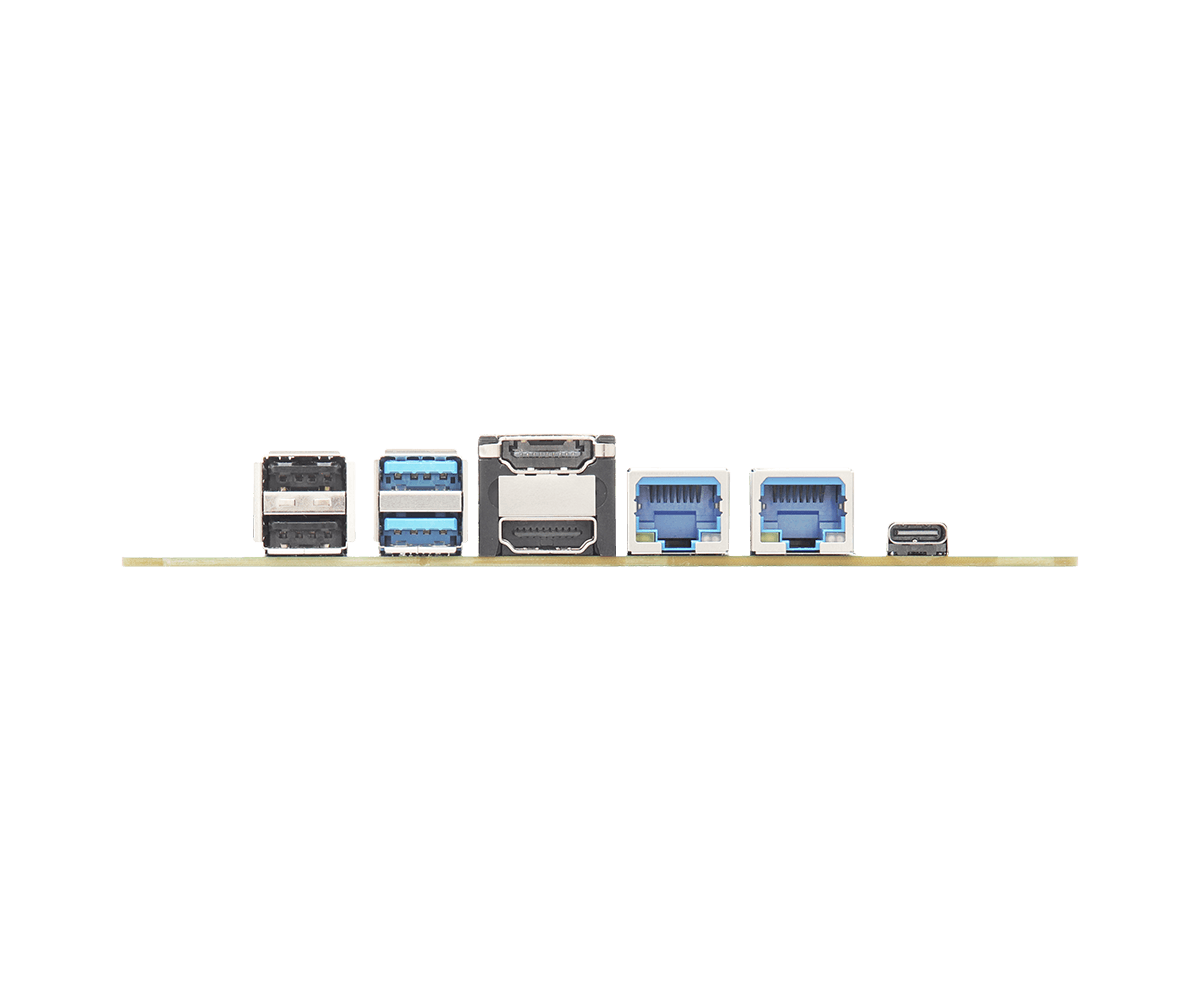

Rear I/O
| HDMI | 2 x HDMI 2.1 |
|---|---|
| Ethernet | 2 x 2.5 Gigabit LAN |
| USB | 2 x USB 2.0 2 x USB 3.2 Gen2 1 x USB 3.2 Gen2x2 (Type-C, 5V/3A, support DP 1.4a display output) |
Internal Connector
| USB | 4 x USB 2.0 (2 x 2.00mm pitch header) |
|---|---|
| COM | COM3, COM4, COM5 (RS-232/422/485) |
| GPIO | 4 x GPI, 4 x GPO |
| LVDS | 1 (Connector with LVDS/eDP signal, switch by BIOS) |
| eDP | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Security
| TPM | TPM 2.0 onboard IC (Optional) Intel® PTT |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 2242/2280) with PCIe Gen5 x4 for SSD 1 x M.2 (Key M, 2242/3052) with PCIe Gen4 x4 for SSD |
|---|---|
| RAID | Intel® VMD RAID 0/1 **supported by PCIE interface PCIE interface: 2*M.2 Key M |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12~36V DC-In with 4-pin wafer PWR cable 12V DC-In only (BOM option) USB Type-C PD (Power Delivery) 100W |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% (non-condensing) |
| Storage Humidity | 5% ~ 90% (non-condensing) |
规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
