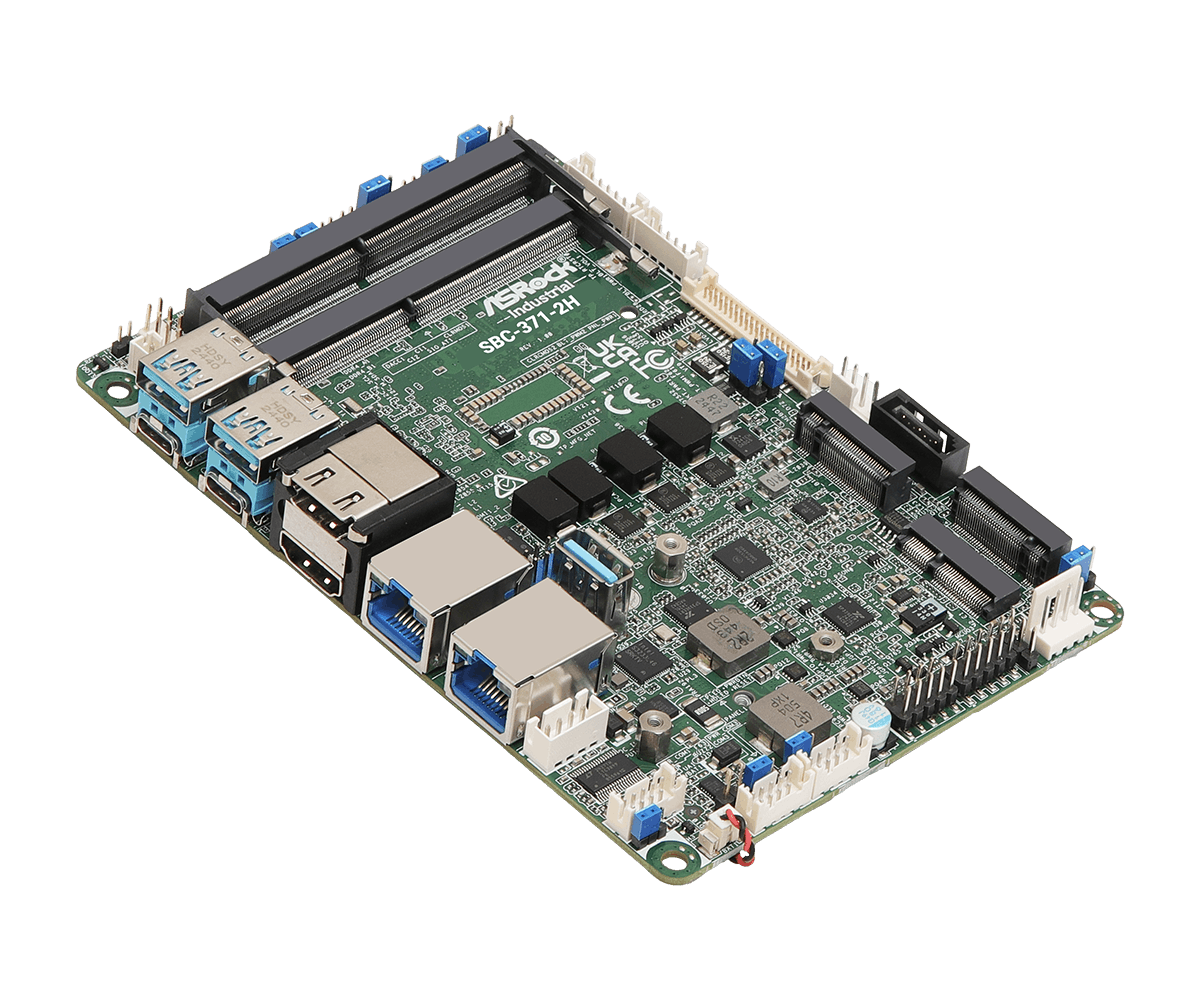

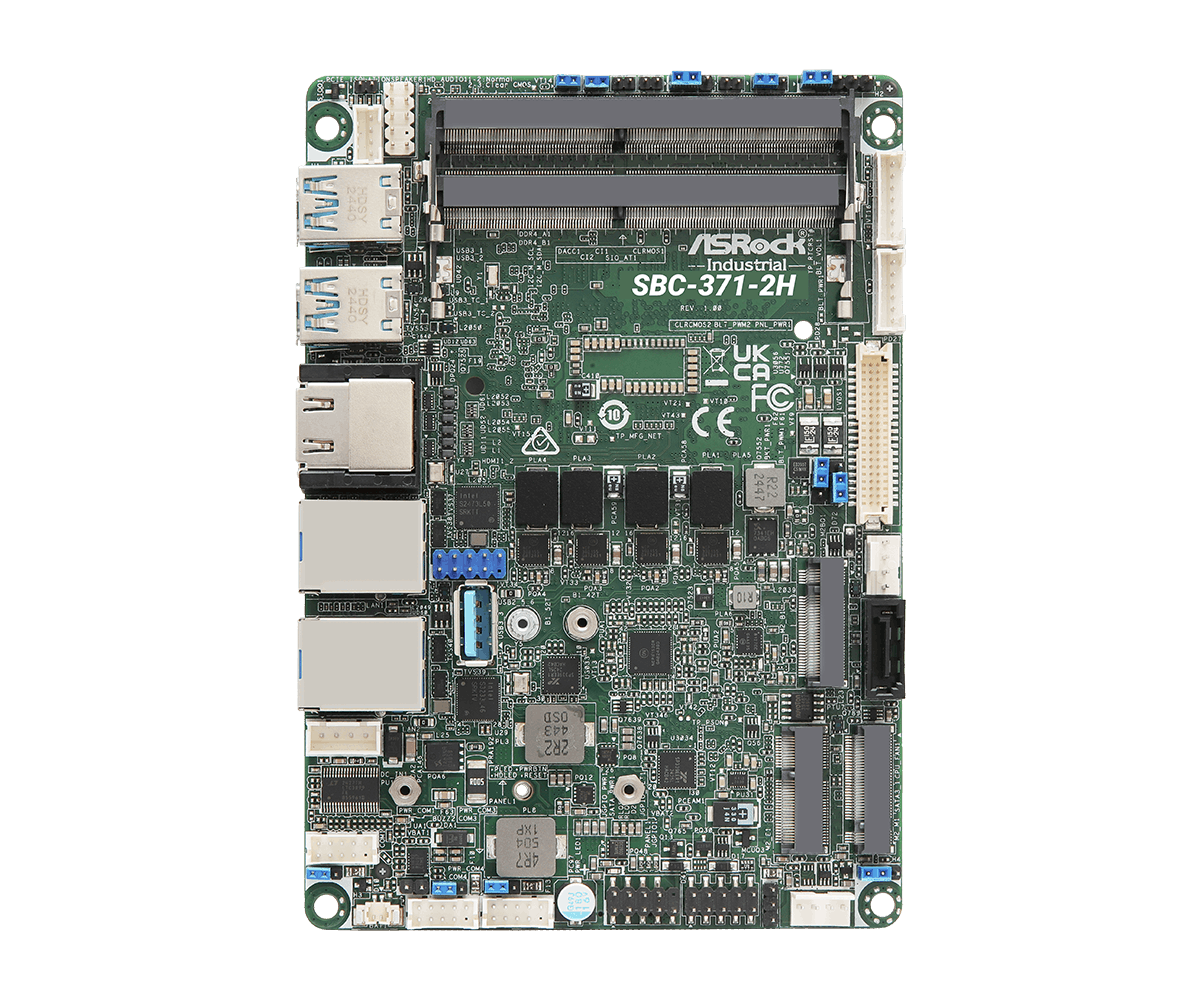

SBC-371-2H SBC 3.5

Intel® 13th Gen Raptor Lake-P Processors
2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 64 GB (32GB per DIMM)
1 x PCIe x1 (Gen3), 2 x USB 3.2 Gen2x2, 3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x M.2 Key B, 3 x COM, 1 x SATA3
2 x Intel 2.5 Gigabit LAN
Supports Quad display, 2 x HDMI 2.0b, 2 x DP 1.4a (2 from Type-C), 1 x LVDS or eDP
TPM 2.0 onboard IC
Supports Intel® vPro (SBC-371P-2H/SBC-371M-2H), VMD RAID 0/1
12~36V DC-In PWR/ 12V DC-In only (BOM option)

产品型录

产品规格

Processor System

CPU	Intel® 13th Gen (Raptor Lake-P) Core™ Processors SBC-371P-2H (i7-1365UE, 2P+8E) SBC-371M-2H (i5-1335UE, 2P+8E) SBC-371V-2H (i3-1315UE, 2P+4E)
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	3.5"SBC (5.8-in x 4-in x 0.94-in, 14.7 cm x 10.2 cm x 2.40 cm)

Memory

Technology	Dual Channel DDR4 3200 MHz
Capacity	64GB (32GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® Iris® Xe Graphics
HDMI	HDMI 2.0b Max resolution up to 4096 x 2160@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP)
eDP	Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS)
MultiDisplay	Quad display (Included 2 output from Type-C)

Expansion Slot

PCIe	1 x PCIe x1 Gen3 (supports up to 10W)
M.2	1 x M.2 (Key E, 2230) with PCIe Gen3 x1 and USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1 or SATA3 and USB 3.2 Gen1 and USB 2.0 and SIM for 4G/5G
SIM Socket	1 x SIM socket connected to M.2 key B

Audio

Interface	Realtek ALC256 HD, High Definition Audio. Line-out, Mic-in

Ethernet

Controller/ Speed	SBC-371P-2H/SBC-371M-2H LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I226V with 10/100/1000/2500 Mbps SBC-371V-2H LAN1: Intel® I226LM with 10/100/1000/2500 Mbps LAN2: Intel® I226V with 10/100/1000/2500 Mbps
Connector	2 x RJ-45

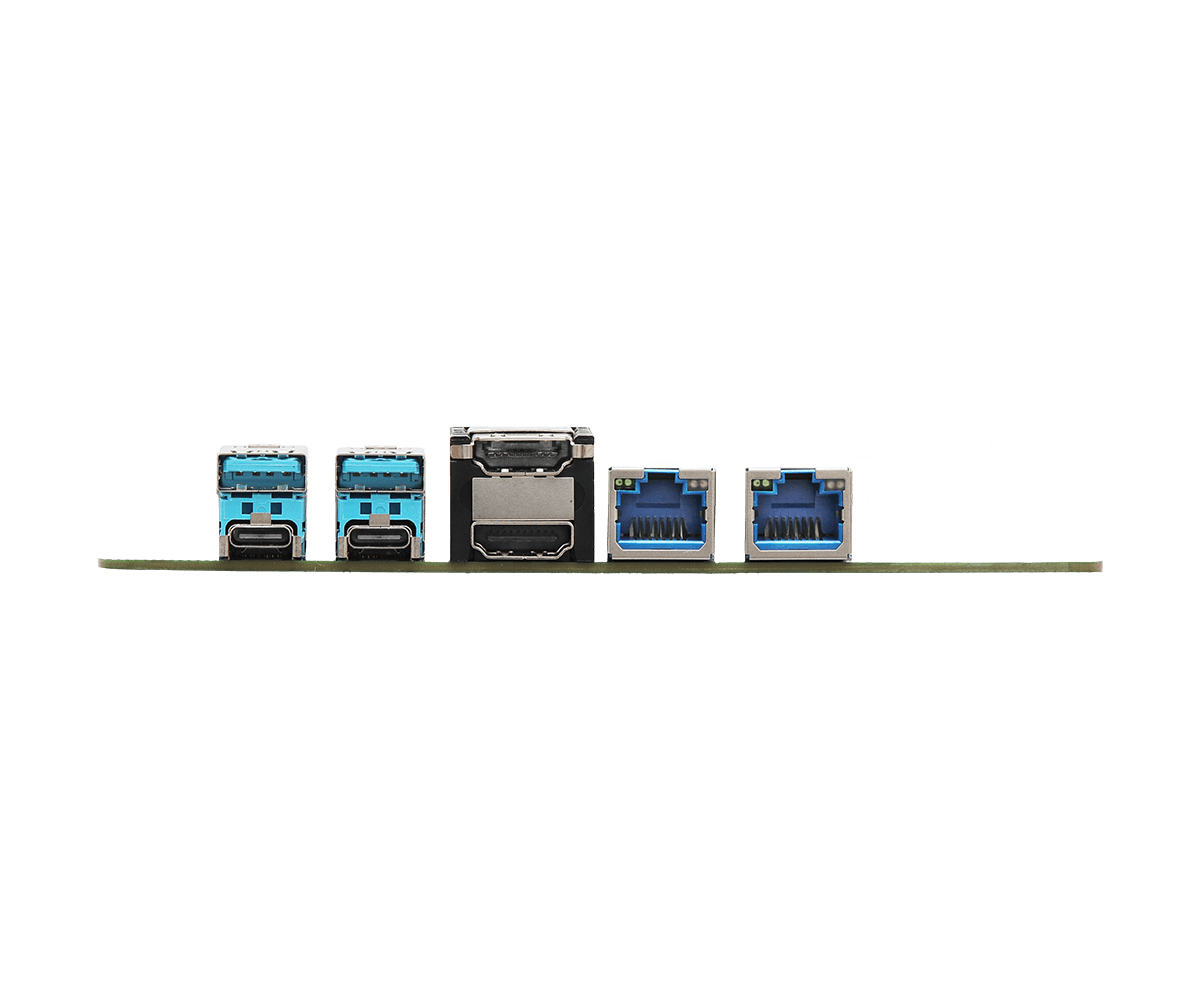

Rear I/O

HDMI	2 x HDMI 2.0b
USB	2 x USB 3.2 Gen2 2 x USB 3.2 Gen2x2 (Type-C, 5V/3A, support DP 1.4a display output)
Ethernet	2 x 2.5 Gigabit LAN

Internal Connector

USB	1 x USB 3.2 Gen2 2 x USB 2.0 (1 x 2.54 pitch header)
COM	COM1, COM3, COM4 (RS-232/422/485)
GPIO	4 x GPI, 4 x GPO
LVDS	1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output	1
Speaker Header	1

Security

TPM	TPM 2.0 onboard IC

Storage

M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
SATA	1 x SATA3 (6Gb/s)
RAID	Intel® VMD RAID 0/1 **supported by PCIE interface PCIE interface: M.2 Key B + M.2 Key M

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12~36V DC-In with 4-pin wafer PWR cable 12V DC-In only (BOM option)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x Heat Spreader 102.22147.01mm (13G070252031AI) 3 x SCREW M22,D=5 (13G020302031AK) 2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) 1 x DC-in Cable (14G000600900AK) 1 x 2.00mm MINI JUMPER (12G044200021AK)
Bulk Package	3 x SCREW M2*2,D=5 (13G020302031AK) 1 x 2.00mm MINI JUMPER (12G044200021AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。

支援下载

操作系统:

说明	资讯	操作系统	日期	下载
说明	Intel Rapid Storage Technology driver and utility ver:19.5.1.1040.3	资讯	Size: 49Mib Version:19.5.1.1040.3 SHA256: 3371a6910ff29d1d227b16b0e342f62dc5f6cf5f6f6dae1e2b40b17b77b33c50 Filename:RapidStorage(v19.5.1.1040.3).zip Release Note	操作系统	Win 10 x 64	Date	2025-04-29	下载	全球中国
说明	VGA driver ver: 31.0.101.3689	资讯	Size: 853 KiB Version: 31.0.101.3689 SHA256: 1f361988ca5acd6433238291e6beaa072fd520ea0b8475a09780eda64ca84e92 Filename: Intel_VGA(v31.0.101.3689).zip Release Note	操作系统	Win 10 x 64	Date	2025-04-29	下载	全球中国
说明	Intel Management Engine driver ver:2242.3.39.0	资讯	Size: 731Mib Version:2249.3.39.0 SHA256: 5db8a6681502a3656a129f975d04fc9088d5e6bc048cf82808b3d1db4e72da11 Filename:ME(v2249.3.39.0) Release Note	操作系统	Win 10 x 64	Date	2025-04-29	下载	全球中国
说明	Intel Serial IO driver ver:30.100.2237.26-v2	资讯	Size: 3078Kib Version:30.100.2237.26-v2 SHA256: 23999e17d9c014905f89bdab20bfae676a2277d9c71152f756d58f3ee75e06f5 Filename:SerialIO_30.100.2237.26_v2_RPL_ADL-PCH_22H2 Release Note	操作系统	Win 10 x 64	Date	2025-04-29	下载	全球中国
说明	INF driver ver:10.1.19199.8340	资讯	Size: 4741Kib Version: 10.1.19199.8340 SHA256: 7bbc48bf1222cfc716b1c16351b2d7a729c0a57d303603dbcc52b888b2938f67 Filename: INF(v10.1.19199.8340).zip Release Note	操作系统	Win 10 x 64	Date	2025-04-29	下载	全球中国
说明	Intel Lan driver ver:1.1.3.34	资讯	Size: 1535Kib Version:1.1.3.34 SHA256: 865445186d25783300b8a1baca3fcd88d267856cf0611f499a81ff8f966e3db1 Filename:Intel_LAN(v1.1.3.34).zip Release Note	操作系统	Win 10 x 64	Date	2025-04-29	下载	全球中国
说明	HD Audio Driver_9450_UAD_2022_1202_140735	资讯	Size: 38Mib Version:9450_UAD_2022_1202_140735 SHA256: 61e18230f7fa10c63b909c4d1f79ebd4f51751bc3b82887cd0556994f40c1545 Filename:HD Audio Driver_9450_UAD_2022_1202_140735.zip	操作系统	Win 10 x 64	Date	2025-04-29	下载	全球中国
说明	COM Port driver ver:220211	资讯	Size: 3101Kib Version:v220211 SHA256: 4b40a318bec45a4e7c5def62a38f415337900acc5c9e5382a9066e00ec4c964e Filename:COM(v220211).zip	操作系统	Win 10 x 64	Date	2025-04-29	下载	全球中国
说明	Intel Lan driver ver:1.1.3.34	资讯	Size: 1535Kib Version:1.1.3.34 SHA256: 865445186d25783300b8a1baca3fcd88d267856cf0611f499a81ff8f966e3db1 Filename:Intel_LAN(v1.1.3.34).zip Release Note	操作系统	Win 10 x 64	Date	2023-07-21	下载	全球中国
说明	Bluetooth driver ver:22.170.0.2G	资讯	Size: 14Mib Version:22.170.0.2G SHA256: 268b4fee942bfae407a7bc6a9f6f771154dab00591f91608c2f9db48854209ef Filename:Intel_Blurtooth(v22.170.0.2G) Release Note	操作系统	Win 10 x 64	Date	2025-04-29	下载	全球中国
说明	Intel HID Event Filter ver:2.2.2.1_v3	资讯	Size: 1448Kib Version:2.2.2.1_v3 SHA256: 7a657ef8380cce8f2f1a9df1d572226eadd4879775fbe8b098828ef4ff7eafa7 Filename:Intel HID Event Filter(v2.2.2.1_v3).zip Release Note	操作系统	Win 10 x 64	Date	2025-04-29	下载	全球中国
说明	Intel Wireless Lan driver ver:22.170.0.3_G	资讯	Size: 53Mib Version:22.170.0.3_G SHA256: 80838c0ce66468ea91e705925379c43f7cbe9a1c3858ad5f2385ca8cb0c3f94b Filename:Intel_WLAN(v22.170.0.3_G) Release Note	操作系统	Win 10 x 64	Date	2025-04-29	下载	全球中国

版本	更新方式 / 如何更新	说明	资讯	日期	下载
版本	1.00	更新方式 / 如何更新	BIOS	说明	First release	资讯	Size: 10 MiB SHA1: E45205327DD468A06275A7FCFAFD8E51B7D28255	日期	2025-06-27	下载	全球中国
版本	1.00	更新方式 / 如何更新	Windows	说明	First release	资讯	Size: 10 MiB SHA1: 6FE9703D2638E323E50321EC0C13181BEB81E824	日期	2025-06-27	下载	全球中国

版本

更新方式 / 如何更新

说明

资讯

日期

下载

版本

1.00

更新方式 / 如何更新

BIOS

说明

First release

资讯

Size: 10 MiB

SHA1: E45205327DD468A06275A7FCFAFD8E51B7D28255

日期

2025-06-27

下载

全球中国

版本

1.00

更新方式 / 如何更新

Windows

说明

First release

资讯

Size: 10 MiB

SHA1: 6FE9703D2638E323E50321EC0C13181BEB81E824

日期

2025-06-27

下载

全球中国

档案格式为 PDF，如果您没有安装 Adobe Acrobat Reader，请至 Adobe下载。

说明	语言	日期	下载
说明	RAID Installation Guide	语言	English	日期	2025-07-21	下载	全球中国
说明	User Manual	语言	English	日期	2025-07-21	下载	全球中国
说明	Jumpers and Headers Setting Guide	语言	English	日期	2025-07-21	下载	全球中国

说明	日期	下载
下载	Type C Device Support List	日期	2025-07-29	下载	全球
