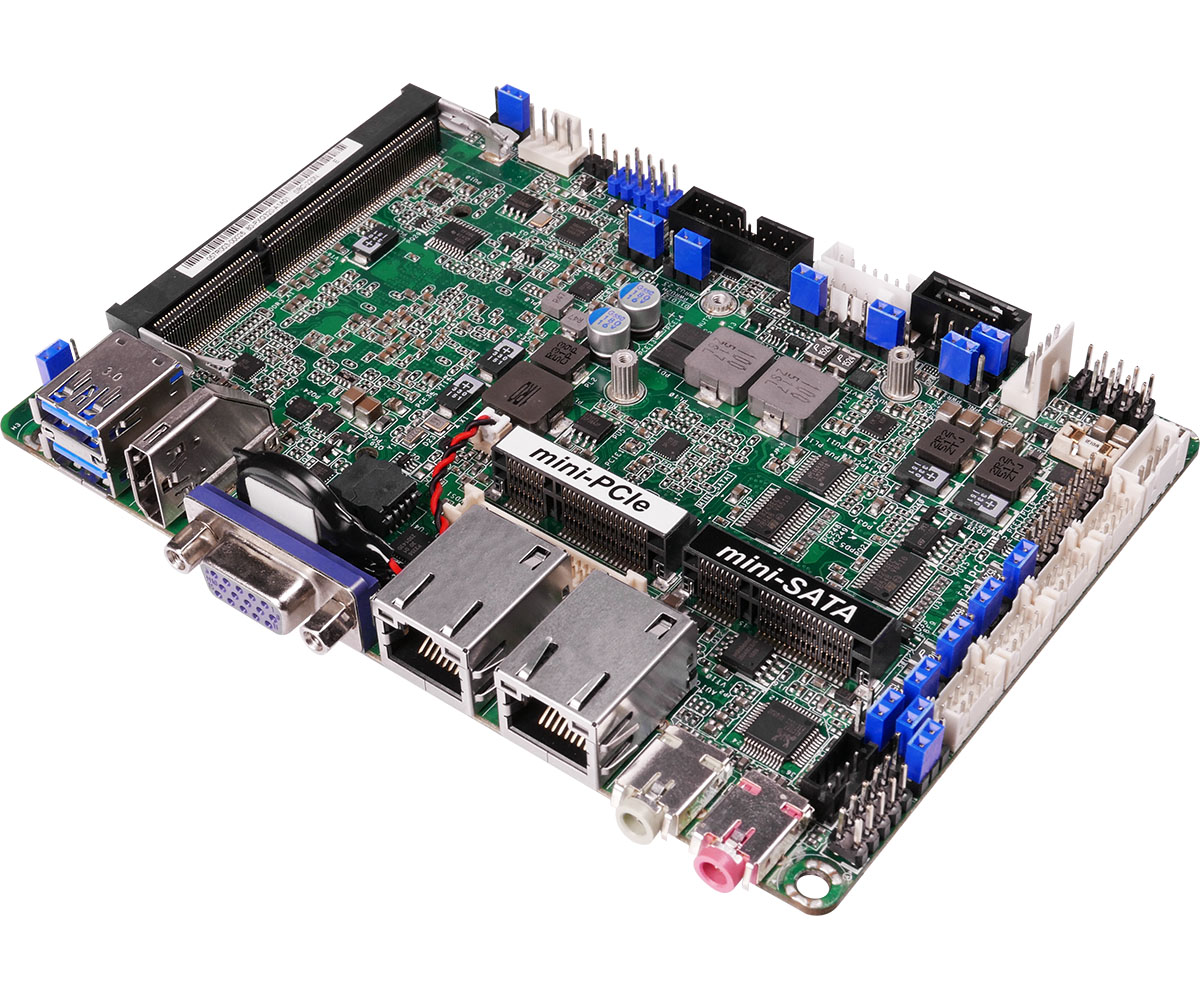

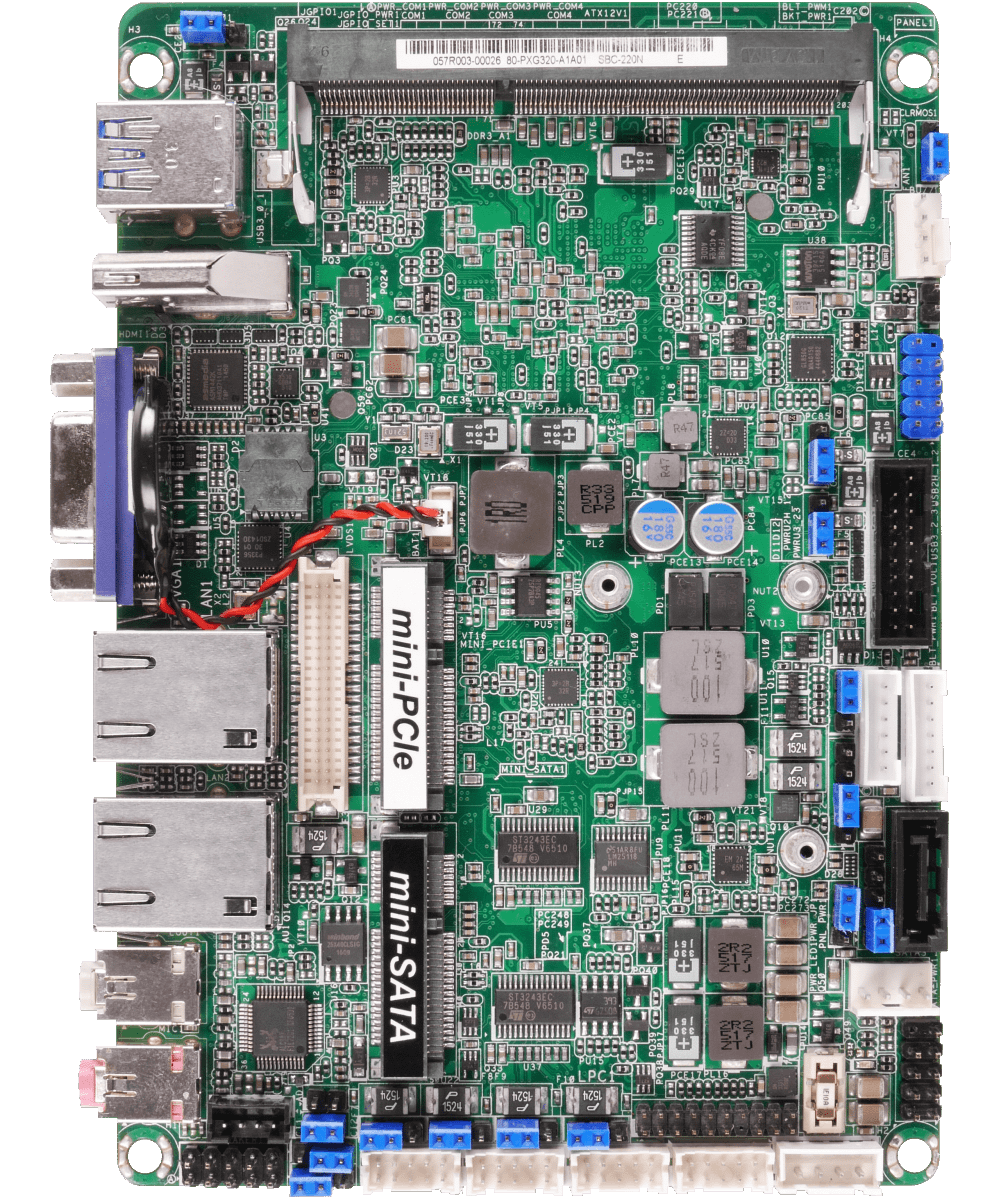

SBC-220B SBC 3.5

Processor System

CPU	Intel® Braswell SoC Processor N3160
Chipset	SoC

Form Factor

Dimensions	3.5"SBC (5.8-in x 4.0-in, 14.7 cm x 10.2 cm)

Memory

Technology	Single Channel DDR3L 1333 / 1600 MHz
Capacity	8GB
Socket	1 x SO-DIMM

Graphics

Controller	Intel® Gen8 Intel® Graphics DX 11, OGL3.2
HDMI	Supports max resolution up to 1920 x 1200
VGA	Supports max resolution up to 1920 x 1200
LVDS	Supports max resolution up to 1920 x 1200@60Hz
MultiDisplay	Triple Display

Expansion Slot

mini-PCIe	1 x Half / Full (supports PCIe x1 & USB device)

Audio

Interface	Realtek ALC887/897 HD, High Definition Audio. Line-out, Mic-in

Ethernet

Controller/ Speed	2 x Intel® I210 with 10/100/1000 Mbps
Connector	2 x RJ-45

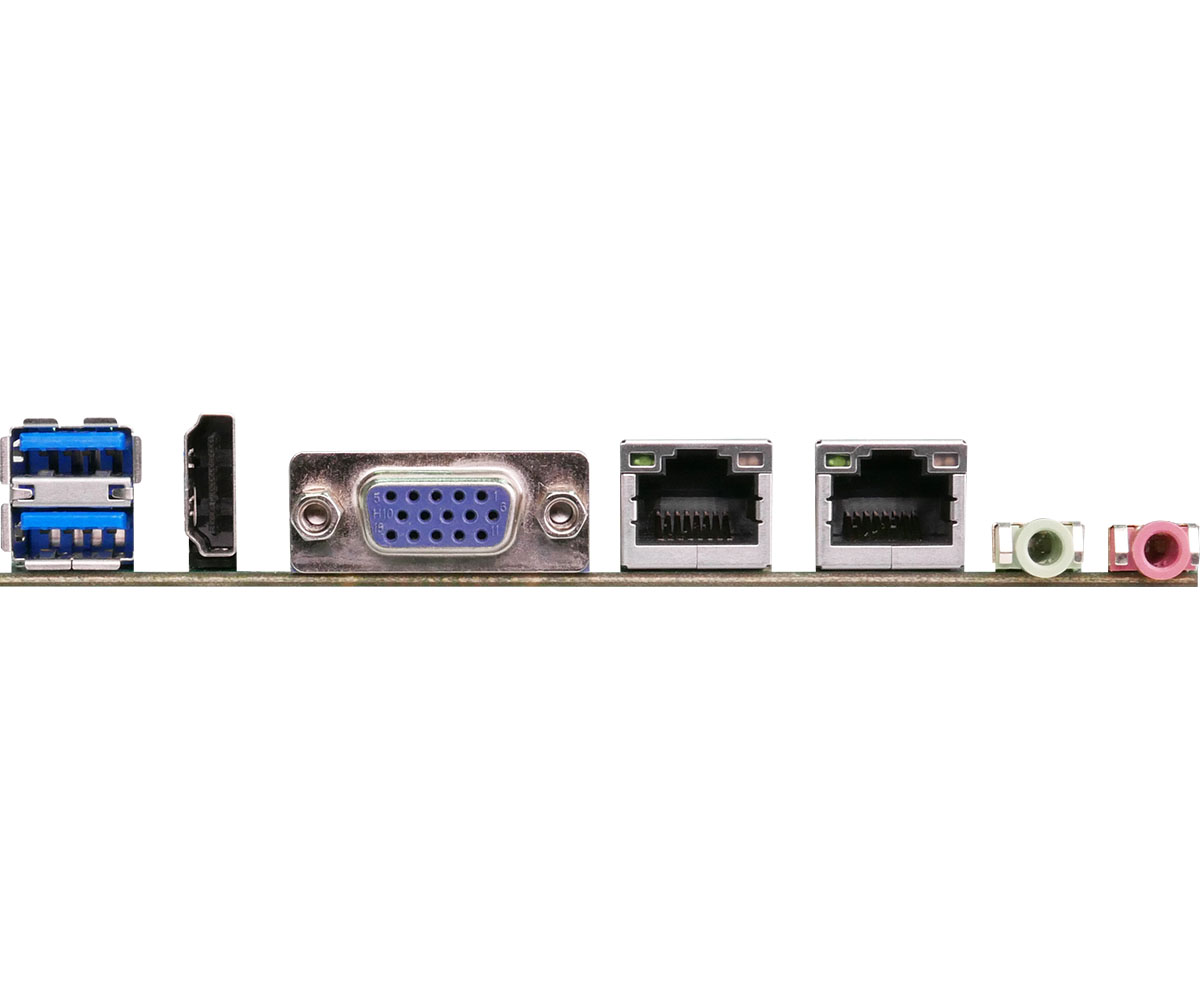

Rear I/O

HDMI	1
VGA	1
Ethernet	2
USB	2 x USB 3.0
Audio	2 (Mic-in, Line-out)

Internal Connector

USB	2 x USB 2.0, 2 x USB 3.0
COM	3 x COM (RS-232), 1 x COM (RS-232/422/485)
GPIO	4 x GPI, 4 x GPO
TPM	1 x Header
LVDS	1 (Co-lay with eDP)
SATA PWR Output	1
Speaker Header	1
eDP	1 (Co-lay with LVDS)

Storage

SATA	1 x SATA3 (6.0Gb/s)
mSATA	1 x Full (supports SATA3 & USB device)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	+12V ~ +24V DC-in
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x HEATSINK 147*102.2mm (13G070194000AK) 1 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G000107101AK) 1 x SATA Power Cable (14G000100410AK) 1 x DC power jack,L=150 (14G000600900AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
