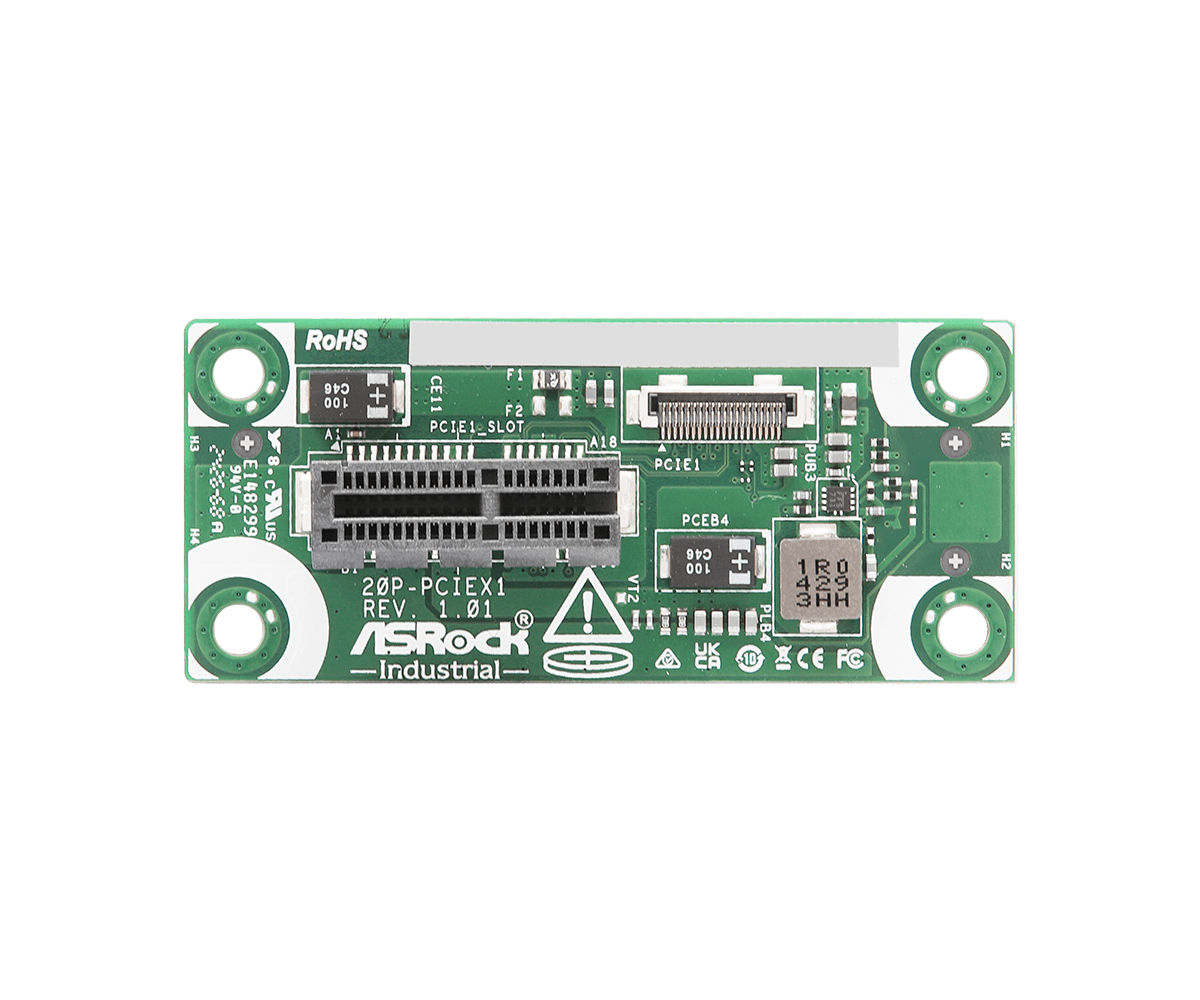

20P-PCIEX1
- [ASRock Industrial Exclusive]
- Only apply on ASRockind motherboards
- 20 pin connector to PCIe Gen3 x1 Slot
- Supports PCI Express x1 up to 10W
- Easy to use
产品规格
Specifications
| Form Factor | Customized |
|---|---|
| Function | 20 pin connector type to PCIe Gen3 x1 Expansion Slot |
| Dimensions (W x L x H/mm) | 68.65 x 30 x 12.6 |
| Controller / Major IC | NB691GG-Z |
| Input Interface/Power | 20pin PCI Express 3.0 x1 +12V |
| Output Interface/Power | +12V +3V PCI Express 3.0 x1 |
| Output connector | PCI Express 3.0 x1 Slots |
| Operating Temperature | -20ºC ~ 70ºC |
| Storage Temperature | -40ºC ~ 85ºC |
| Package | 1 x PCIe x1 cable (200mm) |
规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
