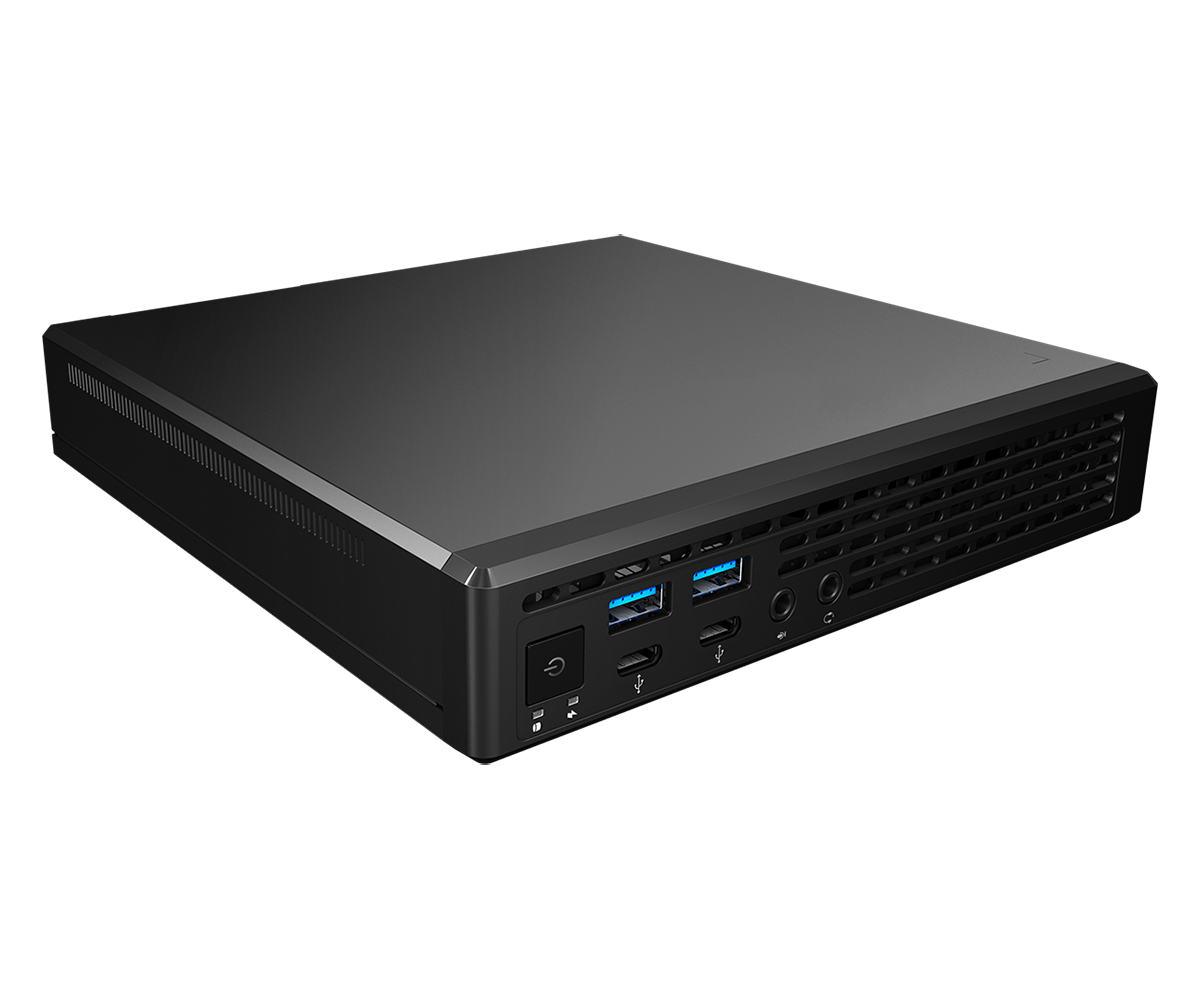

iEPF-7001 Fanned Box PC

Processor System

CPU	Intel® 10th Gen (Comet lake-S) Core™ Processors up to 65W
Chipset	Intel® H410
Socket	LGA1200
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	178 x 178 x 34mm

Memory

Technology	Dual Channel DDR4 2933 / 2666 / 2400 MHz - Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz - Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz - Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz
Capacity	64 GB (32 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Integrated Intel® UHD Graphics
HDMI	HDMI 1.4b Max resolution up to 4096x2160@30Hz
DisplayPort	DisplayPort 1.4a Max resolution up to 4096x2160@60Hz
VGA	Max resolution up to 1920x1200@60Hz
MultiDisplay	Dual Display

Expansion Slot

M.2	1 x M.2 Key E (Intel® Wi-Fi 6 3168 + Bluetooth 4.2)

Audio

Interface	Realtek ALC233, High Definition Audio

Ethernet

Controller/ Speed	1 x Realtek RTL8111GN with 10/100/1000 Mbps
Connector	1 x RJ-45

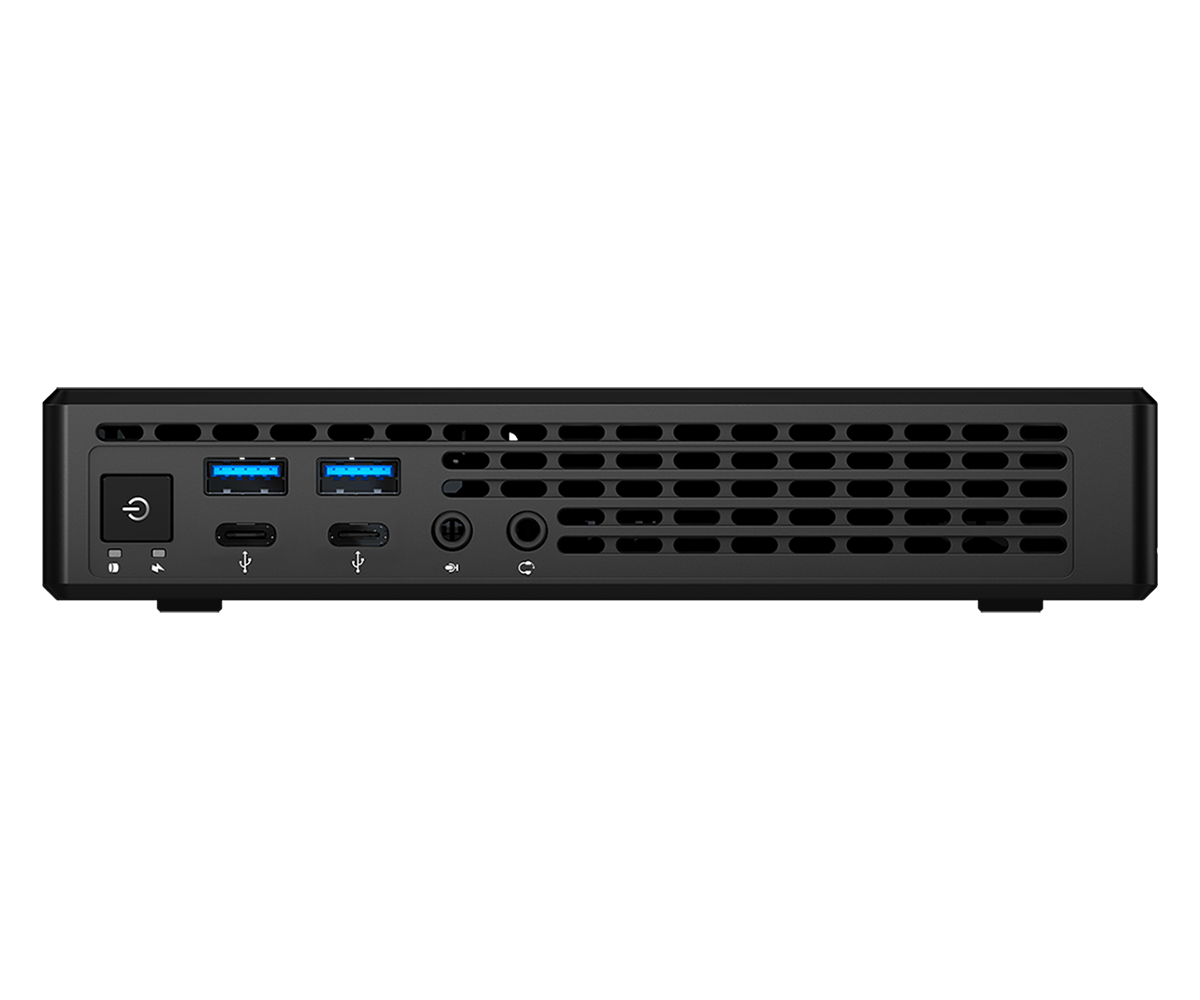

Front I/O

USB	2 x USB 3.2 Gen1 (Type-A) 2 x USB 3.2 Gen1 (Type-C)
Audio	2 (Mic-in, Line-out)

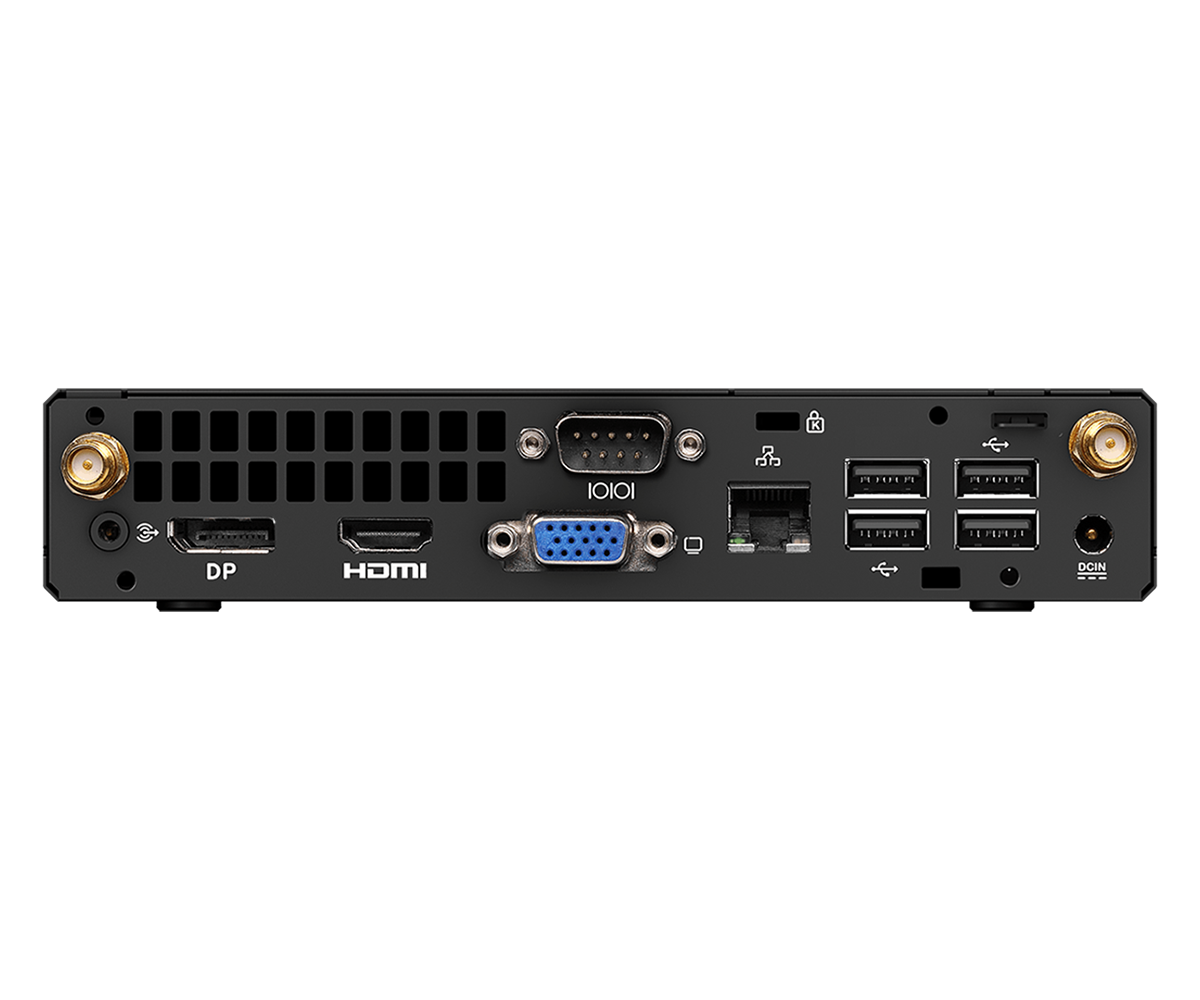

Rear I/O

HDMI	1 x HDMI 1.4b
DisplayPort	1 x DP 1.4a
VGA	1
Ethernet	1 x Realtek 1 Gigabit LAN
USB	4 x USB 2.0
COM	1 x COM (RS-232)
DC Jack	1

Storage

M.2	1 x Key M (2280)with PCIe x4 and SATA3 for SSD
SATA	1 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments 0,1,2....255sec

Power Requirements

Input PWR	1 x 19V/90W AC-DC power brick adapter
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 50ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	10% ~ 90%
Storage Humidity	10% ~ 90%

Mechanical

Construction	Aluminum housing
Mounting	N/A
Dimensions (L x W x H)	262.35 x 177.35 x 64.7mm
Weight	Net Weight: 2.8kg

Others

OS Support	Windows 10
Certifications	CE, FCC Class A
Packing List	1 x SATA Data with Power Cable 1 x Screw Pack 1 x Stand 1 x VESA Mount 2 x Antenna

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
