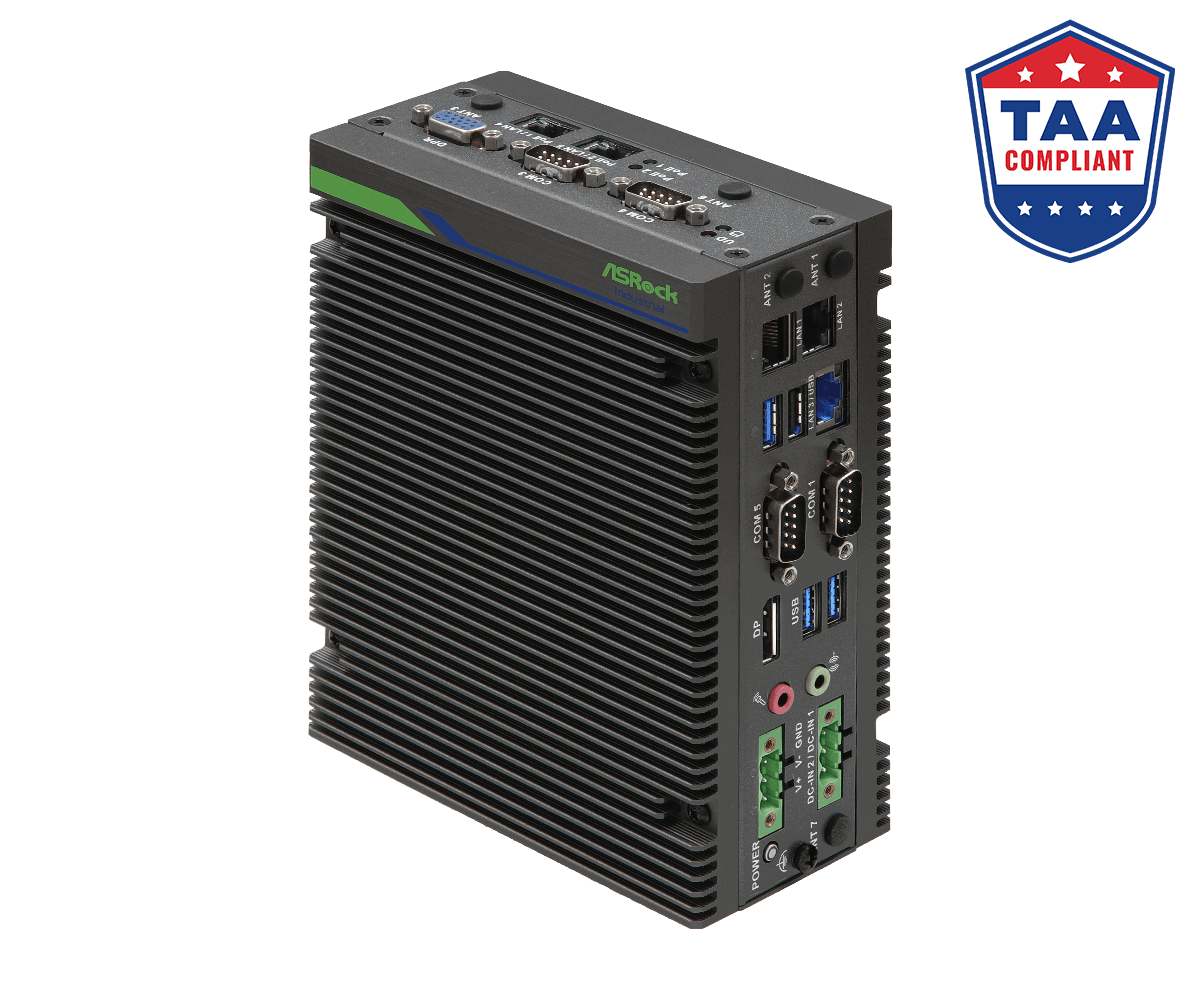

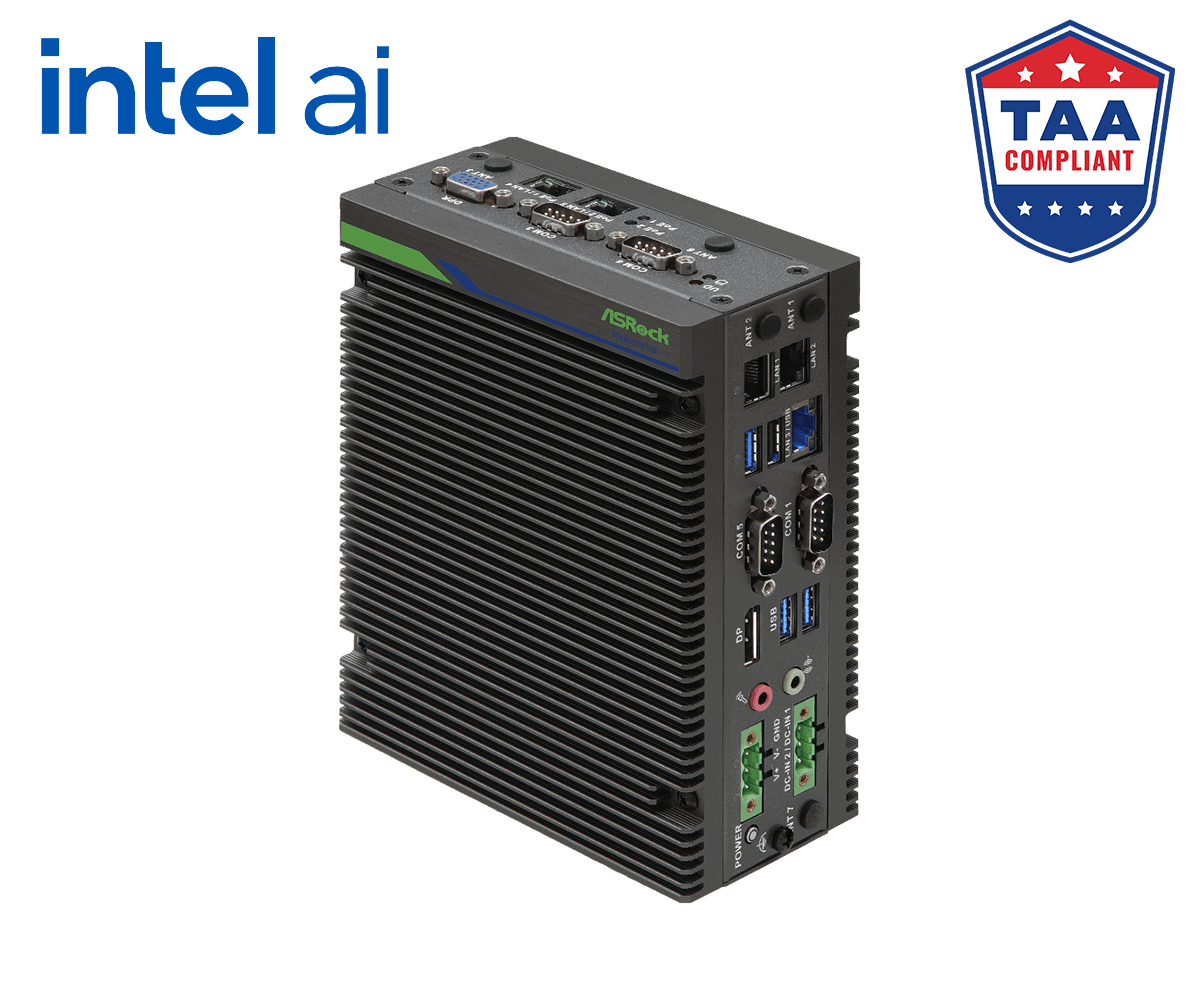

iEP-7040E Series Industrial IoT Controller

Intel® Core™ Ultra 255H Processor (Arrow Lake-H)
High-Performance Intel® Arc™ Graphics
Integrated NPU for Dedicated AI Acceleration
Fan-less and Rugged Design
Operating Temperature: -25°C to 50°C
Dual 9V/19V to 36V Wide-Range DC Power Input
3 x Intel® i226-IT LAN
2 x Intel® i210-AT LAN, Supports IEEE 802.3af for PoE SKU
8DIs/8DOs with sink/source isolation 36V for 8DIO SKU
TAA Compliant

產品型錄

產品特色

產品規格

Processor System

CPU	Intel® Core™ Ultra processors 255H, 16Core, 2.00 GHz, 28W
BIOS	AMI SPI 256 Mbit
Chipset	MCP

Memory

Technology	Dual Channel DDR5 5600 MHz
Capacity	Up to 64GB
Socket	2 x 262-pin SO-DIMM

Graphics

Controller	Intel® Arc™ graphics
HDMI	HDMI 2.0b Max resolution up to 4096x2160@60Hz
VGA	Max resolution up to 1920x1200@60Hz

Expansion Slot

M.2	1 x M.2 3042/3052 Key B (PCIe Gen3x1/USB3.2 mode) - Support 4G LTE/5G module 1 x M.2 2230/2260 Key E (CNVi/PCIe Gen3x1/USB2.0 mode) - Support Wifi/BT module
RF& Antenna	7 x SMA connector hole reserved, support for Basic/5G SKU 5 x SMA connector hole reserved, support for PoE/5LAN/8DIO SKU

Audio

Interface	Realtek ALC897, High Definition Audio

Ethernet

Controller/ Speed	LAN1/LAN2/LAN3 : Intel® I226IT with 10/100/1000/2500 Mbps LAN4/LAN5: Intel® I210AT with 10/100/1000 Mbps (For 5LAN SKU) PoE1/PoE2: Intel® I210AT. PoE output max.15.4W/port, each port supports IEEE 802.3AF PoE. (For PoE SKU)
Connector	RJ45

Front I/O

Audio	1 x Mic-in 1 x Line-out
COM	2 x RS-232/422/485
Ethernet	3 x 2.5G LAN
HDMI	1 x HDMI 2.0b
USB	3 x USB 3.2 Gen2x1 1 x USB 2.0
LED	2 x Diagnostic LED 2 x DC-IN LED
DC-IN	2 x 3-pin Phoenix type
Power Button	1 (with LED)

Rear I/O

SIM Card	1 x Nano SIM Card slot
Micro SD Card	1 x Micro SD card slot (Support SD specification v3.0 UHS-I: SDR25/SDR50)

Manageability / Security

Manageability	Intel® In-Band Manageability
Security	TPM2.0

Top I/O

COM	1 x RS-232/422/485
Digital I/O	4DIs/4DOs for all SKU (15-pin D-sub connector) 8DIs/8DOs with sink/source isolation 36V for 8DIO SKU only (2x10-pin connector)
Ethernet	2 x 1G LAN for 5LAN SKU only
PoE	2 x 1G LAN, support IEEE 802.3AF for PoE SKU only
LED	2 x PoE LED for PoE SKU only

Storage

M.2	1 x M.2 2280 Key M (PCIe Gen4 x4)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

DC Input	For Basic/5LAN/5G/8DIO SKU : DC 9V to 36V, Redundant Power Input For PoE SKU : DC 19V to 36V, Redundant Power Input OVP, UVP, OCP, plus 80V surge protection
AC to DC Adaptor (Option)	Adapter 120W for Basic/5LAN/5G SKU - AC input 100-240Vac, 1.8A 50-60Hz, DC output 19V, 6.32A, Adapter 330W for PoE SKU only - AC input 100-240Vac, 4.2A 50-60Hz, DC output 24V, 13.75A
Power Interface	3-pin Terminal Block : V+, V-, Frame Ground

Environment

Operating Temp	-25°C~50°C (-13°F~122°F) (with airflow 0.5~0.8m/s)
Storage Humidity	-40°C ~ 85°C (-40°F~185°F)
Humidity	~95% @ 40°C (non-condensing)
Vibration	Operating: 5 Grms, 5-500 Hz, 3 axes with SSD
Shock	Operating 100 G, half sine 11 ms duration with SSD
ESD	Contact +/-8 KV, Air +/-15 KV
EMC	CE and FCC Class A (EN61000-6-4/-2)
Safety	LVD

Mechanical

Construction	Aluminum
Dimensions (L x W x H)	For Basic/8DIO SKU : 55 x 170 x 134 mm For PoE/5LAN/5G SKU : 68 x 170 x 134 mm
Mounting (Option)	For Basic/8DIO SKU : DIN-Rail, Wall Mount, VESA Mount For PoE/5LAN/5G SKU: Wall mount, Din Rail
Net Weight	TBD

Others

OS Support	Windows 11 / Linux
Packing List	3 x M2*2 Screw Package 2 x 3-pin phoenix connector 1 x System QIG
Optional Items	(1) 19V/120W Power Adapter for Basic/5LAN/5G/8DIO SKU (2) 24V/330W Power Adapter for PoE SKU (3) WIFI Kits (include WIFI Module, Antenna and SMA Cable) (4) 4G Kits (include 4G Module, Antenna and SMA Cable) (5) 5G Kits (include 5G Module, Antenna and SMA Cable) (6) DIN Rail Kit (7) Wall Mount Kit (8) VESA Mount Kit

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。

作業系統:

說明	資訊	作業系統	日期	下載
說明	[Beta] COM Port driver ver:240524	資訊	Size: 3116 KiB Version: 240524 SHA1: 9089FAD87FB0323CB2546A5F3204573B05134F8F Filename: COM(v240524).zip Release Note	作業系統	Win 11 x 64	Date	2025-03-25	下載	全球中國
說明	[Beta] DTT(9.0.11701.44281)	資訊	Size: 16Mib Version: 9.0.11701.44281 SHA1: 7D6ECA338E58A113184A6157E33743F61884B7B5 Filename: DTT(9.0.11701.44281).zip Release Note	作業系統	Win 11 x 64	Date	2025-03-25	下載	全球中國
說明	[Beta] Bluetooth driver ver:23.80.0	資訊	Size: 34Mib Version: 23.80.0 SHA1: 259AE86F5D63318BFE5D3D95D98C57F8FDADD24D Filename: Bluetooth_Driver(v23.80.0).zip Release Note	作業系統	Win 11 x 64	Date	2025-03-25	下載	全球中國
說明	[Beta] IPF(v2.2.10001.3)	資訊	Size: 10116Kib Version: 2.2.10001.3 SHA1: B956DB00F113F6293FB9C1C500F09D717BEB8977 Filename: IPF(v2.2.10001.3).zip Release Note	作業系統	Win 11 x 64	Date	2025-03-25	下載	全球中國
說明	[Beta] GNA ver: 03.05.00.1578	資訊	Size: 1810Kib Version: 03.05.00.1578 SHA1: 1B61CF2A2D140B25ECC72A2CD210CE4D1228FBFD Filename: GNA(v03.05.00.1578).zip Release Note	作業系統	Win 11 x 64	Date	2025-03-25	下載	全球中國
說明	[Beta] RST Driver ver:20.2.0.1014.2	資訊	Size: 71Mib Version: 20.2.0.1014.2 SHA1: 73E77234551F7BA09B4C713BE430024A68592661 Filename: RST(v20.2.0.1014.2).zip Release Note	作業系統	Win 11 x 64	Date	2025-03-25	下載	全球中國
說明	[Beta] Intel HID Event Filter ver:2.2.2.10	資訊	Size: 3164Kib Version: 2.2.2.10 SHA1: 68C2C9B4B42074A2D08CB2B360580B2E950887E4 Filename: Intel_HID_Event_Filter_ver(v2.2.2.10).zip Release Note	作業系統	Win 11 x 64	Date	2025-03-25	下載	全球中國
說明	[Beta] NPU driver ver:32.0.100.2820	資訊	Size: 143Mib Version: 32.0.100.2820 SHA1: 5ACAF746C15137846001894B2D047733F916ABBE Filename: npudriver(v32.0.100.2820).zip Release Note	作業系統	Win 11 x 64	Date	2025-03-25	下載	全球中國
說明	[Beta] PMT ver: 3.1.2.6	資訊	Size: 2394Kib Version: 3.1.2.6 SHA1: CB29A584170D1E8452D9E963A54D486BD1A49A27 Filename: PMT(v3.1.2.6).zip Release Note	作業系統	Win 11 x 64	Date	2025-03-25	下載	全球中國
說明	[Beta] Intel Serial IO driver ver:30.100.2418.12	資訊	Size: 3360Kib Version: 30.100.2418.12 SHA1: AD5AD8E70892D522BC55B16883CF4FC1B246836F Filename: SerialIO(v30.100.2418.12).zip Release Note	作業系統	Win 11 x 64	Date	2025-03-25	下載	全球中國
說明	[Beta] Intel_CSME(v2433.6.34.0)	資訊	Size: 2268Mib Version: 2433.6.34.0 SHA1: 94522DE32A3AC3892772C5A82B26A534E6B92186 Filename: Intel_CSME(v2433.6.34.0).zip Release Note	作業系統	Win 11 x 64	Date	2025-03-25	下載	全球中國
說明	[Beta] Intel WLAN Driver ver:01505_23.90.0.2P	資訊	Size: 43Mib Version: 01505_23.90.0.2P SHA1: 2A4A4E58DDF8BDC13BAF6EC877AFD96BCE882A09 Filename: Intel_WLAN(v01505_23.90.0.2P).zip Release Note	作業系統	Win 11 x 64	Date	2025-03-25	下載	全球中國
說明	[Beta] Realtek high definition ALC 256 audio driver ver:9467	資訊	Size: 39Mib Version: 9467_UAD_2023_0110_110651 SHA1: 2ED4B16592555AFF7623D1E939C47F49897AD9EC Filename: Realtek_Audio(v9467_UAD_2023_0110_110651).zip Release Note	作業系統	Win 11 x 64	Date	2025-03-25	下載	全球中國
說明	[Beta] VGA driver ver:32.0.101.6069	資訊	Size: 1062Mib Version: 32.0.101.6069 SHA1: 4A5D5E7BCAC518CEBDEA2BDE50DF4AFF4A53D55E Filename: Intel_VGA(32.0.101.6069).zip Release Note	作業系統	Win 11 x 64	Date	2025-03-25	下載	全球中國
說明	[Beta] Chipset_Driver(10.1.20003.8622)	資訊	Size: 11Mib Version: 10.1.20003.8622 SHA1: 6CD17870FAA873333473D27977F83D5C1EC375A4 Filename: Chipset_Driver(10.1.20003.8622).zip Release Note	作業系統	Win 11 x 64	Date	2025-03-25	下載	全球中國
說明	[Beta] Intel I226 Lan driver ver:2.1.4.3	資訊	Size: 5476Kib Version:2.1.4.3 SHA1: D7E8944048FA2F2A83365853673ADED08E366EF6 Filename:Intel_LAN(v2.1.4.3).zip Release Note	作業系統	Win 11 x 64	Date	2025-03-25	下載	全球中國

檔案格式為 PDF，如果您沒有安裝 Adobe Acrobat Reader，請至 Adobe下載。

說明	語言	日期	下載
說明	Quick Installation Guide	語言	English	日期	2025-03-25	下載	全球中國
說明	User Manual	語言	English	日期	2025-03-25	下載	全球中國

訂購資訊

型號	料號	說明
型號	iEP-7040E-020	料號	90PXGER0-02000000	說明	Basic SKU CPU : Intel Core Ultra 255H Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -20°C~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
型號	iEP-7040E-021	料號	90PXGER0-12000000	說明	PoE SKU CPU : Intel Core Ultra 255H Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -20°C~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
型號	iEP-7040E-022	料號	90PXGER0-22000000	說明	5LAN-WIFI SKU CPU : Intel Core Ultra 255H Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -20°C~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
型號	iEP-7040E-023	料號	90PXGER0-32000000	說明	5LAN-5G SKU CPU : Intel Core Ultra 255H Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -20°C~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
型號	iEP-7040E-024	料號	90PXGER0-42000000	說明	5G-WIFI SKU CPU : Intel Core Ultra 255H Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -20°C~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
型號	iEP-7040E-025	料號	90PXGER0-52000000	說明	8DIO SKU CPU : Intel Core Ultra 255H Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -20°C~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
型號	ADAPTER 120W 19V	料號	04G266001001AI	說明	FSP/FSP120-ABAN3/9NA1208545 for Basic, 5LAN, 5G, 8DIO SKU
型號	ADAPTER 330W 24V	料號	04G266001200AI	說明	FSP/FSP330-AAAN3/9NA3300215 for PoE SKU
型號	US PWR CORD	料號	14G110001100AK	說明	L:1.5M BLACK
型號	EU/KR PWR CORD	料號	14G110001800AK	說明	L:1.5M BLACK
型號	WALL MOUNT KIT	料號	13G0207860A0AI	說明	Horizontal Positions for Basic SKU
型號	VESA MOUNT KIT	料號	13G020554010AI	說明	Horizontal Positions for Basic SKU
型號	WALL MOUNT KIT	料號	13G020760000AI	說明	Vertical Positions for all SKU
型號	DIN RAIL KIT	料號	13G020761000AI	說明	Vertical Positions for all SKU
型號	iEP-7040E SERIES WIFI KITS	料號	90PCA2P0-00000000	說明	WIFI Module (INTEL/AX210.NGWG.NV/999M85) x1 Antenna x2 SMA Cable 185mm x2
型號	iEP-7040E SERIES 5G KITS	料號	90PCA2P0-00000003	說明	5G Module (QUECTEL/RM520NG) x1 Antenna x4 SMA Cable 220mm x2 SMA Cable 300mm x2
型號	iEP-7040E SERIES 4G LTE KITS	料號	90PCA2P0-00000004	說明	4G LTE Module (QUECTEL/EM05) x1 Antenna x2 SMA Cable 220mm x1 SMA Cable 300mm x1
