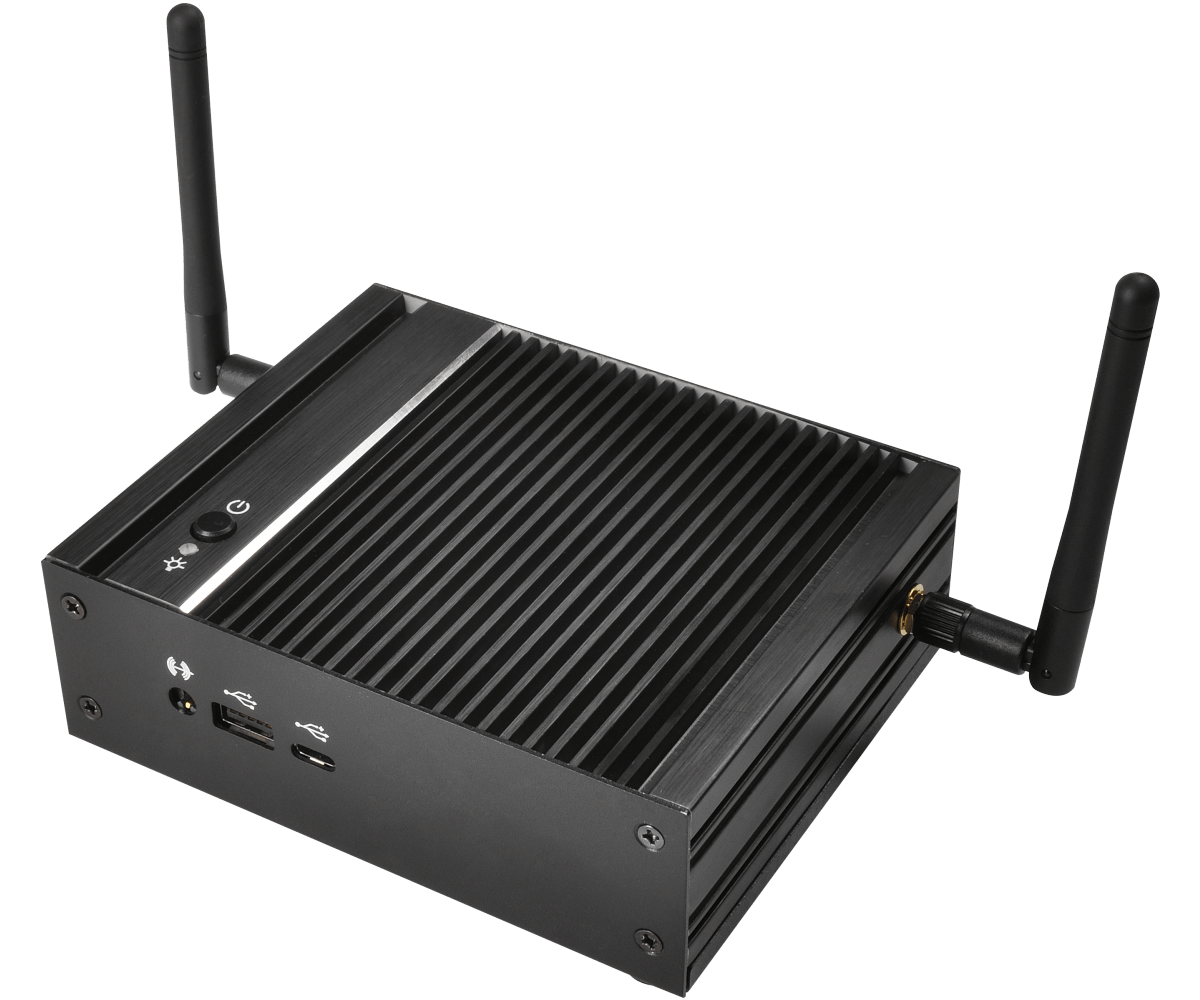

iBOX-315 Fanless Embedded BOX PC

Processor System

CPU	N3160, QC, up to 2.24 GHz
Chipset	SoC

Form Factor

Dimensions	135 x 110 x 44.5mm

Memory

Technology	Dual Channel DDR3L 1333/1600 MHz
Capacity	16 GB
Socket	2 x SO-DIMM

Graphics

Controller	Intel® Gen8 Intel® Graphics

Ethernet

Controller/ Speed	1 x Realtek RTL8111G with 10/100/1000 Mbps
Connector	1 x RJ-45

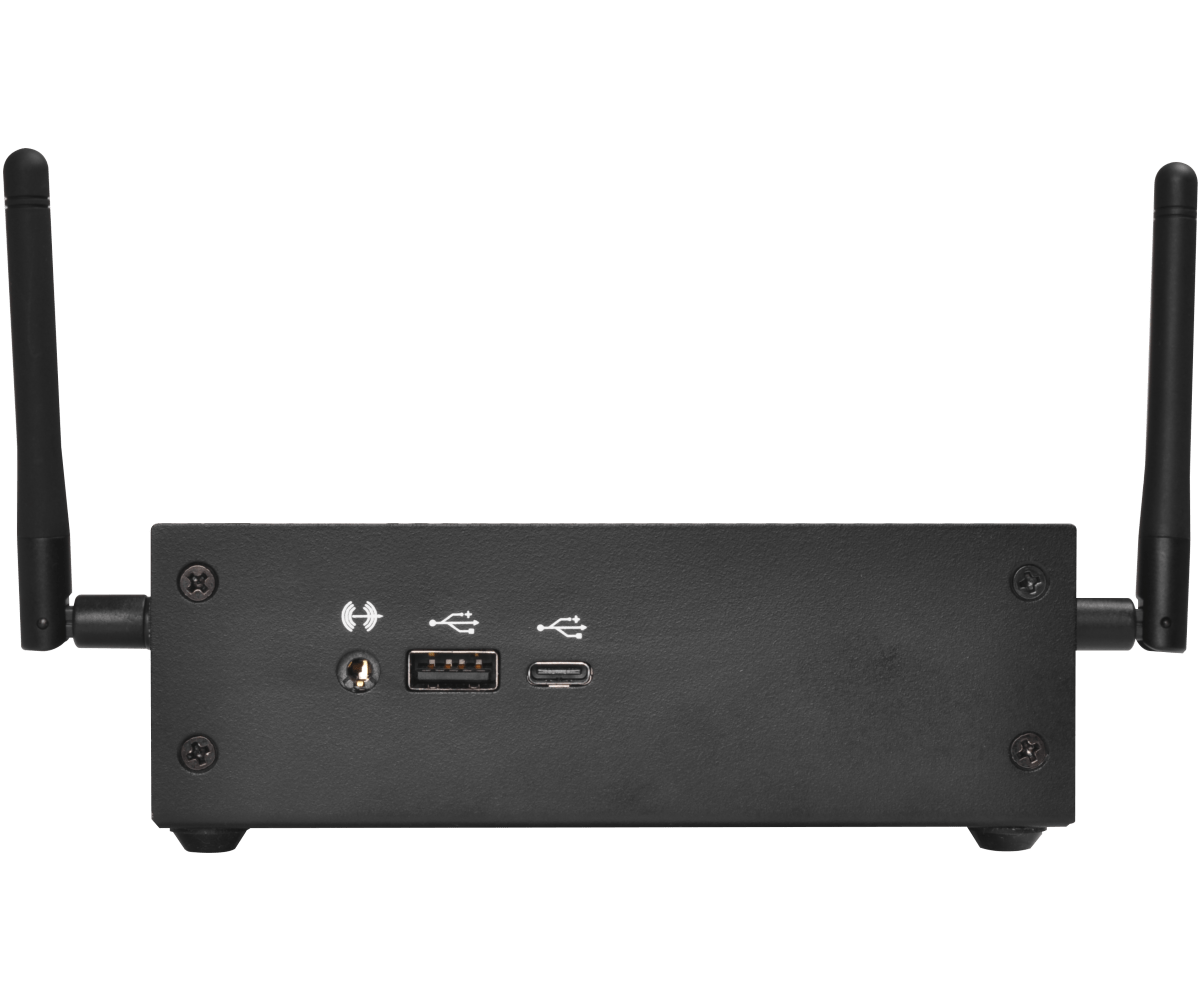

Front I/O

USB	2 x USB 3.0 ( 1 x Type-A, 1 x Type-C)
Audio	1 (Mic-in or Line-out)

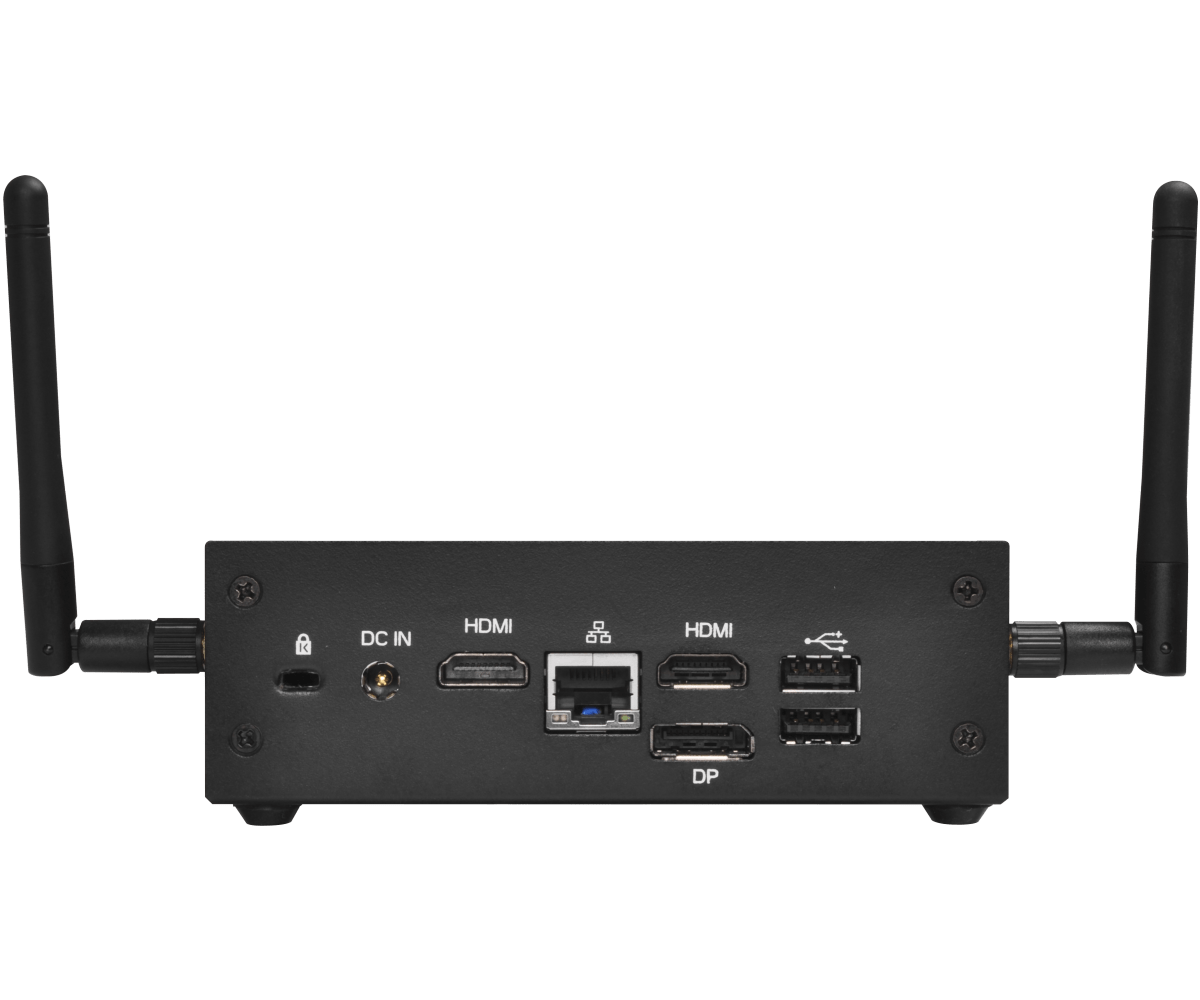

Rear I/O

HDMI	2
DisplayPort	1
Ethernet	1
USB	2 x USB 3.0
DC Jack	1

Storage

mSATA	1 x Full size with SATA3
SATA	1 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments 0,1,2....255sec

Power Requirements

Input PWR	1 x 12V/36W AC-DC power brick adapter
Power On	AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 50ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	10% ~ 90%
Storage Humidity	10% ~ 90%

Mechanical

Construction	Aluminum housing
Mounting	VESA mounting bracket
Dimensions (L x W x H)	135 x 110 x 44.5mm
Weight	Net Weight: 1.9kg

Others

OS Support	Windows 8.1, Windows 10
Certifications	CE, FCC Class A
Packing List	1 x 12V/36W Power Adapter 1 x VESA mounting bracket 1 x Screw Package 1 x Product DVD

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
