NUC BOX-325 Fanned Embedded BOX

Intel® Core™ Ultra Series 3 Processors (Panther Lake-H)
2 x 262-pin SO-DIMM DDR5 7200/6400MHz up to 128GB (64GB per DIMM)
1 x USB4/Thunderbolt™4, 4 x USB3.2 Gen2, 2 x M.2 Key M,1 x M.2 Key E (Wi-Fi 7 Module)
2 x Intel 2.5 Gigabit LAN
Supports Quad display, 2 x HDMI 2.1, 1 x DP 2.1 (from USB4), 1 x DP 1.4a (from Type-C)
Intel® PTT
Supports Intel® vPro Essentials, VMD RAID 0/1
19V/120W Power Adapter
117.5 x 110.0 x 49mm (4.63" x 4.33" x 1.93"), Fanned Barebone
TAA Compliant

產品型錄

產品特色

產品規格

Processor System

CPU	Intel® Core™ Ultra Series 3 Processors (Panther Lake-H) NUC BOX-325 (Ultra 5 325, 4P+4LPE)
Chipset	MCP
BIOS	AMI SPI 256 Mbit

Memory

Technology	Dual Channel DDR5 6400 MHz (Ultra 5 325)
Capacity	128GB (64 GB per DIMM)
Socket	2 x 262-pin SO-DIMM

Graphics

Controller	Intel® Graphics
HDMI	HDMI 2.1 Max resolution up to 7680x4320@60Hz
DisplayPort	DisplayPort 2.1/ 1.4a, DP++ Max resolution up to 4096x2160@60Hz
MultiDisplay	Quad-Display (Included 2 outputs from Type-C)

Expansion Slot

M.2/WLAN	1 x Wi-Fi 7 + BT 6.0 (M.2 Key E, 2230 PCIe x1, USB 2.0 and CNVi for Wireless)

Audio

Interface	Realtek ALC256, High Definition Audio.

Ethernet

Controller/ Speed	LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I226V with 10/100/1000/2500 Mbps
Connector	2 x RJ-45

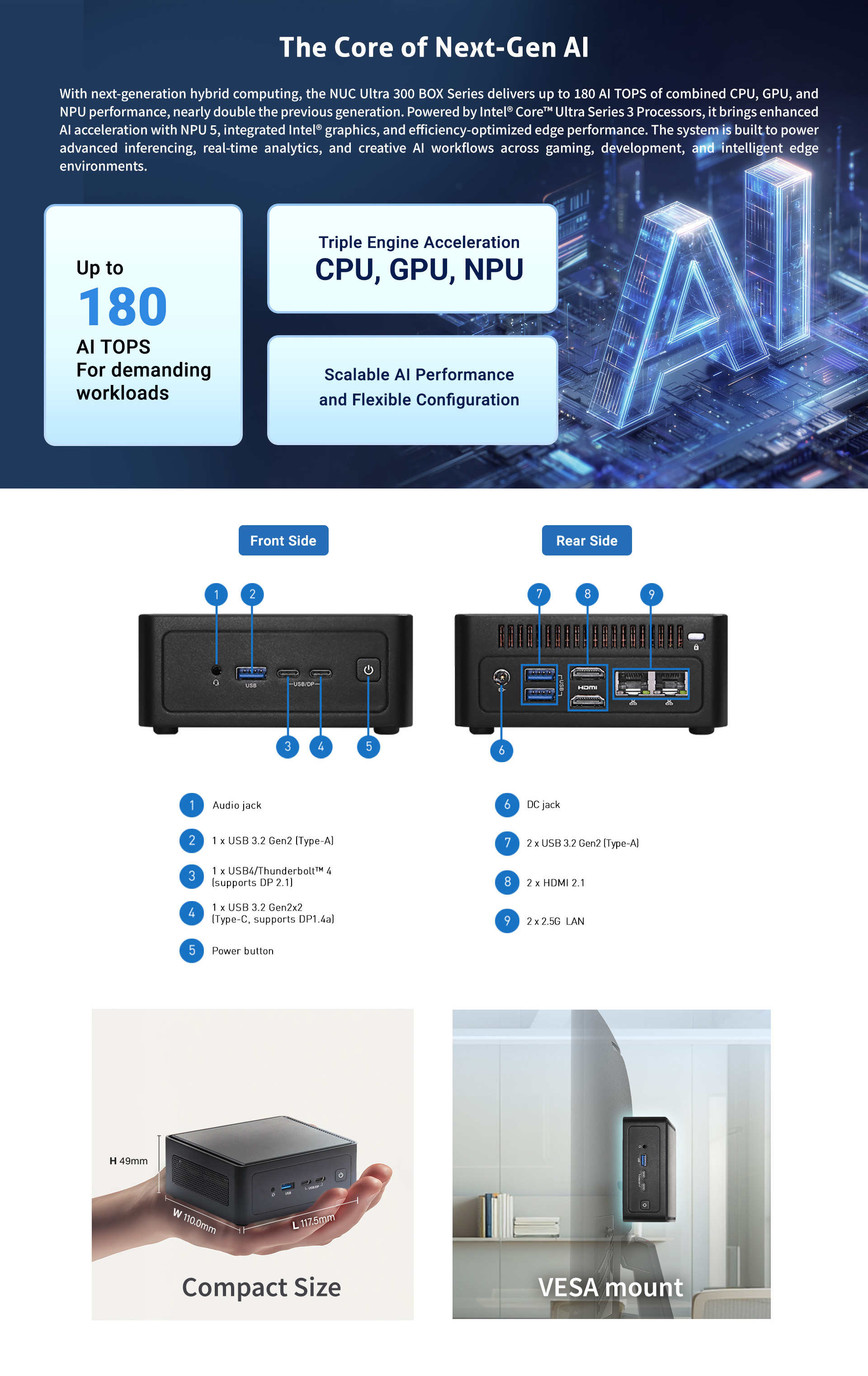

Front I/O

USB	1 x USB 3.2 Gen2 (Type-A) 1 x USB4/Thunderbolt™ 4 (Supports DP 2.1 display output) 1 x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output) *For Thunderbolt support, please refer to support list.
Audio	1 (headphone & microphone jack)

Rear I/O

HDMI	2 x HDMI 2.1
Ethernet	2 x 2.5 Gigabit LAN
USB	2 x USB 3.2 Gen2 (Type-A)
DC Jack	1

Storage

M.2	1 x M.2 (KEY M, 2242/2280) with PCIe Gen5x4 for SSD 1 x M.2 (KEY M, 2242) with PCIe Gen4x4 for SSD
RAID	Intel® VMD RAID 0/1 *supported by identical interface (PCIe) PCIe interface: 2M.2 Key M

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V~24V DC-In Jack
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 40ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90% (non-condensing)
Storage Humidity	5% ~ 90% (non-condensing)

Mechanical

Mounting	VESA mount
Dimensions (L x W x H)	117.5 x 110.0 x 49mm (4.63" x 4.33" x 1.93")
Weight	Net Weight:1.0Kg

Others

OS Support	Windows 10/11
TPM	Intel® PTT
Certifications	CE, FCC
Packing List	1 x 19V/120W Power Adapter 1 x VESA mount bracket

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。

作業系統:

說明	資訊	作業系統	日期	下載
說明	[Beta] WIFI Driver_v24.0.2.1	資訊	Size: 42Mib Version: 24.0.2.1 SHA1: f828df8886dd68cb33348105f8230b8bb3b44272 Filename: WIFI Driver_v24.0.2.1.zip Release Note	作業系統	Win 11 x 64	Date	2026-03-20	下載	全球中國
說明	[Beta] Bluetooth driver ver: v24.0.1.1	資訊	Size: 35Mib Version: 24.0.1.1 SHA1: d730dab1f120c982e4b93906ff0c39c3d34918a4 Filename: Intel Bluetooth Driver(v24.0.1.1).zip Release Note	作業系統	Win 11 x 64	Date	2026-03-20	下載	全球中國
說明	[Beta] HD Audio Driver_ALC256 ver 9900.1	資訊	Size: 55Mib Version: 9900.1 SHA1: a79713ac18650584fecaed145847925b576389de Filename: HD Audio Driver ALC256 ver 9900.1.zip Release Note	作業系統	Win 11 x 64	Date	2026-03-20	下載	全球中國
說明	[Beta] Intel PPM (v1.0.00000.200)	資訊	Size: 1165 Kib Version:1.0.00000.200 SHA1:efefa561585bcacd3bca5a523133f50c7257b099 Filename:Intel PPM(v1.0.00000.200).zip Release Note	作業系統	Win 11 x 64	Date	2026-03-18	下載	全球中國
說明	[Beta] IPF(v2.3.20201.4882)	資訊	Size: 6584 Kib Version:2.3.20201.4882 SHA1:2772fffe605498abc40e9a4f4fb957a8cc532820 Filename:IPF(v2.3.20201.4882).zip Release Note	作業系統	Win 11 x 64	Date	2026-03-18	下載	全球中國
說明	[Beta] DTT(9.1.10003.555)	資訊	Size: 58 Mib Version:9.1.10003.555 SHA1:b7f976d85d2d7632024700be981d2efa6b5989f2 Filename:DTT(9.1.10003.555).zip Release Note	作業系統	Win 11 x 64	Date	2026-03-18	下載	全球中國
說明	[Beta] Nuvoton HighSpeed Setup_v1.8.24.0805	資訊	Size: 7158Kib Version:1.8.24.0805 SHA1: D22C77D4ADB5F081DAD9765DA84D9A3AF3C6D3C6 Filename:Nuvoton_HighSpeed_Setup_v1.8.24.0805.zip Release Note	作業系統	Win 11 x 64	Date	2026-03-18	下載	全球中國
說明	[Beta] RST Driver ver:21.0.0.1033.2	資訊	Size: 7229 Kib Version:21.0.0.1033.2 SHA1:c2ee627efe665914a63dc32c0bb85879a911976c Filename:RST Driver(21.0.0.1033.2).zip Release Note	作業系統	Win 11 x 64	Date	2026-03-18	下載	全球中國
說明	[Beta] Intel HID Event Filter ver:2.2.2.17	資訊	Size: 924 Kib Version:2.2.2.17 SHA1:d6ae866aeaa2d8c6550221ae844bd0085a6938fd Filename:Intel HID Event Filter ver(v2.2.2.17).zip Release Note	作業系統	Win 11 x 64	Date	2026-03-18	下載	全球中國
說明	[Beta] NPU driver ver:32.0.100.4509	資訊	Size: 29 Mib Version:32.0.100.4509 SHA1:165a1398b6e98bfd0c6d7f7fbfb1063634ab56b2 Filename:npudrive(v32.0.100.4509).zip Release Note	作業系統	Win 11 x 64	Date	2026-03-18	下載	全球中國
說明	[Beta] PMT ver: 7.3.10.3	資訊	Size: 722 Kib Version:7.3.10.3 SHA1:0549efe6457d4d1f40bf6b3325387cbc14854901 Filename:PMT(v7.3.10.3).zip Release Note	作業系統	Win 11 x 64	Date	2026-03-18	下載	全球中國
說明	[Beta] Intel Serial IO driver ver:30.100.2534.18	資訊	Size: 2950 Kib Version:30.100.2534.18 SHA1:8003cf446248d100ba65390cf28468f56ad24bc3 Filename:SerialIO(v30.100.2534.18).zip Release Note	作業系統	Win 11 x 64	Date	2026-03-18	下載	全球中國
說明	[Beta] Intel_CSME_Cor(2547.8.50.0)	資訊	Size: 1093 Mib Version:2547.8.50.0 SHA1:3ca9ae52e71cd8fb9b46c46a835f605f45756dcf Filename:Intel_CSME(2547.8.50.0).zip Release Note	作業系統	Win 11 x 64	Date	2026-03-18	下載	全球中國
說明	[Beta] VGA driver ver:32.0.101.8356	資訊	Size: 974 Mib Version:32.0.101.8356 SHA1:5bbdaf2178254a1051639b8b2fd08fbfff69fd47 Filename:Intel_VGA(v32.0.101.8356).zip Release Note	作業系統	Win 11 x 64	Date	2026-03-18	下載	全球中國
說明	[Beta] Chipset_Driver(10.1.20404.8794)	資訊	Size: 90 Mib Version:10.1.20404.8794 SHA1:89df1f8a00c507f70c9e42ce8da4a867f8c4f247 Filename:Chipset(v10.1.20404.8794).zip Release Note	作業系統	Win 11 x 64	Date	2026-03-18	下載	全球中國
說明	[Beta] Intel Lan driver ver:2.1.5.7	資訊	Size: 1163 Kib Version:2.1.5.7 SHA1:96f036f1019b493cae47ea3cf57d548cf21863e4 Filename:Intel_Lan(v2.1.5.7).zip Release Note	作業系統	Win 11 x 64	Date	2026-03-18	下載	全球中國
說明	[Beta] SST driver ver:20.43.12513.0	資訊	Size: 41 Mib Version:20.43.12513.0 SHA1:6a9123a1838e931bb2e3d448492641123675d627 Filename:SST driver ver20.43.12513.0.zip Release Note	作業系統	Win 11 x 64	Date	2026-03-18	下載	全球中國

檔案格式為 PDF，如果您沒有安裝 Adobe Acrobat Reader，請至 Adobe下載。

說明	語言	日期	下載
說明	Quick Installation Guide	語言	English	日期	2026-03-20	下載	全球中國
說明	Jumpers and headers setting guide	語言	English	日期	2026-01-23	下載	全球中國
