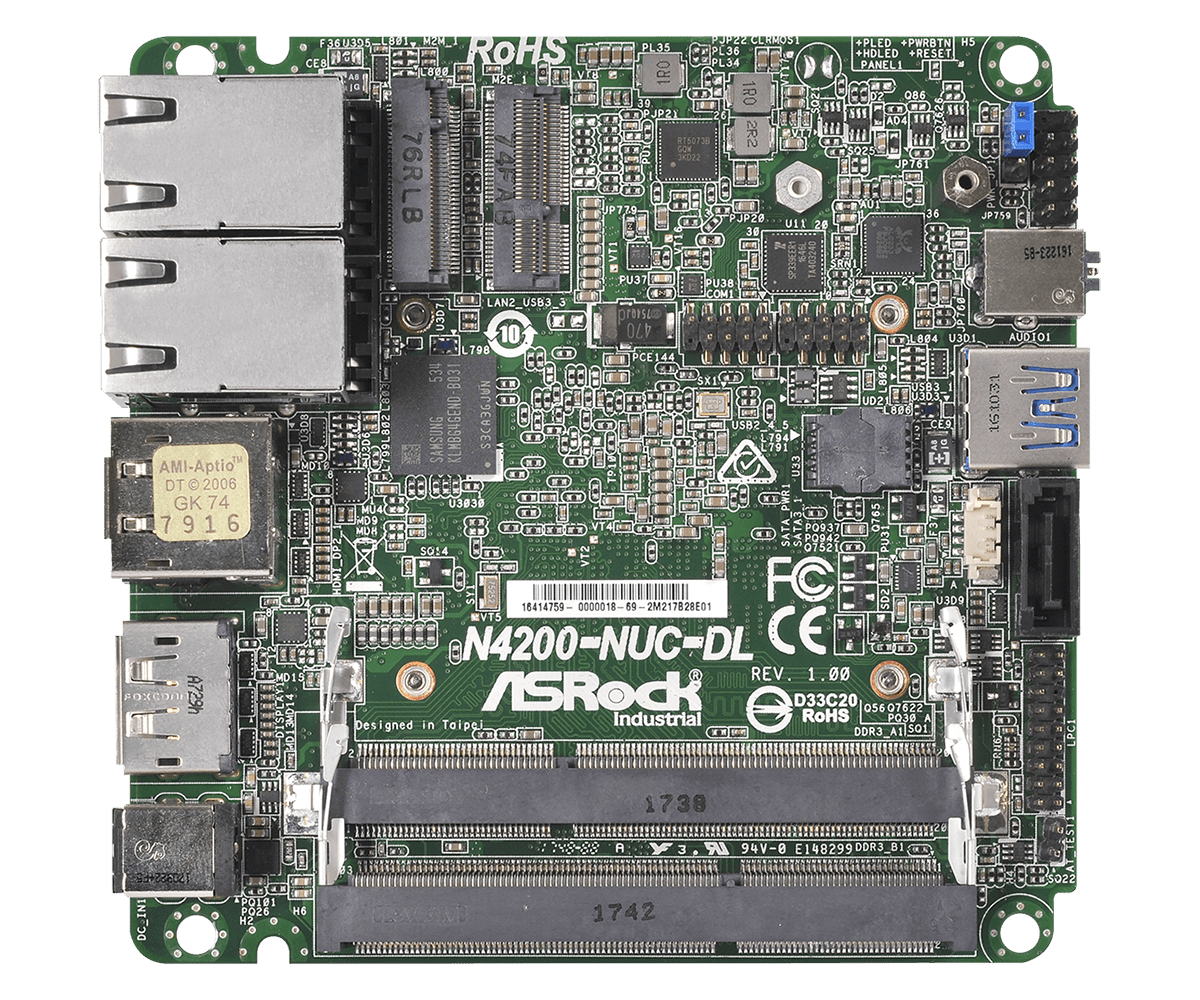

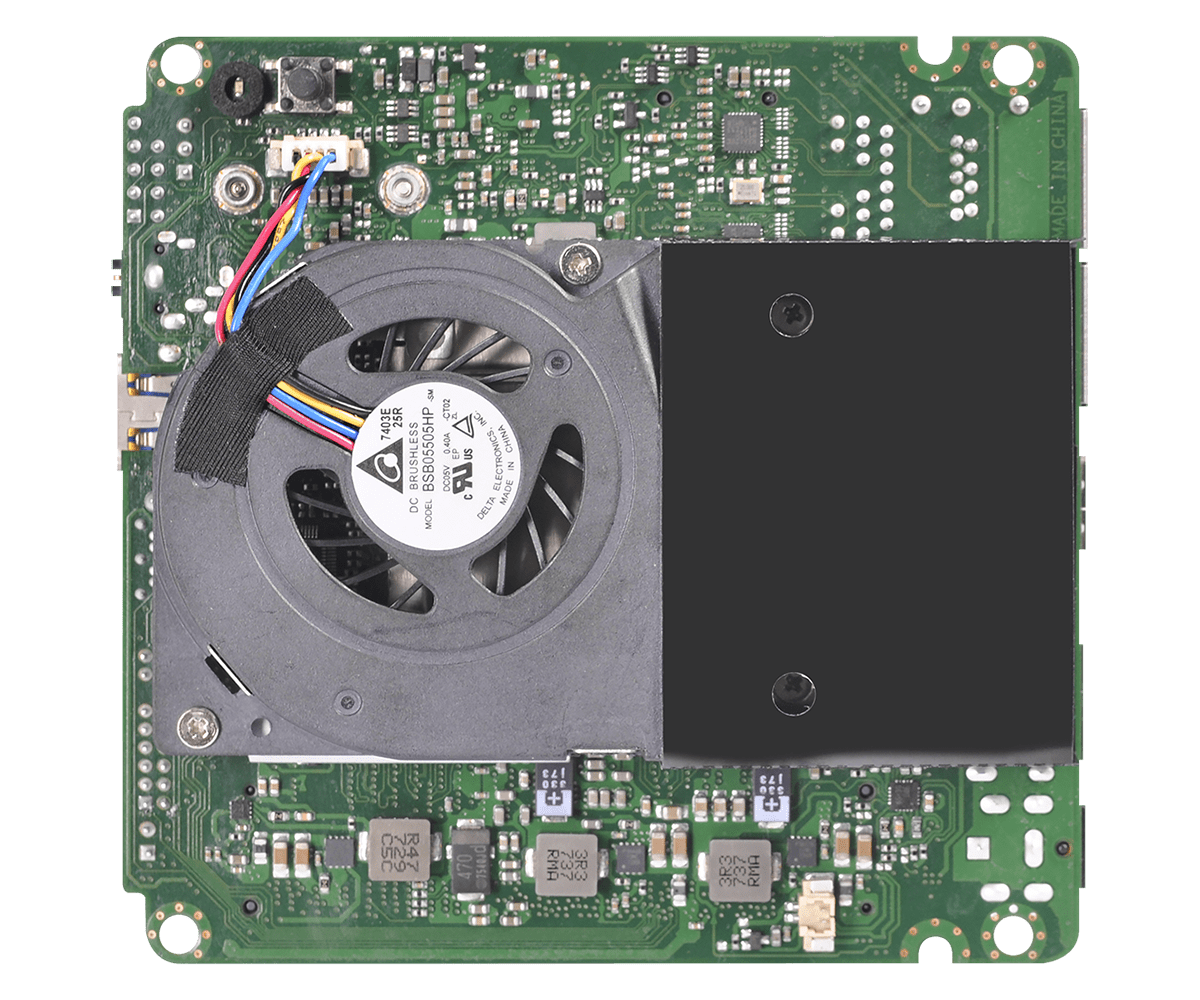

N4200-NUC-DL NUC Motherboard

Processor System

CPU	Intel®Apollo Lake Soc Processor N4200, QC, 1.10GHz, 6W
Chipset	SoC
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	NUC (4.09-in x 4.02-in, 10.4 cm x 10.2 cm)

Memory

Technology	Dual Channel DDR3L 1866 MHz
Capacity	16GB (8 GB per DIMM)
Socket	2 x 204-pin SO-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 12
HDMI	HDMI 1.4b Max resolution up to 4096 x 2160@24Hz
DisplayPort	DisplayPort 1.2a , DP++ Max resolution up to 4096x2160@60Hz
MultiDisplay	Triple Display

Expansion Slot

M.2	1x Key E(2230)with PCIex1 and USB2.0 for wireless

Audio

Interface	Realtek ALC233, High Definition Audio, Line-out, Mic-in

Ethernet

Controller/ Speed	2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector	2 x RJ-45

Front I/O

USB	1 x USB3.1(Gen1)
Audio	1 (Mic-in or Line-out)

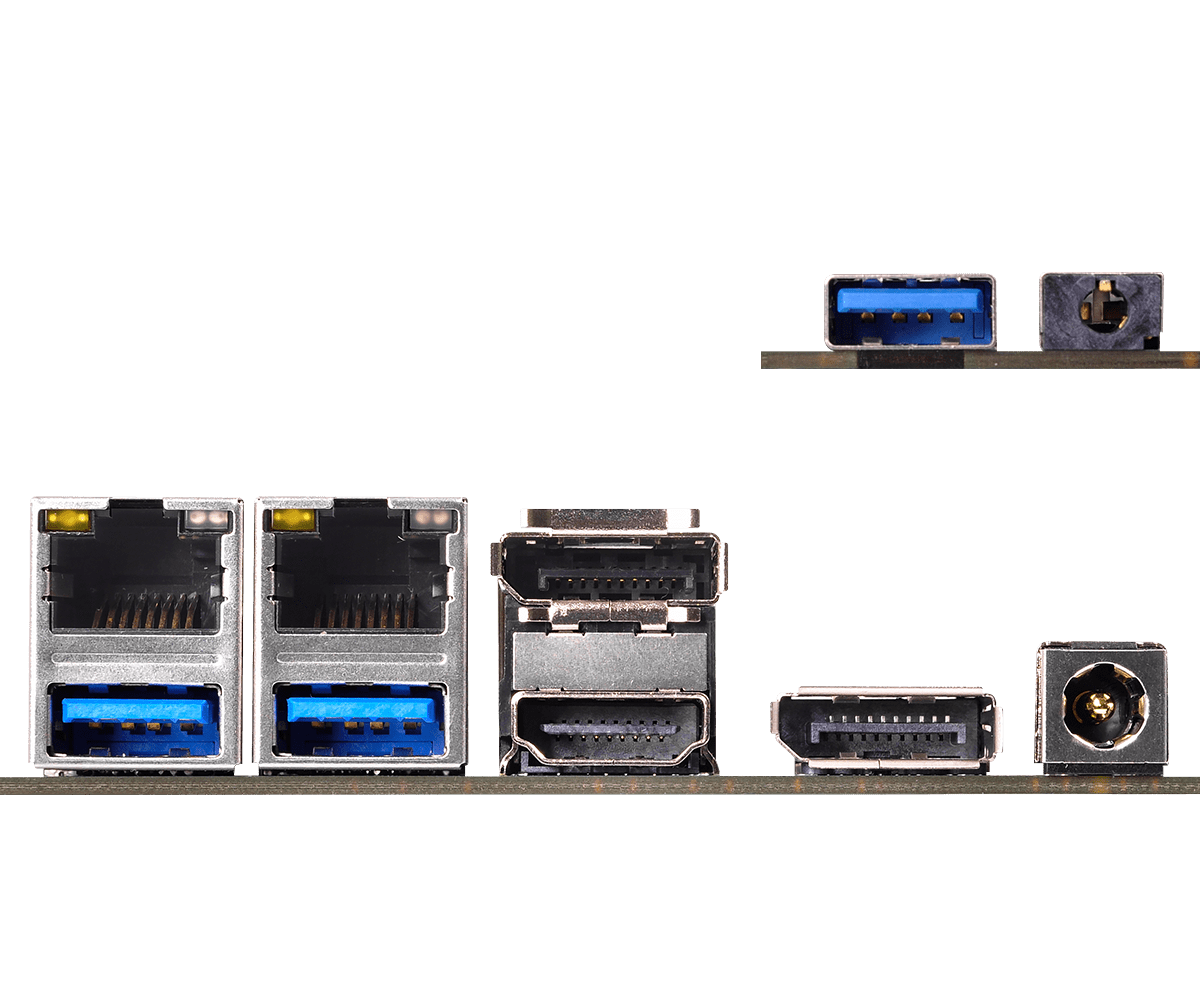

Rear I/O

HDMI	1 x HDMI 1.4b
DisplayPort	2 x DP 1.2a
Ethernet	2 x 1 Gigabit LAN
USB	2 x USB 3.0
DC Jack	1

Internal Connector

USB	2 x USB2.0 (1 x 2.00 pitch header)
COM	1 x COM (RS232/422/485)
TPM	TPM on board IC
SATA PWR Output	1

Storage

M.2	1x Key M(2242/2260) with PCIex1 and SATA3 for SSD
SATA	1 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V DC-in(DC Jack)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%
