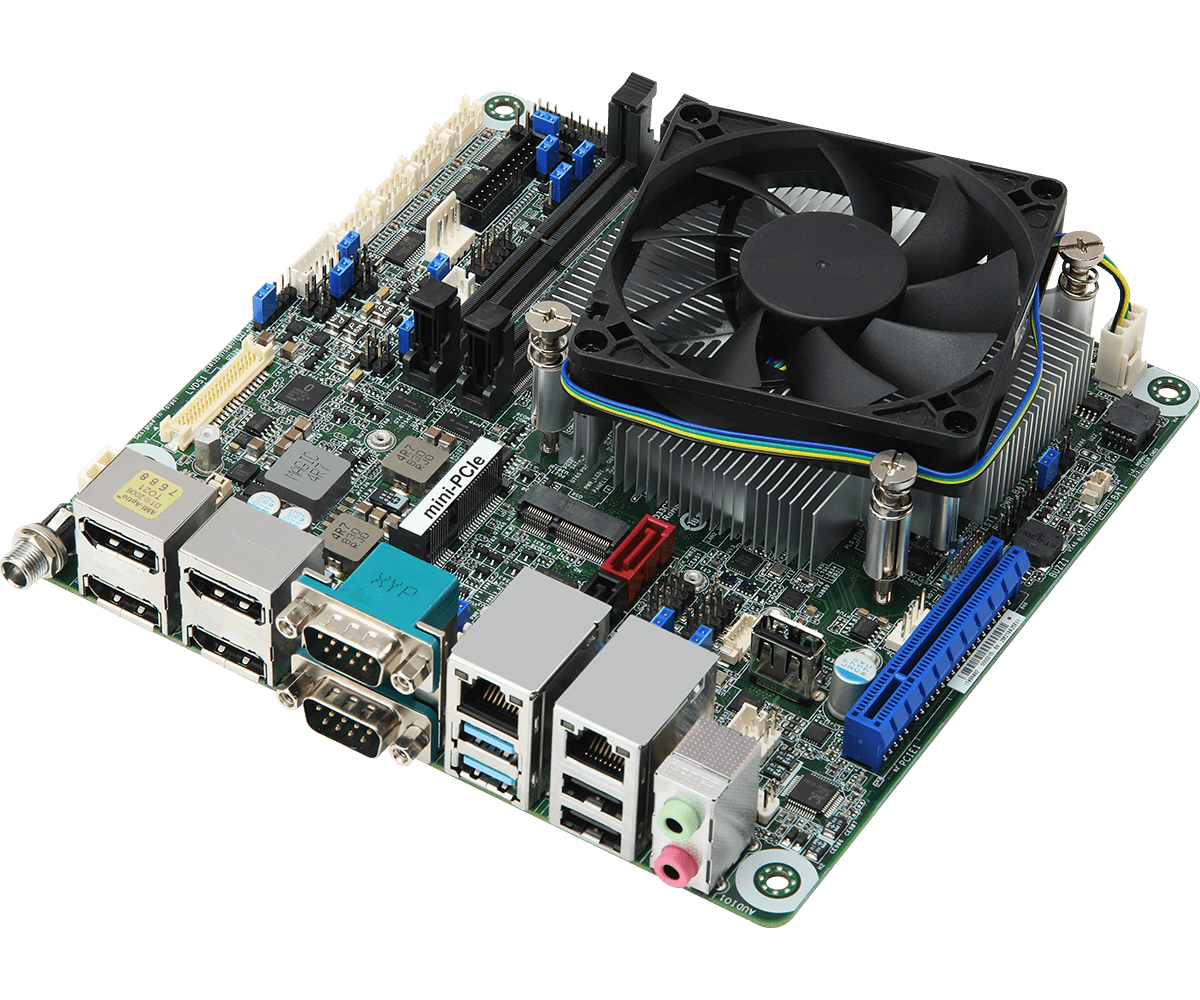

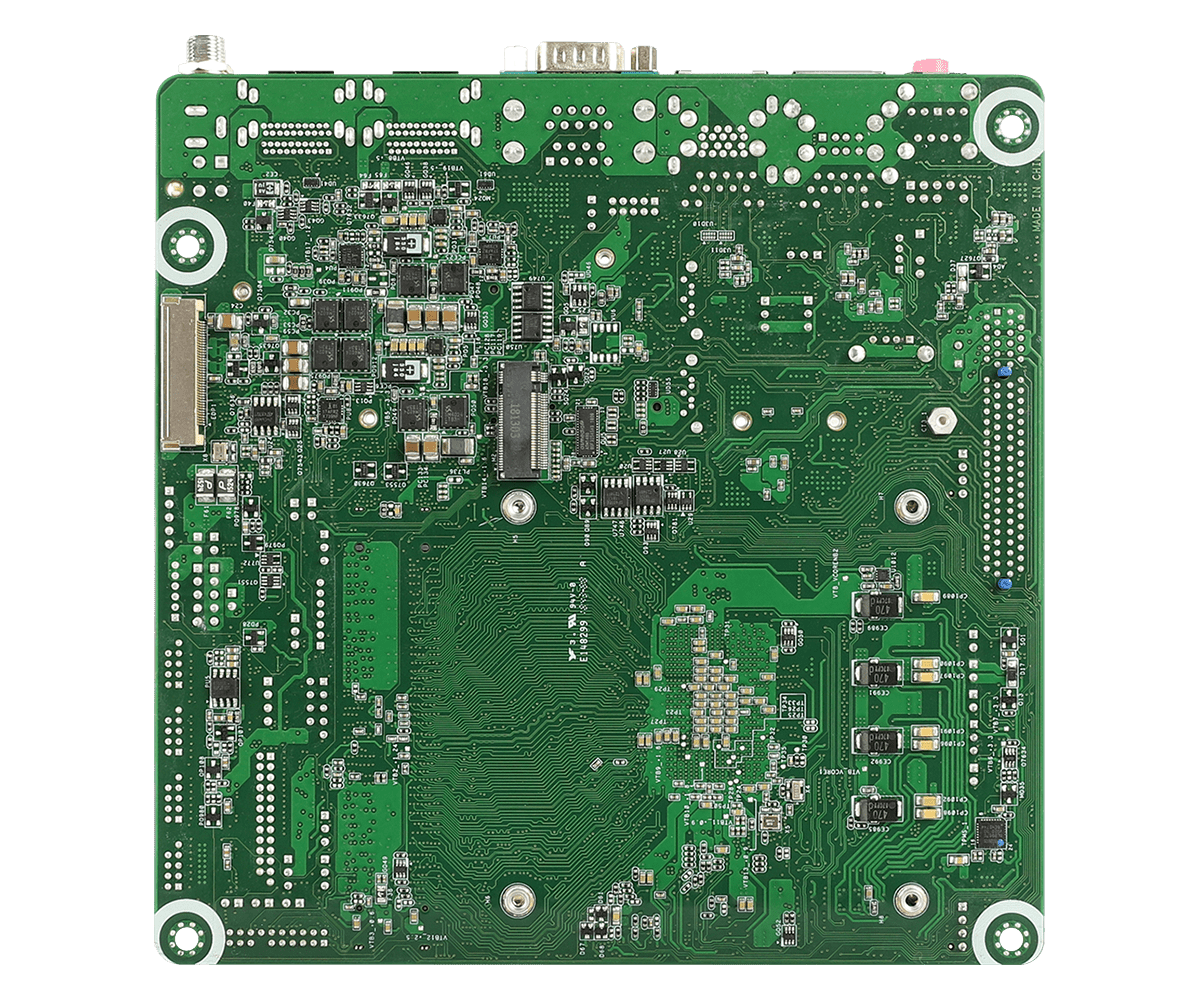

IMB-V1000 Mini-ITX Motherboard

Processor System

CPU	AMD Ryzen™ Embedded V1000 SoC processors -IMB-V1000P (V1807B, QC, 3.35GHz, 35-54W) -IMB-V1000M (V1605B, QC, 2GHz, 12-25W) -IMB-V1000V (V1202B, DC, 2.3GHz, 12-25W)
Chipset	SoC
BIOS	AMI SPI 64 Mbit

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

Technology	Dual Channel DDR4 3200 MHz (V1807B) Dual Channel DDR4 2400 MHz (V1605B/ V1202B)
Capacity	32 GB (16 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	AMD Radeon™ Vega 11 Graphics (IMB-V1000P) AMD Radeon™ Vega 8 Graphics (IMB-V1000M) AMD Radeon™ Vega 3 Graphics (IMB-V1000V)
DisplayPort	DisplayPort 1.2a Max resolution up to 3840x2160@60Hz
VGA	Max resolution up to 1920x1200@60Hz
LVDS	Dual channel 48 bit up to 1920 x 1200@60Hz
eDP	eDP 1.3 Max resolution up to 3840x2160@60Hz
MultiDisplay	Quad Display

Expansion Slot

PCIe	1 x PCIe x8 (Gen3)
mini-PCIe	1 x Full/Half size with PCIe x1 and USB 2.0
M.2	1 x M.2 (Key E, 2230) with PCIe x1 and shared USB 2.0 for Wireless

Audio

Interface	Realtek ALC887, High Definition Audio. Line-out,Mic-in,Line-in

Ethernet

Controller/ Speed	2 x Realtek R8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector	2 x RJ-45

Rear I/O

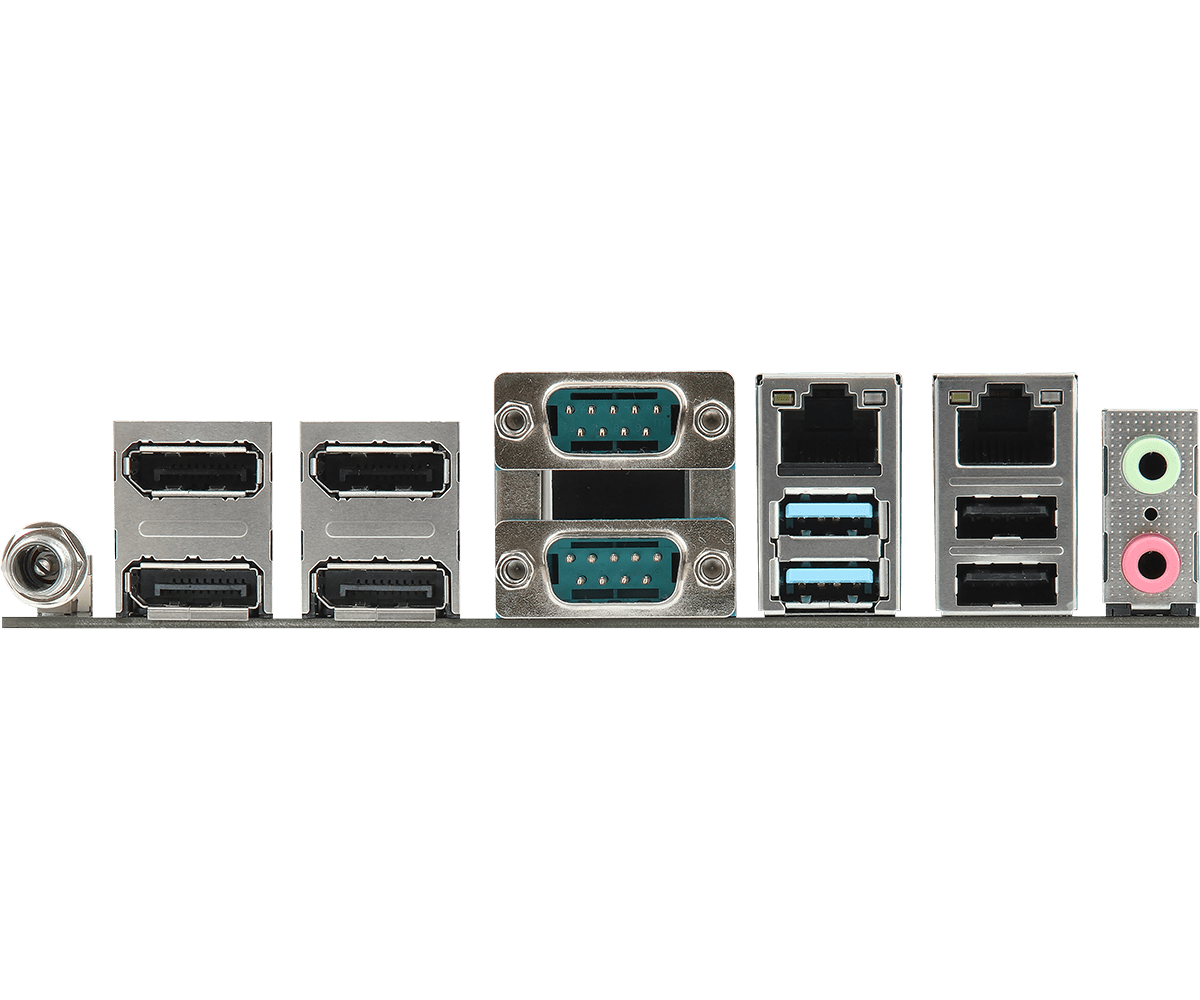

DisplayPort	4 x DP 1.2a
Ethernet	2 x 1 Gigabit LAN
USB	2 x USB 3.2 Gen2 2 x USB 2.0
Audio	2 (Mic-in, Line-out)
COM	2 x COM (RS-232/422/485)

Internal Connector

USB	5 x USB 2.0 (2 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con)
COM	4 x COM (RS-232, COM6 shared with ccTalk)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
TPM	TPM 2.0 onboard IC
LVDS	1(Shared with DP1)
eDP	1(Shared with DP0)
VGA	1(Shared with DP3)
SATA PWR Output	1
Speaker Header	1

Storage

M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIe x2 and SATA for SSD
SATA	2 x SATA3 (6.0Gb/s), Red header shared with M.2 Key M SATA signal

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V or 19~28V DC-In with 4-pin plug PWR cable or DC Jack
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x SCREW M2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020513000AK) 1 x SATA Data Cable (14G00010107DAK) 1 x COM Cable (14G000000340AK)
Bulk Package	1 x SCREW M2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020513000AK)
