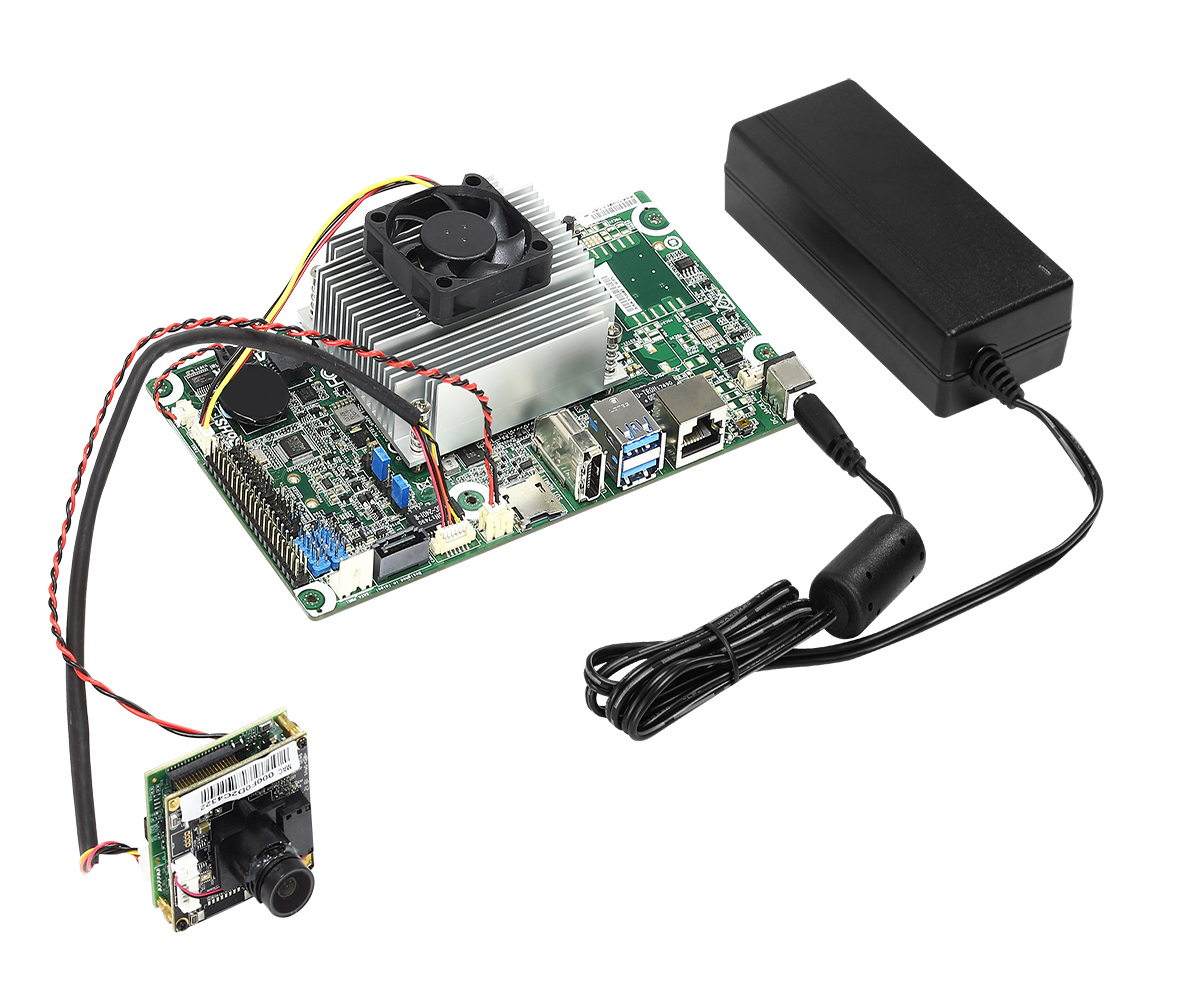

athena A2 Kit

athena A2 Kit AIoT Kit

  • Intel® Apollo Lake J3455 Processor
  • 1 x IP camera (2MP, 1080P@30fps, H.264)
  • 1 x Movidius Myriad X (Supports OpenVINO™) (Optional)
  • Supports LPDDR4 2400MHz 4GB, up to 8GB
  • 2 x USB 3.2 Gen1, 1 x M.2 Key B, 1 x M.2 Key M, 1 x M.2 Key E
  • 2 x Realtek Gigabit LAN
  • 1 x HDMI 1.4b
  • 1 x micro SD card slot
  • 1 x 32GB eMMC
  • 1 x micro SIM socket
  • TPM 2.0 onboard IC
  • 12V DC-In/ PoE (PD) with 25.5W (Optional)
产品型录
产品规格

Processor System

CPU Intel® Atom Apollo Lake J3455 processor
Chipset SoC
BIOS AMI SPI 128 Mbit

Form Factor

Dimensions 6.5-in x 3.8-in

Memory

Technology Onboard LPDDR4 2400 MHz
Capacity 4 GB, up to 8GB

Graphics

Controller SoC integrated graphics
HDMI HDMI 1.4b
Max resolution up to 3840x2160@30Hz

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless
SIM Socket 1 x micro SIM Socket connected to M.2 Key B 3042/3052

Ethernet

Controller/ Speed LAN: 1 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps (PoE (PD) with 25.5W)
LAN: 2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps (IP Camera Header)
Connector 1 x RJ-45

Rear I/O

HDMI 1 x HDMI 1.4b
Ethernet 1 x 1 Gigabit LAN, PoE (PD) with 25.5W (Optional)
USB 2 x USB 3.2 (Gen1)
DC Jack 1
others 1 x Micro SD connector

Internal Connector

USB 2 x USB 2.0 header
TPM TPM 2.0 onboard IC
IP CAM interface LAN signal 1x6 header
Power 1x2 header
SATA PWR Output 1 x 4-pin SATA Power
40-pin GP-bus 40 pin General Purpose bus

Storage

M.2 1 x M.2 (Key B, 3042/3052) with PCIe x1 and USB 3.2 Gen1, USB 2.0
1 x M.2 (Key M, 2280) with PCIe x2
SATA 1 x SATA3 (6Gb/s)
eMMC Onboard eMMC 32GB

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V DC-In (DC Jack)
PoE (PD) with 25.5W (LAN Port) (Optional)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 50ºC
Storage Temp -40° C – 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%

Accessories

Gift Package 3 x SCREW M2,D=5 (13G020302031AK)
1 x IPC SINK 71*64*25.8 (13G070454000AK)
1 x SYSTEM FAN 12V7000R (13G070486000AI)
1 x PH 1.25 1*6P;L=300mm (14G000021110AI)
1 x PH 2.0 1*2P;L=300mm (14G000021210AI)
1 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)

Others

IP camera 2MP, 1080P @30fps, H.264
Movidius 1 x M.2 (Key M, 2280) Myriad X (Supports OpenVINO™) (Optional)
Adapter 1 x AC-in 100~240V, DC-out 12V
OS Support Linux Ubuntu 16.04
Accessories 1 x IP Camera Signal Cable
1 x IP Camera Power Cable
1 x SATA Data Cable
1 x SATA Power Cable
1 x Heatsink Fan
8 x Standoffs
