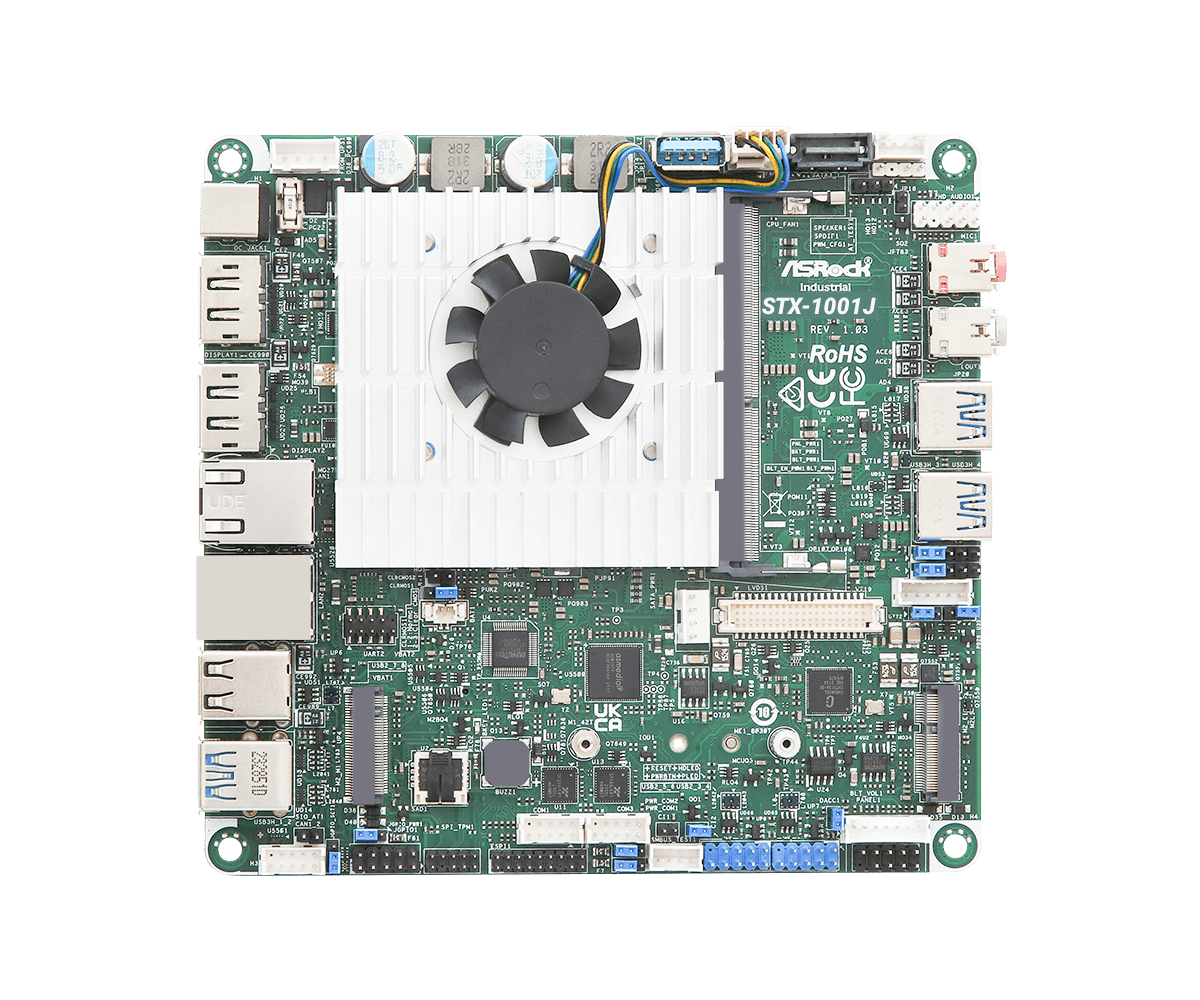

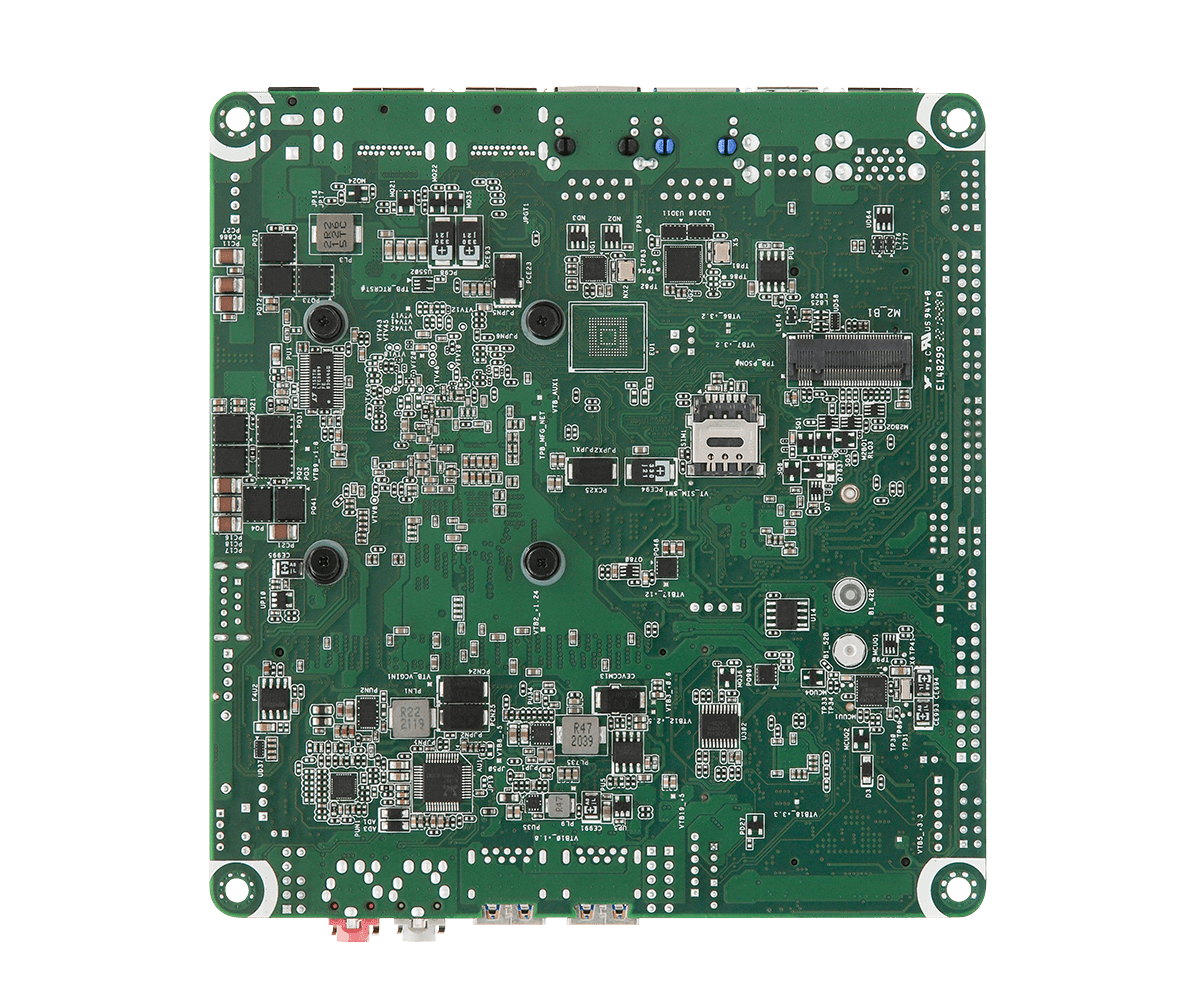

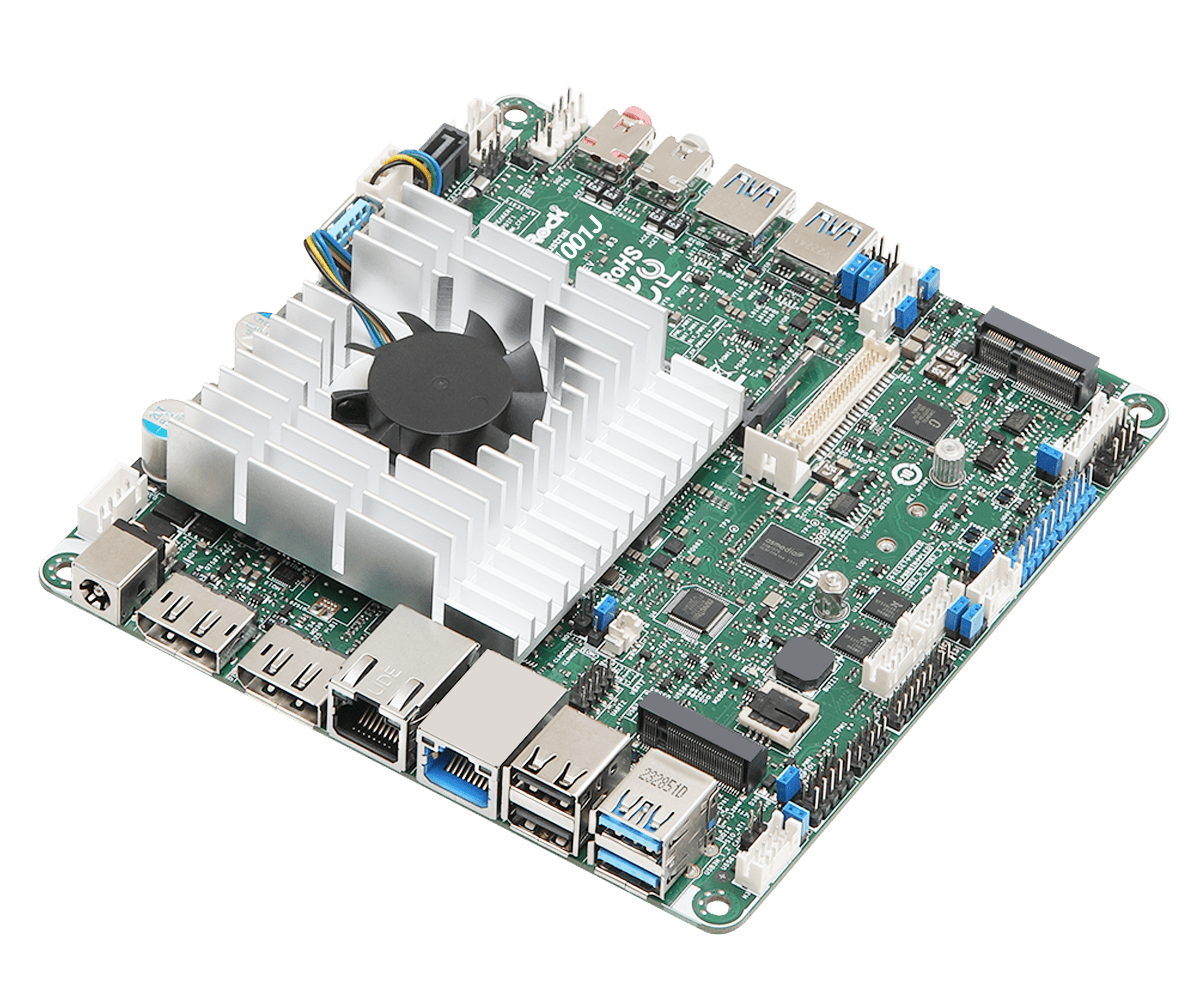

STX-1001J Mini-STX Motherboard

Processor System

CPU	Intel® Elkhart Lake SoC Processor J6412, QC, Max Speed Up to 2.6GHz, 10 W
Chipset	SoC
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	Mini-STX (5.5-in x 5.8-in x 1-in, 14.0 cm x 14.7 cm x 2.5 cm)

Memory

Technology	Single Channel DDR4 3200 MHz
Capacity	32GB
Socket	1 x 260-pin SO-DIMM

Graphics

Controller	Intel® Gen11 Graphics
DisplayPort	DisplayPort 1.2, DP++ Max resolution up to 4096x2160@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1080@60Hz (Connector shared with eDP)
eDP	Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS)
MultiDisplay	Triple Display

Expansion Slot

M.2	1 x M.2 (Key E, 2230) with PCIe Gen3 x1 and USB 2.0 for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1,USB 3.2 Gen2, and USB 2.0 and SIM for 4G/5G
SIM Socket	1 x Socket connected to M.2 Key_B

Audio

Interface	Realtek ALC897, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed	LAN1: Realtek RTL8111H-CG with 10/100/1000 Mbps LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector	2 x RJ-45

Front I/O

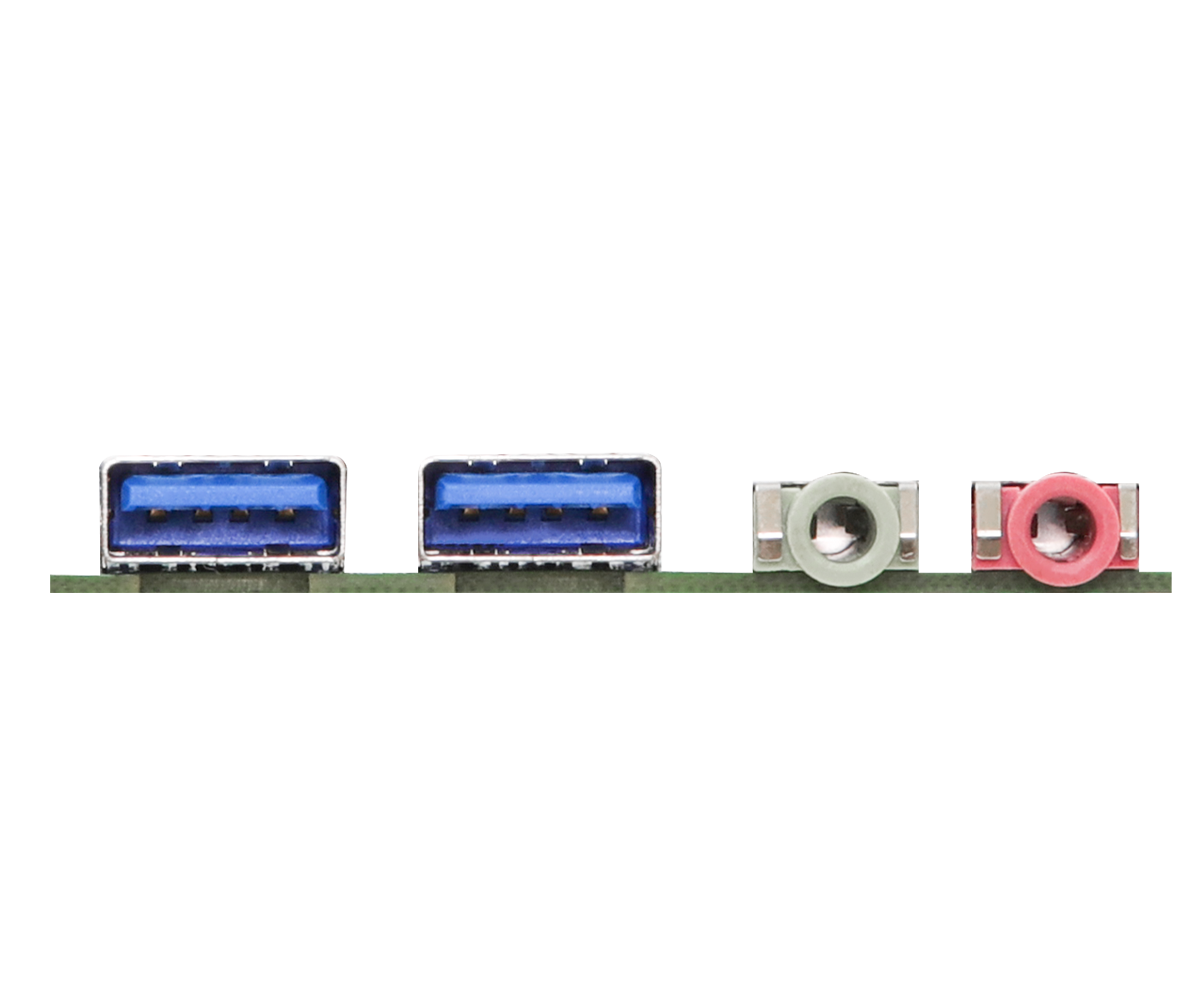

USB	2 x USB 3.2 Gen1
Audio	2 (Mic-in, Line-out)

Rear I/O

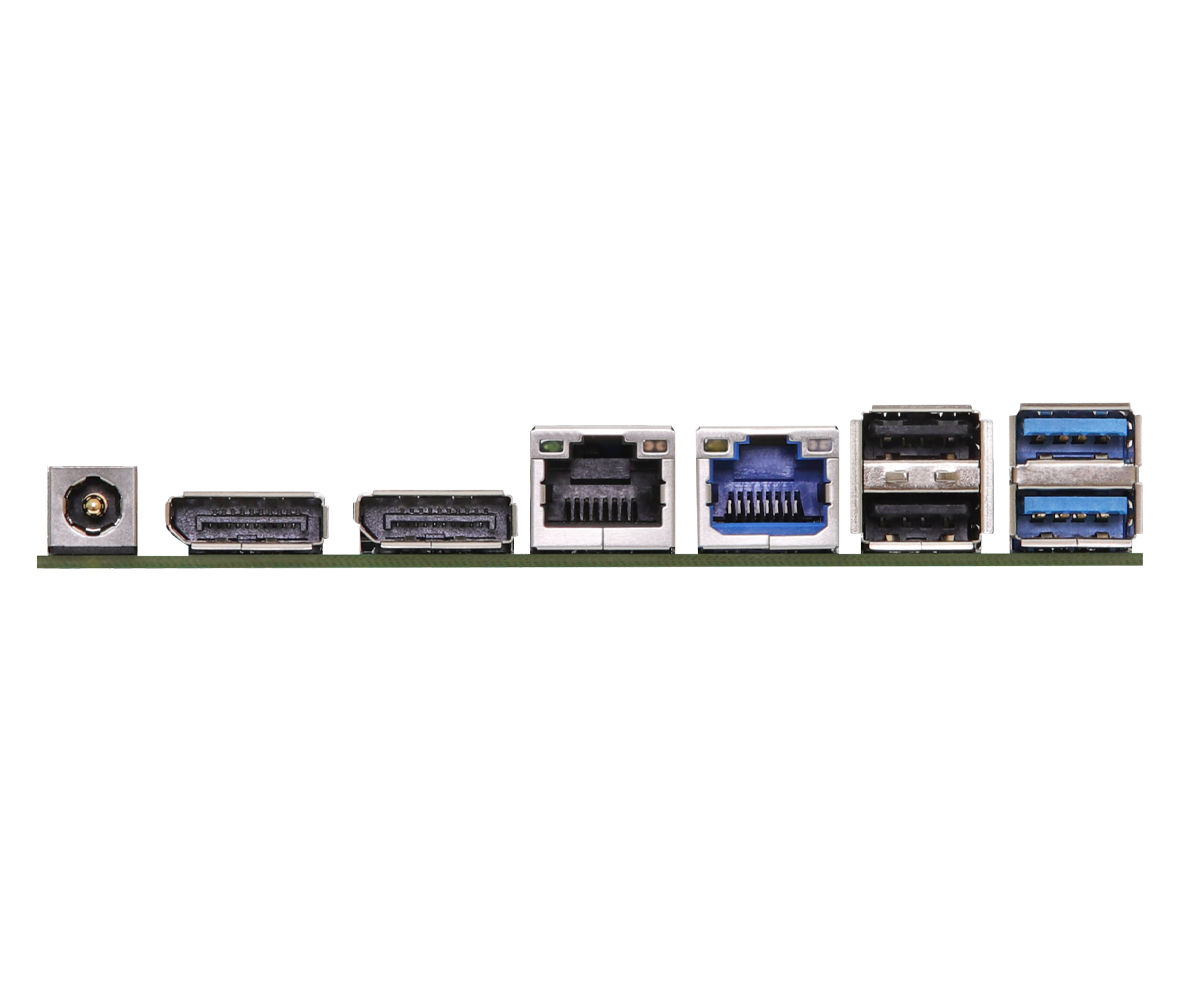

DisplayPort	2 x DP 1.2
Ethernet	1 x 1 Gigabit LAN 1 x 2.5 Gigabite LAN
USB	2 x USB 3.2 Gen1 2 x USB 2.0

Internal Connector

USB	1 x USB 3.2 Gen2 (1 x Type-A vertical con) 4 x USB 2.0 (2 x 2.54 pitch header)
COM	COM1, COM3(RS-232/422/485)
GPIO	4 x GPI, 4 x GPO
TPM	TPM Header
LVDS	1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output	1
Speaker Header	1

Storage

M.2	1 x M.2 (Key M, 2242/2280) with PCIe Gen3 x1 for SSD
SATA	1 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12~28V DC-In
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%
