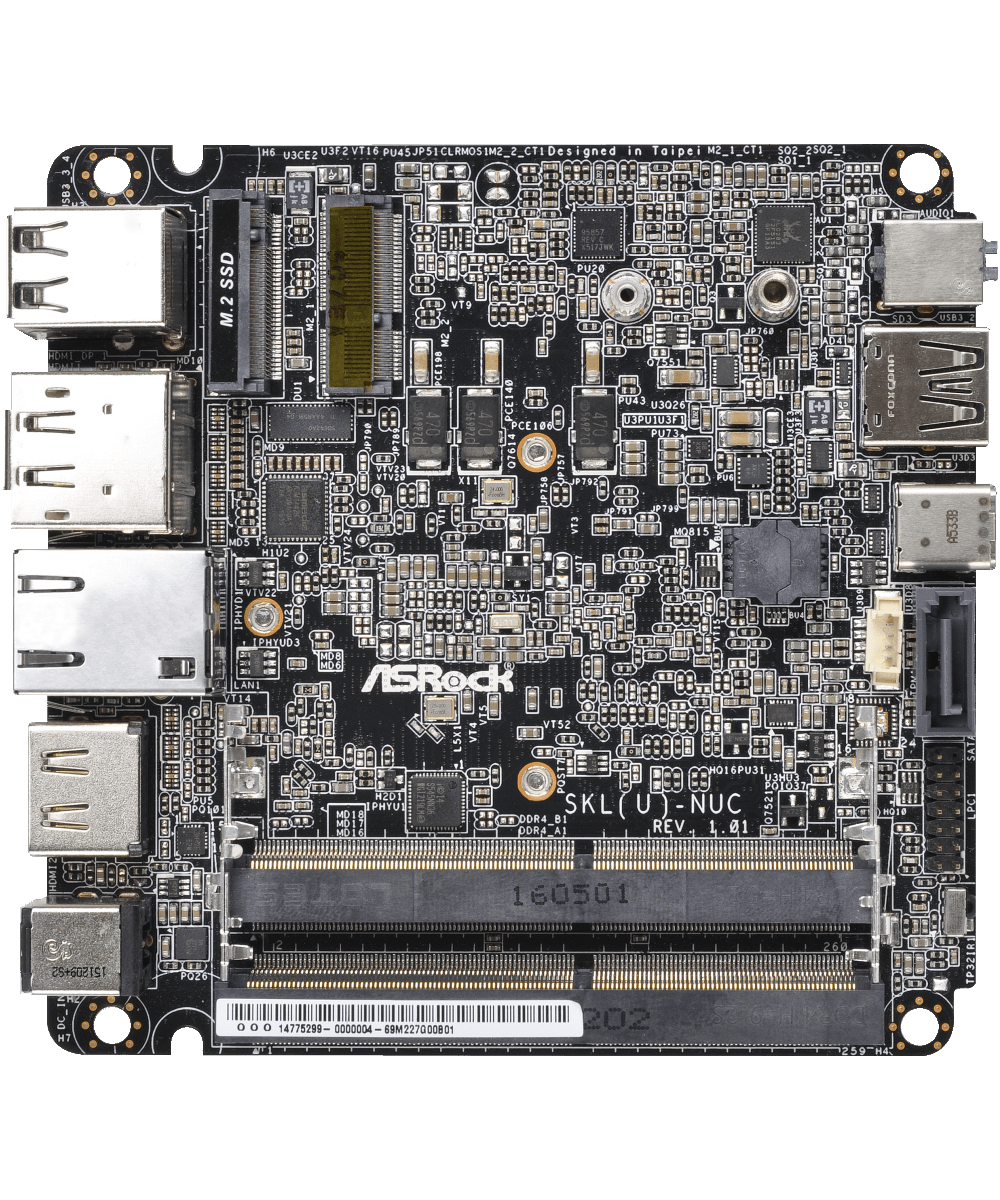

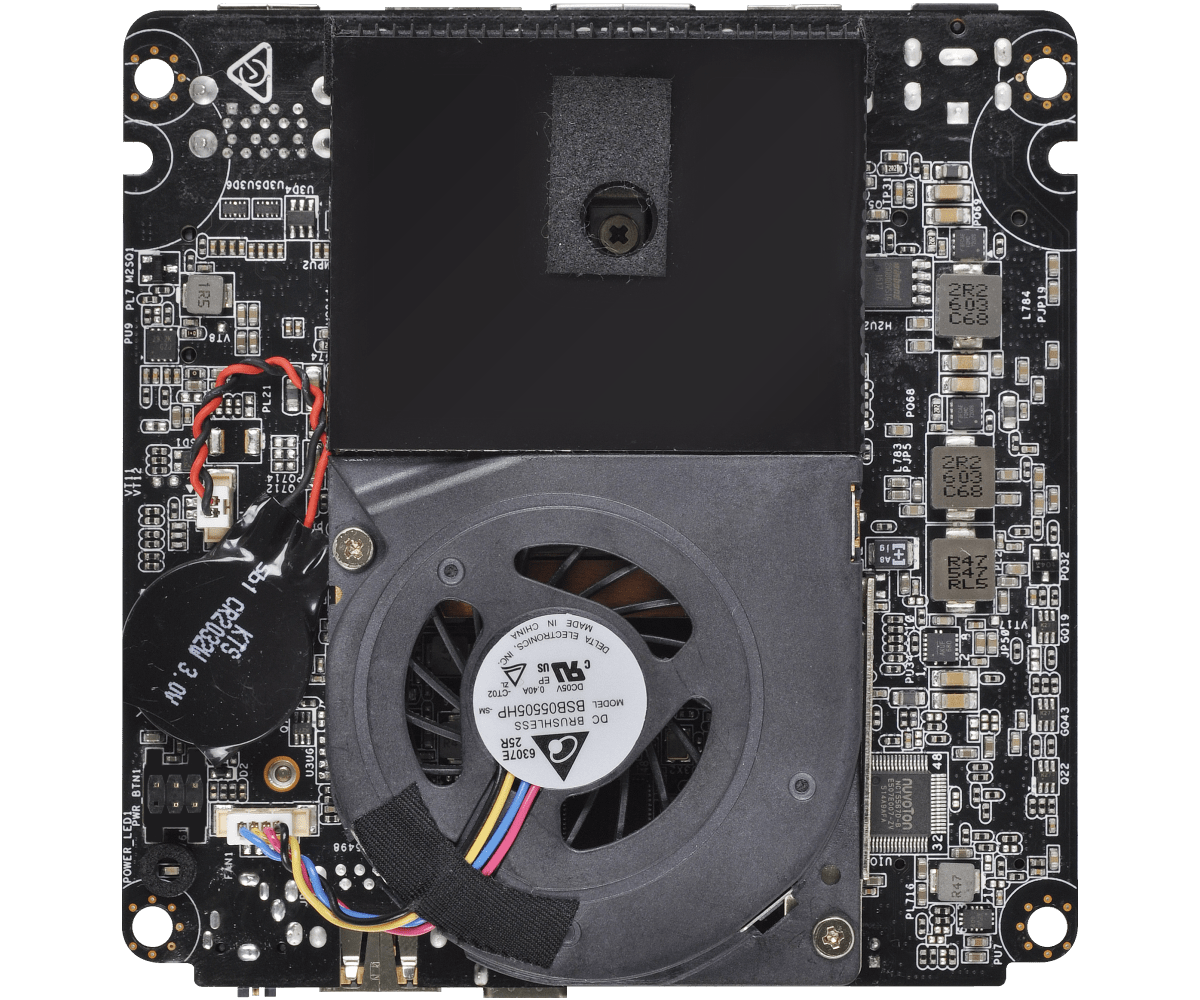

NUC-6300U NUC Motherboard

Processor System

CPU	Intel® 6th Gen (Skylake-U) Core™ MCU Processors i5-6300U, QC, 2.40 GHz, 15W
Chipset	MCP
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	NUC (4.09-in x 4.02-in, 10.4 cm x 10.2 cm)

Memory

Technology	Dual Channel DDR4 2133 MHz
Capacity	32GB (16 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® HD Graphics 520
HDMI	HDMI1: HDMI 2.0 Max resolution up to 4096x2160 @60Hz HDMI2: HDMI 1.4b Max resolution up to 4096x2160 @30Hz
DisplayPort	DisplayPort 1.2a , DP++ Max resolution up to 4096x2160@60Hz
MultiDisplay	Dual Display, supports HDMI 2 + DP or HDMI 1 + HDMI 2

Expansion Slot

M.2	1 x Key E(2230) with PCIe x 1 and USB 2.0 for Wireless

Audio

Interface	Realtek ALC283HD , High Definition Audio. Line-out,Mic-in.

Ethernet

Controller/ Speed	1 x Intel® I219LM with 10/100/1000 Mbps,supports AMT/vPro
Connector	1 x RJ-45

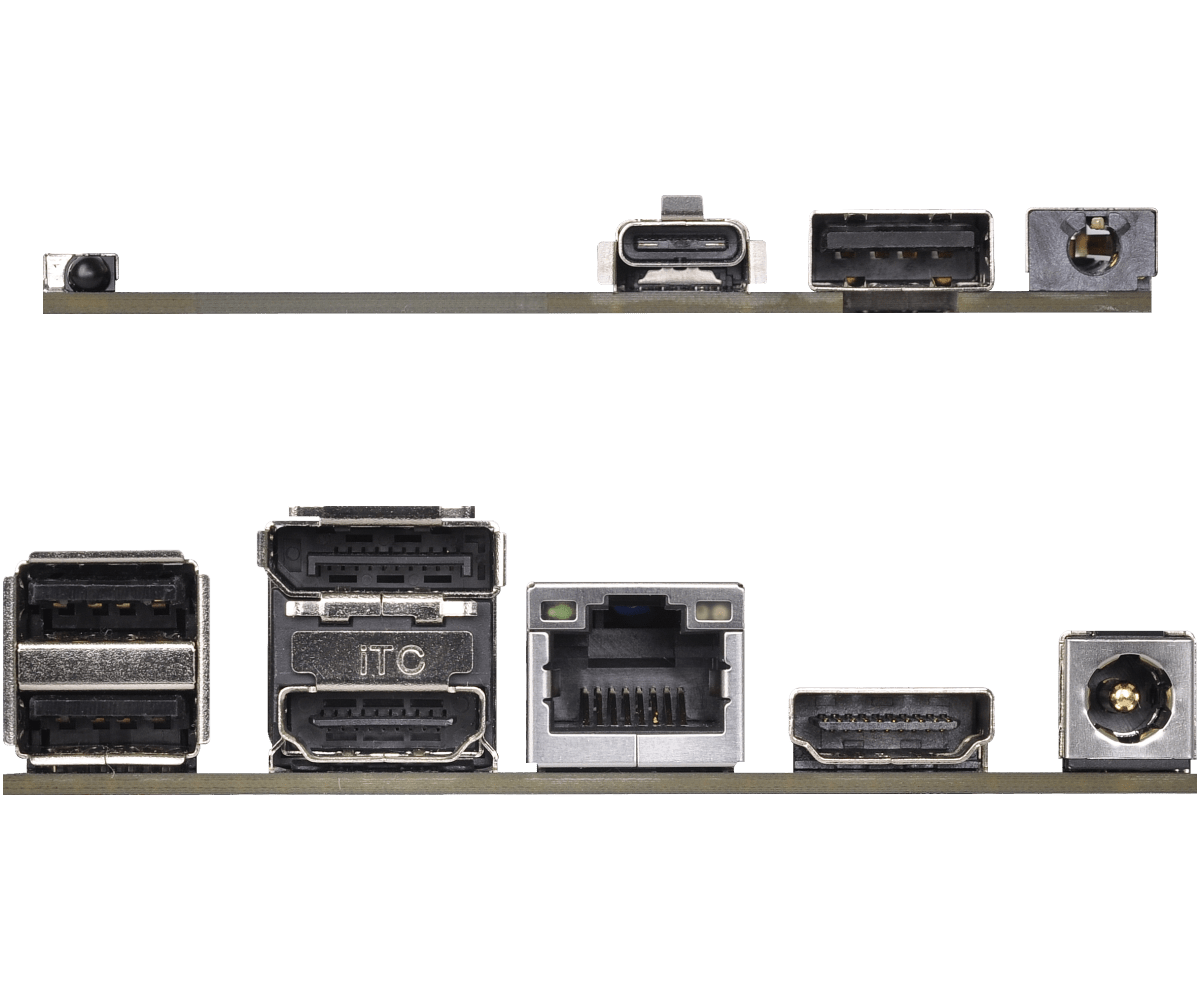

Front I/O

USB	1 x USB3.0 (TypeC) 1 x USB3.0
Audio	1 (Mic-in or Line-out)

Rear I/O

HDMI	1 x HDMI 2.0 + 1 x HDMI 1.4b
DisplayPort	1 x DP1.2a, DP++
Ethernet	1 x Gigabit LAN
USB	2 x USB 3.0
DC Jack	1

Internal Connector

SATA PWR Output	1

Storage

M.2	1 x M.2 ( Key M.2 2260/2280) with PCIE x 4 and SATA3
SATA	1 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	19V DC-in(DC Jack)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Others

Longivity Support	No

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
