Processor System
| CPU |
Intel® Twin Lake Processors

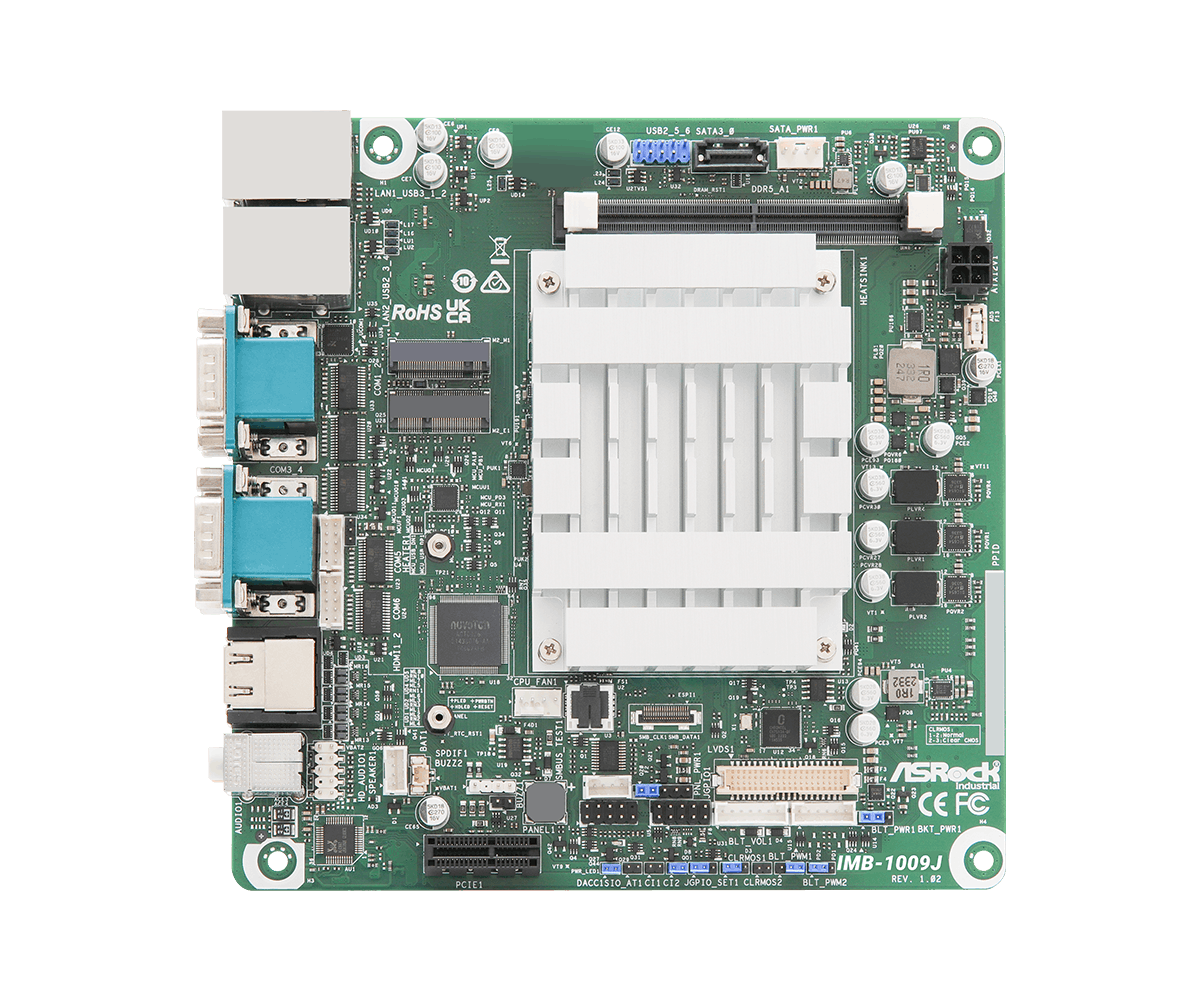

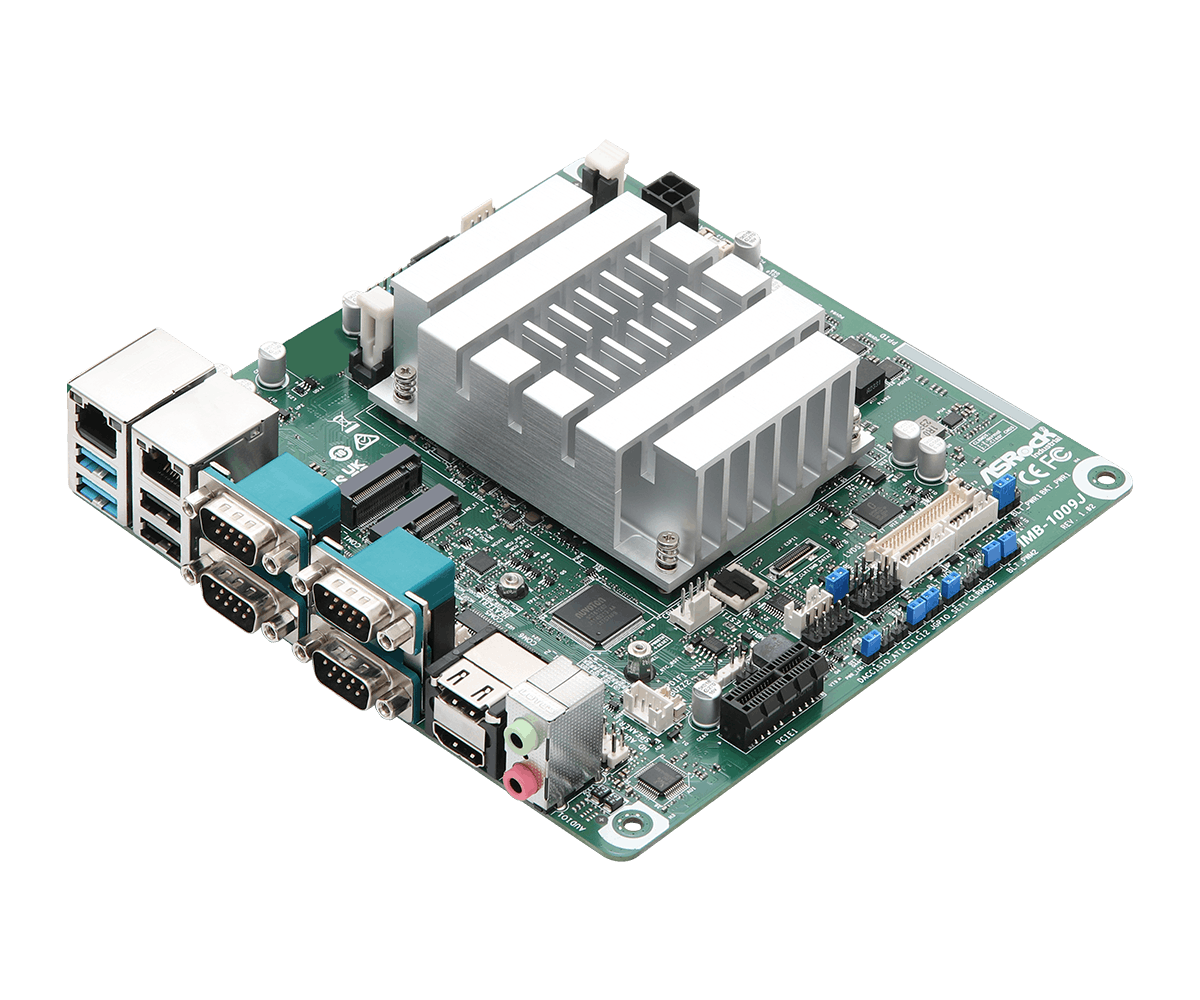

IMB-1009J (N150, QC, Max Speed Up to 3.6GHz, 6W) |
| BIOS |
AMI SPI 256 Mbit |
Form Factor
| Dimensions |
Mini-ITX (6.7-in x 6.7-in x 1.6-in, 17.0 cm x 17.0 cm x 4.0 cm) |
Memory
| Technology |
Single Channel DDR5 4800 MHz |
| Capacity |
32GB |
| Socket |
1 x 262-pin SO-DIMM |
Graphics
| Controller |
Intel® UHD Graphics |
| HDMI |
HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz |
| LVDS |
Dual channel 24 bit up to 1920 x 1200@60Hz
(Connector shared with eDP) |
| eDP |
Max resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS) |
| MultiDisplay |
Triple display |
Expansion Slot
| PCIe |
1 x PCIe x1 (Gen3) |
| M.2 |
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless |
Audio
| Interface |
Realtek ALC897 HD, High Definition Audio.Mic-in, Line-out |
Ethernet
| Controller/ Speed |
LAN1: Realtek RTL8111H with 10/100/1000 Mbps
LAN2: Realtek RTL8111H with 10/100/1000 Mbps |
| Connector |
2 x RJ-45 |
Rear I/O
| HDMI |
2 x HDMI 2.0b |
| Ethernet |
2 x 1 Gigabit LAN |
| USB |
2 x USB 3.2 Gen2
2 x USB 2.0 |
| Audio |
2 (Mic-In, Line-Out) |
| COM |
COM1 (RS-232/422/485)
COM2, COM3, COM4 (RS-232) |
Internal Connector
| USB |
2 x USB 2.0 (1 x 2.54 pitch header) |
| COM |
COM5, COM6 (RS-232) |
| GPIO |
4 x GPI, 4 x GPO |
| LVDS |
1 (Connector with LVDS/eDP signal, switch by BIOS) |
| SATA PWR Output |
1 |
| Speaker Header |
1 |
Security
Storage
| M.2 |
1 x M.2 (Key M, 2242/2280) with PCIe Gen3 x1 or SATA3 for SSD |
| SATA |
1 x SATA3 (6Gb/s) |
Watchdog Timer
| Output |
From Super I/O to drag RESETCON# |
| Interval |
256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR |
12V DC-In with 4-pin plug PWR cable |
| Power On |
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp |
-20ºC ~ 70ºC |
| Storage Temp |
-40° C ~ 85° C |
| Operating Humidity |
5% ~ 90% |
| Storage Humidity |
5% ~ 90% |
