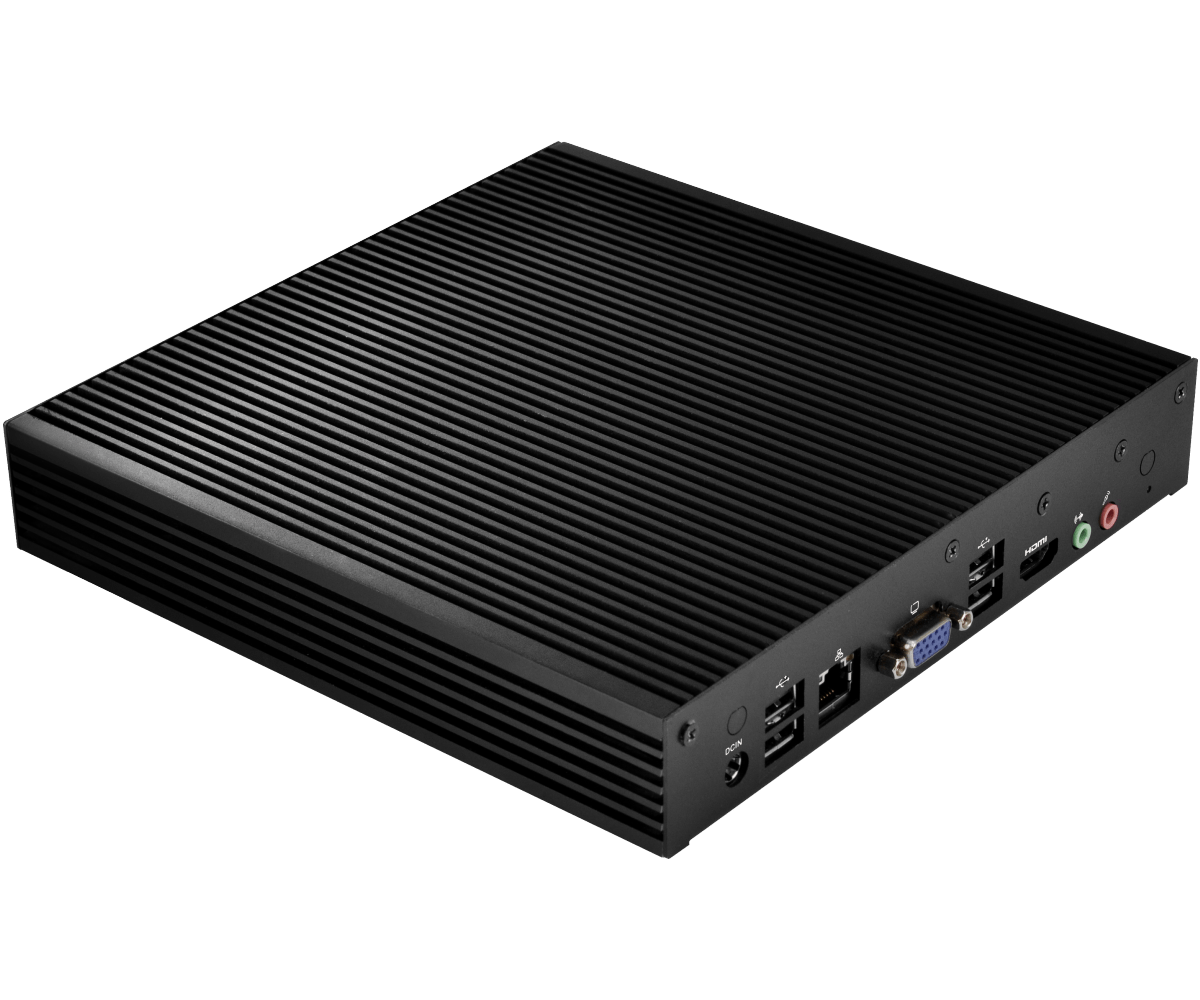

iBOX-280 Fanless Embedded BOX PC

Processor System

BIOS	AMI SPI 64 Mbit
Chipset	Intel NM10
CPU	Intel Cedarview Atom N2800 Dual core 1.86GHz TDP 6.5W

Form Factor

Dimensions	200 x 200 x 35mm (WxDxH)

Memory

Socket	2 x 204-pin SO-DIMM
Capacity	8 GB (4GB per DIMM)
Technology	Dual Channel DDR3L 1066 MHz

Graphics

Controller	Intel GMA3650

Expansion Slot

mini-PCIe/mSATA	1 x Full size (Supports PCIe x1 and USB 2.0, shared with m-SATA)
mini-PCIe	1 x Full/ Half size(Supports PCIe x1 and USB 2.0)

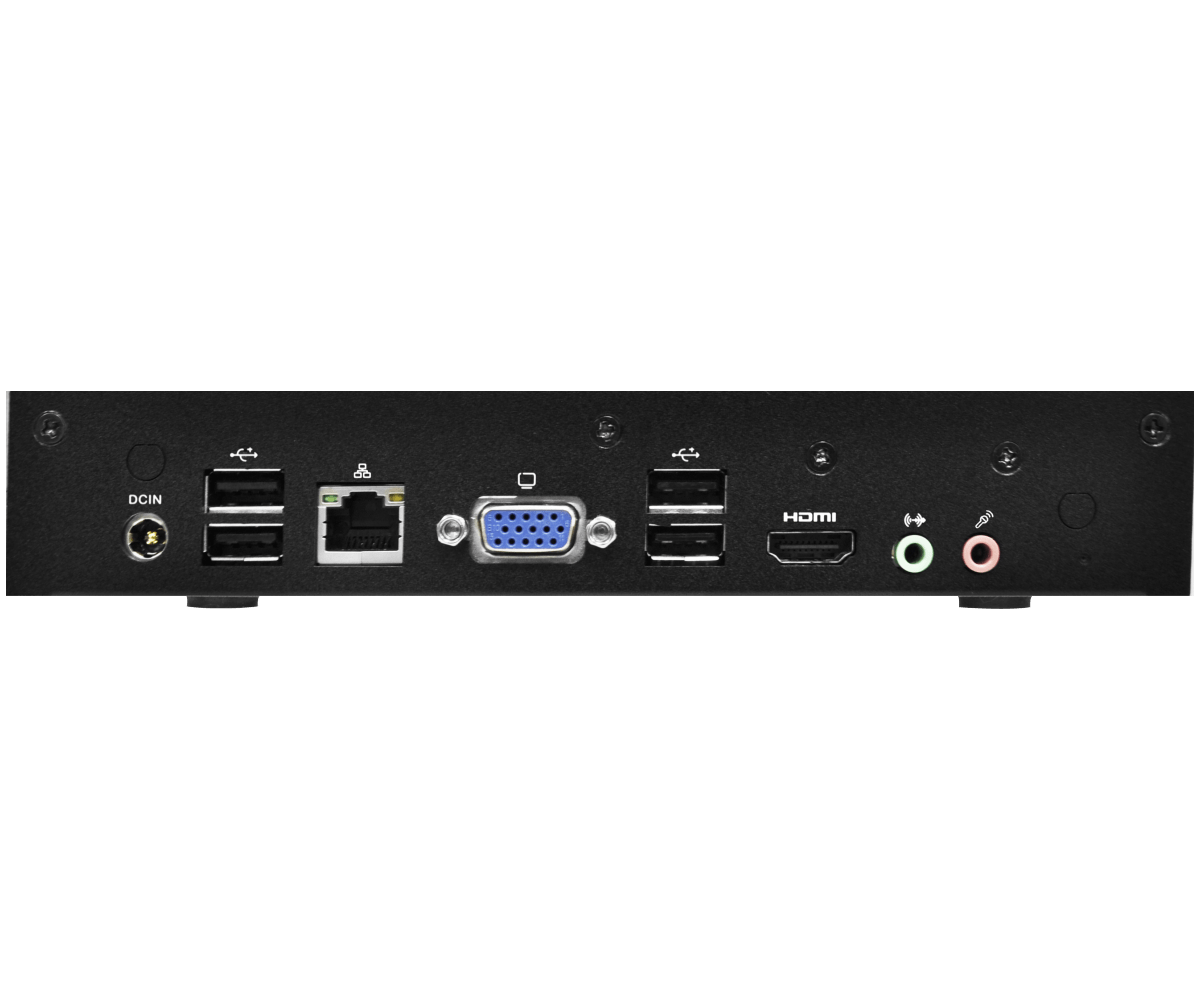

Rear I/O

HDMI	1
DC Jack	1
Audio	Mic-in/ Line out
USB	6 x USB 2.0
VGA	1

Watchdog Timer

Interval	256 Segments, 0, 1, 2, ...255sec
Output	From Super I/O to drag RESETCON#

Environment

Storage Humidity	10% ~ 90%
Operating Humidity	10% ~ 90%
Storage Temp	-40° C – 85° C
Operating Temp	0ºC ~ 50ºC

Mechanical

Weight	Net Weight:1.8kg
Dimensions (L x W x H)	200 x 200 x 35mm
Mounting	VESA mounting bracket
Construction	Aluminum housing

Others

Certifications	CE, FCC Class A
OS Support	Windows 7 / Linux

上記製品は事前通知がないまま仕様変更する可能性はあります。製品のブランドと製品名は商標としてアスロックインダストリアルが所有、ユザー側より製品の既存仕様に対して変更を行われた場合弊社側一切保証を付けません。
