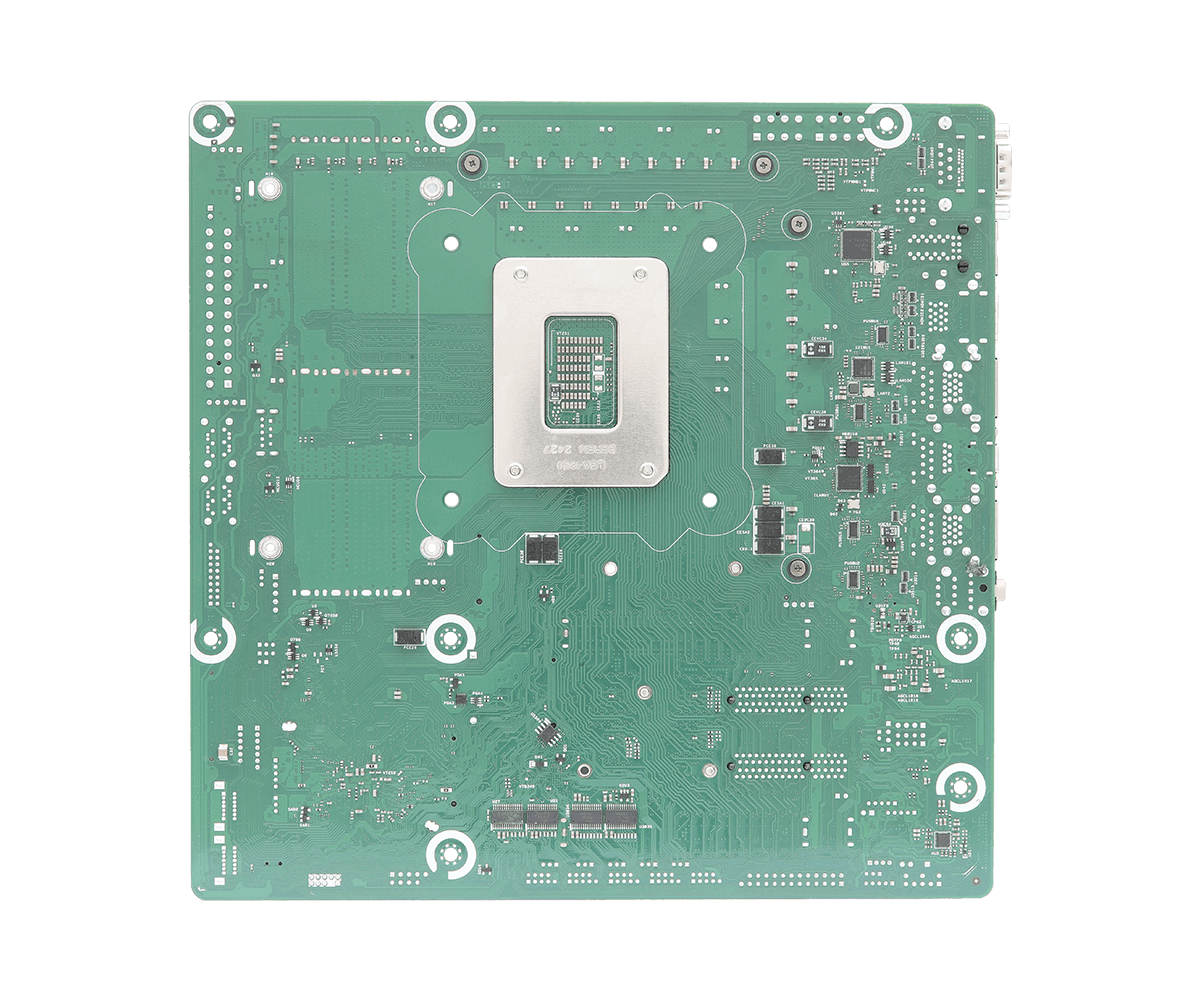

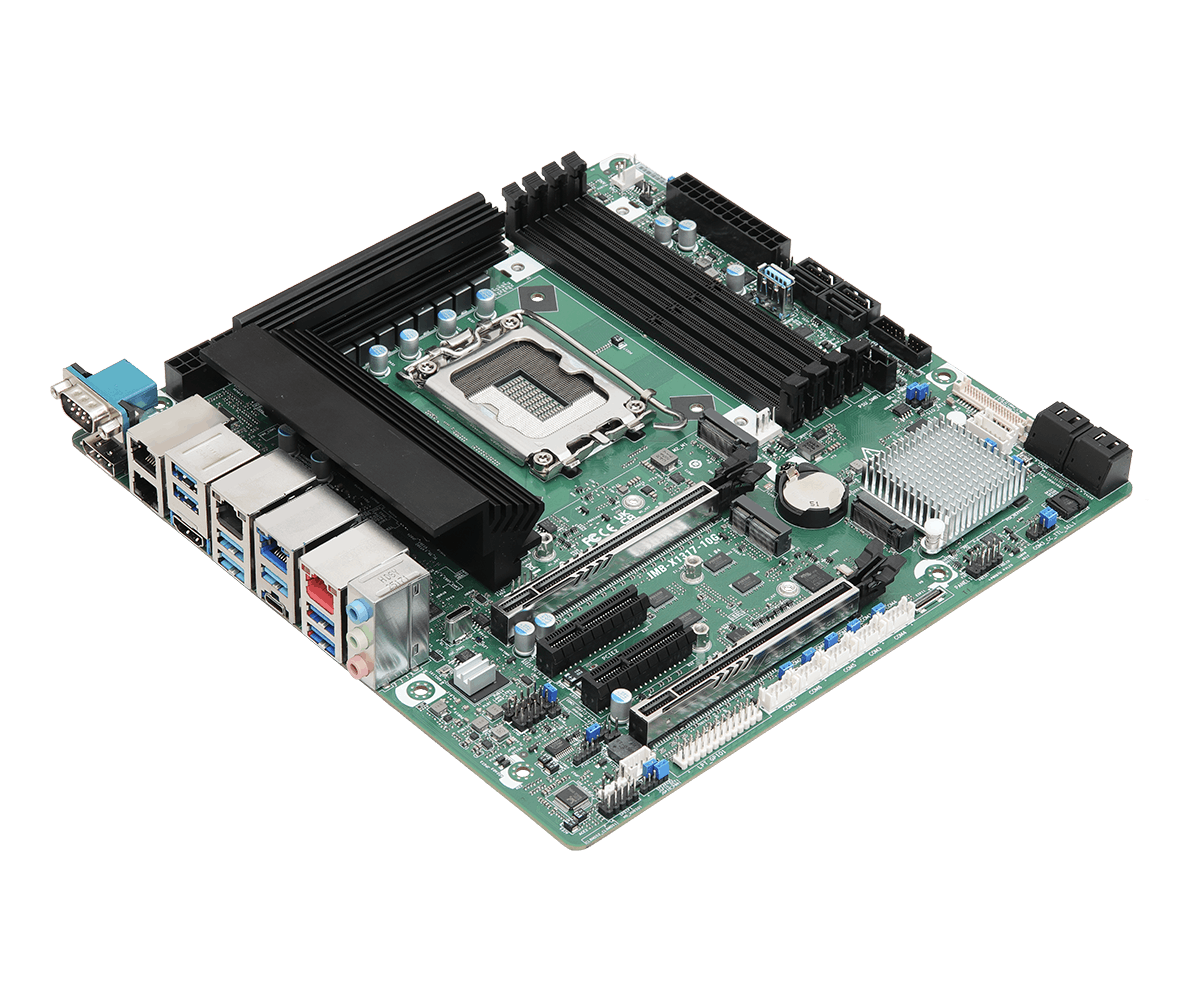

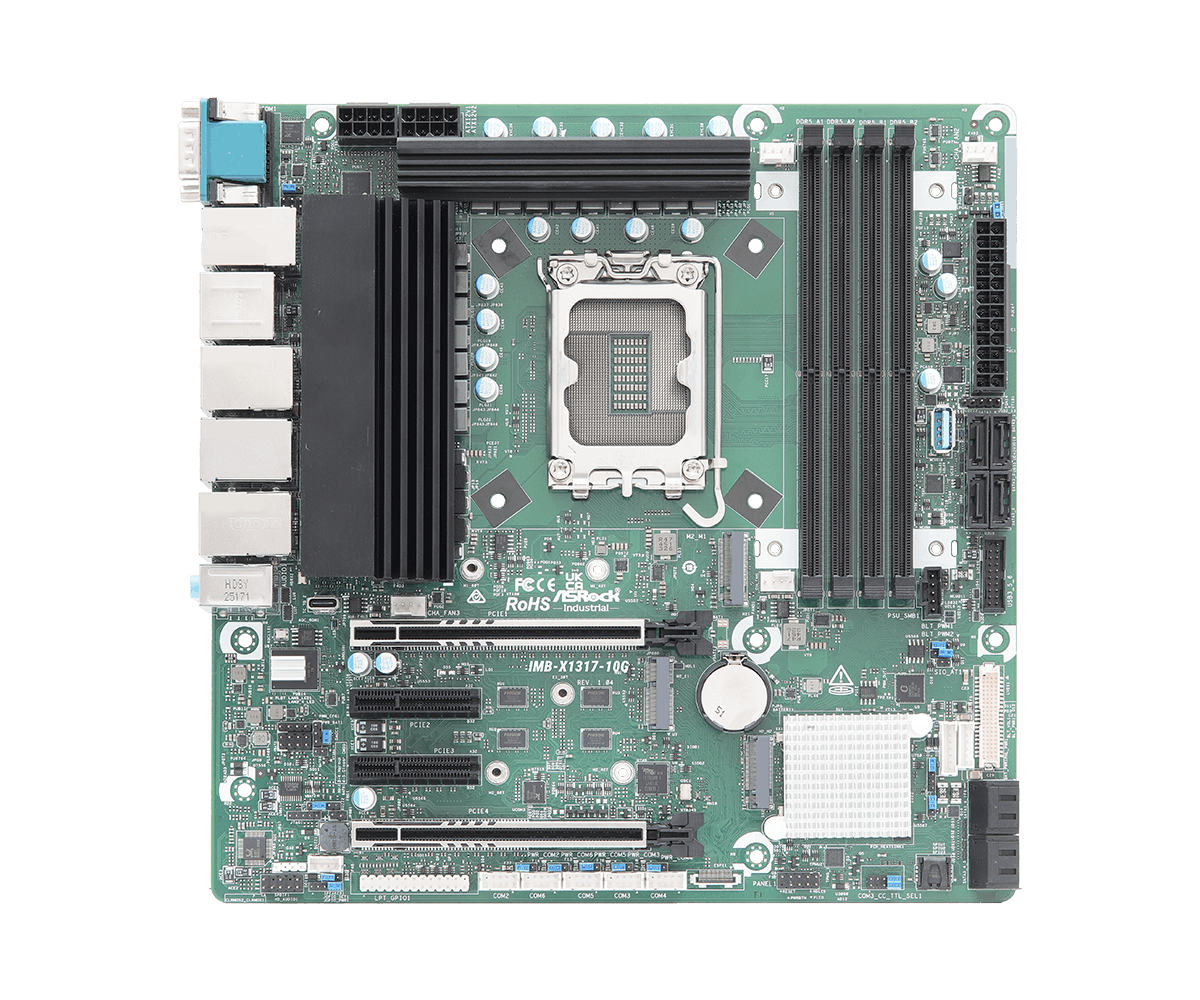

IMB-X1317-10G Micro ATX Motherboard

  • Intel® Core™ Ultra processors (Arrow Lake-S) with W880 chipset
  • 4 x 288-pin ECC/non-ECC CU-DIMM DDR5 6400 MHz, U-DIMM DDR5 5600 MHz , up to 192GB (48GB per DIMM)
  • 1 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), 2 x PCIe x4 (Gen4)
  • 2 x USB4/Thunderbolt™4, 9 x USB 3.2 Gen2, 1 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 6 x COM, 8 x SATA3
  • 3 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN, 1 x Marvell 10 Gigabit LAN
  • Supports Quad display, 1 x HDMI 2.1 TMDS, 2 x DP 2.1 (2 from Type C), 1 x DP 1.4a, 1 x LVDS or eDP
  • TPM 2.0 onboard IC
  • Supports Intel® vPro, VMD RAID 0/1/5/10
  • ATX Power (24+8+8-pin)
Datasheet
Specification

Processor System

CPU Intel® Core™ Ultra processors (Arrow Lake-S), up to 125W
Chipset Intel® W880
Socket LGA1851
BIOS AMI SPI 256 Mbit

Form Factor

Dimensions Micro-ATX (9.6-in x 9.6-in x 1.81-in, 24.4 cm x 24.4 cm x 4.61 cm)

Memory

Technology Dual Channel ECC/non-ECC DDR5 6400/5600 MHz
Capacity 192GB (48GB per DIMM)
Socket 4 x 288-pin Long-DIMM

Graphics

Controller Intel® Xᵉ LPG Graphics
HDMI HDMI 2.1 TMDS
Max resolution up to 7680x4320@60Hz
DisplayPort DisplayPort 2.1/1.4a, DP++
Max resolution up to 4096x2160@60Hz
LVDS Dual channel 24 bit up to 1920 x 1200@60Hz
(Connector shared with eDP)
eDP Max resolution up to 1920 x 1200@60Hz
(Connector shared with LVDS)
MultiDisplay Quad display (Included 2 output from Type-C)

Expansion Slot

PCIe 2 x PCIe Gen5 Slots (PCIE1/PCIE4:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE4)) (PCIE1: Support Riser card x8/x8)
2 x PCIe x4 (Gen4)
M.2 1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless

Audio

Interface Realtek ALC897 HD, High Definition Audio. Line-In, Line-Out, Mic-In

Ethernet

Controller/ Speed LAN1: Intel® I210AT with 10/100/1000 Mbps
LAN2: Intel® I210AT with 10/100/1000 Mbps
LAN1: Intel® I219LM with 10/100/1000 Mbps, supports vPro
LAN2: Intel® I226V with 10/100/1000/2500 Mbps
LAN5: Marvell AQC113 with 10/100/1000/2500/5000/10000 Mbps
Connector 5 x RJ-45

Rear I/O

HDMI 1 x HDMI 2.1 TMDS
DisplayPort 1 x DP 1.4a++
Ethernet 3 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN
1 x 10 Gigabit LAN
USB 7 x USB 3.2 Gen2
1 x USB4/Thunderbolt™4 (5V/3A, supports DP 2.1 display output)
* For Thunderbolt support, please refer to support list.
Audio 3 (Line-In/Line-Out/Mic-In)
Serial Port COM1 (RS-232/422/485)

Internal Connector

USB 1 x USB 2.0 (1 x 2.00 pitch header)
2 x USB 3.2 Gen2 vertical Con
1 x USB4/Thunderbolt™4 vertical con. (5V/3A, supports DP 2.1 display output)
* For Thunderbolt support, please refer to support list.
COM COM2 (RS-232/422/485)
COM3 (RS-232/TTL 5V/ccTalk) (Switch by Jumper setting)
COM4, COM5, COM6 (RS-232)
Parallel 1 (shared with GPIO)
GPIO 8 x GPI, 8 x GPO (shared with LPT header)
LVDS 1 (Connector with LVDS/eDP signal, switch by BIOS)
Speaker Header 1
Thunderbolt header 1

Security

TPM TPM 2.0 onboard IC

Storage

M.2 1 x M.2 (Key M, 2242/2280) with PCIe Gen5 x4 for SSD
1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
SATA 8 x SATA3 (6Gb/s)
RAID Intel® VMD RAID 0/1/5/10
**supported by identical interface (PCIE or SATA)
PCIE interface: 2 x M.2 Key M
SATA interface: SATA port

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX PWR (24+8+8-pin)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp -20ºC ~ 70ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 2 x SATA Cable (14G00010107DAK)
1 x I/O Shield (13G02P083000AK )
3 x SCREW M3*2.5 (13G02P072010AK)
Bulk Package 1 x I/O Shield (13G02P083000AK )
3 x SCREW M3*2.5 (13G02P072010AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description Information OS Date Download
Description [Beta] Realtek high definition audio driver ver:9780 Information

Size: 50 MiB
Version: 9780
SHA1: 53AF77D6D3566949CF00B49DCE29B243C3DCA8E5
Filename:Realtek_Audio(v9780).zip

OS Win 10 x 64 Date 2025-04-22 Download
Description [Beta] Intel I210AT/I219LM/I226V Lan driver ver: v29.5 Information

Size: 29 MiB
Version: 29.1
SHA1: 5F7E12B8AD18E9A39849F2B91E0FD5D4A3C01C65
Filename:Intel_Lan(v29.1)

OS Win 11 x 64 , Win 10 x 64 Date 2025-04-22 Download
Description [Beta] NPU driver ver: 32.0.100.2540 Information

Size: 242Mib
Version: 32.0.100.2540
SHA1: B361075DE79DE5D4869227B5D4DCE90EC348CEEB
Filename: npudrive(v32.0.100.2540).zip
Release Note


OS Win 11 x 64 Date 2025-04-22 Download
Description [Beta] VGA driver ver: 32.0.101.5866 Information

Size: 1052 MiB
Version: 32.0.101.5866
SHA1: 9EDEFD665414356B944B558462680A47B3983DAF
Filename:VGA(v32.0.101.5866)

OS Win 11 x 64 Date 2025-04-22 Download
Description [Beta] Intel Management Engine driver ver:2425.6.26.0 Information

Size: 712 MiB
Version: 2425.6.26.0
SHA1: 44EA58797D8E925AE724E5DA7F8E183E3BBFC150
Filename:ME(v2425.6.26.0_CORP)

OS Win 11 x 64 Date 2025-04-22 Download
Description [Beta] Realtek high definition audio driver ver:9700.1_UAD_WHQL Information

Size: 49MiB
Version: v9700.1_UAD_WHQL
SHA1: 2C1B7F1D5069BBA51BE42758E00C4CA60BAB3FFB
Filename:Realtek_Audio(v9700.1_UAD_WHQL).zip
Release Note

OS Win 11 x 64 Date 2025-04-22 Download
Description [Beta] Intel Thunderbolt driver ver:92 Information

Size: 245 MiB
Version:Rev92
SHA1: 077C92C0137AF470683EB99EC3513BC84D347A94
Filename:Thunderbolt(Rev92).zip
Release Note


OS Win 10 x 64 Date 2025-04-22 Download
Description [Beta] SST driver ver:20.40.11112.16 Information

**Install after VGA driver

Size: 236 Mib
Version: 20.40.11112.16
SHA1: 0184A3F7744FFF14DF0170229AD9CE706C8A2A7A
Filename: Intel_SST(v20.40.11112.16).zip
Release Note

OS Win 10 x 64 Date 2025-04-22 Download
Description [Beta] PMT ver: 3.1.2.6c Information

Size: 2394Kib
Version: 3.1.2.6
SHA1: CB29A584170D1E8452D9E963A54D486BD1A49A27
Filename: PMT(v3.1.2.6).zip
Release Note

OS Win 11 x 64 , Win 10 x 64 Date 2025-04-22 Download
Description [Beta] COM Port driver ver:220211 Information

Size: 3101Kib
Version:v220211
SHA1: F1C906453C4F522D577757C87B0E0DDB5288DEA8
Filename:COM(v220211).zip

OS Win 11 x 64 , Win 10 x 64 Date 2025-04-22 Download
Description [Beta] Intel Serial IO driver ver:30.100.2419.23 Information

Size: 1877Kib
Version: 30.100.2419.23
SHA1: 8B4028E04D3CA5E97C4AADAC213C1FB5216C1CDA
Filename: SerialIO(v30.100.2419.23).zip
Release Note

OS Win 11 x 64 , Win 10 x 64 Date 2025-04-22 Download
Description [Beta] GNA ver: 03.05.00.1574 Information

Size: 1235 KiB
Version: 3.5.0.1578
SHA1: D1F1C2D63803811B4DA738ADB45F55410BA6A2B5
Filename: GNA(v3.5.0.1578).zip
Release Note

OS Win 11 x 64 , Win 10 x 64 Date 2025-04-22 Download
Description [Beta] Intel HID Event Filter ver:2.2.2.10 Information

Size: 3164Kib
Version: 2.2.2.10
SHA1: 68C2C9B4B42074A2D08CB2B360580B2E950887E4
Filename: Intel_HID_Event_Filter_ver(v2.2.2.10).zip
Release Note

OS Win 11 x 64 , Win 10 x 64 Date 2025-04-22 Download
Description [Beta] Intel Rapid Storage Technology driver and utility ver:20.1.0.1015.1 Information

Size: 7107Kib
Version: 20.1.0.1015.1
SHA1: 7EDE04371C23BF0DDAE0F373164375E788D69DD0
Filename: RapidStorage(v20.1.0.1015.1).zip
Release Note

OS Win 11 x 64 , Win 10 x 64 Date 2025-04-22 Download
Description [Beta] VGA driver ver: 32.0.101.5586 Information

Size: 1026Mib
Version: 32.0.101.5586
SHA1: 7B33D448C0BBAF904154AFEA5859F18D45F49C17
Filename: Intel_VGA(v32.0.101.5586).zip
Release Note


OS Win 10 x 64 Date 2025-04-22 Download
Description [Beta] Intel Management Engine driver ver:2423.6.23.0 Information

Size: 1189Mib
Version: 2423.6.23.0_Corporate
SHA1: 1886705E77E3240C7F0F73688859CDC09772716B
Filename: ME(v2423.6.23.0_Corporate).zip
Release Note


OS Win 10 x 64 Date 2025-04-22 Download
Description [Beta] Intel WLAN Driver ver:23.60.1.2 Information

Size: 79Mib
Version: 23.60.1.2
SHA1: 1397A1B81881883E252C66FBBCF93CF427460F83
Filename: Intel_WLAN(v23.60.1.2).zip
Release Note


OS Win 10 x 64 Date 2025-04-22 Download
Description [Beta] Marvell Lan driver ver:v3.1.7 Information

Size: 769Kib
Version: 3.1.7
SHA1: 1666B8BD5FEF7D1FFA89B887270217DB0D88E7E0
Filename:AQC113_LAN (v3.1.7).zip
Release Note

OS Win 11 x 64 , Win 10 x 64 Date 2025-04-22 Download
Description [Beta] Bluetooth driver ver:23.60.0.1 Information

Size: 49Mib
Version: 23.60.0.1
SHA1: 70EBCB3FC0CA2A8796DFFF68F904B9B572C9F91B
Filename: Intel_Bluetooth(v23.60.0.1).zip
Release Note

OS Win 10 x 64 Date 2025-04-22 Download
Description [Beta] INF driver ver:10.1.19759.8548 Information

Size: 3168Kib
Version:10.1.19759.8548
SHA1:D844CC7EE24C98852164FC63BF2CD410D3DCC901
Filename:INF(v10.1.19759.8548).zip
Release Note

OS Win 10 x 64 Date 2025-04-22 Download
Description [Beta] Intel WLAN Driver ver:23.70.0.6G Information

Size: 79 MiB
Version: 23.70.0.6G
SHA1: D4E76B77DCA32D80CE1996E35F60F8830659D622
Filename: Intel_WLAN(v23.70.0.6G).zip
Release Note

OS Win 11 x 64 Date 2025-04-22 Download
Description [Beta] Bluetooth driver ver:23.70.0.2G Information

Size: 49 MiB
Version: 23.70.0.2G
SHA1: 977BF8B6C8810A7F7EF7D47854702D4B3CAEC33F
Filename: Intel_Bluetooth(v23.70.0.2G).zip
Release Note

OS Win 11 x 64 Date 2025-04-22 Download
Description [Beta] INF driver ver:10.1.19913.8607-Public-Client Information

Size: 7218 KiB
Version:INF(v10.1.19913.8607-Public-Client)
SHA1:BC21194471FA608F4951090DCFD1DADD6CE0926C
Filename:INF(v10.1.19913.8607-Public-Client).zip
Release Note

OS Win 11 x 64 Date 2025-04-22 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description Jumpers and headers setting guide Language English Date 2025-03-27 Download
