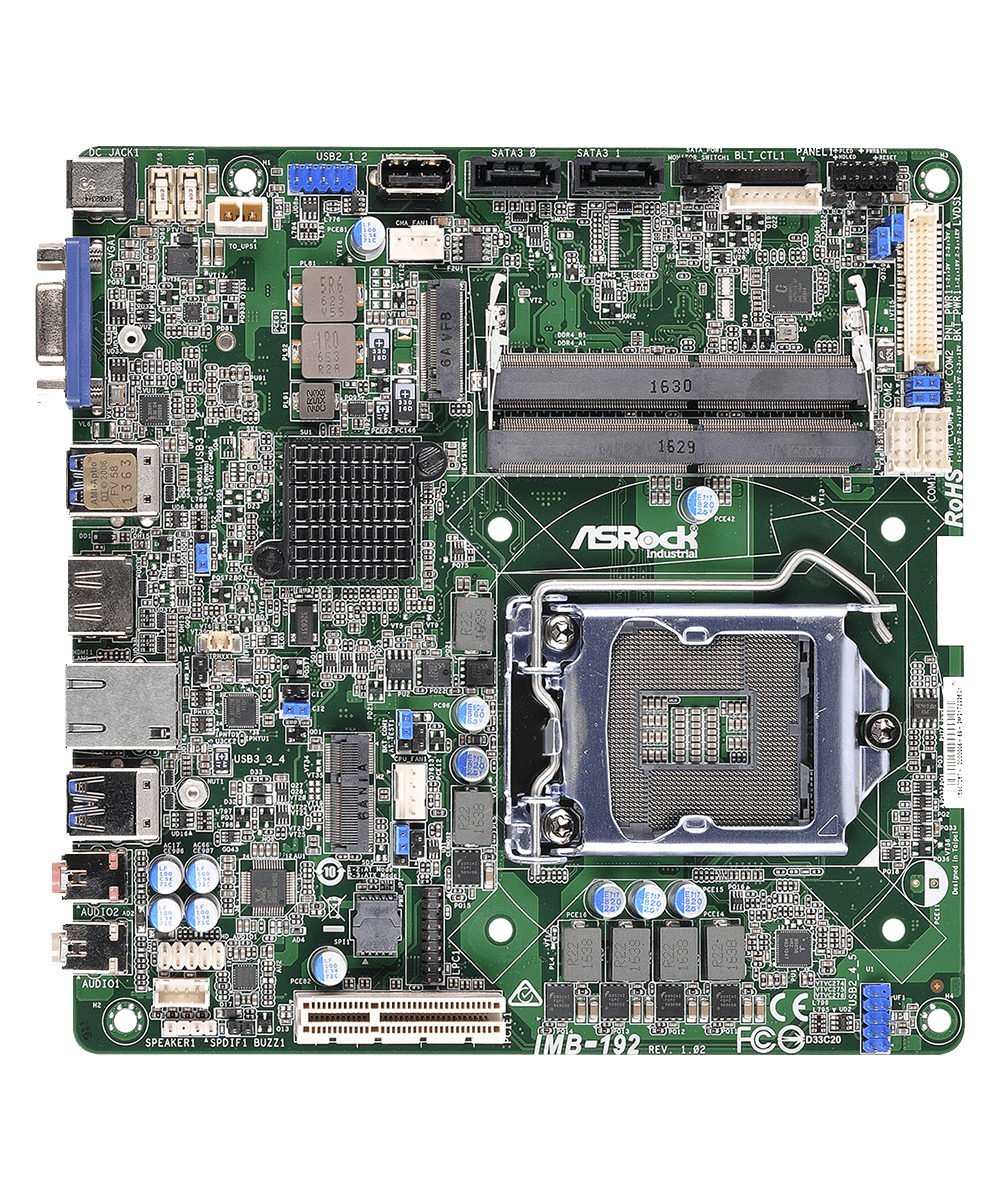

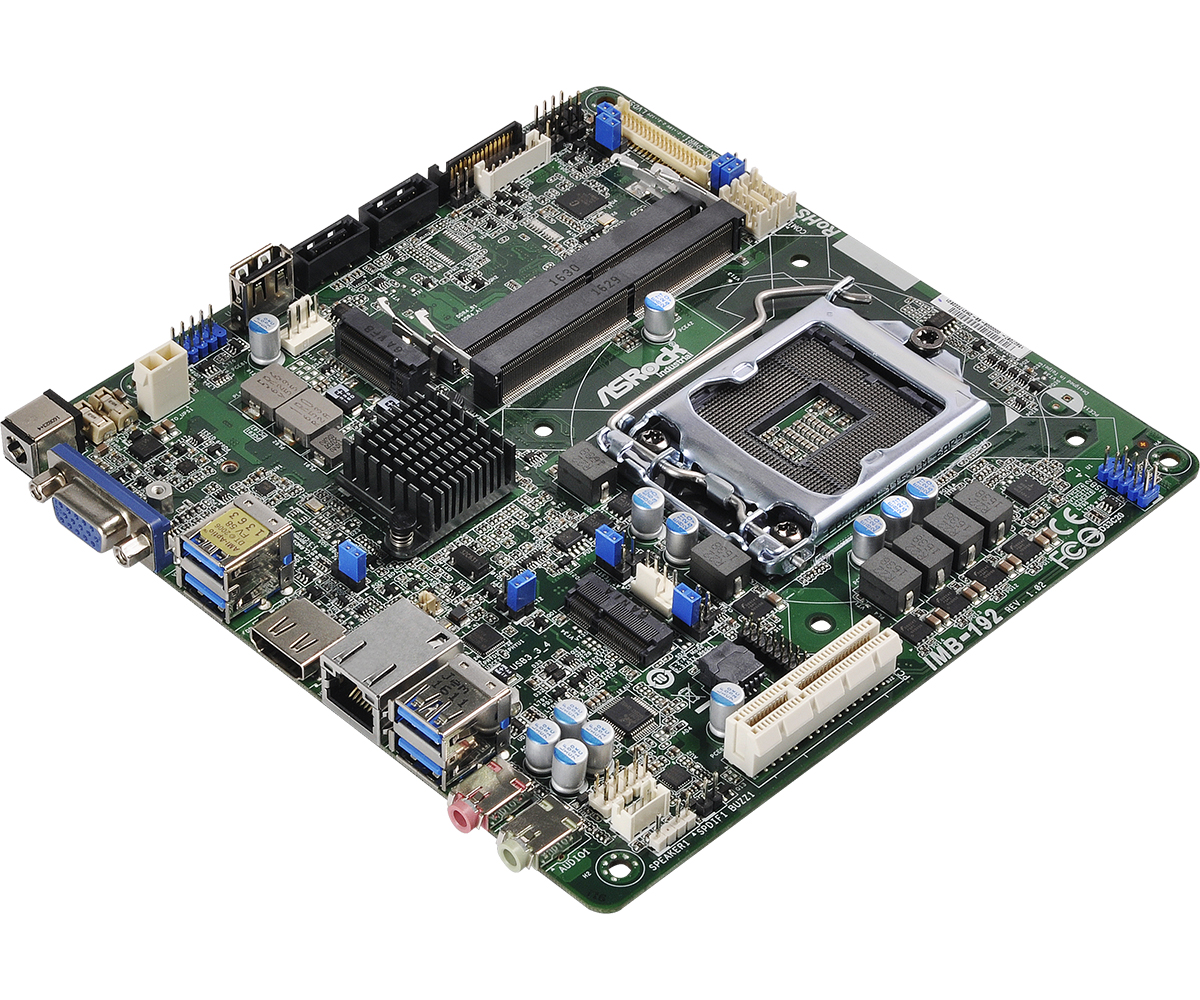

IMB-192 Mini-ITX Motherboard

Processor System

CPU	Supports Intel® 7th / 6th Gen (Kabylake-S / Skylake-S) Core™ Processors
Chipset	Intel® H110
Socket	LGA1151

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

Technology	Dual Channel DDR4 2133 MHz
Capacity	32 GB
Socket	2 x SO-DIMM

Graphics

Controller	Intel® Gen9 Intel® Graphics DX 11 / 12, OGL 4.3 / 4.4
HDMI	Supports max resolution up to 4K x 2K (4096 x 2160) @ 24Hz / (3840 x 2160) @ 30Hz
VGA	Supports max resolution up to 1920 x 1200 @ 60Hz
LVDS	Supports max resolution up to 1920 x 1200@60Hz
eDP	Supports max resolution up to 4096 x 2160 @60Hz
MultiDisplay	Dual Display

Expansion Slot

PCIe	1 x PCIe x4
M.2	1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless 1 x M.2 (Key M, 2242 / 2260) with SATA3 for SSD

Ethernet

Controller/ Speed	LAN1: Intel® I219V with 10/100/1000 Mbps
Connector	1 x RJ-45

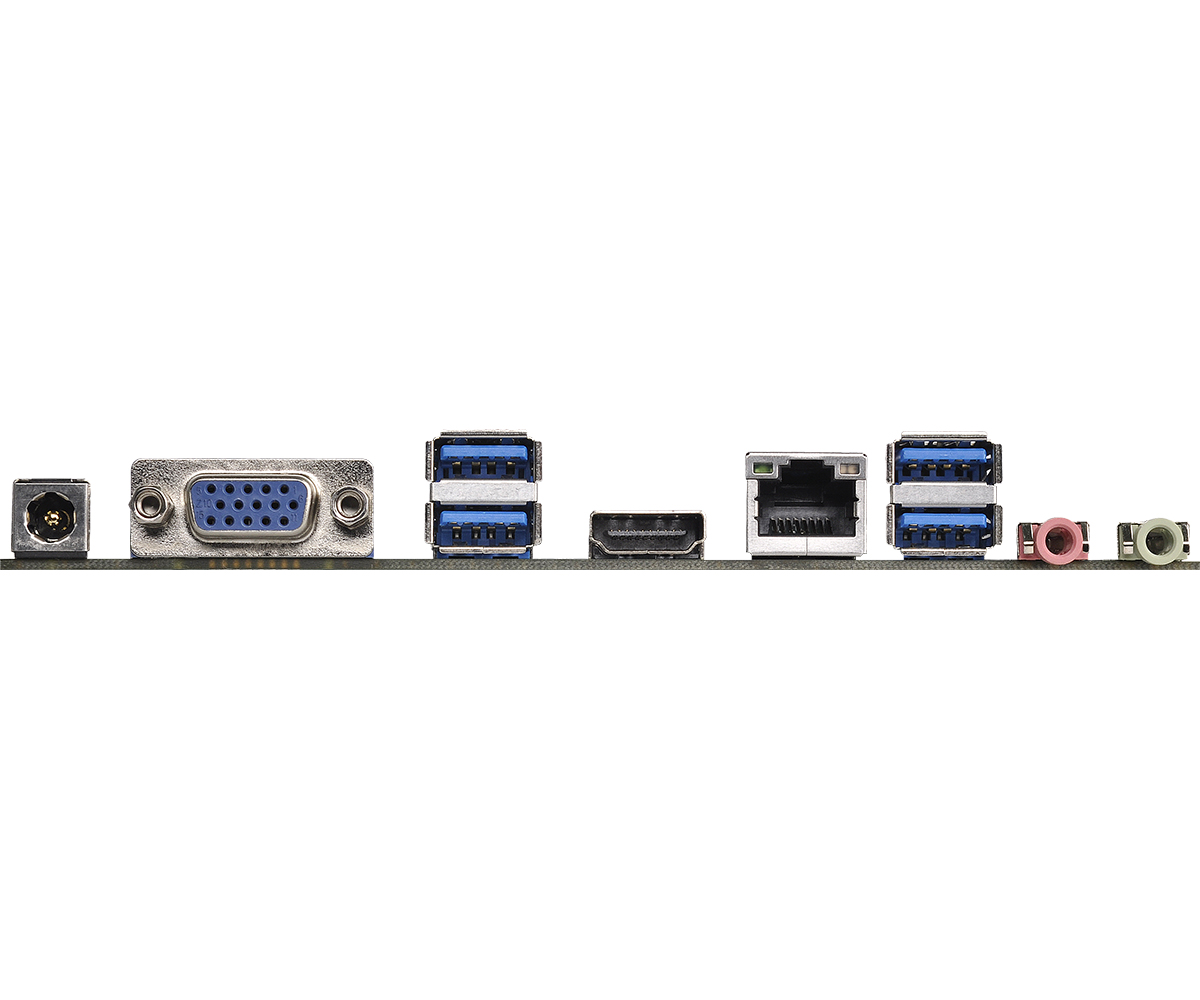

Rear I/O

HDMI	1
Ethernet	1
USB	4 x USB 3.0
Audio	2 (Mic-in, Line-out)
VGA	1
DC Jack	1

Internal Connector

USB	5 x USB 2.0 (2 x Header, 1 x Type A)
COM	2 x COM (RS-232)
TPM	TPM Header
LVDS	1
SATA PWR Output	1
Speaker Header	1

Storage

SATA	2 x SATA3 (6.0Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	19V phone jack DC-In
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW M2,D=5.3 (13G020302010AK) 1 x I/O Shield (13G020313000AK) 1 x I/O Shield THIN (13G020313010AK) 2 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	2 x SCREW M2,D=5.3 (13G020302010AK) 1 x I/O Shield (13G020313000AK) 1 x I/O Shield THIN (13G020313010AK)

上記製品は事前通知がないまま仕様変更する可能性はあります。製品のブランドと製品名は商標としてアスロックインダストリアルが所有、ユザー側より製品の既存仕様に対して変更を行われた場合弊社側一切保証を付けません。
