IMB-183 Mini-ITX Motherboard

Processor System

CPU	Supports Intel® 4th Gen (Haswell-S) Core™ Processors
Chipset	Intel® H81

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in)

Memory

Technology	Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
Capacity	16GB
Socket	2 x SO-DIMM

Graphics

Controller	Intel HD Graphics (By CPU)
HDMI	Supports max resolution up to 4096 x 2304
VGA	Internal header (share with DVI)
LVDS	1
MultiDisplay	Dual Display
DVI	Supports max resolution 1920 x 1200

Expansion Slot

PCIe	1 x PCIe x4
mini-PCIe	1 x Half size (Supports USB device)

Ethernet

Controller/ Speed	Intel® I217V with 10/100/1000 Mbps
Connector	1 x RJ-45

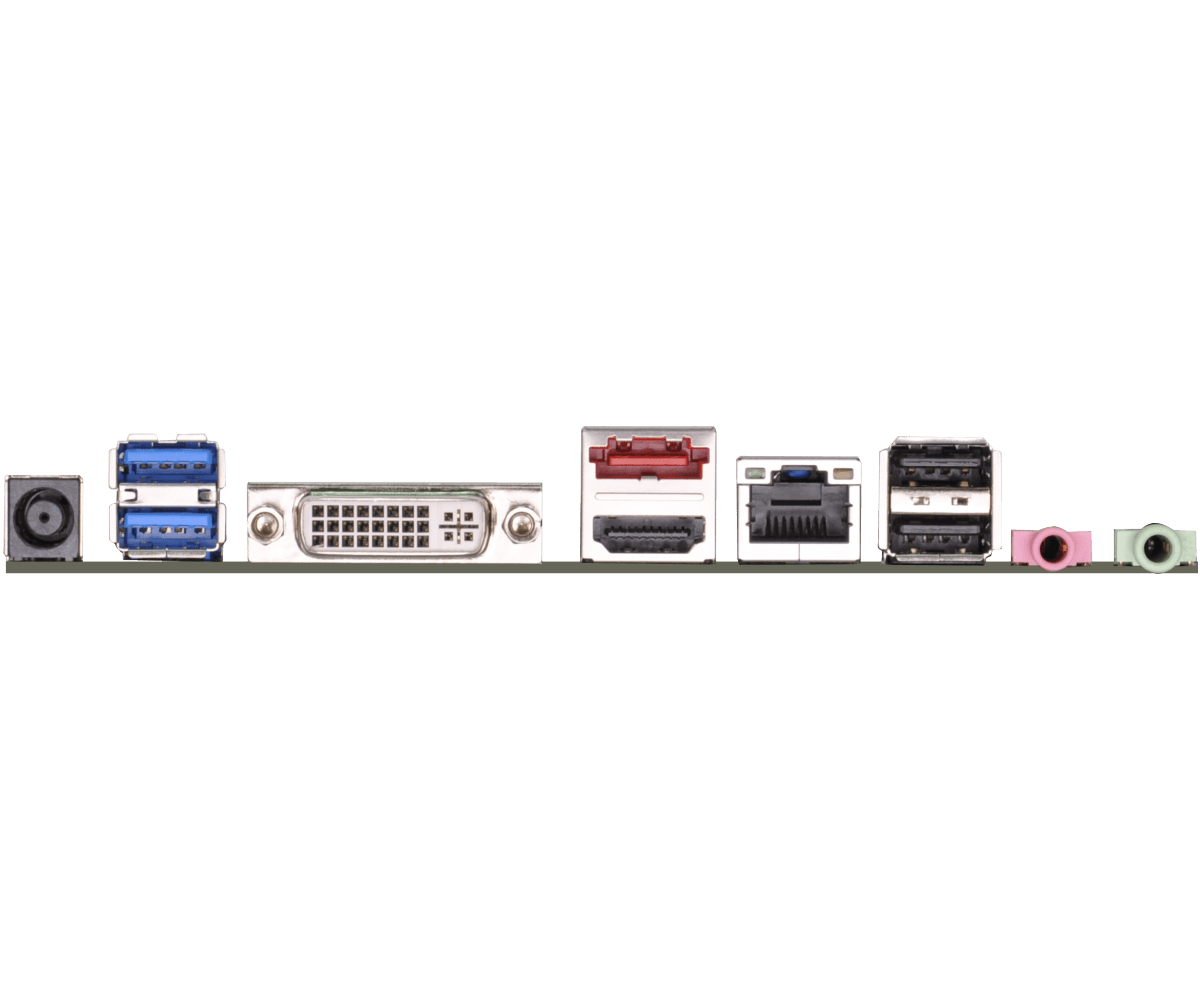

Rear I/O

HDMI	1
Ethernet	1
USB	2 x USB 3.0, 2 x USB2.0
Audio	2 (Mic-in, Line-out)
DVI	1 (DVI-I)
DC Jack	1

Internal Connector

USB	4 x USB 2.0
COM	3 x COM (RS-232), 1 x COM (RS-232/422/485)
GPIO	4 x GPI, 4 x GPO
LVDS	1
SATA PWR Output	1
VGA	1
Speaker Header	1

Storage

SATA	2 x SATA3 (6.0Gb/s)
mSATA	1 x Full size with SATA3 and USB 2.0

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	DC 12-19 input
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020217000AK) 1 x I/O Shield THIN (13G020216000AK) 2 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000102150AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020217000AK) 1 x I/O Shield THIN (13G020216000AK)
